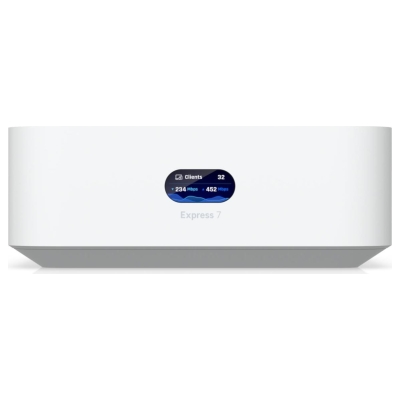

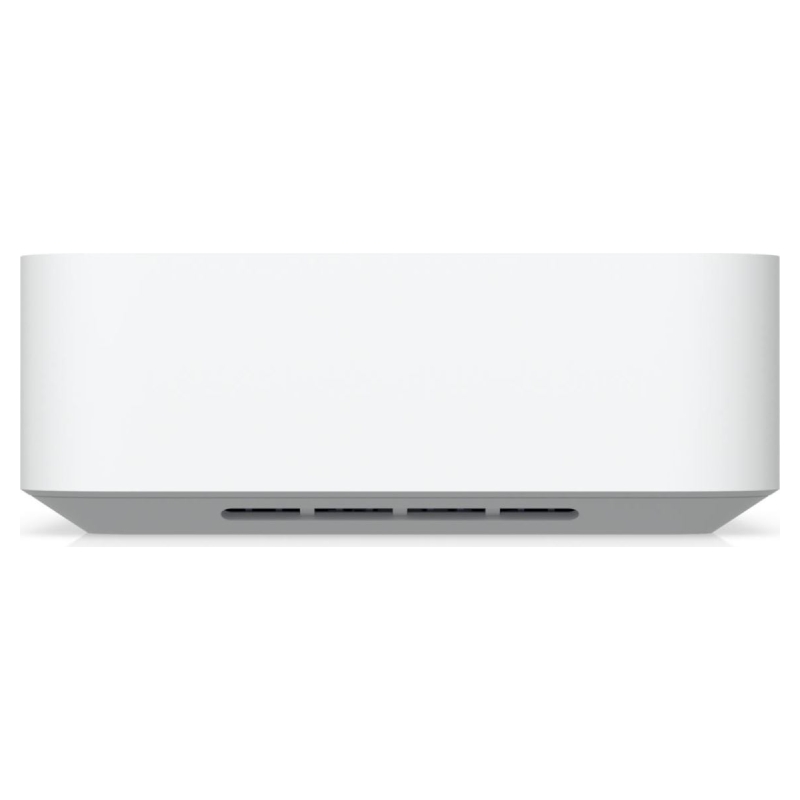

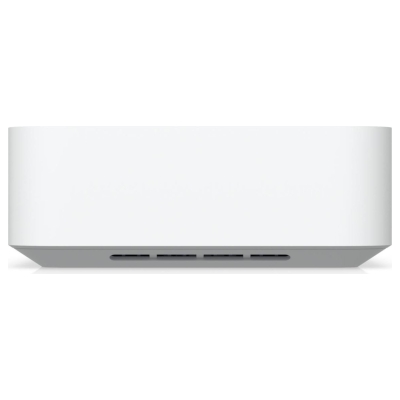

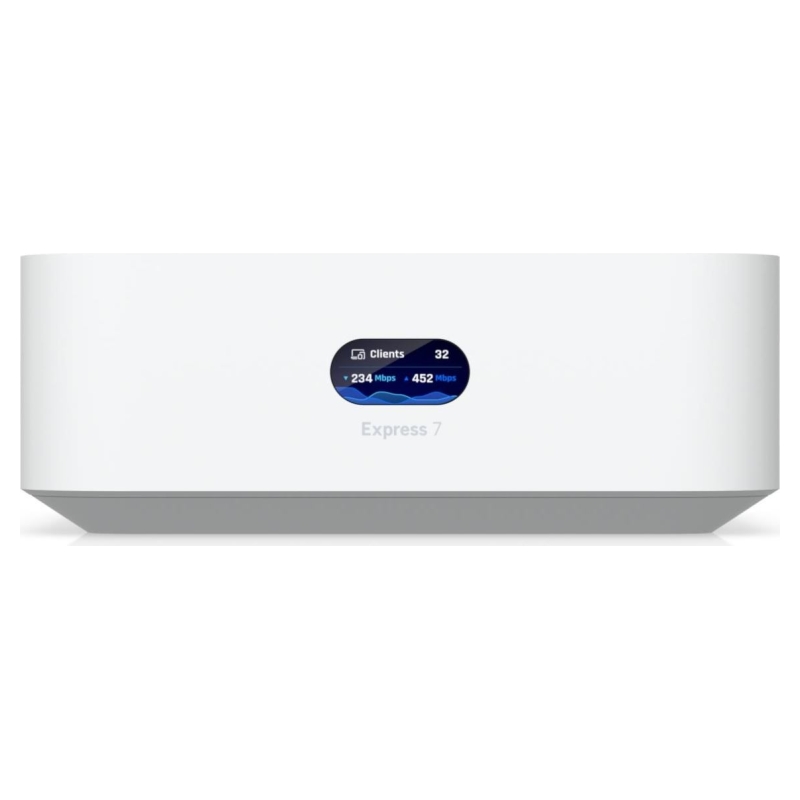

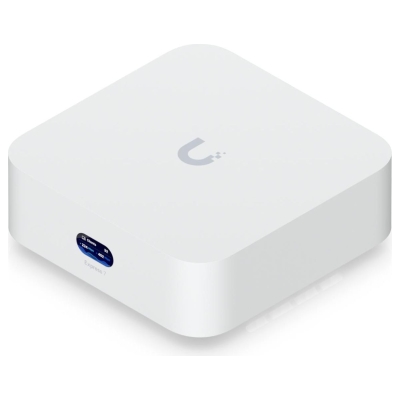

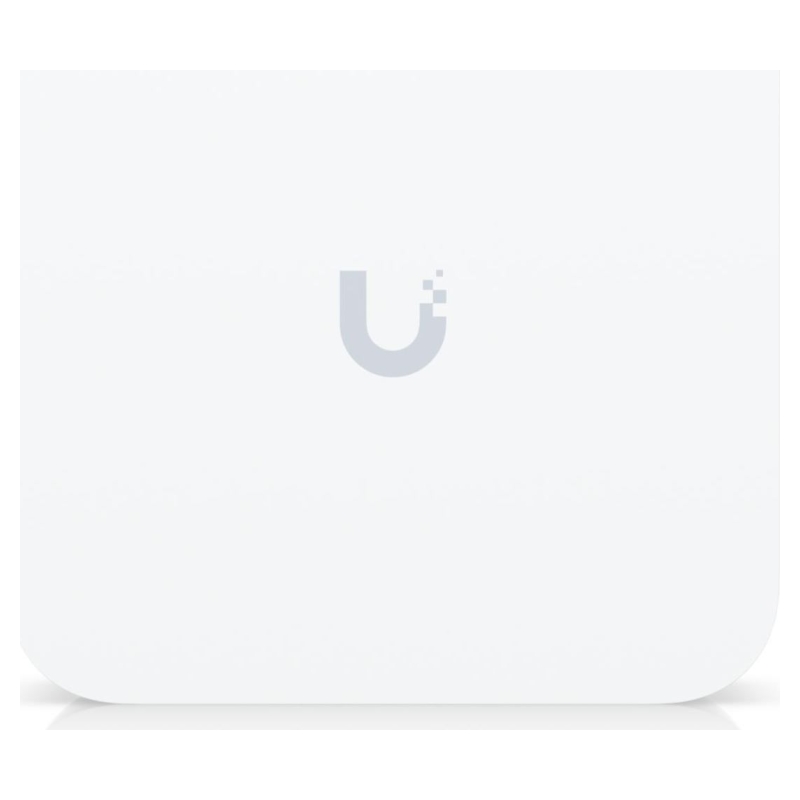

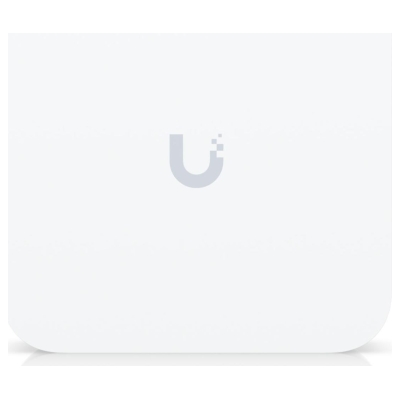

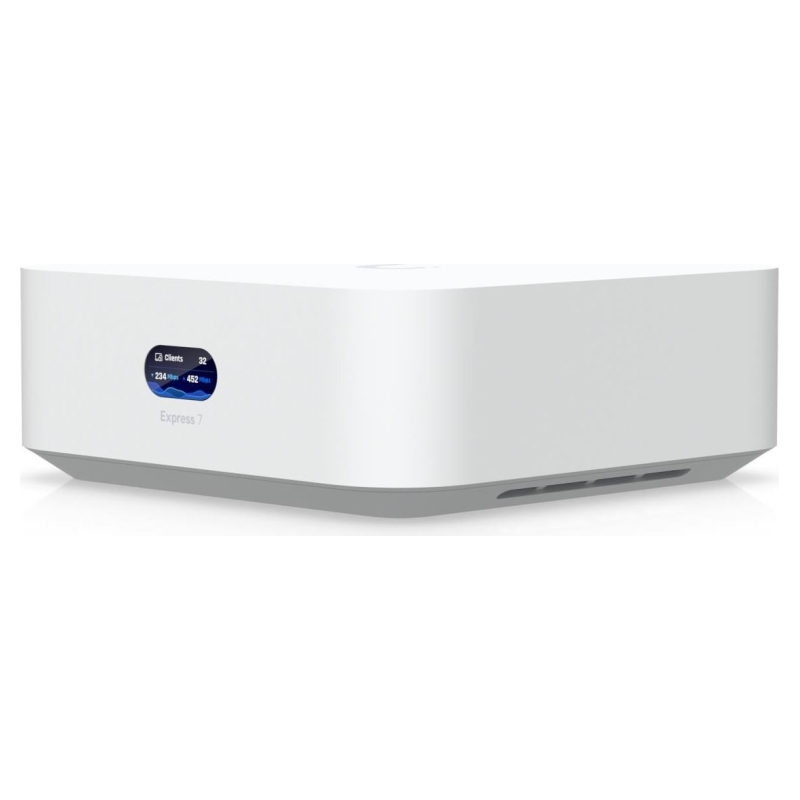

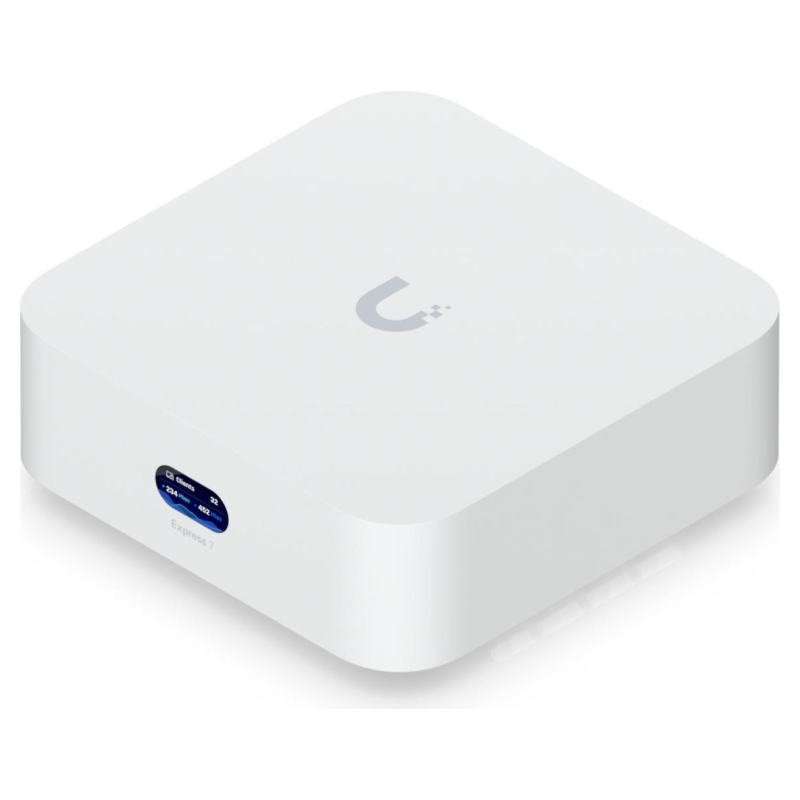

Ubiquiti UniFi Express 7 Gateway/kontroler UX7

€234.39
Tax included
Quantity
Add to wishlist

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.



Manufacturer Website:
https://eu.store.ui.com/eu/en/category/cloud-gateways-wifi-integrated/products/ux7

Category Code
GWC
CnCode
85176200
Unit Box Height
0.091
Unit Box Length
0.181
Unit Box Width
0.205
Enclosure material
Polycarbonate (PC)
LED indicators
Status
Product colour
White
Antenna gain level (max)
6 dBi
Antenna type
Internal
Antennas quantity
4
Built-in processor
Yes
Control display unit
Yes
Display type
LCM
Internal memory
3000 MB
Number of processors installed
1
Processor family
ARM Cortex
Processor frequency
1500 MHz
Processor manufacturer
ARM
Processor model
Cortex-A53
DHCP server
Yes
Routing protocols
OSPF
Bluetooth
Yes
Data transfer rate
5.7 Gbit/s
Ethernet LAN data rates
10/100/1000/10000/2500 Mbit/s
Frequency band
2.4, 5, 6 GHz
Load balancing
Yes
Networking standards
IEEE 802.1Q
Wi-Fi
Yes
Wireless connection
Yes
WLAN data transfer rates supported
1/11/12/18/2/24/300/36/48/5.5/54/6/6.5/9 Mbit/s
Firewall security
Yes
Security algorithms
802.1x RADIUS/IPSec/PPSK/TLS/WPA/WPA2/WPA3/WPA-Enterprise/WPA-PSK
VLAN support
Yes

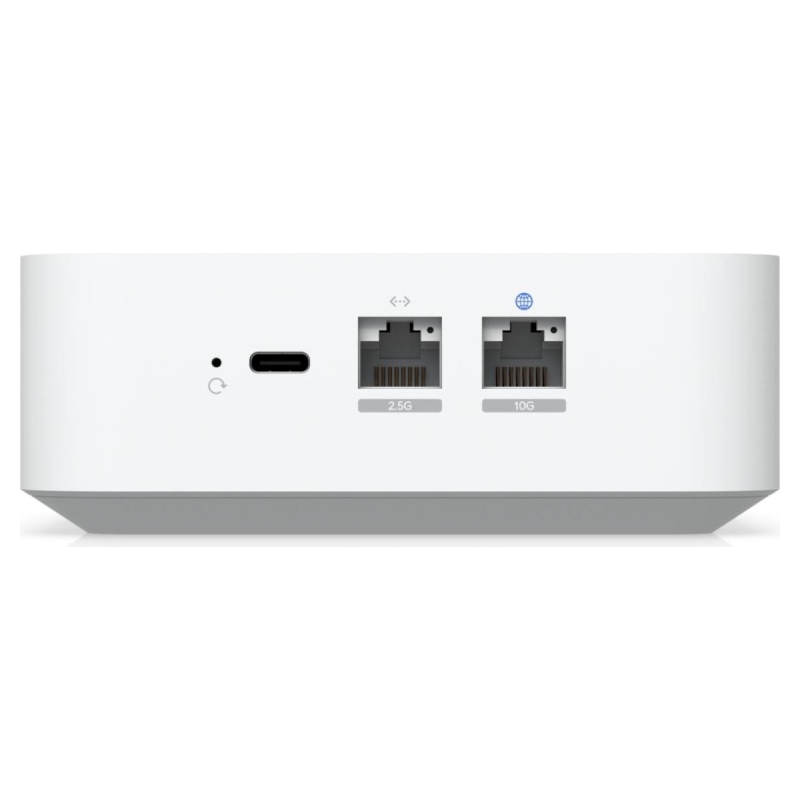

Ethernet LAN (RJ-45) ports
2
WAN connection
Ethernet (RJ-45)
Multicast support
Yes
Quality of Service (QoS) support
Yes
Reset button
Yes
Electromagnetic (EMP) protection
Yes
Electromagnetic (EMP) protection (air)
8 kV
Electromagnetic (EMP) protection (contact)
4 kV
Input current
5 A
Input voltage
100 - 240 V
Power consumption (max)
22 W
Depth
117 mm
Height
42.5 mm
Weight
422 g
Width
117 mm

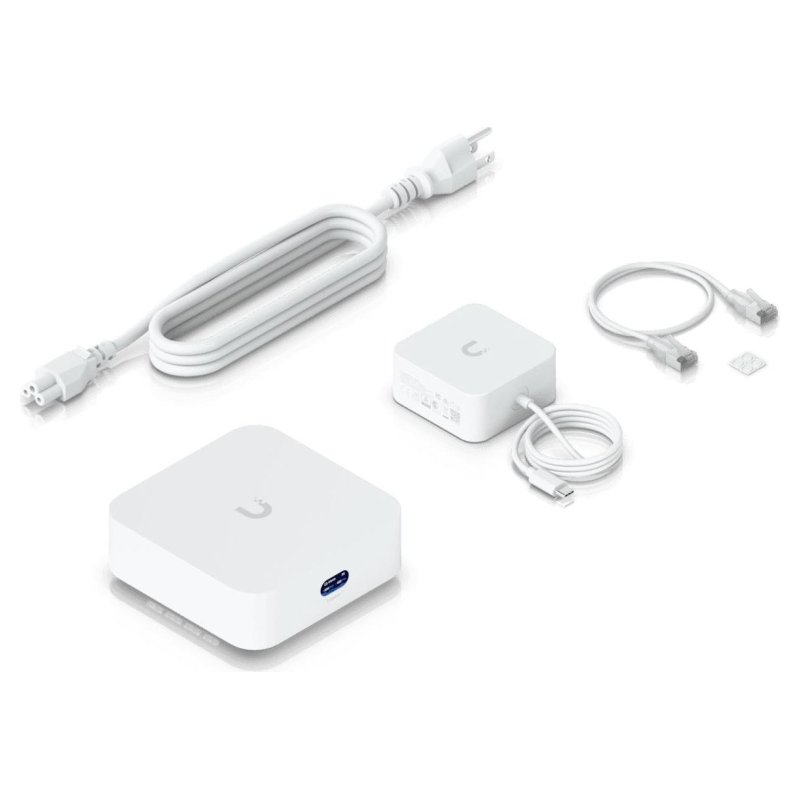

AC adapter included
Yes
Cables included
LAN (RJ-45)/Power
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-10 - 40 °C
Compliance certificates
CE/Federal Communications Commission (FCC)/Industry Canada (IC)
Display diagonal
0.96 "
Model
UX7
Units per Shipping Box
10
Unit Calculated Volume
0.007265 cubm
Product Net Weight
0.5 kg
Unit Calculated Weight
1.27 kg
UX7
5 Items

Data sheet

Package type
Retail
Warranty Products Returnable
Yes
Warranty Term (month)
24
Warranty Validation Criteria
Serial Number
Warranty Term Notes
24 months - for EU
Pieces in pack
1
Packs in Box
1
CPU
ARM Cortex-A53
Internal Clock Rate
1.5 GHz
Device Location
External
Certifications
CE, FCC, IC
LAN
1 (RJ-45)
1 x 10Base-T/100Base-TX RJ-45
1 x RJ-45
WAN
1 (RJ-45)
RJ-45
Included Accessories
Quick Start Guide
Maximum Operating Ambient Temperature
40 °C
Maximum Operating Humidity
-10 %
Minimum Operating Ambient Temperature
95 °C
Minimum Operating Humidity
5 %
Network Device Type
Router/Range Extender
Data Link Protocol Supports (New)
Wi-Fi + LAN + Bluetooth
CPU Core Quantity
4
Installed RAM
3 GB
Status LED Indicators
Activity Status
Built-in Devices
Reset Button
Power Device Location
External
Maximum Input Voltage
240 V
Minimum Input Voltage
100 V
Maximum Power Consumption
22 W
External Color
White
Protocols (OSI Model)
IPv6
IGMP
L2TP
TLS
QoS
Application Layer
DNS
Router Features
Power over Ethernet (PoE)
Multiple Input Multiple Output (MIMO)
DHCP Server
Authentication, Authorization, Accounting (AAA Protocol)
RADIUS
Firewall Functions and Protocols
NAT Support
USB
1 (USB Type C)
Encryption Algorithm
WEP
WPA-PSK
WPA2
WPA3
WPA3-Enterprise
Wireless Networking
IEEE 802.11a 2.4 GHz, up to 54 Mbps
IEEE 802.11b 2.4 GHz, up to 11 Mbps
IEEE 802.11g 2.4 GHz, up to 54 Mbps
IEEE 802.11n 2.4 GHz, up to 300 Mbps
IEEE 802.11ac 5 GHz, up to 1.7 Gbps
IEEE 802.11ax 5 GHz, up to 2.4 Gbps
IEEE 802
Supported Networking Compliant Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.1Q(VLAN)
IEEE 802.11ac Wi-Fi 5
IEEE 802.11ax Wi-Fi 6
IEEE 802.11ax Wi-Fi 6E
IEEE 802.11be Wi-Fi 7

Specific References

EAN13
810010074300
MPN
UX7
