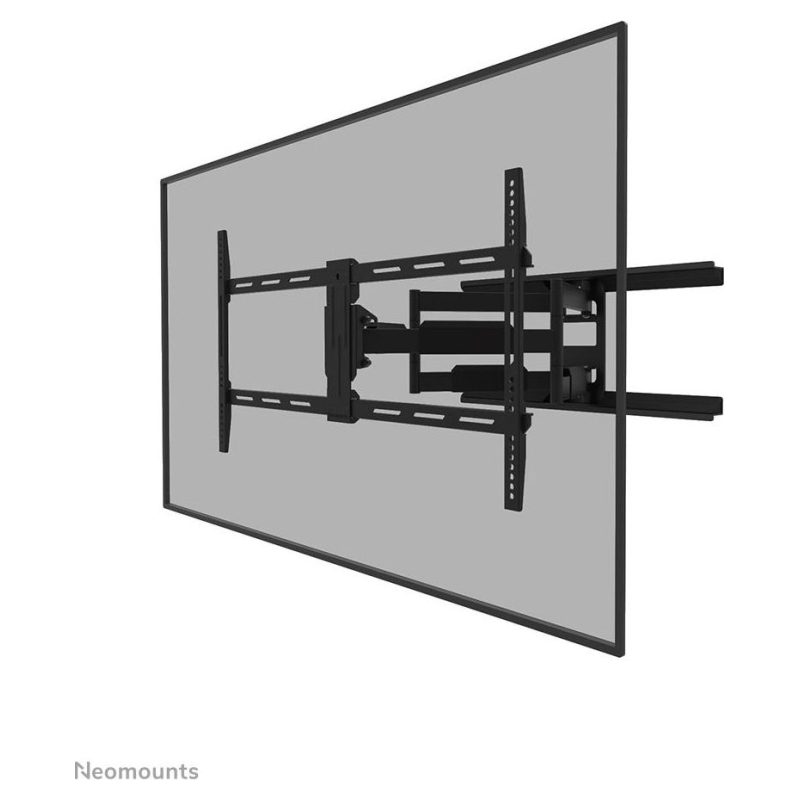

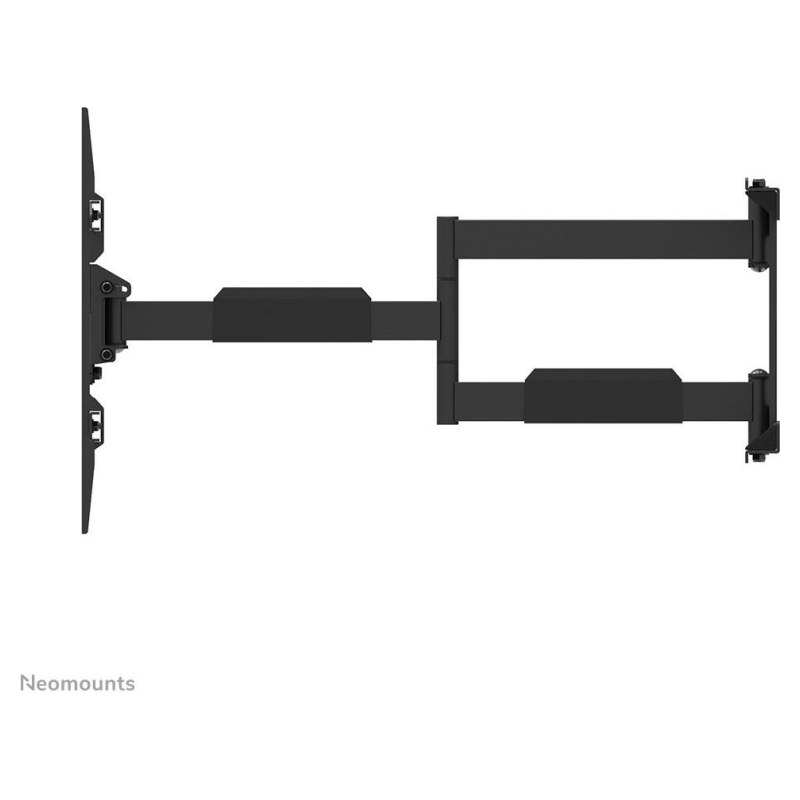

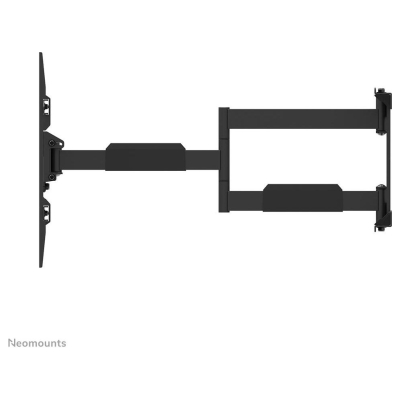

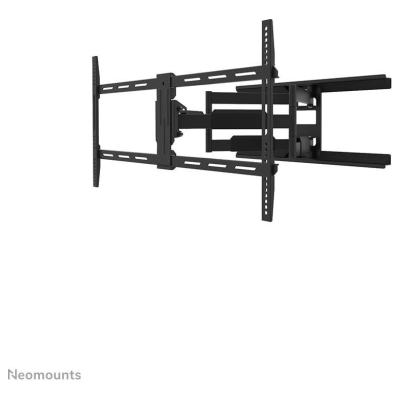

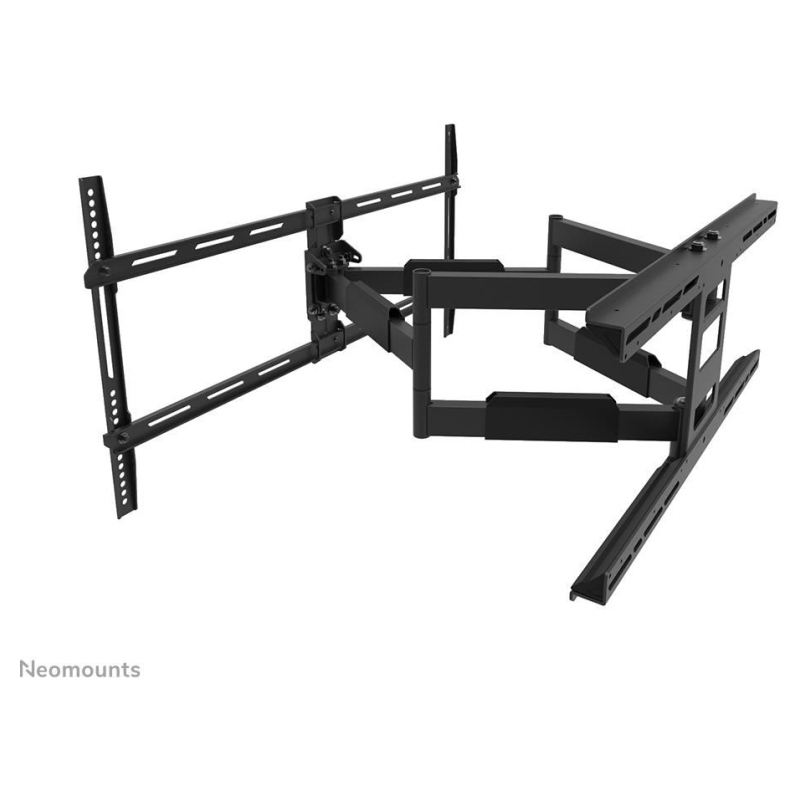

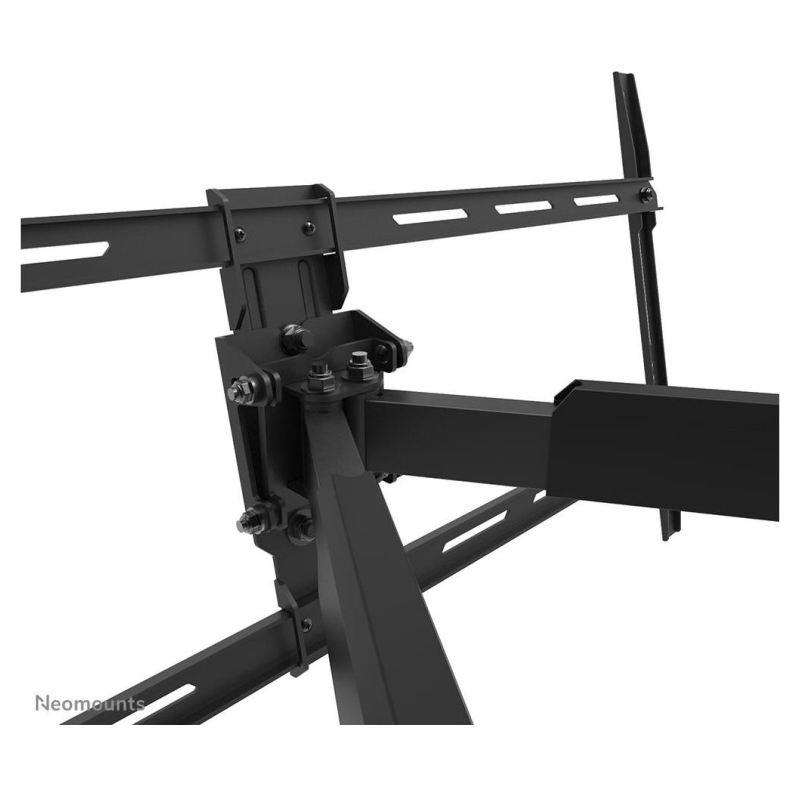

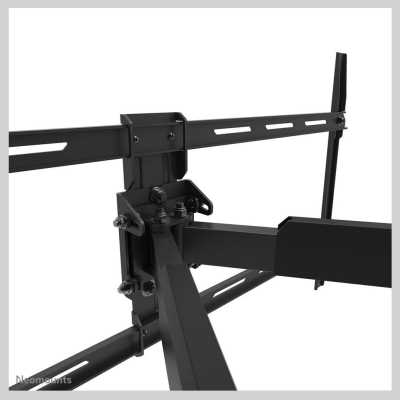

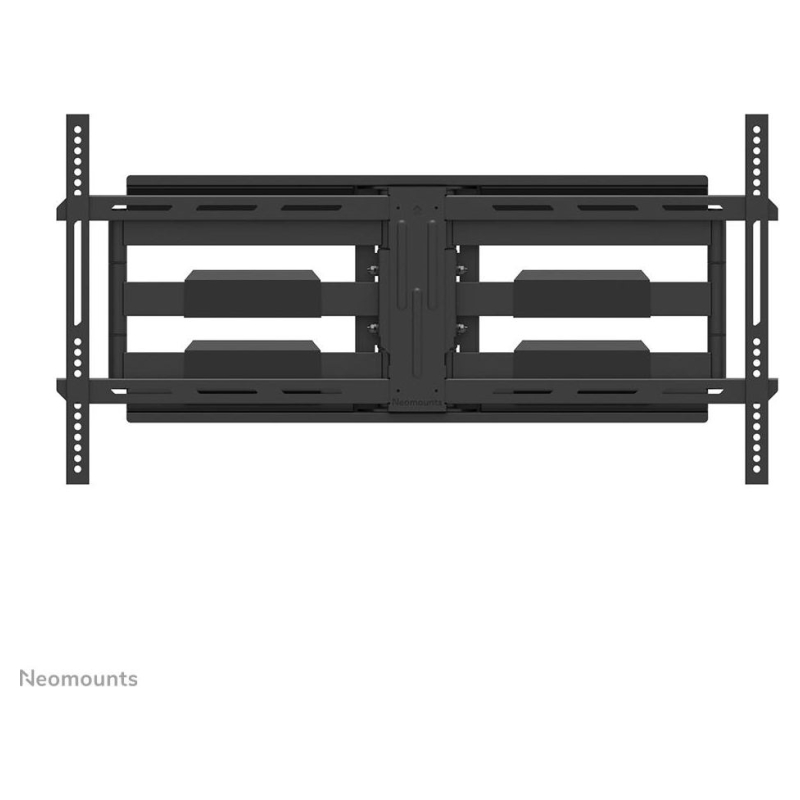

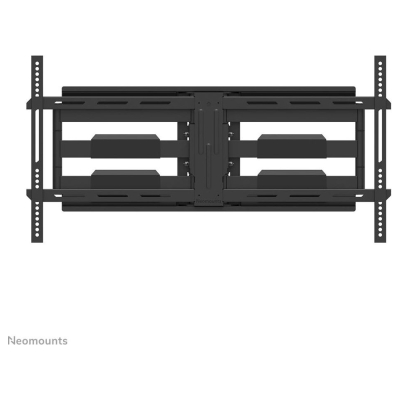

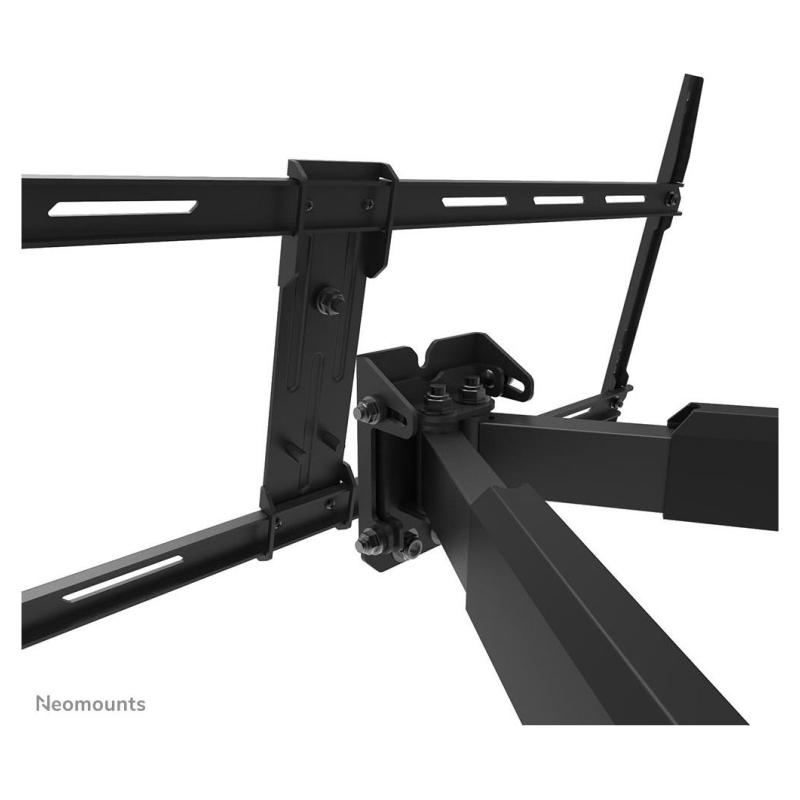

The Neomounts WL40-550BL18 LEVEL is a full motion wall mount for flat screens up to 75" with a maximum weight capacity of 45 kg. The versatile tilt (18°) and swivel (54°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

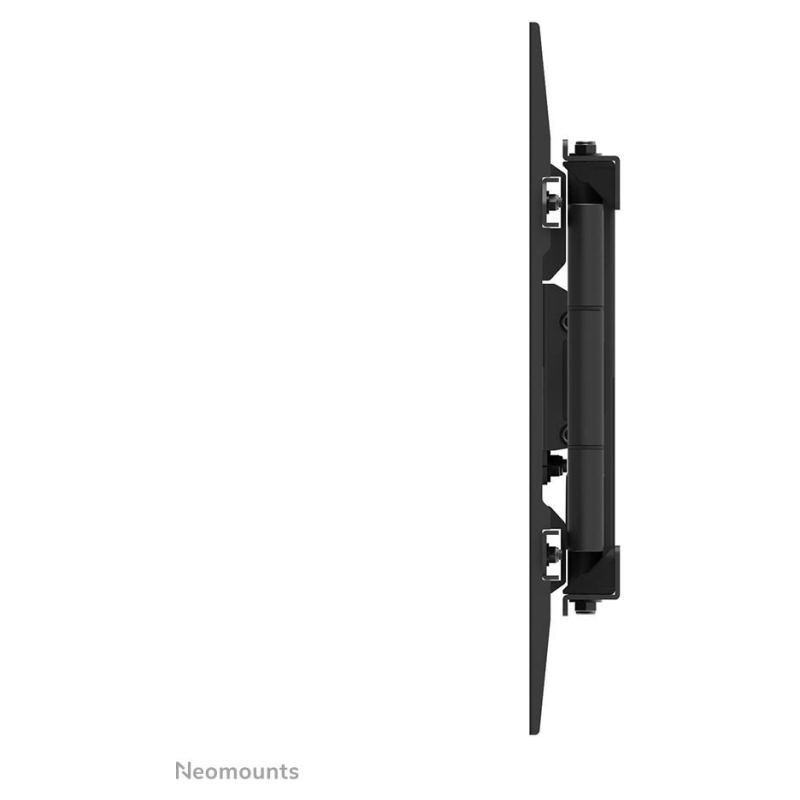

The LEVEL-550 wall mount has a depth of 5,5-71 cm and is suitable for screens that meet VESA hole pattern 200x100 to 800x400 mm.

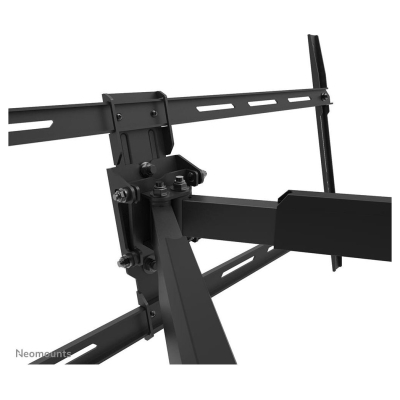

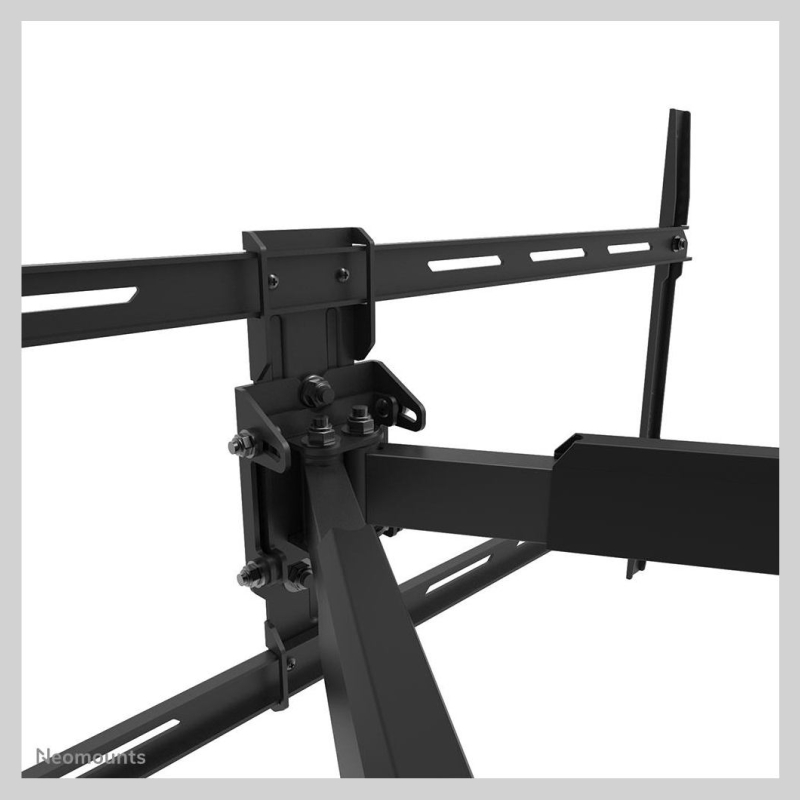

The WL40-550BL18 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
Manufacturer Website:https://www.neomounts.com/default.asp?pageid=44&artdetail=WL40-550BL18- Category Code
- TMS
- CnCode
- 83021000
- Unit Box Height
- 0.34
- Unit Box Length
- 0.895
- Unit Box Width
- 0.065
- Maximum screen size
- 75 "
- Maximum VESA mount
- 800 x 400 mm
- Maximum weight capacity
- 45 kg
- Maximum weight capacity (per display)
- 45 kg
- Minimum screen size
- 43 "
- Minimum VESA mount
- 200 x 100 mm
- Mounting type
- Wall
- Number of displays supported
- 1
- Panel mounting interface
- 200 x 100/200 x 150/200 x 200/200 x 300/200 x 400/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/440 x 400/500 x 400/600 x 200/600 x 300/600 x 400/680 x 300/800 x 200/800 x 400 mm
- Angle of rotation
- 6 °
- Cable management
- Yes
- Distance to the wall (max)
- 710 mm
- Distance to the wall (min)
- 55 mm
- Height adjustment
- No
- Pivot angle
- -3 - 3 °
- Rotating
- Yes
- Swivel angle
- 54 °
- Swivel angle range
- 0 - 54 °
- Swivelling
- Yes
- Tilt adjustment
- Yes
- Tilt angle range
- -3 - 15 °
- Type
- Full motion
- Housing material
- Steel
- Product colour
- Black
- Country of origin
- China
- Lockable
- Not lockable
- Mounting kit
- Yes
- Package net weight
- 11700 g
- Quantity per pack
- 1 pc(s)
- Depth
- 55 mm
- Depth (max)
- 55 mm
- Height
- 436 mm
- Weight
- 9900 g
- Width
- 850 mm
- Package depth
- 340 mm
- Package height
- 65 mm
- Package weight
- 11700 g
- Package width
- 882 mm
- Harmonized System (HS) code
- 7326909890
- Master (outer) case gross weight
- 24000 g
- Master (outer) case height
- 360 mm
- Master (outer) case length
- 145 mm
- Master (outer) case net weight
- 22100 g
- Master (outer) case width
- 902 mm
- Products per master (outer) case
- 2 pc(s)
- Products per pallet (EU)
- 40 pc(s)
- Units per Shipping Box
- 2
- Unit Calculated Volume
- 0.02354 cubm
- Unit Calculated Weight
- 12.4 kg
