Lenovo M90S SFF G5 I5-14500/16GB/512SSD/RS232/W11P/3P

Lenovo M90S SFF G5 I5-14500/16GB/512SSD/RS232/W11P/3P

Write a review

€1,382.39

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

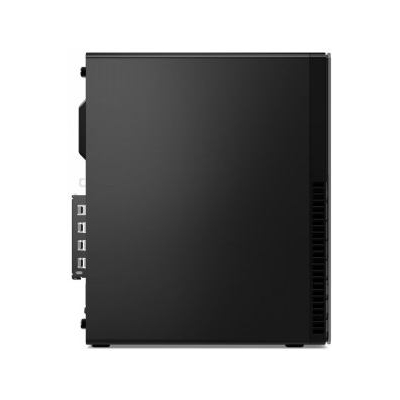

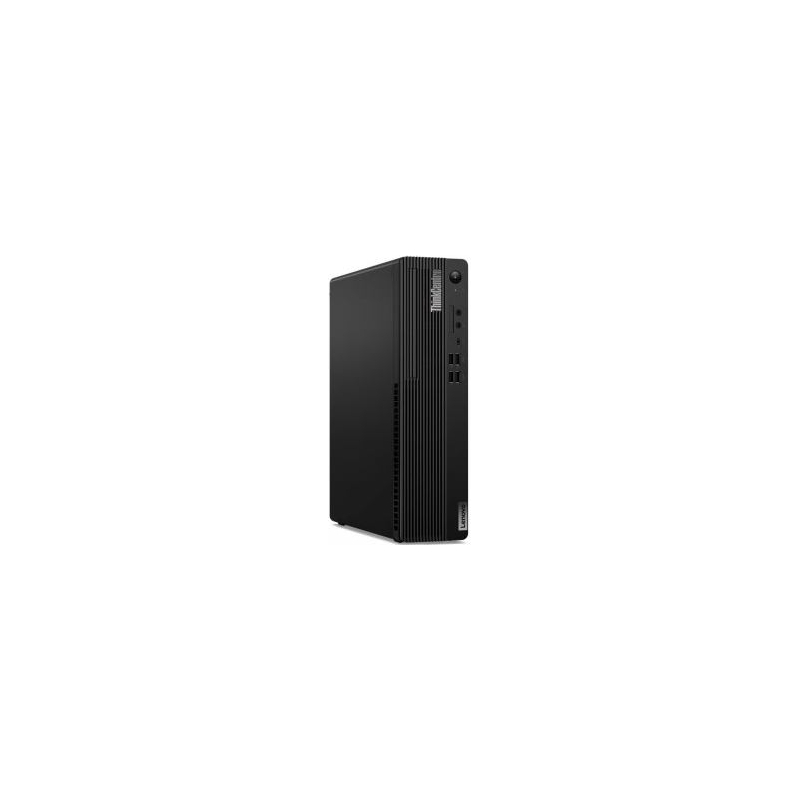

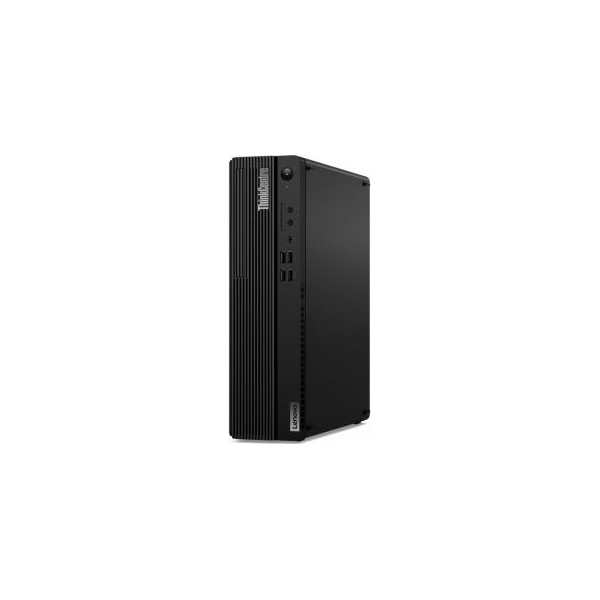

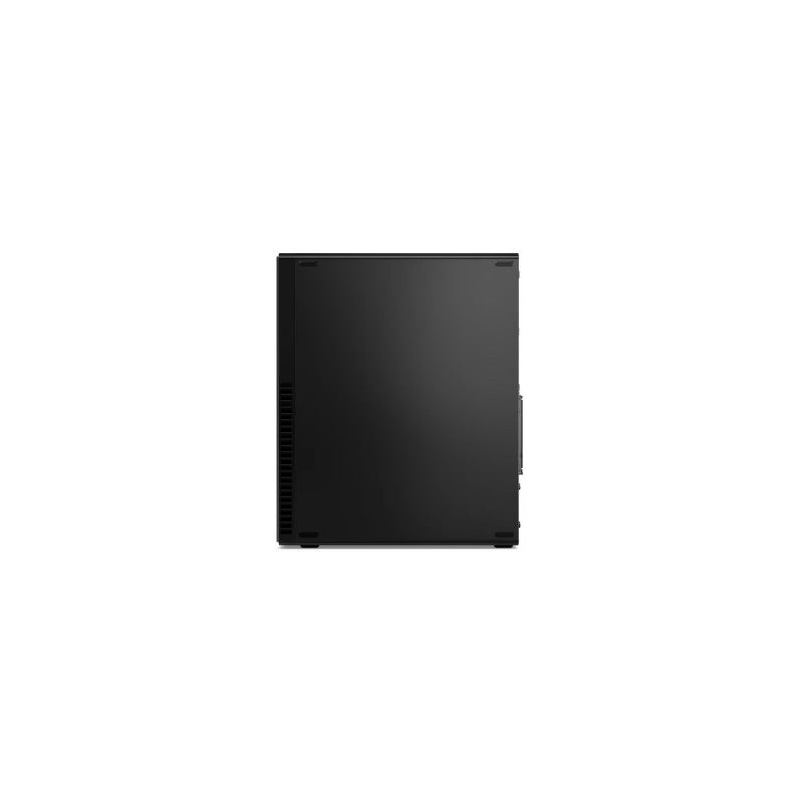

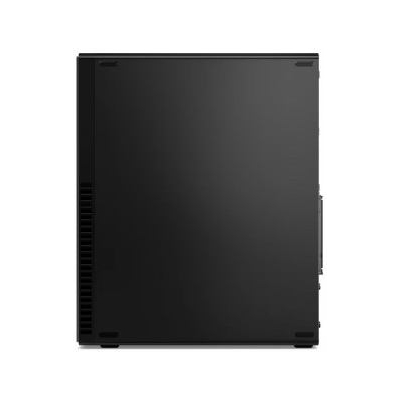

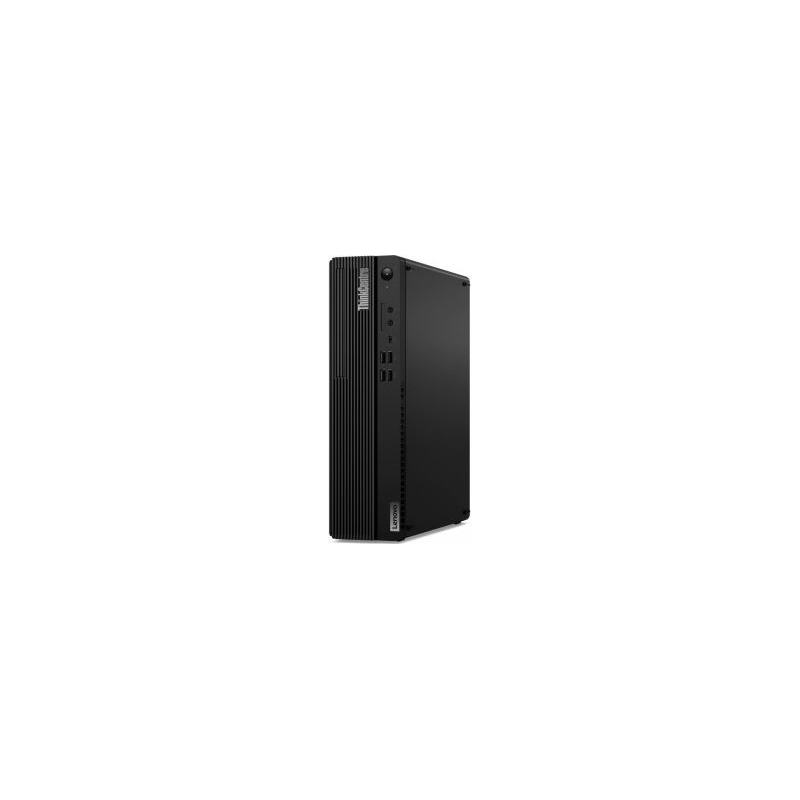

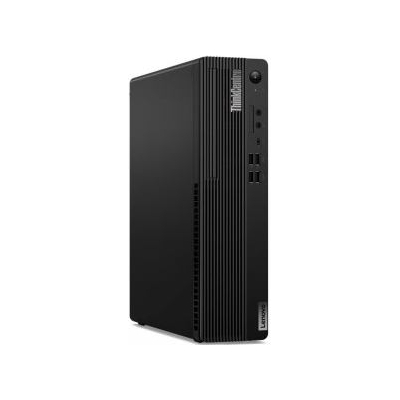

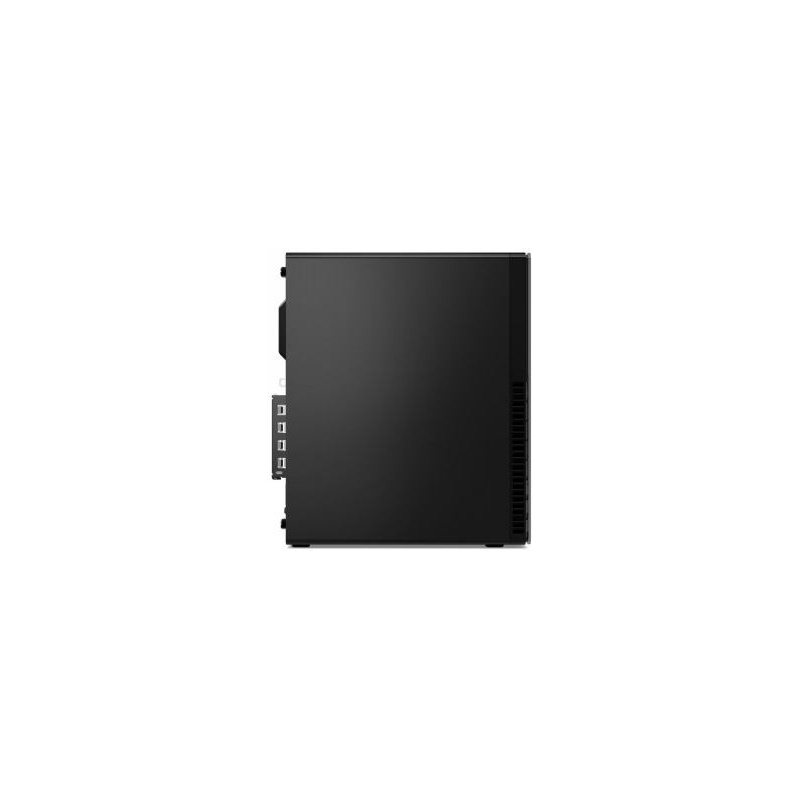

Lenovo ThinkCentre M90s Gen5 is a Small Form Factor (SFF) business workstation designed specifically with the demanding needs of corporate use in mind.

Key Features:

Operating System: Windows 11 Pro 64-bit
Processor: Intel Core i5-14500 (14C/20T/24MB)
Processor specifications: 6xP-core 2.6/5.0GHz, 8xE-core 1.9/3.7GHz
Chipset: Intel Q670
Graphics: Integrated Intel UHD Graphics 770
Intel vPro Enterprise
Memory: 16GB DDR5 4400MHz UDIMM
Maximum Memory: 128GB (4x32GB)
Storage: 512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0
One free M.2 2280 SSD slot
Additionally, 1x3.5"HDD and 1x2.5"HDD SATA slots
Additional drives require installation bracket
No optical drive
Internal 1W speaker
LAN: 100/1000M Gigabit Ethernet (Intel I219-LM)
WLAN: Wi-Fi 6E 802.11ax & Bluetooth 5.3
Included: Lenovo USB keyboard and USB mouse

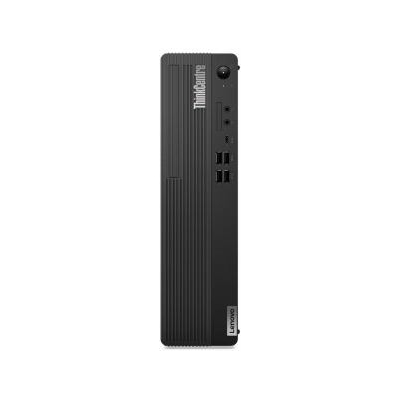

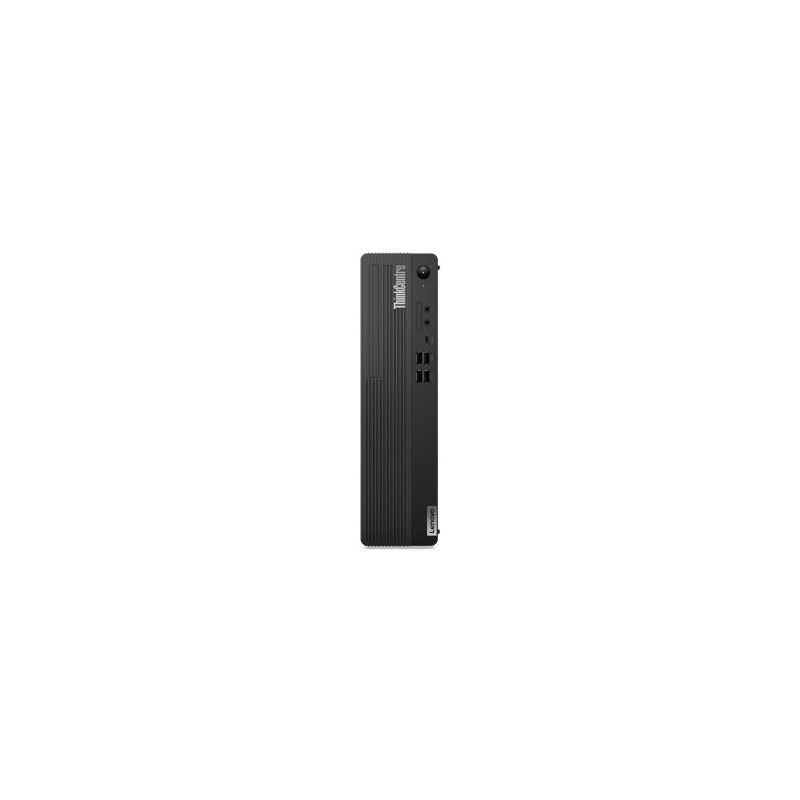

Front Panel: 4xUSB-A, 1xUSB-C 3.2 Gen2, 1x3.5mm audio combo, 1x3.5mm Mic

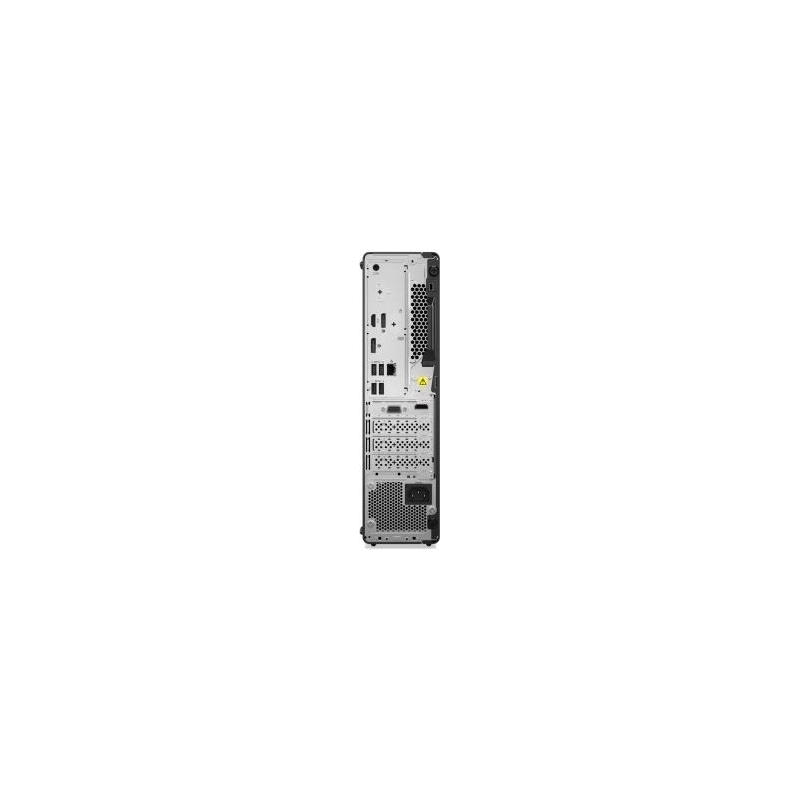

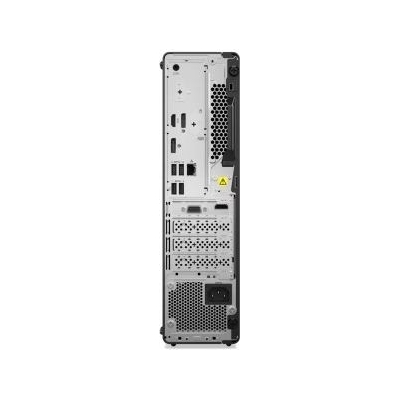

Back Panel: 2xDisplayPort 1.4a(HBR2,DSC), HDMI 2.1 TMDS, 4xUSB-A Gen1, 1xRS232, RJ-45, 1x3.5mm Line Out
Low profile card slots: PCIe 3.0 x1, PCIe 4.0 x16 ja PCIe 4.0 x16 (x4 signal)
Maximum installable LP card size: 155mm (length), 70mm (height)
Integrated TPM 2.0 security chip, TCG/FIPS 140-2 certified
Kensington security lock slot (3x7mm)
Internal power supply: 260W 90%
Military-grade durability: MIL-STD-810H
Basic warranty: 3 years Premier NBD on-site
Weight: 5.3kg

Lenovo CO2 Offset Gen2 emission compensation

The carbon dioxide emissions generated during the manufacturing, transportation, and electricity consumption of this device throughout its lifecycle have been compensated through the global Climeco organization, supporting UN-approved environmental projects.

Environmental and energy certifications

ErP Lot 3, GREENGUARD®, RoHS compliant, TCO Certified 9.0

Manufacturer's estimate: Product life cycle used in emission assessments, years: 4
Manufacturer?s estimate: Manufacturing-related CO2 emissions, kg: 346.2
Manufacturer?s estimate: Product life cycle CO2 emissions, kg: 491
Operating system provided: Windows 11 Pro
Total storage capacity: 512 GB SSD
Internal memory: 16 GB
Maximum internal memory, GB: 128 GB
Solid State Disk drive type: M.2 PCIe NVMe
Processor family: Intel Core i5
Connections: USB-C
Connections: USB-A
Connections: Audio (3.5mm)
Connections: HDMI
Connections: DisplayPort
Connections: Ethernet (RJ-45)
Connections: Serial (RS-232)
USB-C (USB 3.2) ports quantity: 1
USB-A (USB 3.2) ports quantity: 8
HDMI ports quantity: 1
DisplayPorts quantity: 2
Ethernet LAN (RJ-45) ports quantity: 1
RS-232 ports quantity: 1
WLAN type: Wi-Fi 6E
WLAN antennas: 2x2
Bluetooth version: 5.3
Processor number of cores: 14
Wireles LAN (WLAN): Yes
Bluetooth: Yes
Graphic adapter: Intel UHD Graphics 770
Processor clock speed, GHz: 5.00
Motherboard chipset: Intel Q670
Processor model: Intel Core i5-14500 (Max. 5.00GHz, 24M, 14C)
Optical drive: No
RAID controller: No
Power supply, W: 260
Internal memory type: DDR5
Dimensions W x D x H, mm: 92.5 x 297.7 x 339.5
Weight, g: 5300
Processor manufacturer: Intel
Memory clock speed, MHz: 4400
Intel Virtualization technology: VT-x / VT-d / VT-rp
Graphics adapter family: Intel UHD Graphics
Intel HyperThreading: Yes
Intel vPro: No
Dedicated video memory (GB): Uses system memory
Trusted Platform Module (TPM) version: 2.0
Number of performance-cores: 6
Number of efficient-cores: 8
Cable lock slot: Yes
