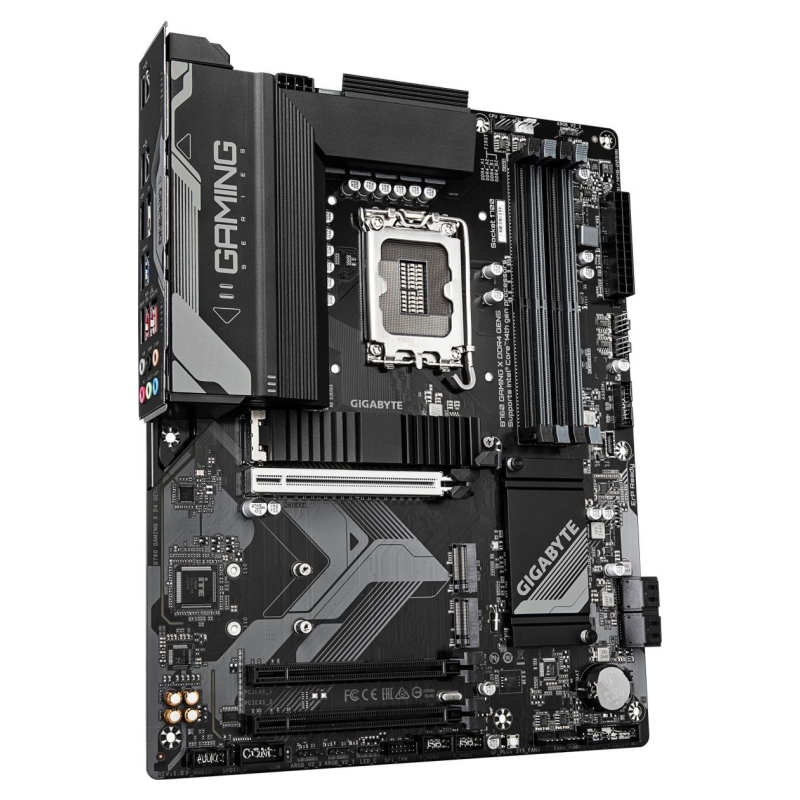

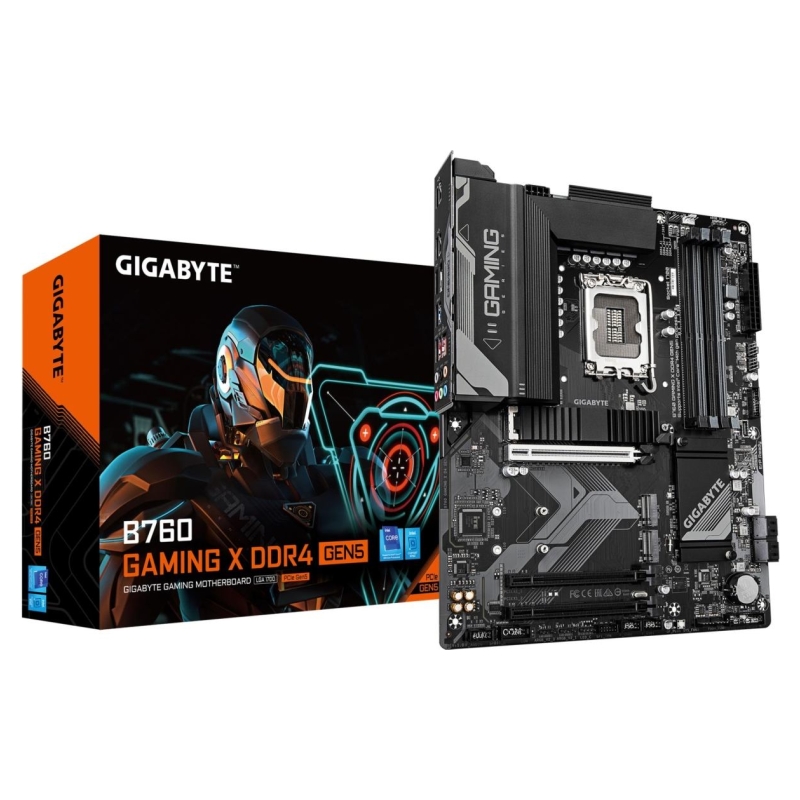

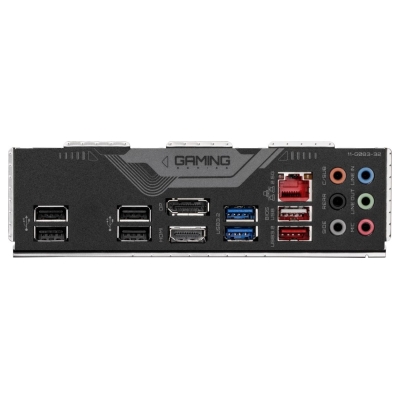

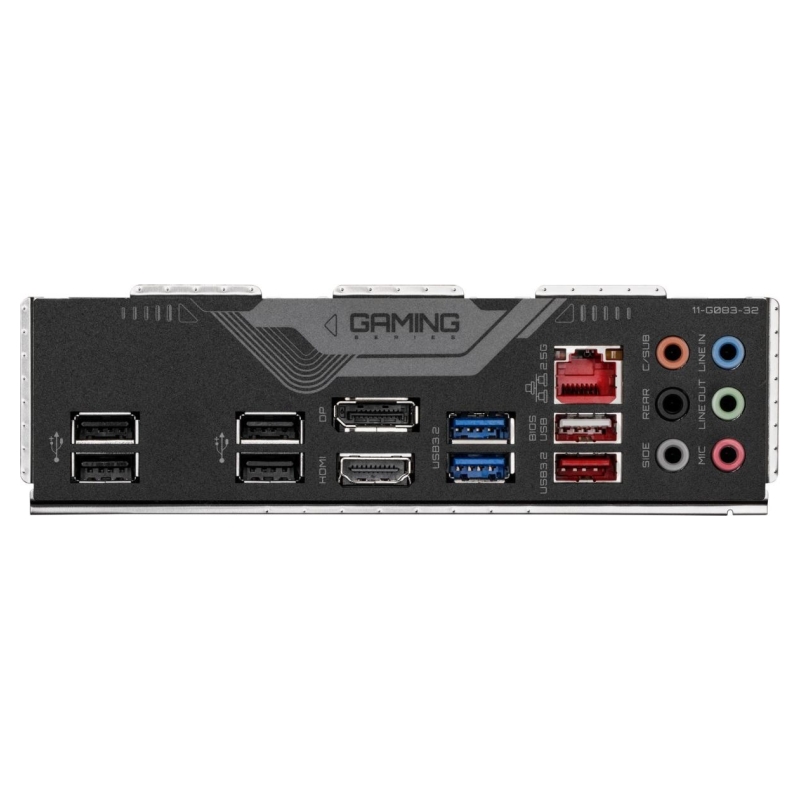

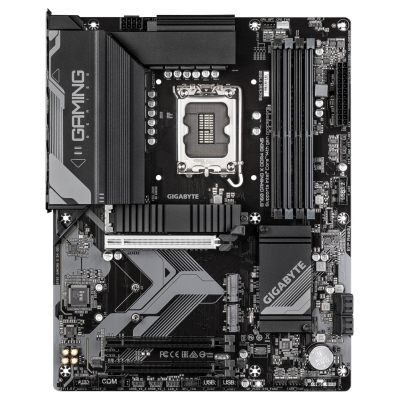

Gigabyte Mainboard|GIGABYTE|Intel B760|LGA 1700|ATX|RAM DDR4-SDRAM|4xSlots|3xNumber of M.2 (M) slots|B760GAMINGXD4GEN5

Datu lapa

Batteries included

yes

RAID levels

0/1/10/5

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

USB 2.0 ports quantity

5

Audio output channels

7.1 channels

Headphone outputs

1

Number of storage drives supported

7

Supported storage drive interfaces

M.2,PCI Express 4.0,SATA III

Power source type

ATX

Ethernet LAN (RJ-45) ports

1

Bundled software

Norton® Internet Security (OEM version)

Battery type

CR2032

Cooling type

Passive

Country of origin

China

Component for

PC

Maximum resolution

4096 x 2304 pixels

Ethernet LAN

Yes

Ethernet interface type

2.5 Gigabit Ethernet

DirectX version

12.0

HDMI ports quantity

1

RAID support

Yes

Wi-Fi

No

DisplayPorts quantity

1

HDCP

Yes

Compatible processor series

Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron

Motherboard form factor

ATX

Supported memory types

DDR4-SDRAM

Processor socket

LGA 1700

EPS power connector (8-pin)

Yes

Supported processor sockets

LGA 1700

Number of battery cells

1

Maximum internal memory

128 GB

Supported storage drive types

HDD & SSD

HDMI version

2.1

Category Code

MBI

CnCode

84733020

Units per Shipping Box

8

Product colour

Dark brown

Warranty period

3 year(s)

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

DisplayPort version

1.2

Screws included

Yes

LAN controller

Realtek RTL8125

Line-in

Yes

Battery weight

3 g

Products per shipping (inner) case

1 pc(s)

Memory channels

Dual-channel

Processor manufacturer

Intel

Motherboard chipset

Intel B760

Motherboard chipset family

Intel

ECC сompatibility

ECC & Non-ECC

Memory slots type

DIMM

Number of memory slots

4

Unbuffered memory

Yes

Number of HDDs supported

4

Parallel processing technology support

Not supported

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

4

Number of SATA III connectors

4

S/PDIF out connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

1st M.2 highest PCI Express generation

4.0

1st M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

Number of M.2 (M) slots

3

PCI Express x16 (Gen 5.x) slots

1

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Audio chip

Realtek ALC897

Supported memory clock speed (max)

5333 MHz

RGB LED pin header

Yes

Maximum internal memory supported by processor

128 GB

PC health monitoring

Fan/Temperature/Voltage/Water cooling

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

1

TPM connector

Yes

Clear CMOS jumper

Yes

Supported memory clock speeds

2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz

PCI Express x16 (Gen 3.x) slots

2

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Lithium weight per battery

0.07 g

Serial port headers

1

Maximum internal memory per slot

32 GB

Number of RGB LED pin headers

4

Number of water pump connectors

2

Specifiskas norādes

ean13

4719331873448

MPN

B760 GAMING X D4 GEN5
