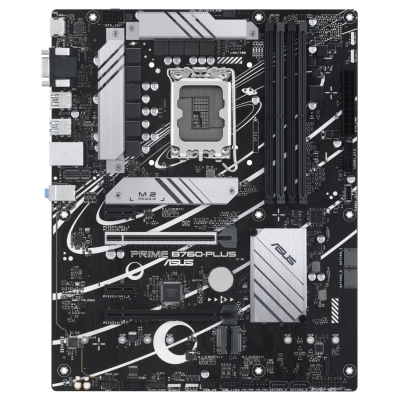

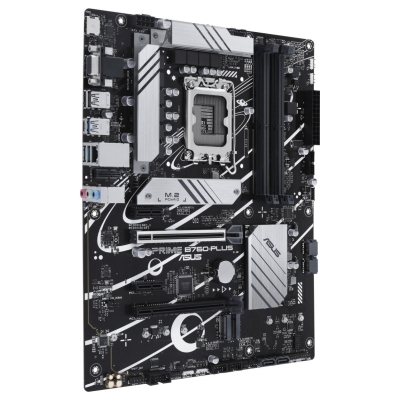

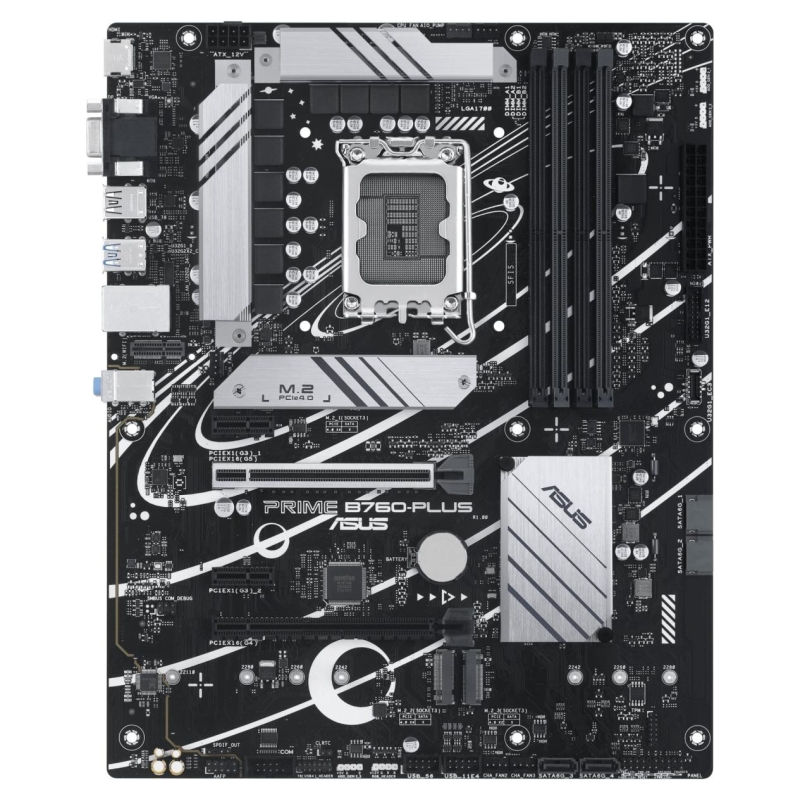

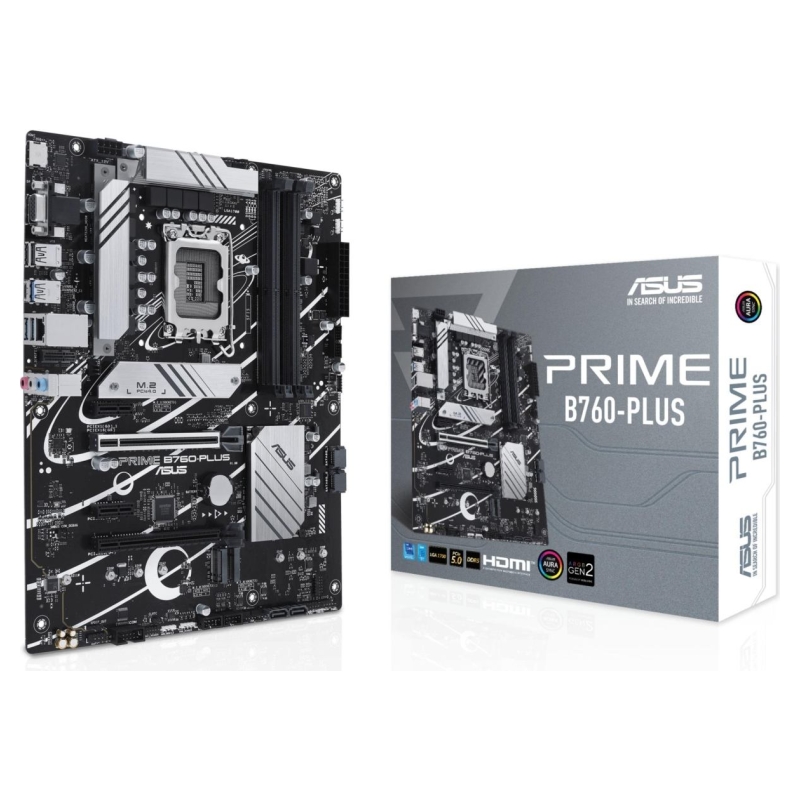

Asus Mainboard|ASUS|Intel B760 Express|LGA1700|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xPCI-E

Datu lapa

RAID levels

0/1/10/5

Windows operating systems supported

Windows 10 x64/Windows 11

USB 2.0 ports quantity

2

Audio output channels

7.1 channels

Headphone outputs

1

Number of storage drives supported

7

Supported storage drive interfaces

M.2,SATA III

Power source type

ATX

Ethernet LAN (RJ-45) ports

1

Cooling type

Passive

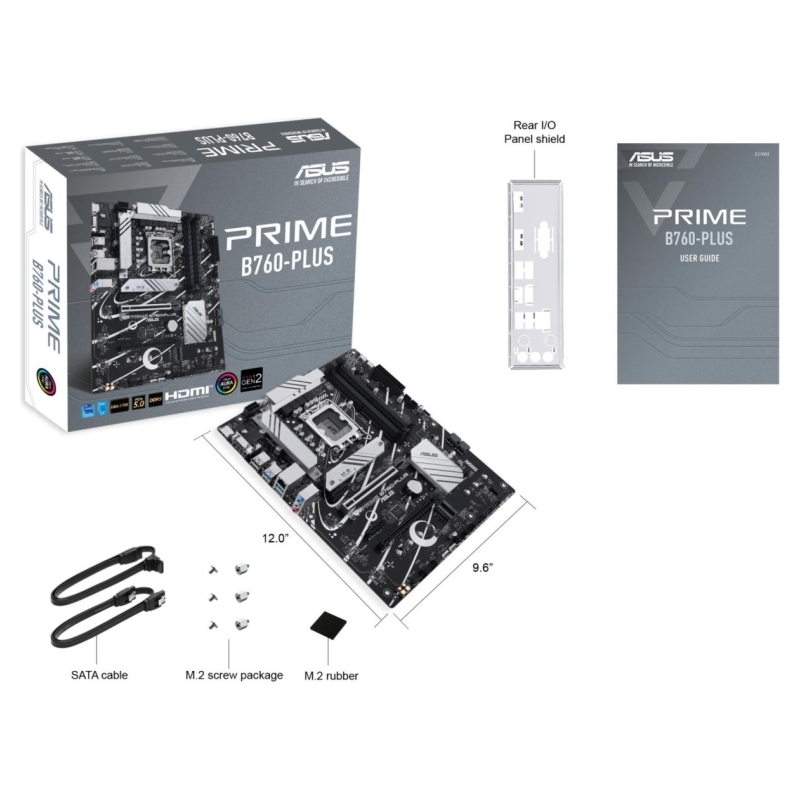

Cables included

SATA

Component for

PC

Ethernet LAN

Yes

Ethernet interface type

2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet

VGA (D-Sub) ports quantity

1

HDMI ports quantity

1

RAID support

Yes

Wi-Fi

No

DisplayPorts quantity

1

Compatible processor series

Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold

Motherboard form factor

ATX

Supported memory types

DDR5-SDRAM

Processor socket

LGA 1700

EPS power connector (8-pin)

Yes

Supported processor sockets

LGA 1700

Maximum internal memory

192 GB

Supported storage drive types

HDD & SSD

HDMI version

2.1

Category Code

MBI

CnCode

84733020

Units per Shipping Box

10

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

DisplayPort version

1.4

Line-in

Yes

Memory channels

Dual-channel

Peripheral (Molex) power connectors (4-pin)

1

Processor manufacturer

Intel

Motherboard chipset

Intel B760

Motherboard chipset family

Intel

ECC сompatibility

Non-ECC

Memory slots type

DIMM

Number of memory slots

4

Unbuffered memory

Yes

Number of HDDs supported

4

Parallel processing technology support

Not supported

12V power connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

3

Number of COM connectors

1

Number of SATA III connectors

4

S/PDIF out connector

Yes

Thunderbolt headers

1

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2x2 Type-C ports quantity

1

Number of M.2 (M) slots

3

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

RGB LED pin header

Yes

TPM connector

Yes

PCI Express x1 (Gen 3.x) slots

2

Supported memory clock speeds

4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz

Maximum number of SMP processors

1

Specifiskas norādes

ean13

4711387102985

MPN

PRIMEB760-PLUS
