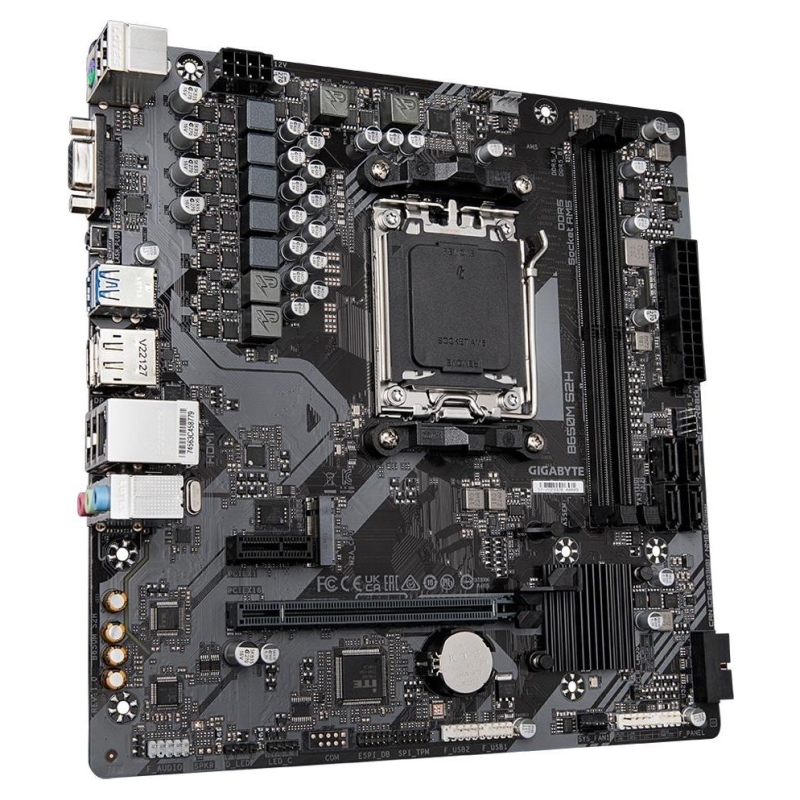

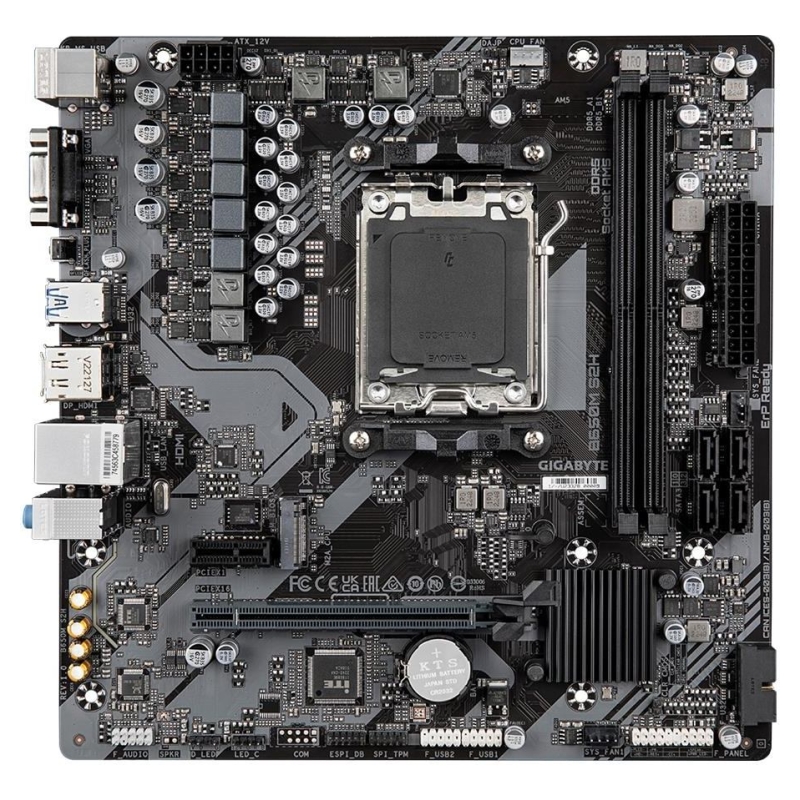

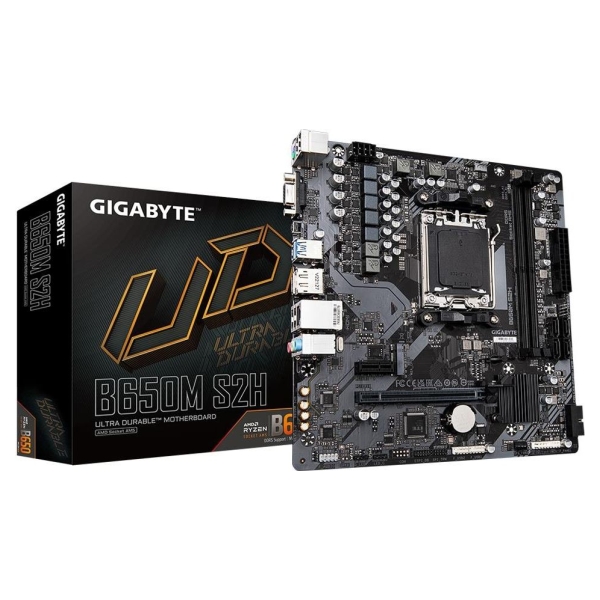

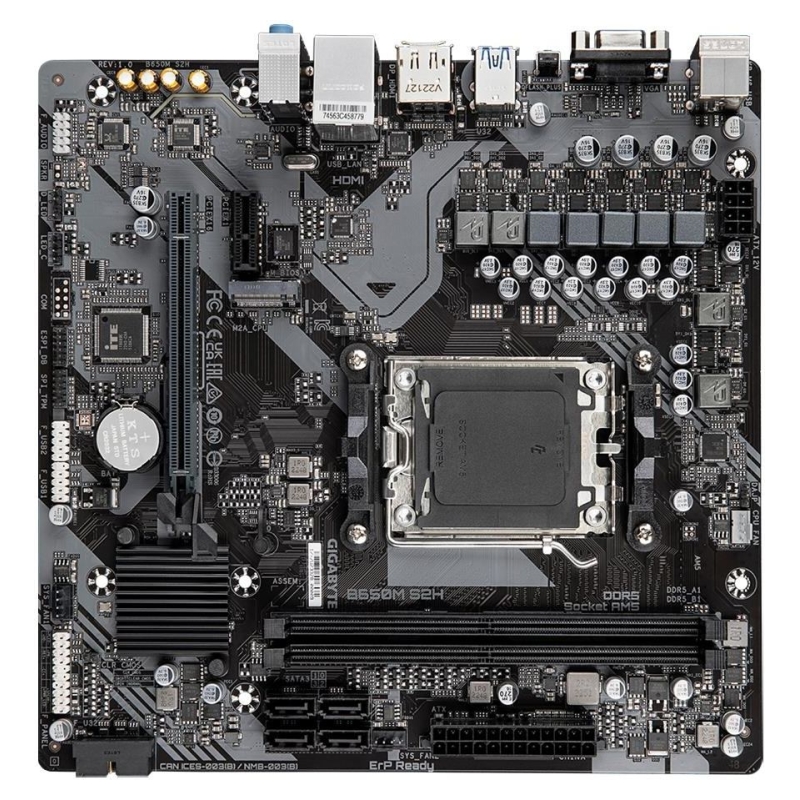

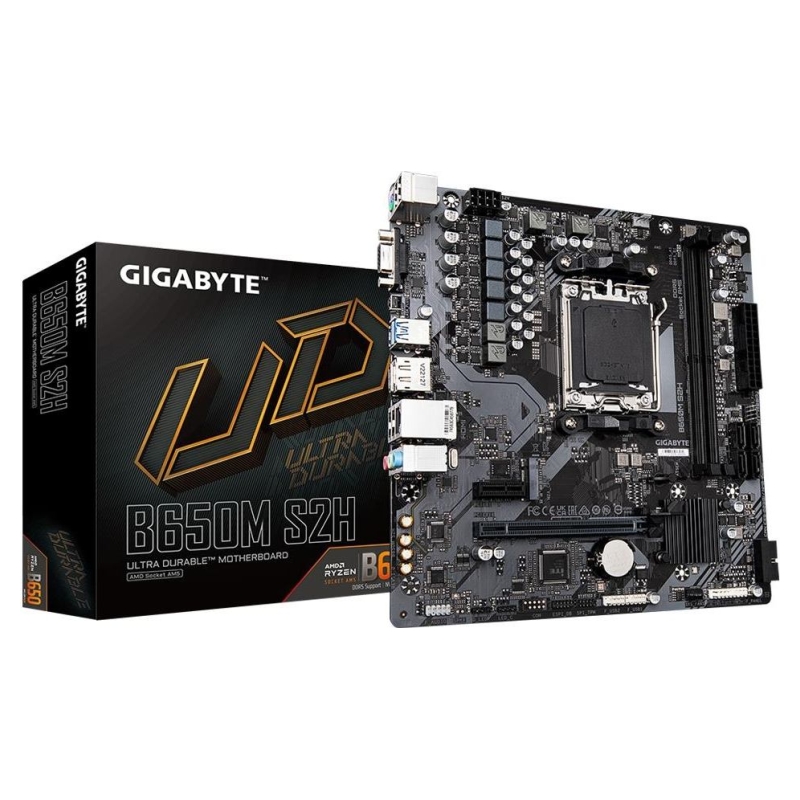

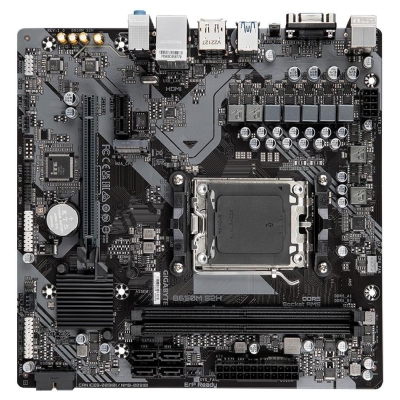

Gigabyte Mainboard|GIGABYTE|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 2|B650MS2H1.4

Datu lapa

Batteries included

yes

RAID levels

0/1/10

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

USB 2.0 ports quantity

4

Audio output channels

7.1 channels

Microphone in

Yes

Headphone outputs

1

Number of storage drives supported

5

Supported storage drive interfaces

M.2,SATA III

Power source type

ATX

Ethernet LAN (RJ-45) ports

1

Bundled software

Norton® Internet Security (OEM version)
LAN bandwidth management software

Battery type

CR2032

Cooling type

Passive

Country of origin

China

Component for

PC

Maximum resolution

4096 x 2160 pixels

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

VGA (D-Sub) ports quantity

1

DirectX version

12.0

HDMI ports quantity

1

RAID support

Yes

Wi-Fi

No

DisplayPorts quantity

1

HDCP

Yes

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Motherboard form factor

Micro ATX

Supported memory types

DDR5-SDRAM

Processor socket

Socket AM5

EPS power connector (8-pin)

Yes

Supported processor sockets

Socket AM5

Number of battery cells

1

Maximum internal memory

128 GB

Supported storage drive types

HDD & SSD

HDMI version

2.1

Category Code

MBA

CnCode

84733020

Units per Shipping Box

10

Product colour

Brown

Warranty period

3 year(s)

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

DisplayPort version

1.4

Screws included

Yes

LAN controller

Realtek RTL8111H

Line-in

Yes

Battery weight

3 g

Products per shipping (inner) case

1 pc(s)

Memory channels

Dual-channel

Processor manufacturer

AMD

Motherboard chipset

AMD B650

Motherboard chipset family

AMD

ECC сompatibility

Non-ECC

Memory slots type

DIMM

Number of memory slots

2

Unbuffered memory

Yes

Number of HDDs supported

4

Parallel processing technology support

Not supported

12V power connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

2

Number of SATA III connectors

4

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

1st M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2580

Number of M.2 (M) slots

1

PCI Express x16 (Gen 4.x) slots

1

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Audio chip

Realtek ALC897

Supported memory clock speed (max)

6400 MHz

RGB LED pin header

Yes

PC health monitoring

Fan/Temperature/Voltage

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

TPM connector

Yes

PS/2 ports quantity

1

PCI Express x1 (Gen 3.x) slots

1

Clear CMOS jumper

Yes

Supported memory clock speeds

4400/4800/5200/5600/6000/6200/6400 MHz

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Lithium weight per battery

0.07 g

Discrete graphics support

Yes

Maximum internal memory per slot

64 GB

Number of RGB LED pin headers

2

Specifiskas norādes

ean13

4719331856298

MPN

B650M S2H 1.4
