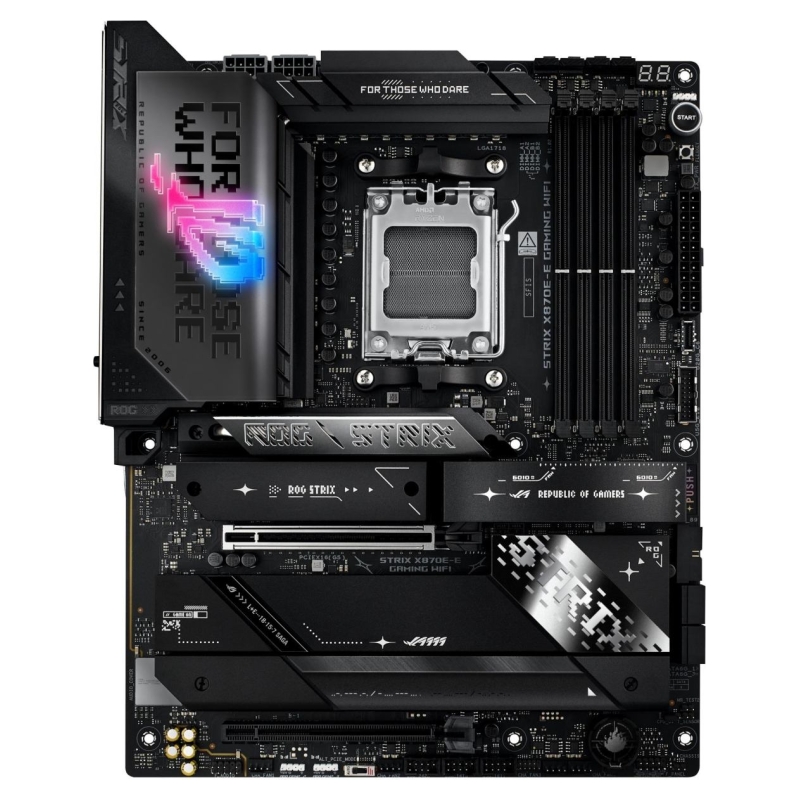

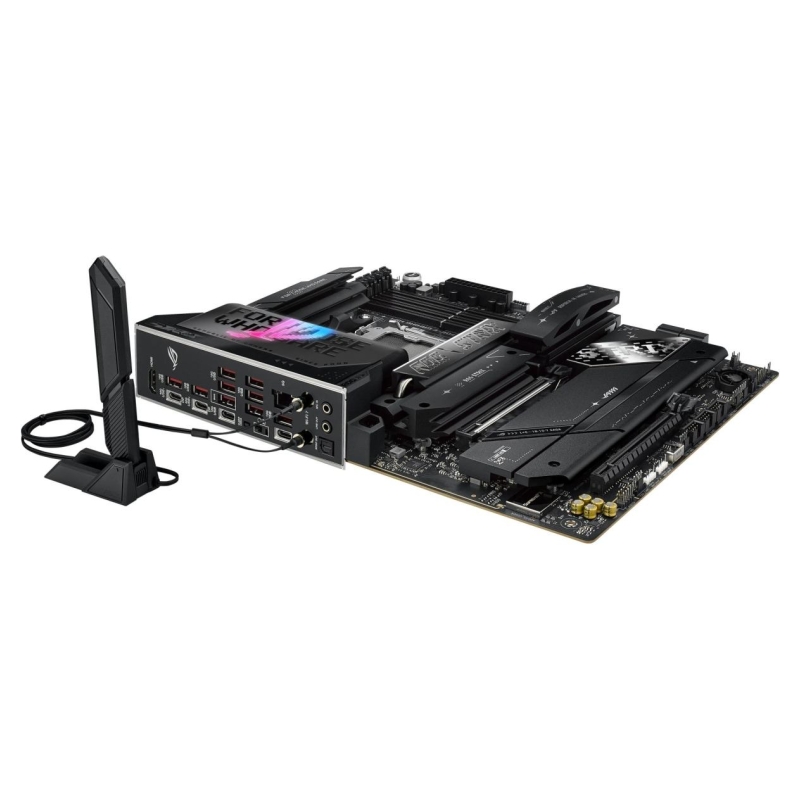

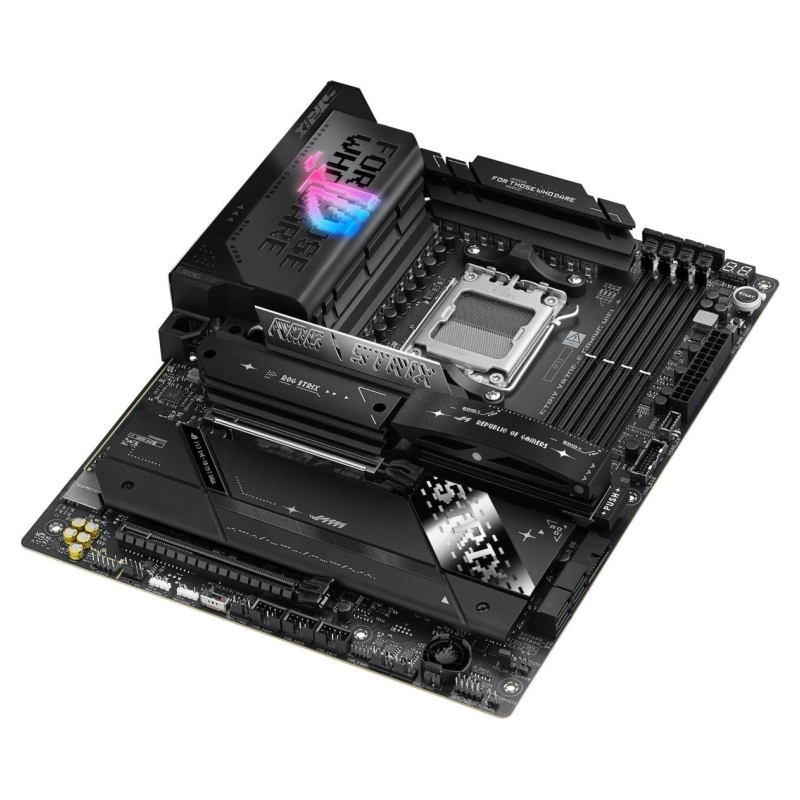

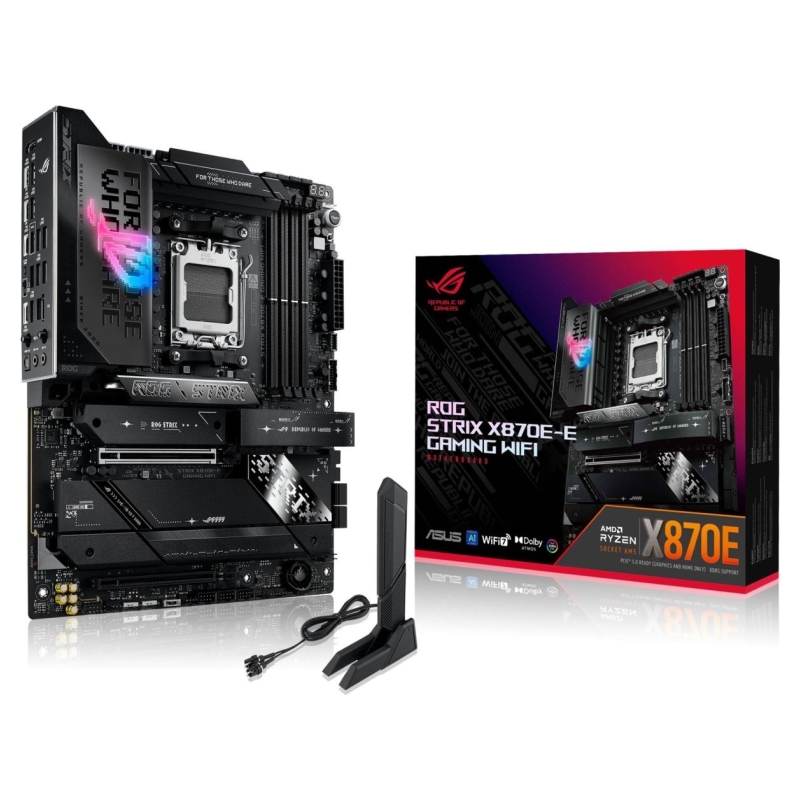

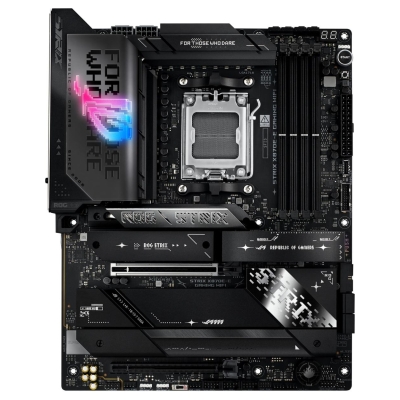

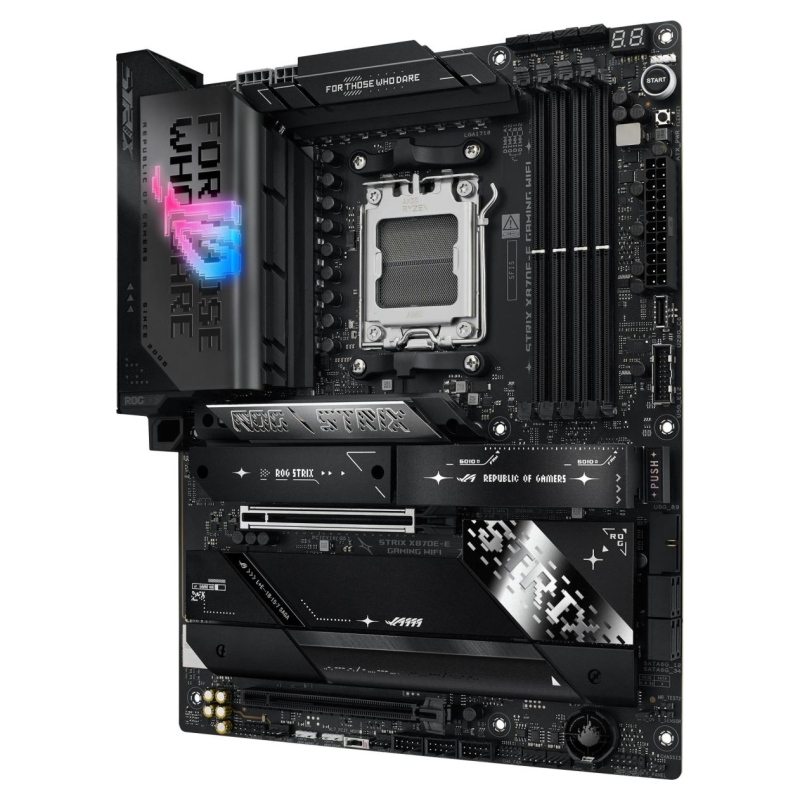

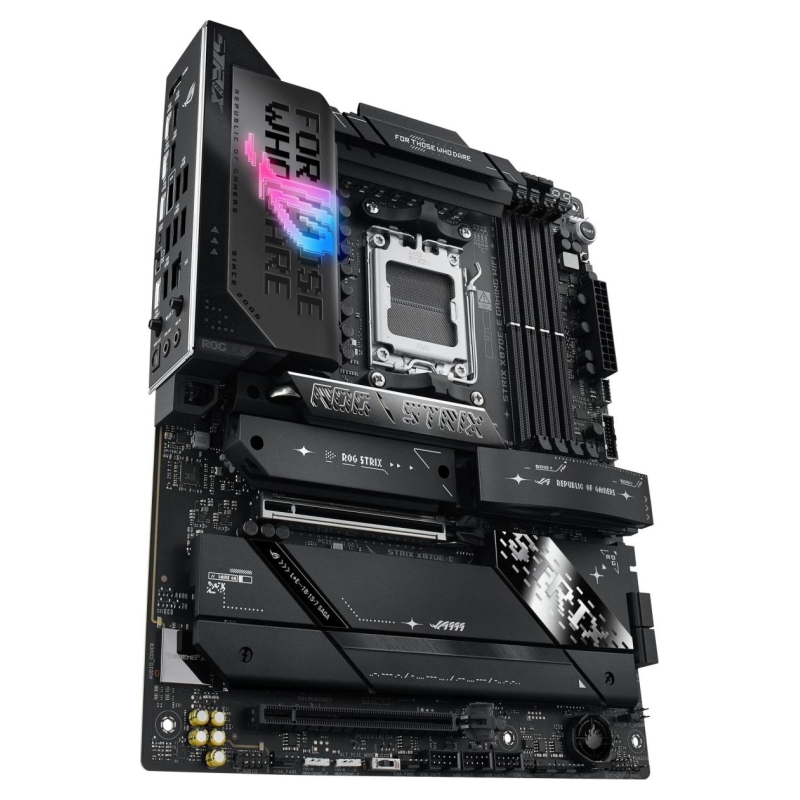

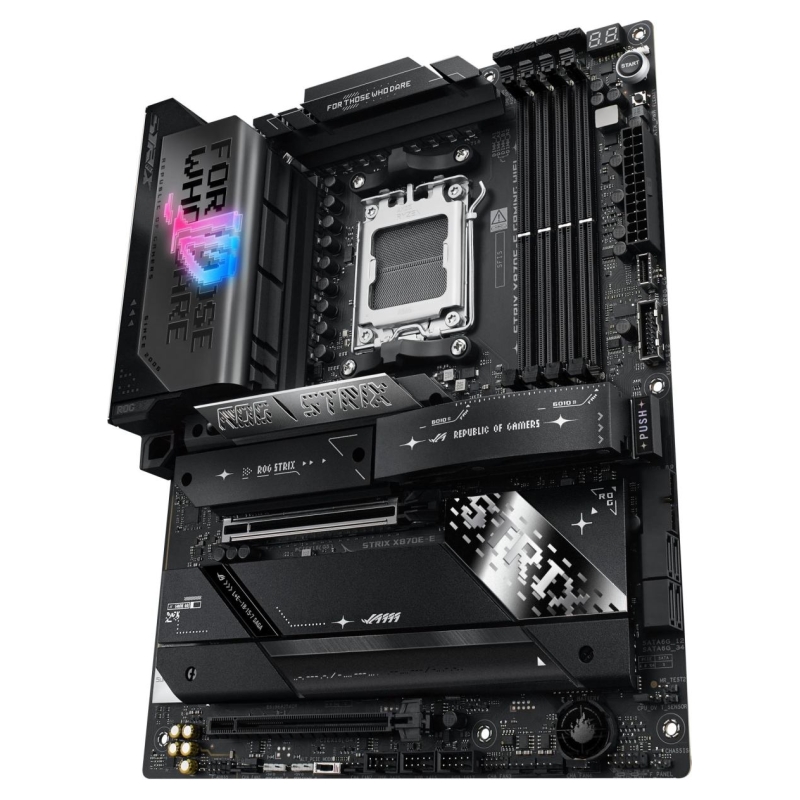

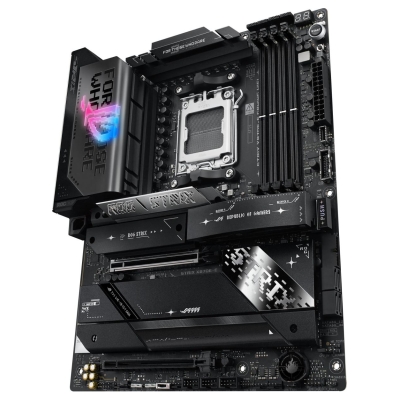

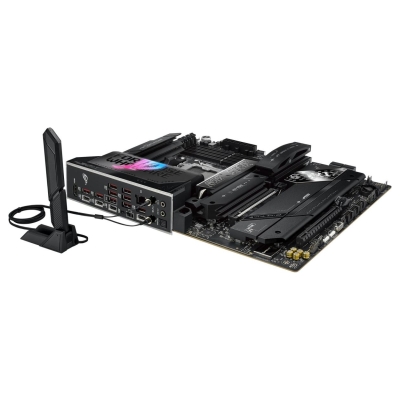

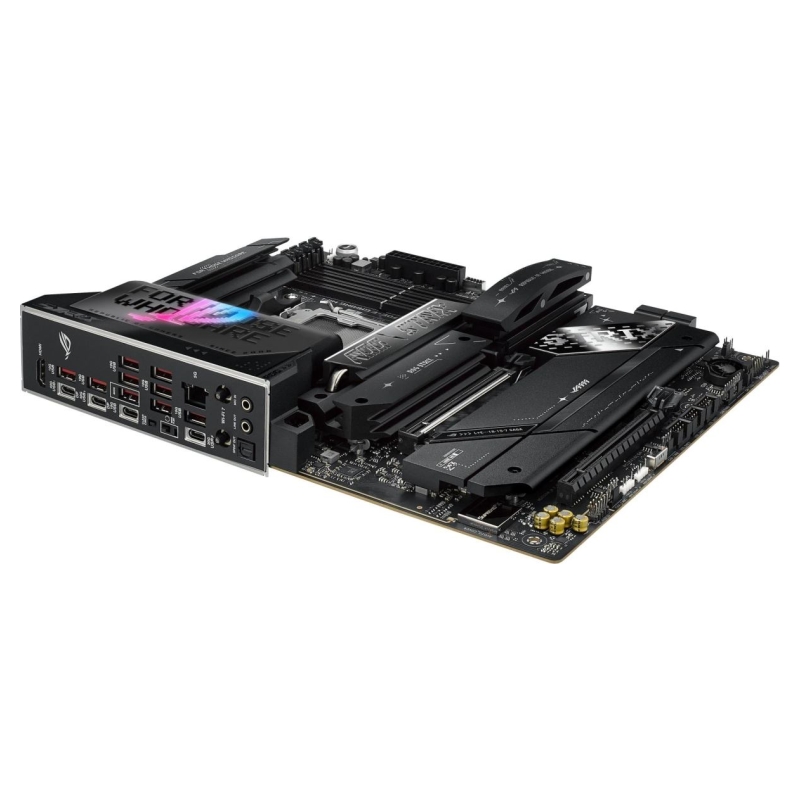

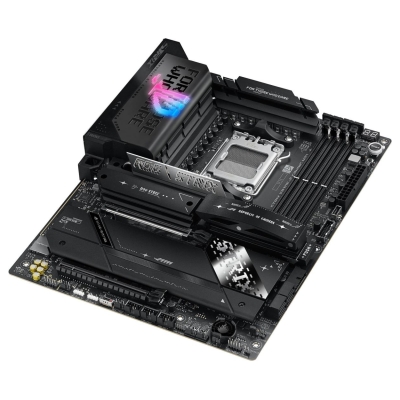

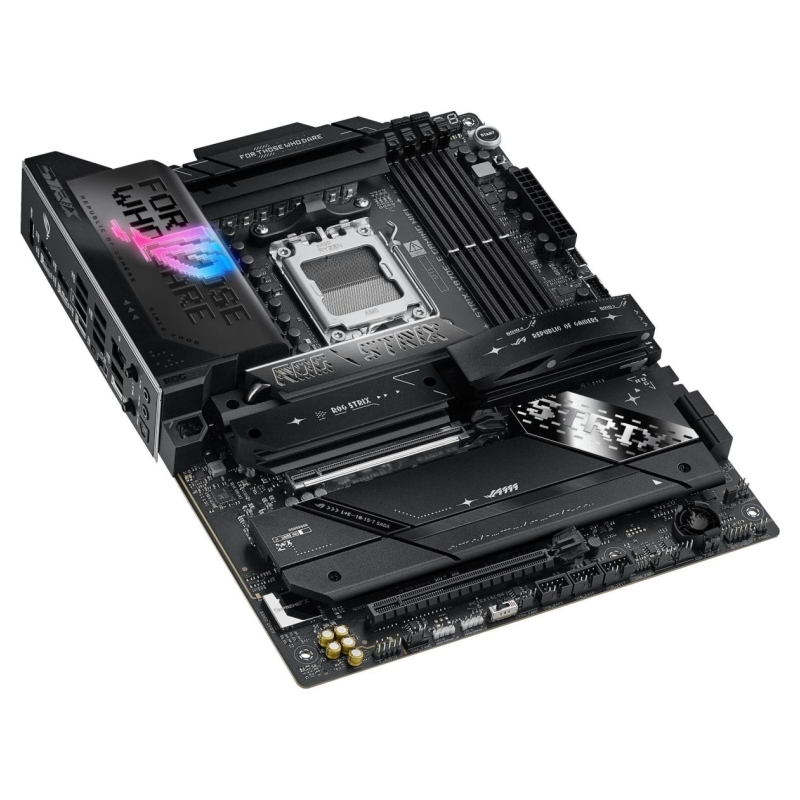

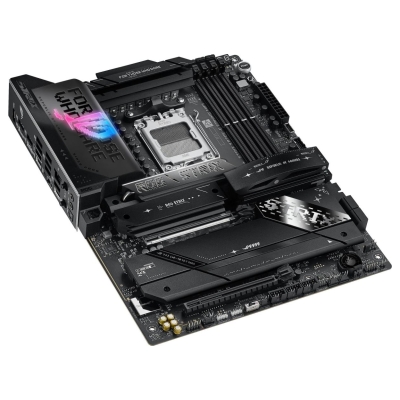

Asus Mainboard|ASUS|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|5xM.2|1xHDMI|9xUSB

Datu lapa

Bluetooth

Yes

RAID levels

0/1/10/5

Windows operating systems supported

Windows 11 x64

Audio output channels

7.1 channels

Microphone in

Yes

Headphone outputs

1

Number of storage drives supported

9

Supported storage drive interfaces

M.2,SATA III

Ethernet LAN (RJ-45) ports

1

Wi-Fi standards

Wi-Fi 7 (802.11be)

Cables included

SATA

Component for

PC

Ethernet LAN

Yes

Ethernet interface type

5 Gigabit Ethernet

HDMI ports quantity

1

RAID support

Yes

Wi-Fi

Yes

Bluetooth version

5.4

Motherboard form factor

ATX

Supported memory types

DDR5-SDRAM

Processor socket

Socket AM5

Maximum internal memory

192 GB

Supported storage drive types

HDD & SSD

Category Code

MBA

CnCode

84733020

Units per Shipping Box

5

Product colour

Black

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Memory channels

Dual-channel

Processor manufacturer

AMD

On-board graphics card

No

Motherboard chipset

AMD X870E

Motherboard chipset family

AMD

ECC сompatibility

ECC & Non-ECC

Memory slots type

DIMM

Number of memory slots

4

Unbuffered memory

Yes

Number of HDDs supported

4

Parallel processing technology support

Not supported

12V power connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Number of chassis fan connectors

5

Number of SATA III connectors

4

USB 2.0 connectors

3

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

S/PDIF out port

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

9

USB 3.2 Gen 2x2 Type-C ports quantity

1

WiFi-AP antenna jack

1

Number of M.2 (M) slots

5

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Audio chip

Realtek ALC4080

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Clear CMOS button

Yes

USB 3.2 Gen 2x2 connectors

1

USB4 Gen 2x2 ports quantity

2

Specifiskas norādes

ean13

4711387724163

MPN

STRIXX870E-EGAMINGWIFI
