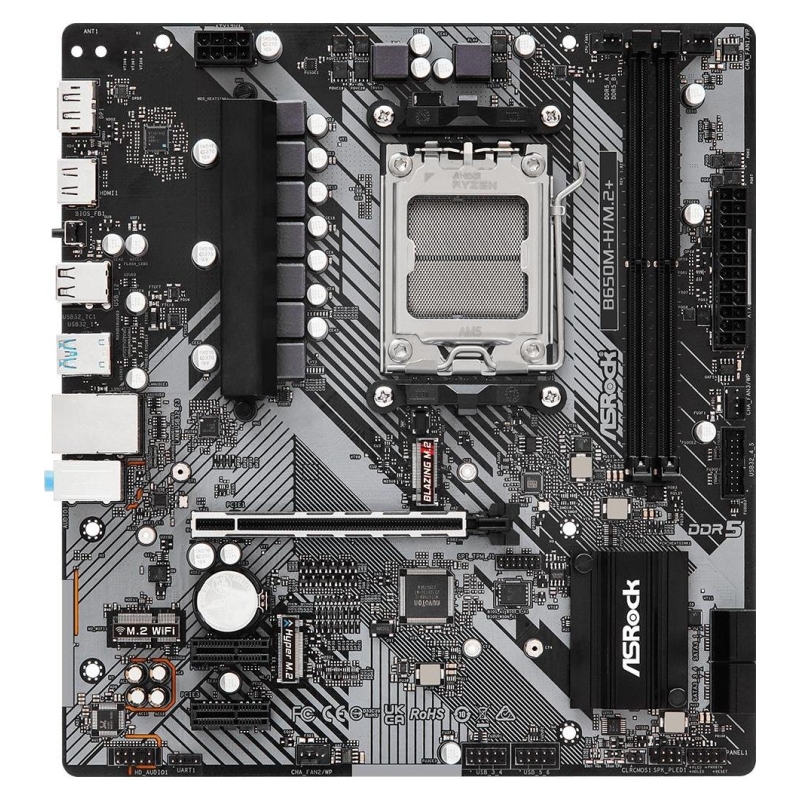

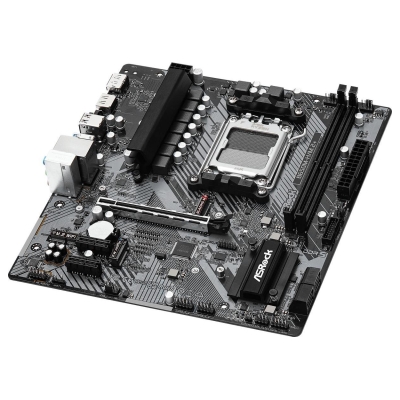

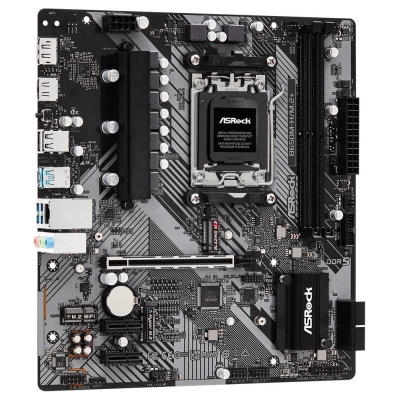

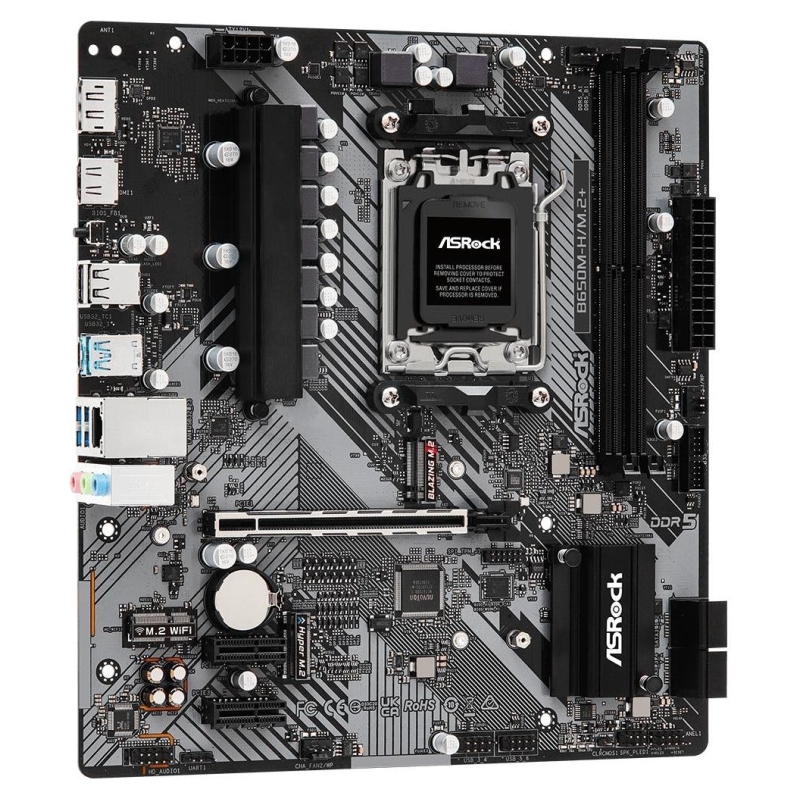

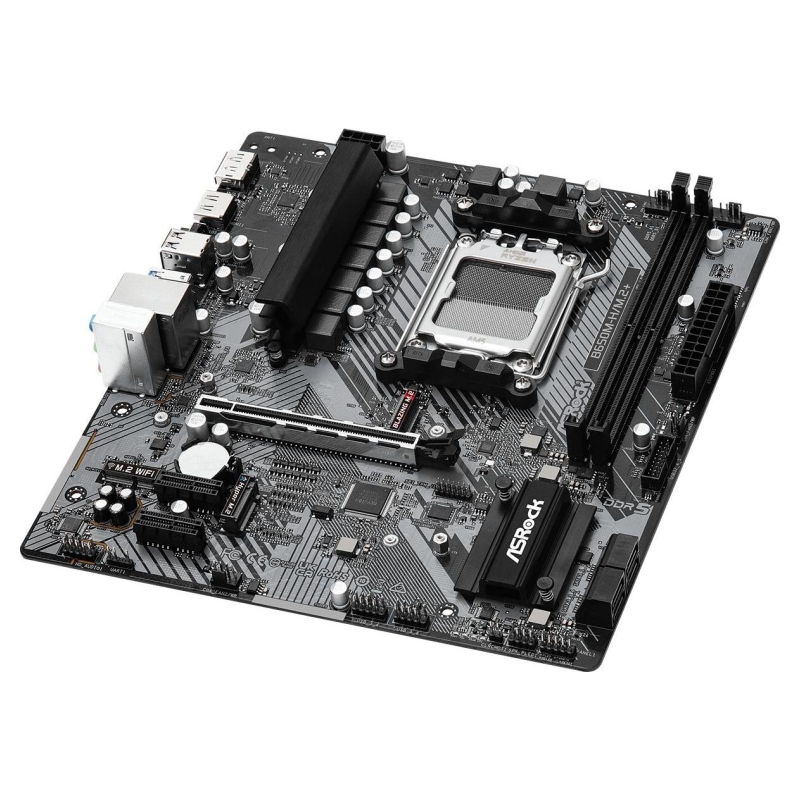

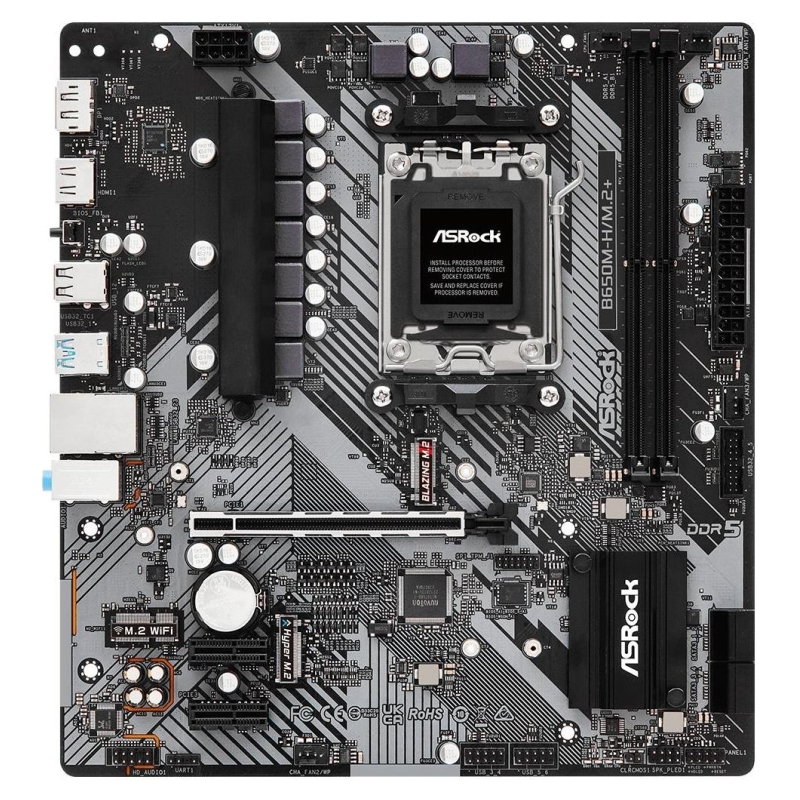

Asrock Mainboard|ASROCK|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-E|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|1x

Datu lapa

Designation

CE+WEEE

Processor family

AMD Ryzen 5
AMD Ryzen 7
AMD Ryzen 9

CPU socket

Socket AM5

Memory type

DDR5

Memory bus frequency

6400 MHz

Integrated CPU

No

Chipset manufacturer

AMD

Chipset type

AMD B650

Max memory size

96

Expansion slots

1 x M.2
1 x PCIe 4.0 x 16
2 x PCIe 4.0 x 1

Max. number of SATA devices

4

RAID

Yes

Detailed data on disk/drive interfaces

PROCESSOR: 1 x Blazing M.2 slot (M2_1, M key), supports 2280 PCIe Gen5x4 mode (128Gb/s)* 1 x Hyper M.2 slot (M2_2, M key), supports 2260/2280 PCIe Gen4x4 mode (64Gb/s)* Chipset: 4 SATA3 6.0 Gb/s connectors Supports RAID 0, RAID 1 and RAID 10 for SATA stor

Graphics

Integrated AMD RDNA 2 graphics (Actual support may vary by processor) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120 Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K

Sound card

7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio

Network interface

1 x 10/100/1000 Mbit/s
Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H

USB ports at back panel

6

USB ports on motherboard

6

Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports

6

FireWire (IEEE 1394)

No

COM connector / port

No

LPT connector / port

No

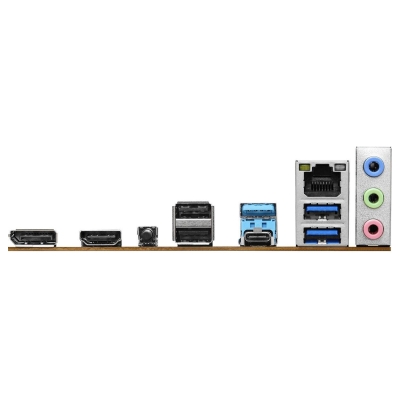

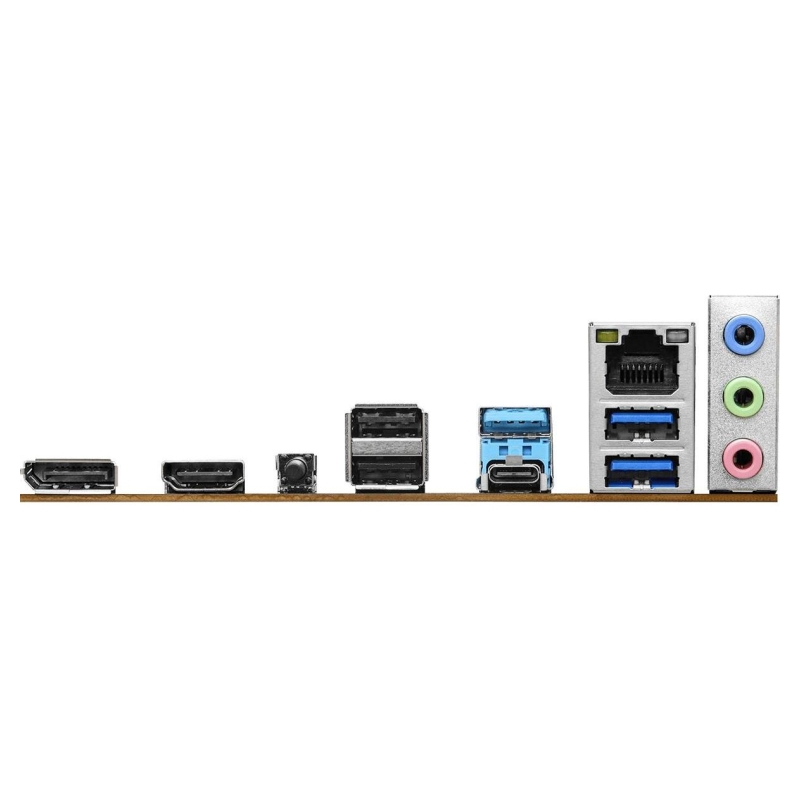

External connectors

1 x DisplayPort
1 x HDMI
1 x Line In
1 x Line Out
1 x MIC
1 x RJ-45
1 x USB 3.1 Type-C
1 x USB BIOS Flashback button
2 x SMA
2 x USB 2.0
3 x USB 3.0

Onboard connectors

1 x 24pin ATX zasilanie
1 x 4pin CPU fan
1 x 8pin 12V power
1 x Front panel audio header
1 x TPM header
1 x USB 3.0 header
2 x USB 2.0/1.1 header
3 x 4pin Chassis/Water Pump Fan Connectors

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

Form factor

ATX

Supported operating systems

Windows 10
Windows 11

Software

Software ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI ASRock Full HD UEFI ASRock automatic driver installer ASRock Instant Flash

Number of DDR5 slots

2

Other information

Certificates FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)

RAID levels

0/1/10

Windows operating systems supported

Windows 10 x64/Windows 11 x64

USB 2.0 ports quantity

2

Audio output channels

7.1 channels

Microphone in

Yes

Number of storage drives supported

6

Supported storage drive interfaces

M.2,SATA III

Ethernet LAN (RJ-45) ports

1

Component for

PC

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

HDMI ports quantity

1

RAID support

Yes

Wi-Fi

No

DisplayPorts quantity

1

Motherboard form factor

Micro ATX

Supported memory types

DDR5-SDRAM

Processor socket

Socket AM5

Maximum internal memory

96 GB

Category Code

MBA

CnCode

84733020

Units per Shipping Box

10

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

DisplayPort version

1.4

LAN controller

Realtek RTL8111H

Line-in

Yes

Memory channels

Dual-channel

Processor manufacturer

AMD

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Motherboard chipset

AMD B650

Motherboard chipset family

AMD

ECC сompatibility

ECC & Non-ECC

Memory slots type

DIMM

Number of memory slots

2

Unbuffered memory

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Number of SATA III connectors

4

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of M.2 (M) slots

1

PCI Express x1 (Gen 4.x) slots

2

PCI Express x16 (Gen 4.x) slots

1

BIOS type

UEFI AMI

Graphics card family

AMD

TPM connector

Yes

Maximum number of SMP processors

1

Specifiskas norādes

ean13

4710483943768

MPN

B650M-H/M.2+
