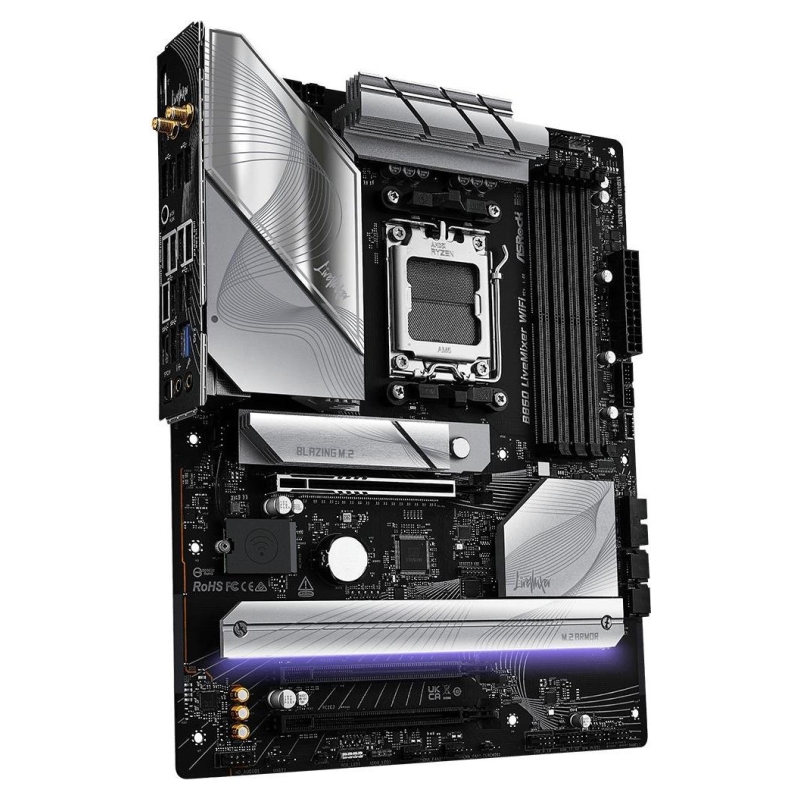

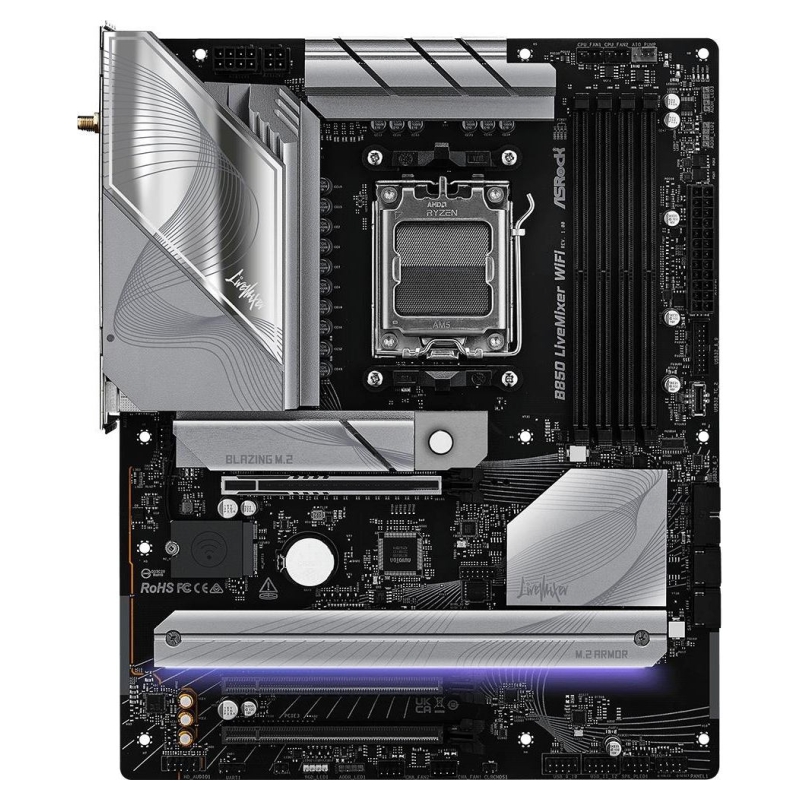

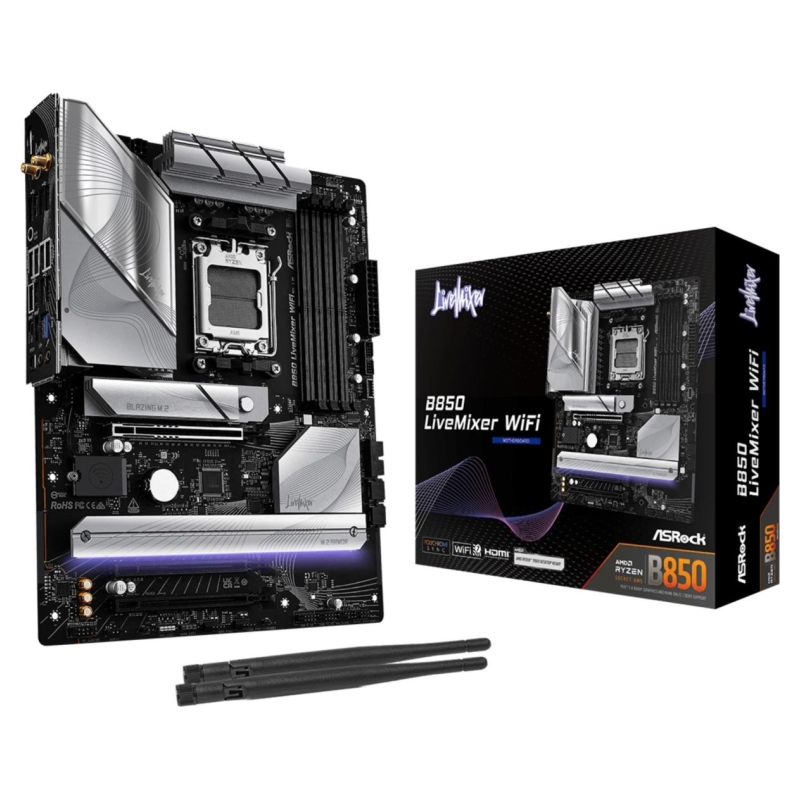

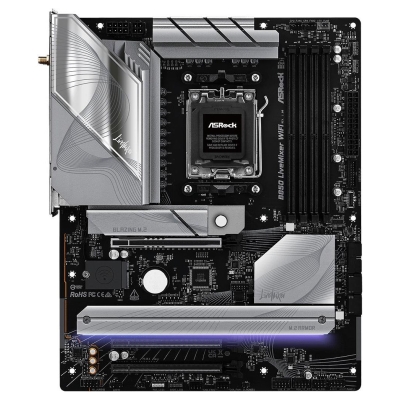

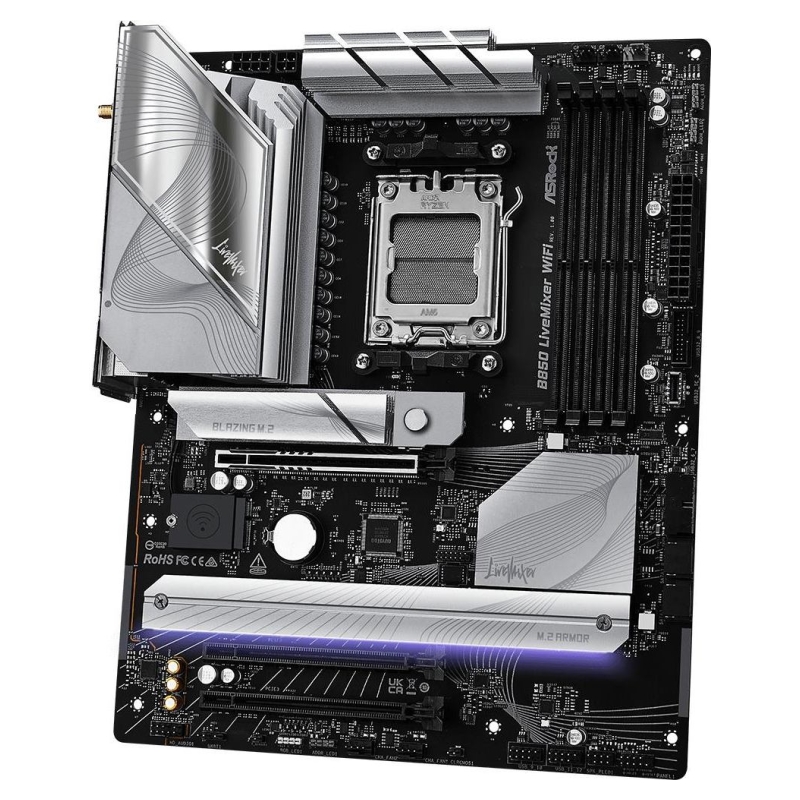

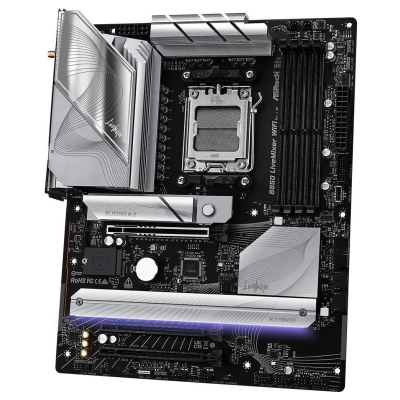

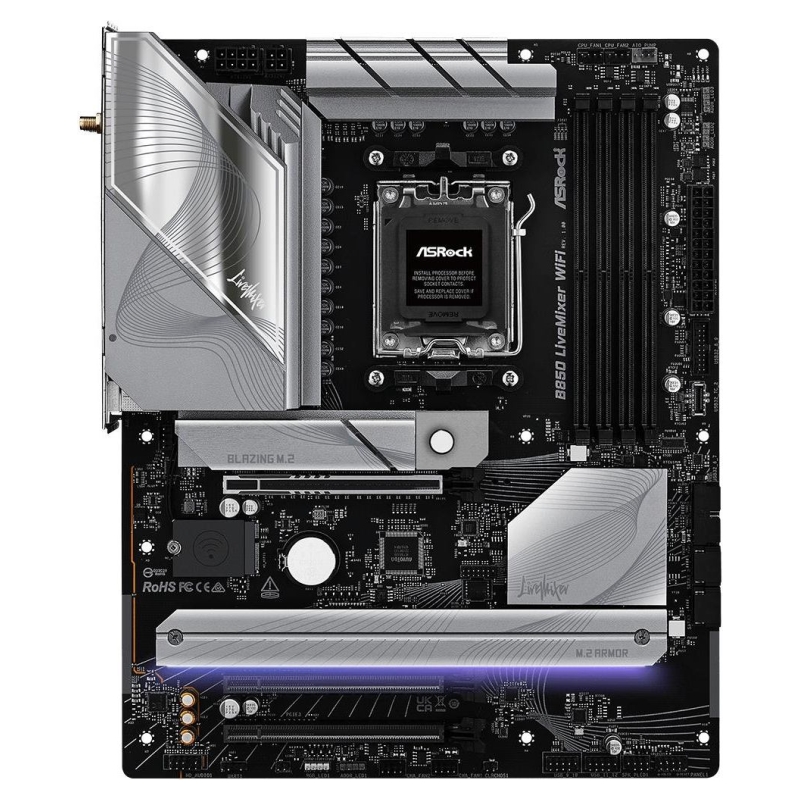

Asrock Mainboard|ASROCK|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1x

Datu lapa

Designation

CE+WEEE

Bluetooth

Yes

Processor family

AMD Ryzen 5
AMD Ryzen 7
AMD Ryzen 9

CPU socket

Socket AM5

Memory type

DDR5

Memory bus frequency

8000 MHz

Integrated CPU

No

Chipset manufacturer

AMD

Max memory size

256

Expansion slots

1 x M.2
1 x PCIe 5.0 x 16
2 x PCIe 4.0 x 16

Max. number of SATA devices

2

RAID

Yes

Network interface

1 x 10/100/1000/2500 Mbit/s
Bluetooth
Wi-Fi 802.11a/b/g/n/ac/ax/be

USB ports at back panel

14

USB ports on motherboard

8

Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports

8

FireWire (IEEE 1394)

No

COM connector / port

No

LPT connector / port

No

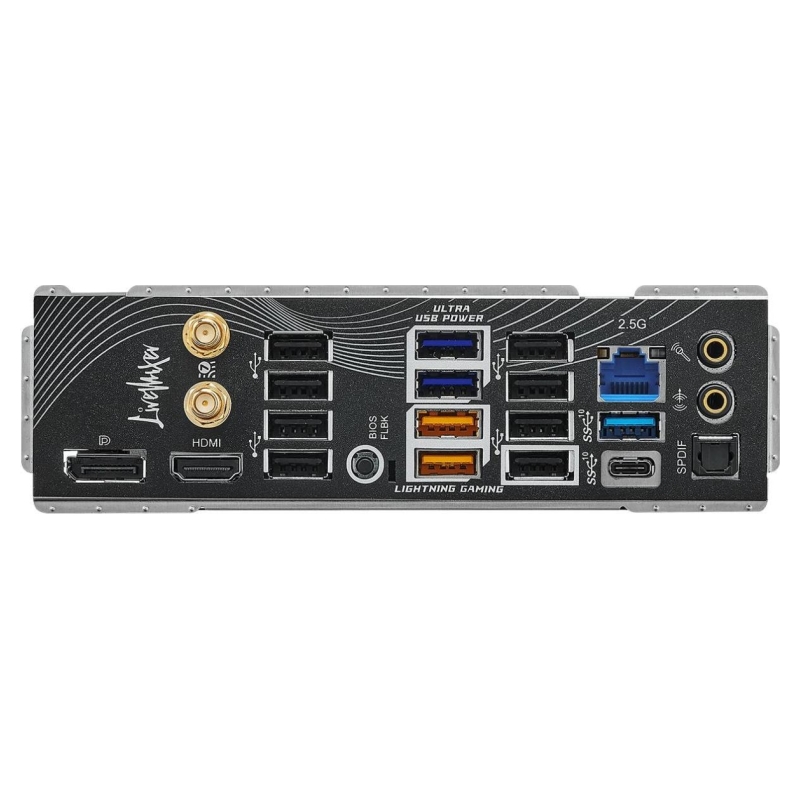

External connectors

1 x DisplayPort
1 x HDMI
1 x Line Out
1 x MIC
1 x RJ-45
1 x S/PDIF
1 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen 2 Type-C
1 x USB BIOS Flashback button
2 x SMA
4 x USB 3.2 Gen 1 Type-A
8 x USB 2.0

Onboard connectors

1 x 24pin ATX zasilanie
1 x 4-pin water-pump-fan
1 x 4pin 12V power
1 x 8pin 12V power
1 x Front panel audio header
1 x Power LED and Speaker Header
1 x RGB LED strip header
1 x Thermistor Cable Header
1 x TPM header
1 x USB 3.2 Gen 2 Type-C
2 x 4pin wentylator CPU
2 x USB 2.0/1.1 header
2 x USB 3.2 Gen 1 Type-A
3 x 4pin Chassis fan
3 x Addressable LED

Form factor

ATX

Supported operating systems

Windows 10
Windows 11

Number of DDR5 slots

4

Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports

3

RAID levels

0/1/10

Windows operating systems supported

Windows 10 x64/Windows 11 x64

USB 2.0 ports quantity

8

Audio output channels

7.1 channels

Microphone in

Yes

Headphone outputs

1

Number of storage drives supported

5

Supported storage drive interfaces

PCI Express 4.0,PCI Express 5.0,SATA III

Ethernet LAN (RJ-45) ports

1

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

Cables included

SATA

Component for

PC

Maximum resolution

3840 x 2160 pixels

Ethernet LAN

Yes

Ethernet interface type

2.5 Gigabit Ethernet

HDMI ports quantity

1

RAID support

Yes

Wi-Fi

Yes

DisplayPorts quantity

1

HDCP

Yes

Bluetooth version

5.4

USB connector type

USB Type-A/USB Type-C

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Motherboard form factor

ATX

Supported memory types

DDR5-SDRAM

Processor socket

Socket AM5

EPS power connector (8-pin)

Yes

Supported processor sockets

Socket AM5

Maximum internal memory

256 GB

Supported storage drive types

HDD & SSD

HDMI version

2.1

Category Code

MBA

CnCode

84733020

Units per Shipping Box

5

Product colour

Black

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

DisplayPort version

1.4

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

LAN controller

Dragon RTL8125BG

Memory channels

Dual-channel

Processor manufacturer

AMD

Antenna included

Yes

Motherboard chipset

AMD B850

Motherboard chipset family

AMD

ECC сompatibility

ECC & Non-ECC

Memory slots type

DIMM

Number of memory slots

4

Unbuffered memory

Yes

Parallel processing technology support

Not supported

12V power connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Number of chassis fan connectors

3

Number of SATA III connectors

2

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

S/PDIF out port

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

WiFi-AP antenna jack

2

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

2280

Number of M.2 (M) slots

3

PCI Express x16 (Gen 4.x) slots

2

PCI Express x16 (Gen 5.x) slots

1

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Audio chip

Realtek ALC1220

RGB LED pin header

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

1

TPM connector

Yes

Number of RGB LED pin headers

4

Number of water pump connectors

1

USB 3.2 Gen 2x2 connectors

1

Specifiskas norādes

ean13

4711581490154

MPN

B850 LIVEMIXER WIFI
