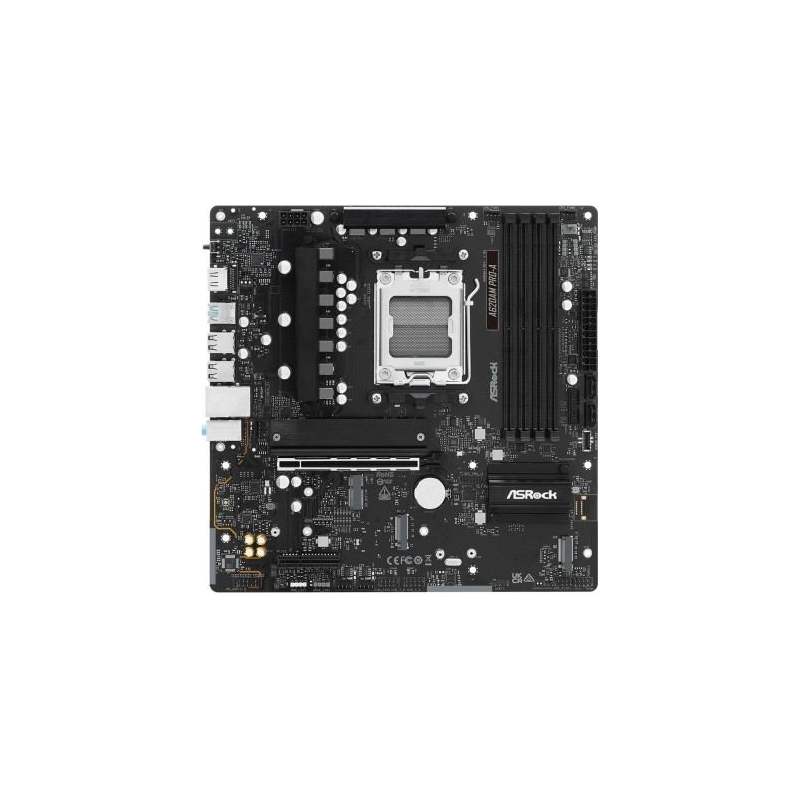

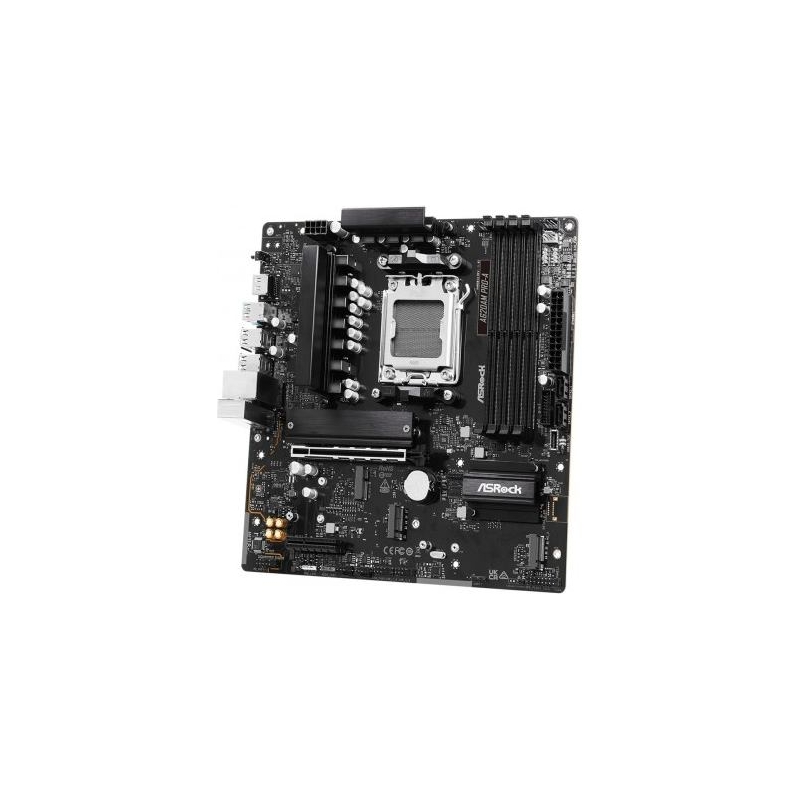

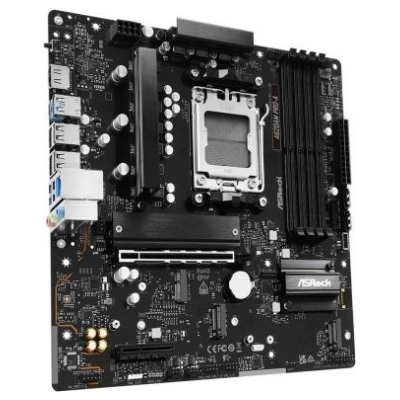

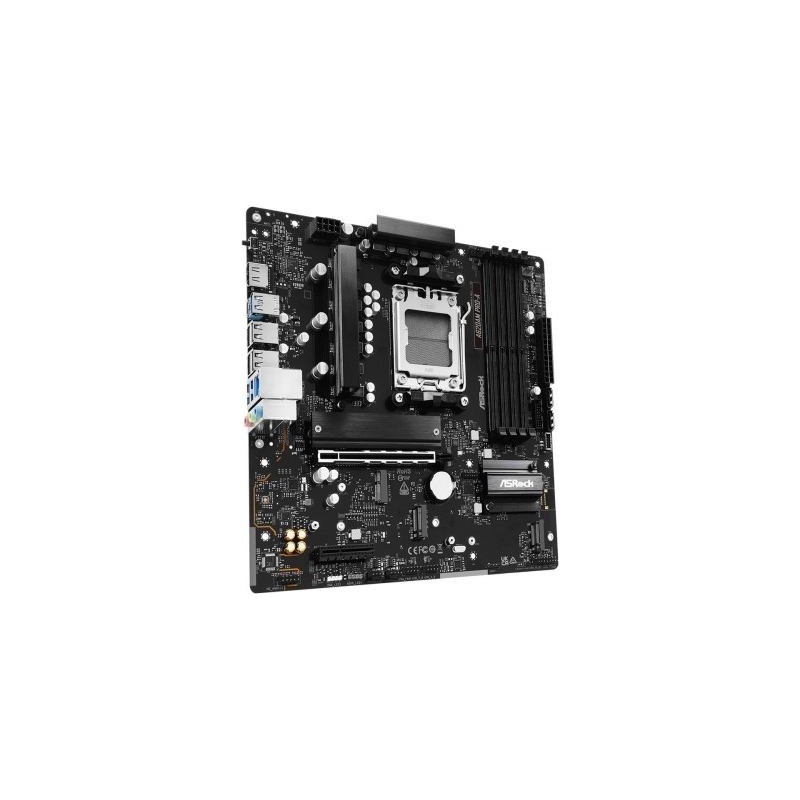

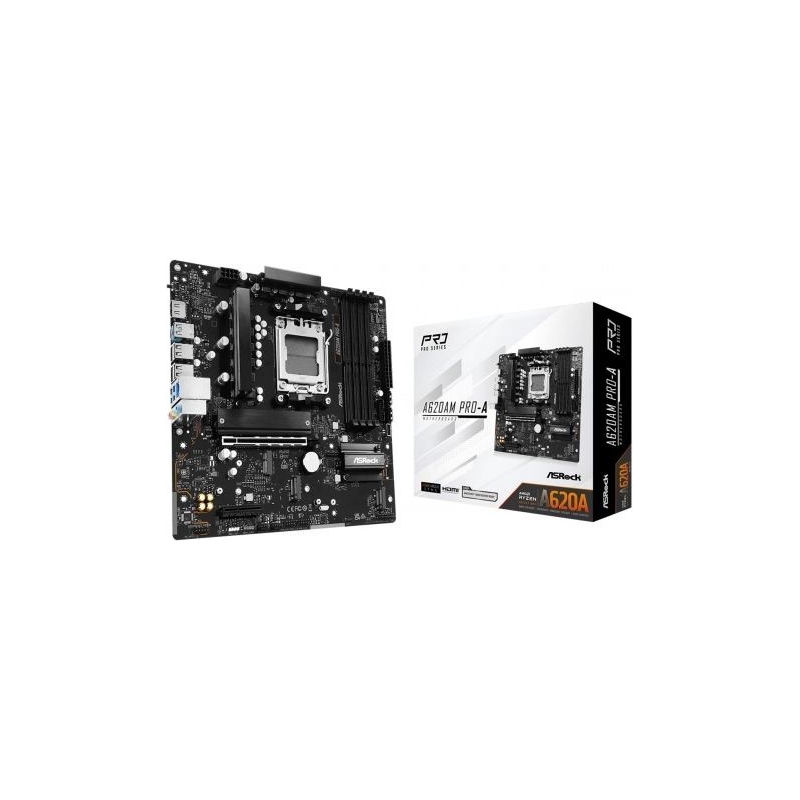

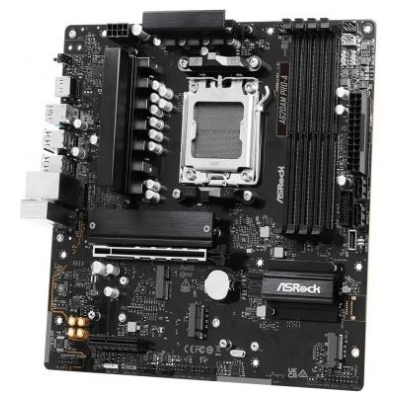

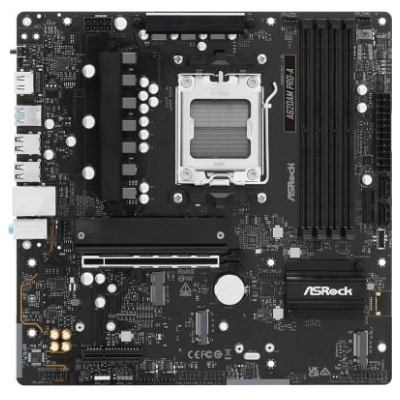

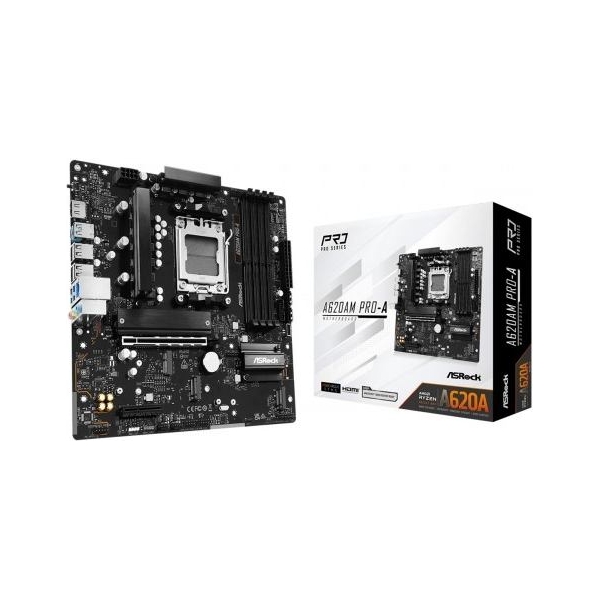

Asrock Mainboard|ASROCK|AMD A620|Socket AM5|micro ATX|RAM DDR5-SDRAM|4xSlots|On-board graphics card Yes|3xNumber of M.2 (M) slot

Datu lapa

Designation

CE+WEEE

Bluetooth

No

Processor family

AMD Ryzen

CPU socket

Socket AM5

Memory type

DDR5

Integrated CPU

No

Chipset manufacturer

AMD

Max memory size

256

Expansion slots

1 x M.2
1 x PCIe 3.0 x 4
1 x PCIe 4.0 x 16

Max. number of SATA devices

2

RAID

Yes

Network interface

1 x 10/100/1000/2500 Mbit/s

USB ports at back panel

8

USB ports on motherboard

6

Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports

7

FireWire (IEEE 1394)

No

COM connector / port

No

LPT connector / port

No

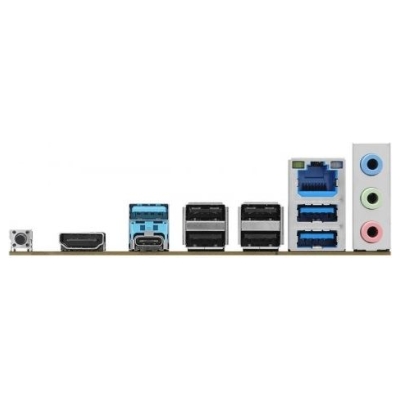

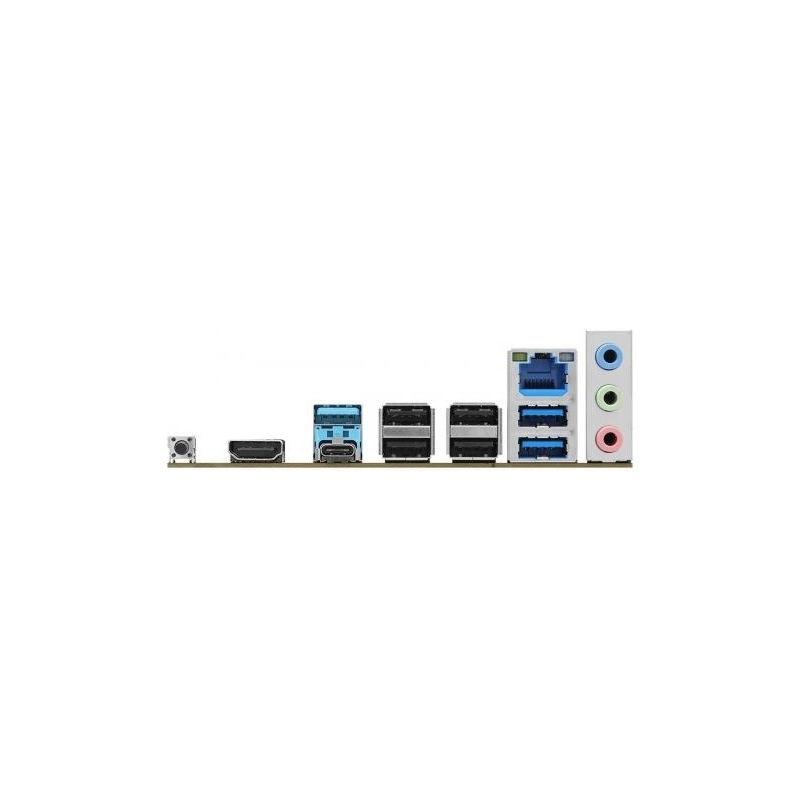

External connectors

1 x Flash BIOS Button
1 x HDMI
1 x Line In
1 x Line Out
1 x MIC
1 x RJ-45
1 x USB 3.0 Type-C
3 x USB 3.0
4 x USB 2.0

Onboard connectors

1 x 24pin ATX zasilanie
1 x 8pin 12V power
1 x TPM header
1 x USB 3.0 header
1 x USB 3.2 Gen 1 Type-C
2 x 4pin wentylator CPU
2 x USB 2.0/1.1 header

Form factor

micro ATX

Supported operating systems

Windows 10
Windows 11

Number of DDR5 slots

4

RAID levels

0/1/10

Graphics card

AMD RDNA 2

Windows operating systems supported

Windows 10 x64/Windows 11 x64

USB 2.0 ports quantity

4

Audio output channels

7.1 channels

Microphone in

Yes

Supported storage drive interfaces

M.2,NVMe,SATA III

Ethernet LAN (RJ-45) ports

1

Cooling type

Passive

Cables included

SATA

Component for

PC

Maximum resolution

3840 x 2160 pixels

Ethernet LAN

Yes

Ethernet interface type

2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet

HDMI ports quantity

1

RAID support

Yes

Wi-Fi

No

HDCP

Yes

Intel Extreme Memory Profile (XMP)

Yes

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Motherboard form factor

Micro ATX

Supported memory types

DDR5-SDRAM

Processor socket

Socket AM5

Maximum internal memory

256 GB

Supported storage drive types

HDD & SSD

HDMI version

2.1

Category Code

MBA

CnCode

84733020

Units per Shipping Box

10

Product colour

Black

Compliance certificates

CE/Federal Communications Commission (FCC)

High Dynamic Range (HDR) supported

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

HDCP version

2.3

Screws included

Yes

LAN controller

Dragon RTL8125BG

Line-in

Yes

Memory channels

Dual-channel

Processor manufacturer

AMD

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

On-board graphics card

Yes

Motherboard chipset

AMD A620

Motherboard chipset family

AMD

ECC сompatibility

ECC & Non-ECC

Memory slots type

DIMM

Number of memory slots

4

Unbuffered memory

Yes

Number of HDDs supported

2

Parallel processing technology support

Not supported

12V power connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Number of chassis fan connectors

3

Number of SATA III connectors

2

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of M.2 (M) slots

3

PCI Express x16 (Gen 4.x) slots

1

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Audio chip

Realtek ALC897

RGB LED pin header

Yes

Graphics card family

AMD

Audio connector

Yes

Number of CPU fan connectors

2

TPM connector

Yes

Supported memory clock speeds

8000 MHz

Number of RGB LED pin headers

1

Number of water pump connectors

1

Rear speaker out

Yes

BIOS flashback button

Yes

AMD Extended Profiles for Overclocking (EXPO)

Yes

M.2 standoff included

Yes

PCI Express x4 (Gen 3.x) slots

1

Specifiskas norādes

ean13

4711581490963

MPN

A620AM PRO-A
