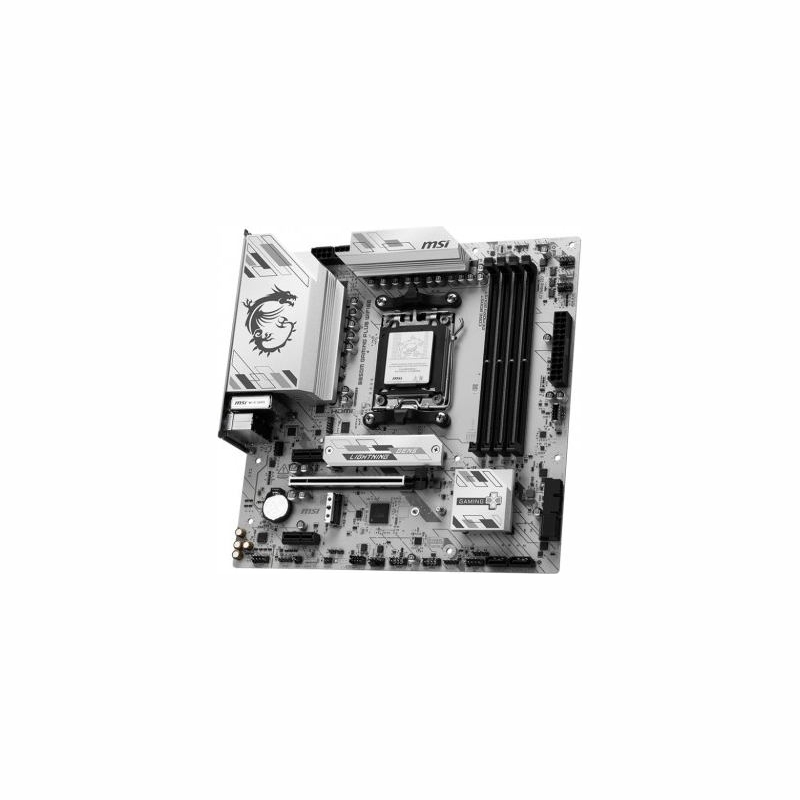

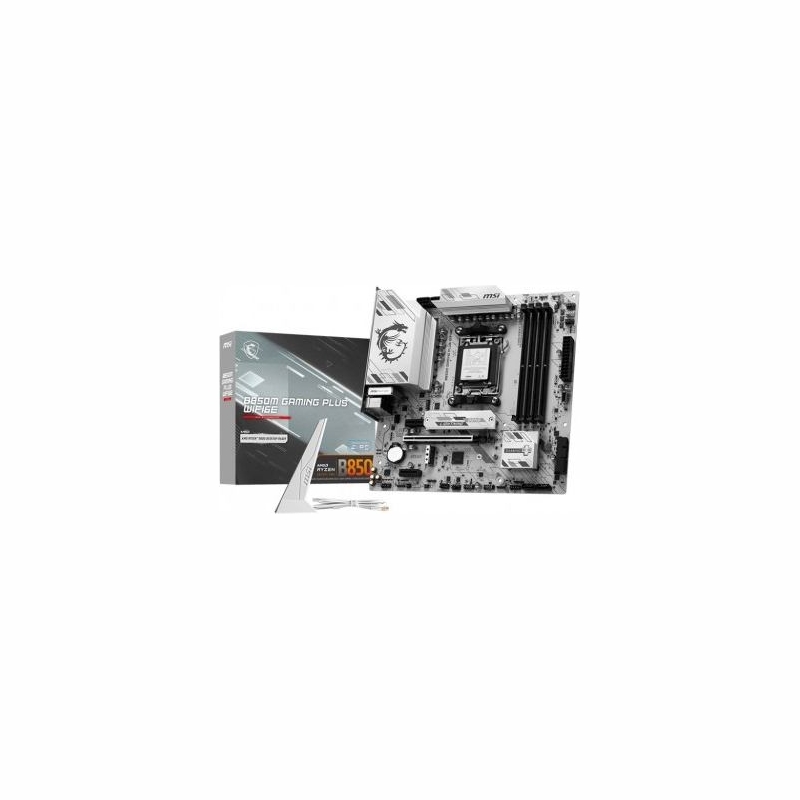

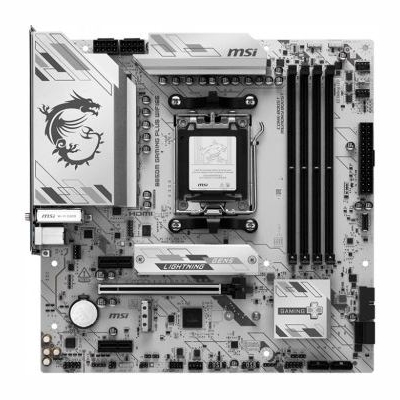

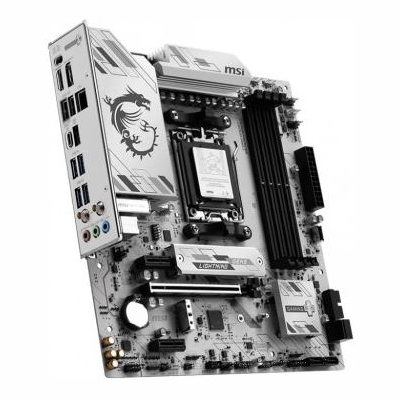

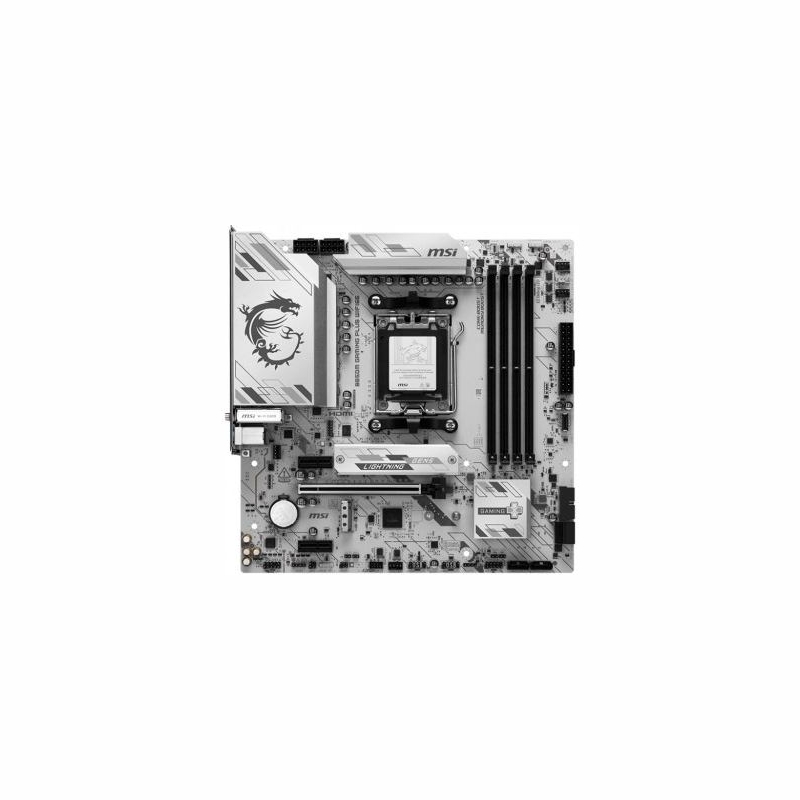

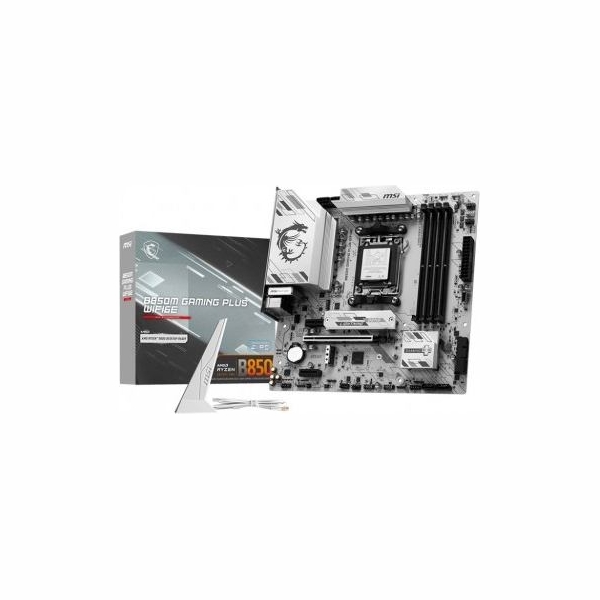

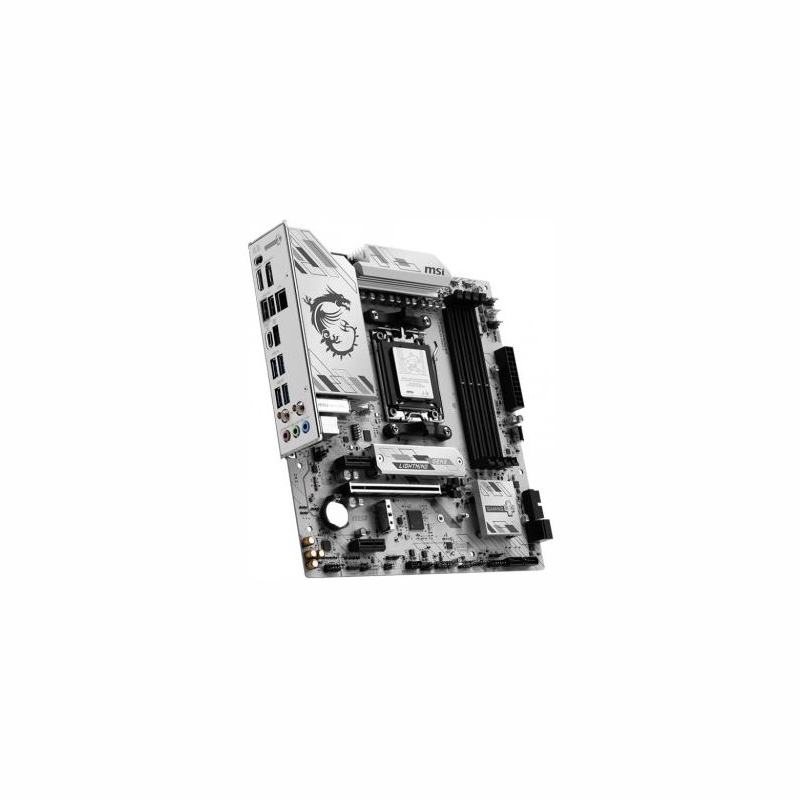

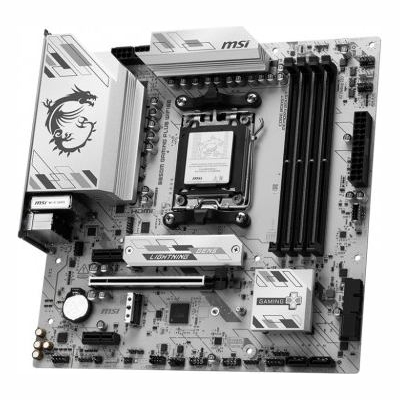

MSI B850M GAMING PLUS WIFI6E | Processor family AMD | Processor socket AM5 | Supported hard disk drive interfaces SATA, M.2 | Nu

Datu lapa

Designation

CE+WEEE

Processor family

AMD
AMD Ryzen

CPU socket

Socket AM5

Memory type

DDR5

Memory bus frequency

8200 MHz

Integrated CPU

No

Chipset manufacturer

AMD

Chipset type

AMD B850

Max memory size

256

Expansion slots

1 x PCIe 4.0 x 16
2 x PCIe 3.0 x 1

Max. number of SATA devices

4

RAID

Yes

Detailed data on disk/drive interfaces

2 x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4 x SATA 6G

Graphics

1 x HDMI - Support HDMI 2.1, maximum resolution of 4K 60Hz 1 x DisplayPort - Support DisplayPort 1.4, maximum resolution of 4K 60Hz

Sound card

Realtek ALC897 7.1-Channel High Definition Audio

Network interface

1 x 10/100/1000/2500 Mbit/s
Bluetooth
LAN: Realtek 8125D 2.5G LAN Wireless: Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Wi-Fi 802.11a/b/g/n/ac/ax

USB ports at back panel

8

USB ports on motherboard

7

Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports

6

FireWire (IEEE 1394)

No

COM connector / port

No

LPT connector / port

No

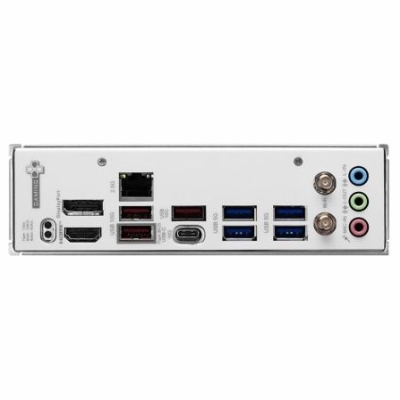

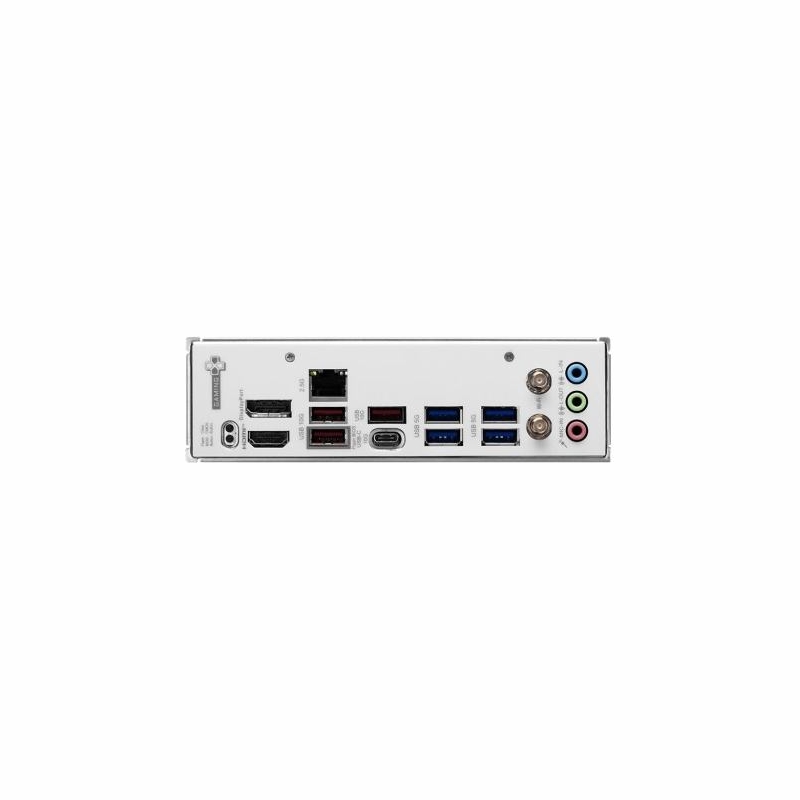

External connectors

1 x DisplayPort
1 x Flash BIOS Button
1 x HDMI
1 x Line In
1 x Line Out
1 x MIC
1 x Przycisk Clear CMOS
1 x RJ-45
1 x USB 3.2 Gen 2 Type-C
2 x SMA
3 x USB 3.2 Gen 2 Type-A
4 x USB 3.2 Gen 1 Type-A

Onboard connectors

1 x 24pin ATX zasilanie
1 x 4pin CPU fan
1 x 4pin CPU/Water Pump Fan Connector
1 x Chassis intrusion header
1 x EZ Conn-header
1 x EZ Memory Detection LED
1 x Front panel audio header
1 x RGB LED strip header
1 x TPM header
1 x Tuning Controller connector
1 x USB 3.2 Gen 2 Type-C
2 x 8pin 12V
2 x M.2
2 x System panel header
2 x USB 3.2 Gen 1 Type-A
3 x 4pin Chassis fan
3 x Addressable LED
4 x EZ Debug LED
4 x SATA III 6Gb/s
4 x USB 2.0/1.1

Form factor

micro ATX

Supported operating systems

Windows 11

Number of DDR5 slots

4

Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports

5

Warranty

36 month(s)

Packing quantity

1.00 pc(s)

Embeeded battery

Yes

WEEE tax

Yes

Producer

MSI

WEE classification

CL109:6:2017-04-01

TI weight (kg)

0.08 kg

Composition of battery

CL127:KT:2016-12-09

Classification of battery

CL126:NE:2016-12-09

Type of battery

Accumulator

Supported hard disk drive interfaces

SATA, M.2

Processor socket

AM5

Number of SATA connectors

4

Specifiskas norādes

ean13

4711377365345

MPN

B850M GAMING PLUS WIFI6E
