Asrock Mainboard|ASROCK|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1x

Datu lapa

Designation

CE+WEEE

Bluetooth

Yes

Processor family

AMD Ryzen 5
AMD Ryzen 7
AMD Ryzen 9

CPU socket

Socket AM5

Memory type

DDR5

Memory bus frequency

8000 MHz

Integrated CPU

No

Chipset manufacturer

AMD

Max memory size

256

Expansion slots

1 x M.2
1 x PCIe 4.0 x 16
1 x PCIe 5.0 x 16

Max. number of SATA devices

2

RAID

Yes

Network interface

1 x 10/100/1000/2500 Mbit/s
Bluetooth
Wi-Fi 802.11a/b/g/n/ac/ax/axe

USB ports at back panel

12

USB ports on motherboard

9

Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports

9

FireWire (IEEE 1394)

No

COM connector / port

No

LPT connector / port

No

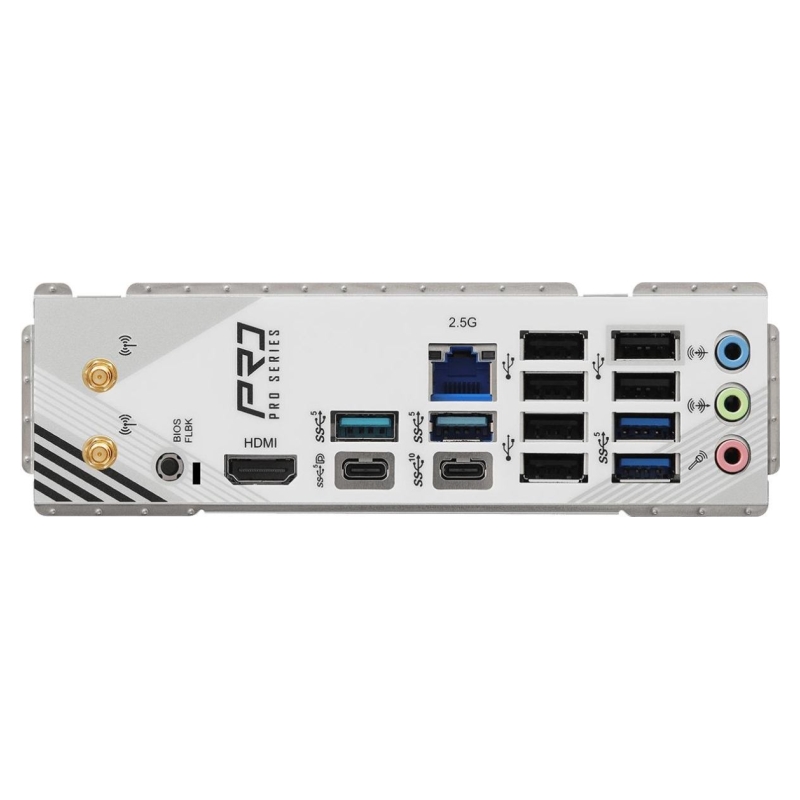

External connectors

1 x HDMI
1 x Line In
1 x Line Out
1 x MIC
1 x RJ-45
1 x USB 3.2 Gen 1 Type-C
1 x USB 3.2 Gen 2 Type-C
1 x USB BIOS Flashback button
2 x SMA
4 x USB 3.2 Gen 1 Type-A
6 x USB 2.0

Onboard connectors

1 x 24pin ATX zasilanie
1 x 4-pin water-pump-fan
1 x Front panel audio header
1 x Power LED and Speaker Header
1 x RGB LED strip header
1 x TPM header
1 x USB 3.2 Gen 2 Type-C
2 x 4pin wentylator CPU
2 x 8pin 12V
2 x USB 2.0/1.1 header
2 x USB 3.2 Gen 1 Type-A
3 x Addressable LED
4 x 4pin Chassis fan

Form factor

ATX

Supported operating systems

Windows 10
Windows 11

Number of DDR5 slots

4

Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports

2

RAID levels

0/1/10

Windows operating systems supported

Windows 10 x64/Windows 11 x64

USB 2.0 ports quantity

6

Audio output channels

7.1 channels

Microphone in

Yes

Supported storage drive interfaces

M.2,SATA III

Ethernet LAN (RJ-45) ports

1

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

Cables included

SATA

Component for

PC

Ethernet LAN

Yes

Ethernet interface type

2.5 Gigabit Ethernet

HDMI ports quantity

1

RAID support

Yes

Wi-Fi

Yes

Bluetooth version

5.2

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Motherboard form factor

ATX

Supported memory types

DDR5-SDRAM

Processor socket

Socket AM5

EPS power connector (8-pin)

Yes

Maximum internal memory

256 GB

Category Code

MBA

CnCode

84733020

Units per Shipping Box

5

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

LAN controller

Dragon RTL8125BG

Line-in

Yes

Memory channels

Dual-channel

Processor manufacturer

AMD

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Motherboard chipset

AMD B850

Motherboard chipset family

AMD

ECC сompatibility

ECC

Memory slots type

DIMM

Number of memory slots

4

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Number of chassis fan connectors

4

Number of SATA III connectors

4

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

WiFi-AP antenna jack

2

Number of M.2 (M) slots

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Audio chip

Realtek ALC897

RGB LED pin header

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

TPM connector

Yes

USB 3.2 Gen 2x2 connectors

1

Specifiskas norādes

ean13

4711581490178

MPN

B850 PRO RS WIFI
