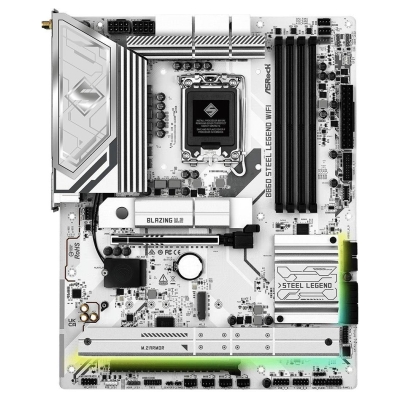

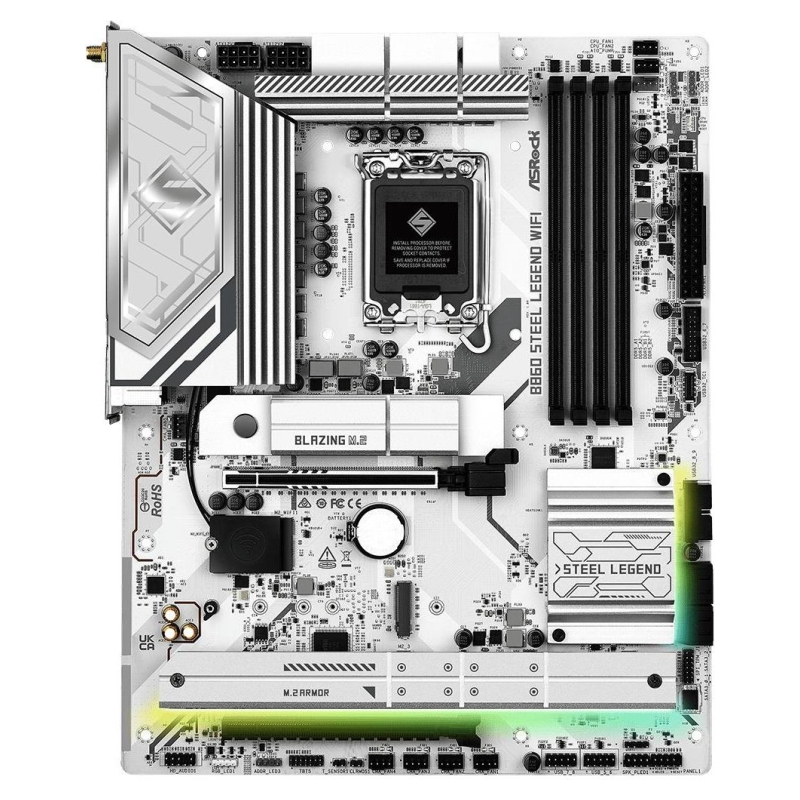

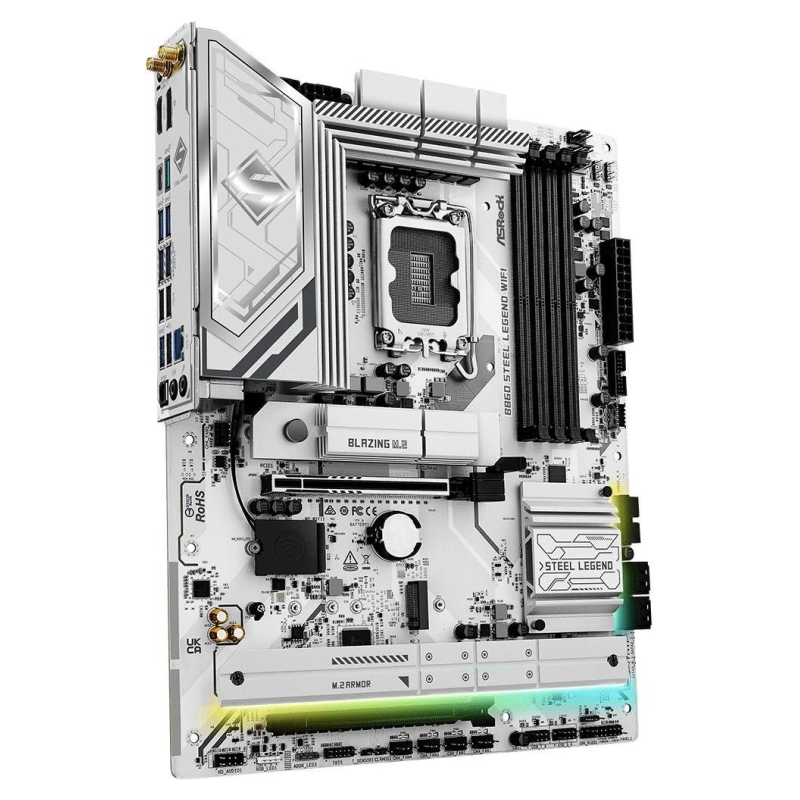

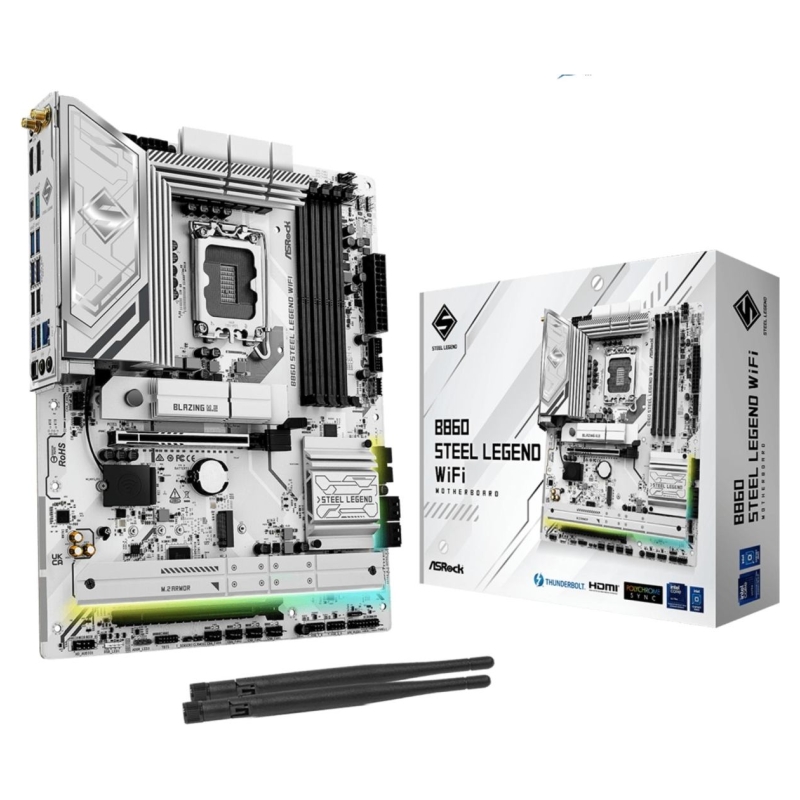

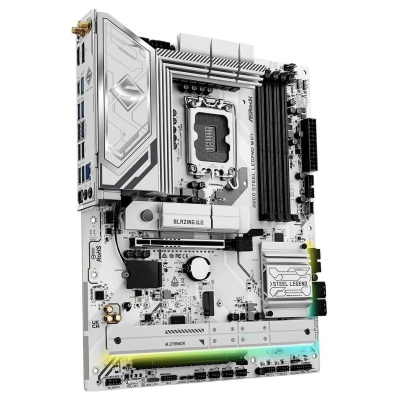

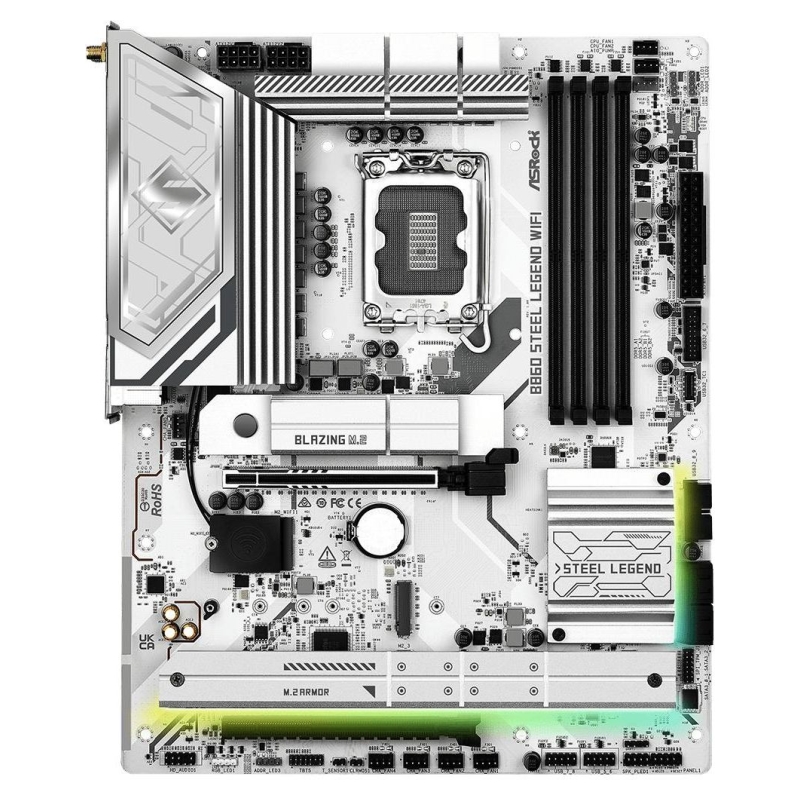

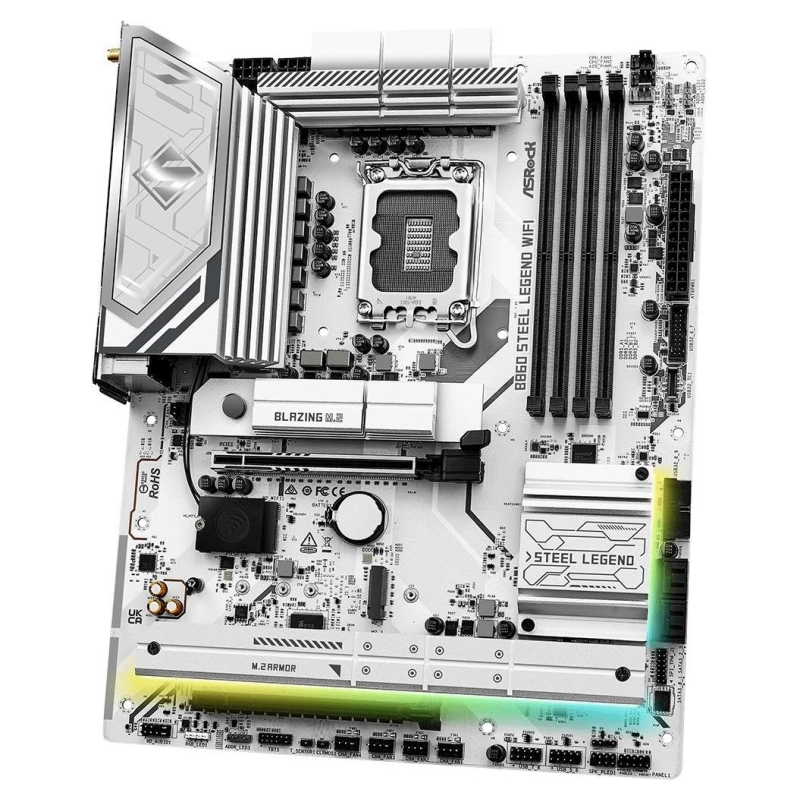

Asrock Mainboard|ASROCK|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1x

Datu lapa

Designation

CE+WEEE

Bluetooth

Yes

Processor family

Intel Core Ultra

CPU socket

LGA1851

Memory type

DDR5

Memory bus frequency

8666 MHz

Integrated CPU

No

Chipset manufacturer

Intel

Chipset type

Intel B860

Max memory size

256

Expansion slots

1 x M.2
1 x PCIe 4.0 x 16
1 x PCIe 5.0 x 16

Max. number of SATA devices

4

RAID

Yes

Detailed data on disk/drive interfaces

CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280

Graphics

Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 1 x Intel Thunderbo

Sound card

7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Nahimic Audio

Network interface

1 x 10/100/1000/2500 Mbit/s
Bluetooth
LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User
Wi-Fi 802.11a/b/g/n/ac/ax/be

USB ports at back panel

10

USB ports on motherboard

9

Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports

8

FireWire (IEEE 1394)

No

COM connector / port

No

LPT connector / port

No

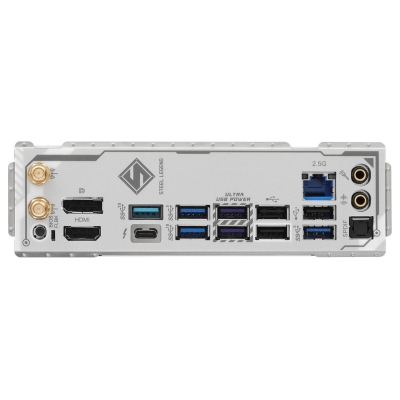

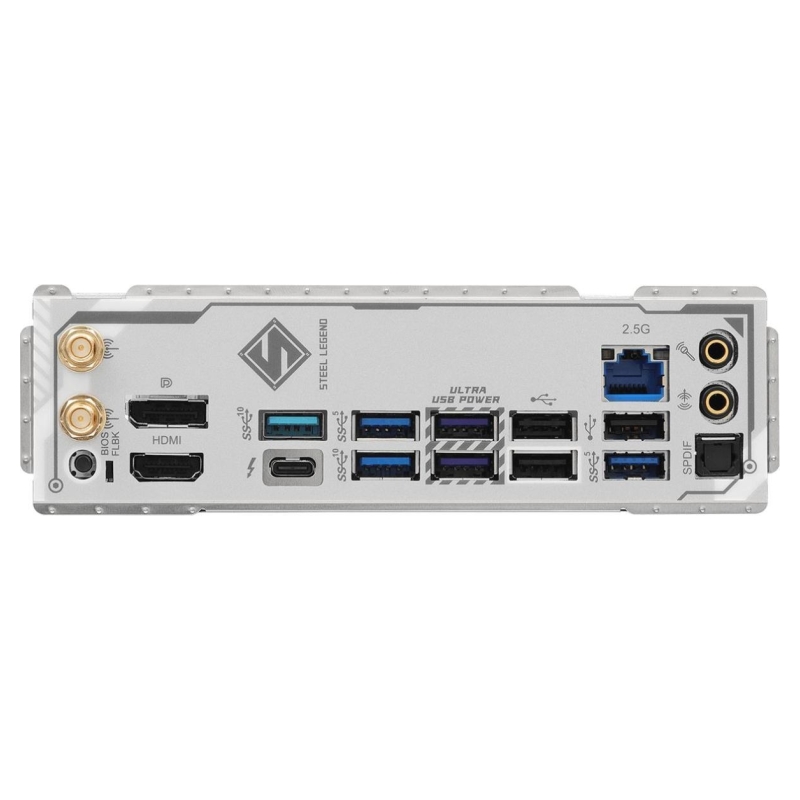

External connectors

1 x DisplayPort
1 x Flash BIOS Button
1 x HDMI
1 x Line Out
1 x MIC
1 x RJ-45
1 x S/PDIF
1 x Thunderbolt 4
2 x SMA
2 x USB 3.2 Gen 2 Type-A
3 x USB 2.0
4 x USB 3.2 Gen 1 Type-A

Onboard connectors

1 x 24pin ATX zasilanie
1 x 4-pin water-pump-fan
1 x Front panel audio header
1 x Power LED and Speaker Header
1 x RGB LED strip header
1 x SPI
1 x Thermistor Cable Header
1 x USB 3.2 Gen 2 Type-C
2 x 4pin wentylator CPU
2 x 8pin 12V
2 x USB 2.0/1.1 header
2 x USB 3.2 Gen 1 Type-A
3 x Addressable LED
5 x 4pin Chassis fan

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

Form factor

ATX

Supported operating systems

Windows 11

Software

Software  ASRock Motherboard Utility (A-Tuning)  ASRock Dragon 2.5G LAN Software  ASRock Polychrome SYNC* UEFI  ASRock EZ Mode  ASRock Full HD UEFI  ASRock My Favorites in UEFI  ASRock Auto Driver Installer  ASRock Instant Flash

Number of DDR5 slots

4

Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports

4

RAID levels

0/1/10/5

Windows operating systems supported

Windows 11 x64

USB 2.0 ports quantity

3

Audio output channels

7.1 channels

Microphone in

Yes

Headphone outputs

1

Number of storage drives supported

8

Supported storage drive interfaces

PCI Express 4.0,PCI Express 5.0,SATA III

Ethernet LAN (RJ-45) ports

1

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

Cables included

SATA

Component for

PC

Maximum resolution

7680 x 4320 pixels

Ethernet LAN

Yes

Ethernet interface type

2.5 Gigabit Ethernet

HDMI ports quantity

1

RAID support

Yes

Wi-Fi

Yes

DisplayPorts quantity

1

HDCP

Yes

Bluetooth version

5.3

USB connector type

USB Type-A/USB Type-C

Compatible processor series

Intel Core Ultra (Series 2)

Motherboard form factor

ATX

Supported memory types

DDR5-SDRAM

Processor socket

LGA 1851 (Socket V1)

EPS power connector (8-pin)

Yes

Supported processor sockets

LGA 1851

Maximum internal memory

256 GB

Thunderbolt ports quantity

1

Supported storage drive types

HDD & SSD

HDMI version

2.1

Category Code

MBI

CnCode

84733020

Units per Shipping Box

5

Product colour

White

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

DisplayPort version

1.4

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

LAN controller

Dragon RTL8125BG

Memory channels

Dual-channel

Processor manufacturer

Intel

Antenna included

Yes

Motherboard chipset

Intel B860

Motherboard chipset family

Intel

ECC сompatibility

Non-ECC

Memory slots type

DIMM

Number of memory slots

4

Unbuffered memory

Yes

Parallel processing technology support

Not supported

12V power connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Number of chassis fan connectors

5

Number of SATA III connectors

4

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

S/PDIF out port

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

WiFi-AP antenna jack

2

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

2280

Number of M.2 (M) slots

4

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Audio chip

Realtek ALC1220

RGB LED pin header

Yes

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

TPM connector

Yes

Number of RGB LED pin headers

1

Number of water pump connectors

1

USB 3.2 Gen 2x2 connectors

1

4th M.2 highest PCI Express generation

4.0

4th M.2 largest key size

2280

Specifiskas norādes

ean13

4711581490123

MPN

B860 STEEL LEGEND WIFI
