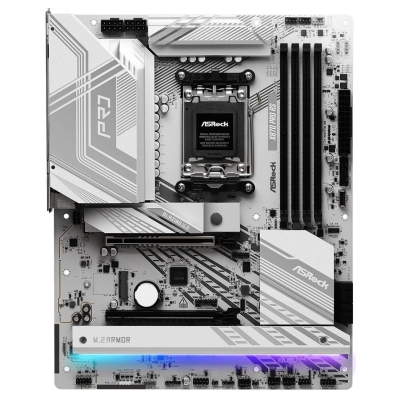

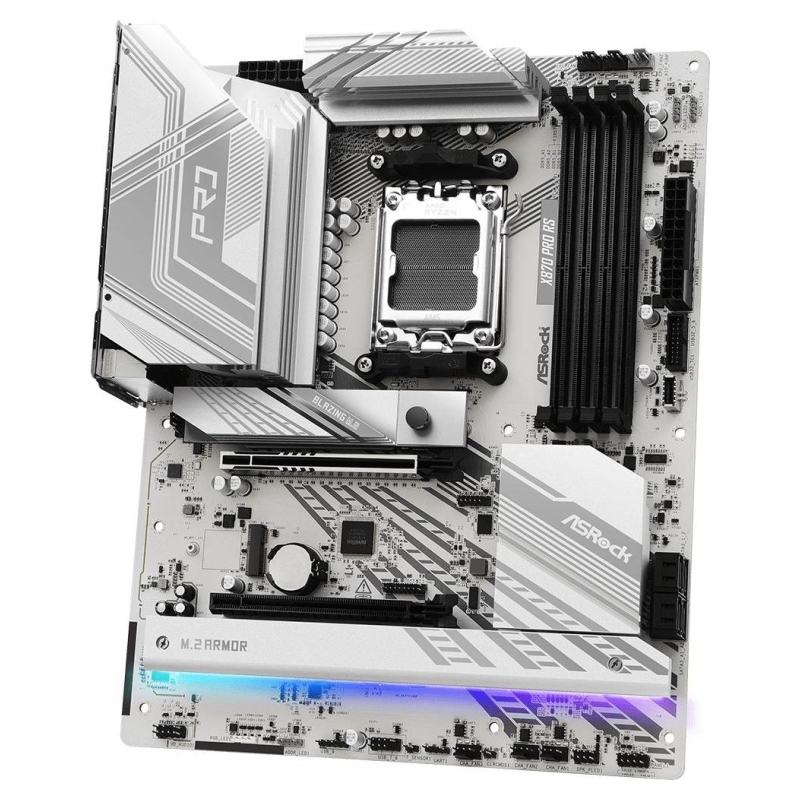

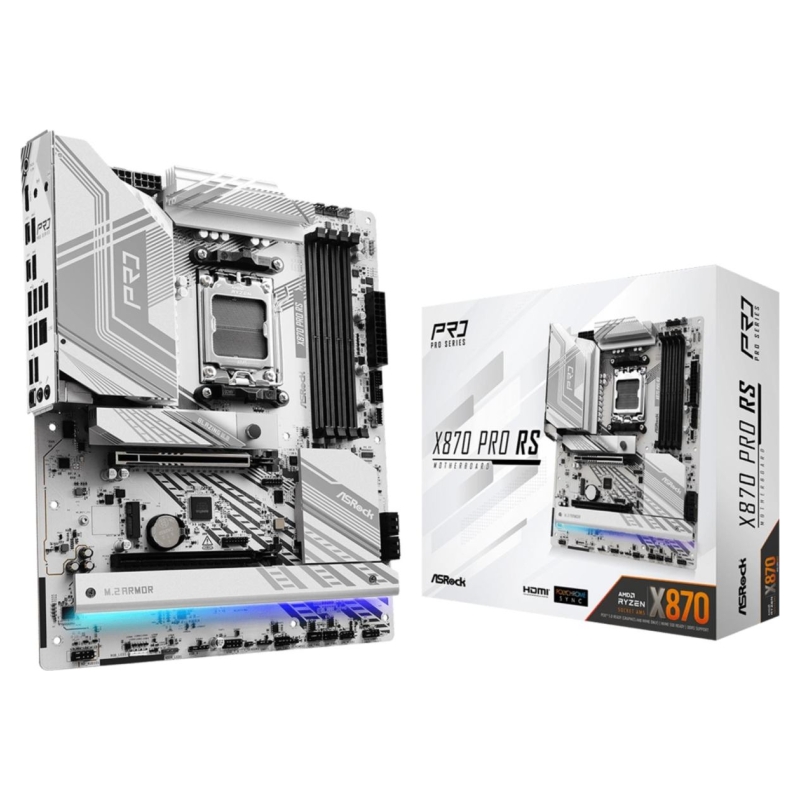

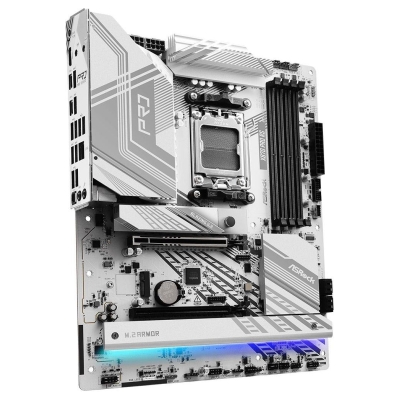

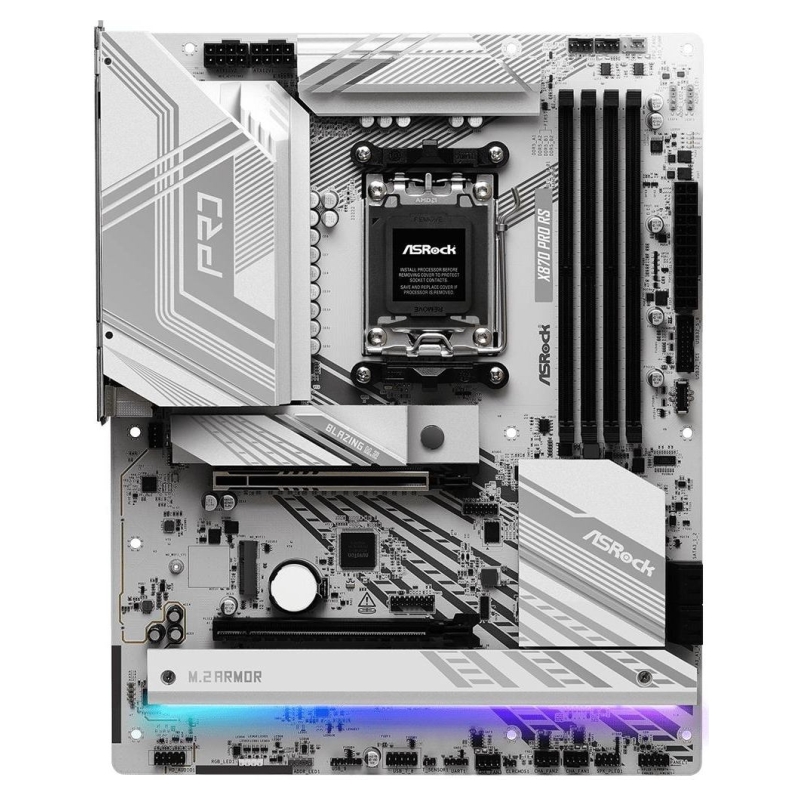

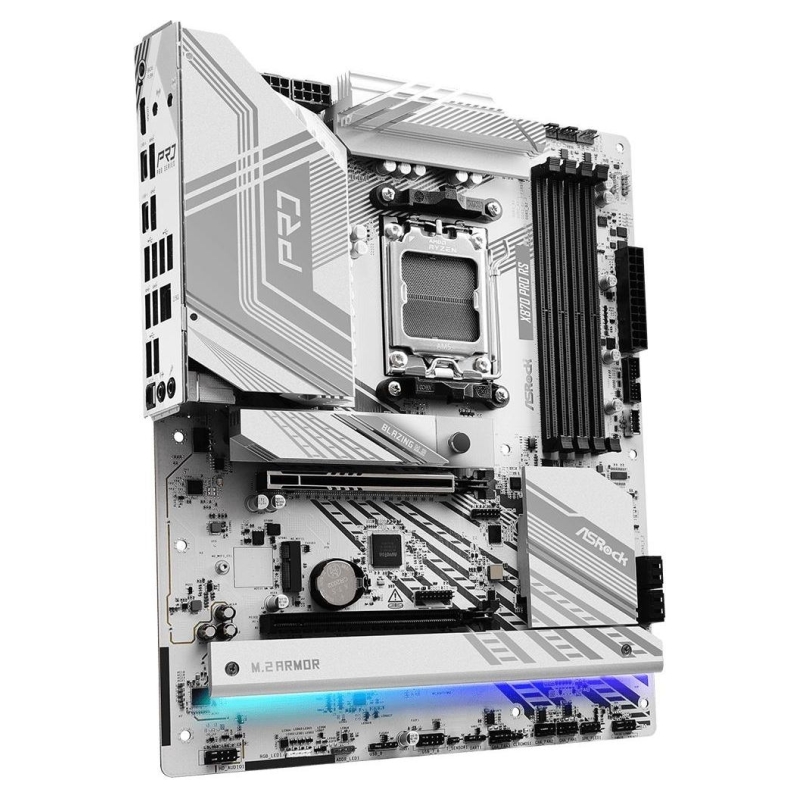

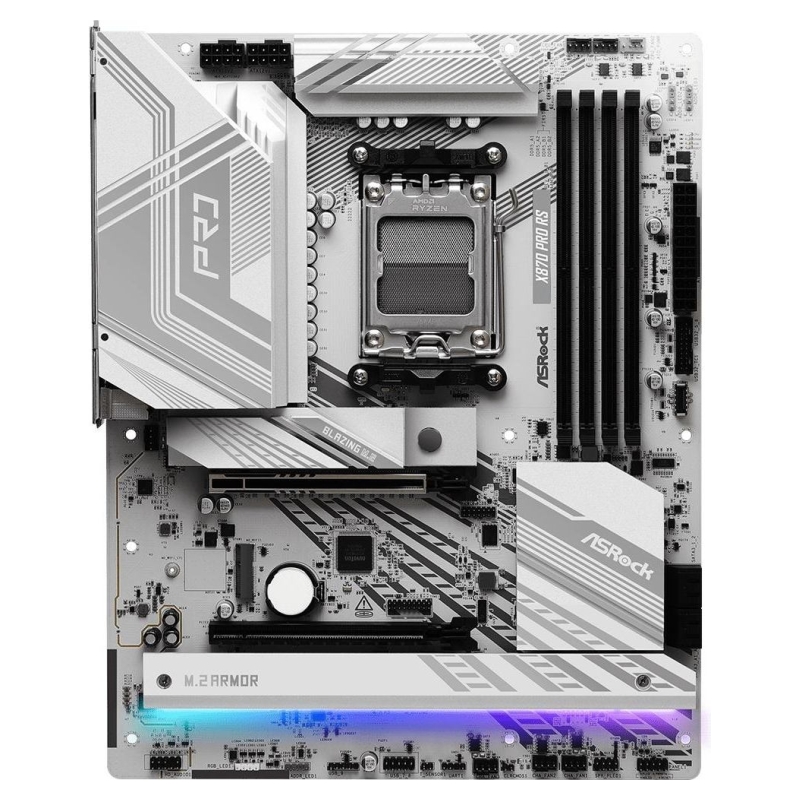

Asrock Mainboard|ASROCK|AMD X870|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|6x

Datu lapa

Designation

CE+WEEE

Processor family

AMD Ryzen

CPU socket

Socket AM5

Memory type

DDR5

Memory bus frequency

8000 MHz

Integrated CPU

No

Chipset manufacturer

AMD

Chipset type

AMD X870

Max memory size

256

Expansion slots

1 x M.2
1 x PCIe 4.0 x 16
1 x PCIe 5.0 x 16

Max. number of SATA devices

4

RAID

Yes

Detailed data on disk/drive interfaces

CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SA

Graphics

Integrated AMD RDNA graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz

Sound card

7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Nahimic Audio

Network interface

1 x 10/100/1000/2500 Mbit/s
2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Cust

USB ports at back panel

12

USB ports on motherboard

6

Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports

6

FireWire (IEEE 1394)

No

COM connector / port

No

LPT connector / port

No

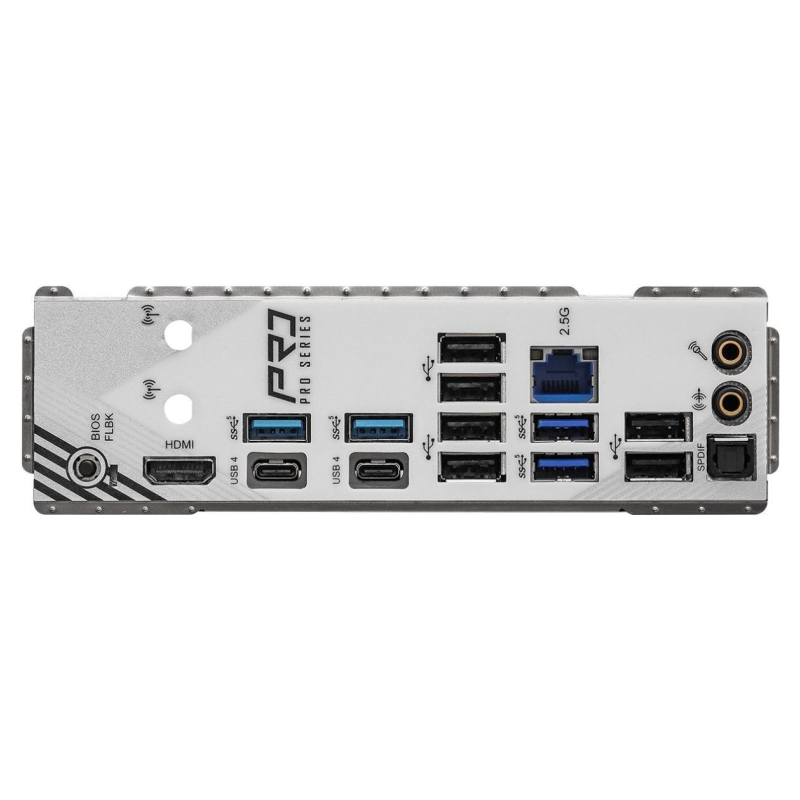

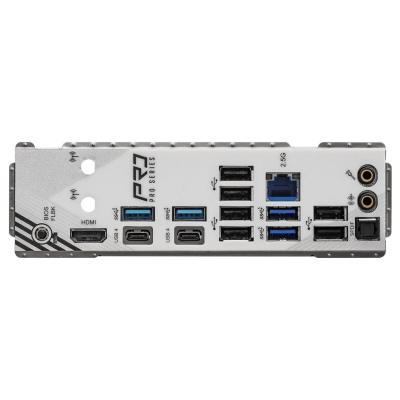

External connectors

1 x Flash BIOS Button
1 x HDMI
1 x Line Out
1 x MIC
1 x RJ-45
1 x S/PDIF
2 x USB4 Type-C
4 x USB 3.0
6 x USB 2.0

Onboard connectors

1 x 24pin ATX zasilanie
1 x 4pin CPU/Water Pump Fan Connector
1 x Front panel audio header
1 x Power LED and Speaker Header
1 x RGB LED strip header
1 x Thermistor Cable Header
1 x USB C
2 x 4pin wentylator CPU
2 x 8pin 12V
2 x USB 3.0 header
3 x Addressable LED
3 x M.2
3 x USB 2.0/1.1 header
4 x 4pin Chassis fan
4 x SATA III 6Gb/s

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

Form factor

ATX

Supported operating systems

Windows 10
Windows 11

Software

Software   ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC*   UEFI     ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash

Number of DDR5 slots

4

Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports

1

RAID levels

0/1/10

Windows operating systems supported

Windows 10 x64/Windows 11 x64

USB 2.0 ports quantity

6

Audio output channels

7.1 channels

Microphone in

Yes

Headphone outputs

1

Number of storage drives supported

7

Supported storage drive interfaces

PCI Express 3.0,PCI Express 4.0,PCI Express 5.0,SATA III

Power source type

ATX

Ethernet LAN (RJ-45) ports

1

Component for

PC

Maximum resolution

7680 x 4320 pixels

Ethernet LAN

Yes

Ethernet interface type

2.5 Gigabit Ethernet

HDMI ports quantity

1

RAID support

Yes

Wi-Fi

No

HDCP

Yes

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Motherboard form factor

ATX

Supported memory types

DDR5-SDRAM

Processor socket

Socket AM5

EPS power connector (8-pin)

Yes

Maximum internal memory

256 GB

Supported storage drive types

HDD & SSD

HDMI version

2.1

Category Code

MBA

CnCode

84733020

Units per Shipping Box

5

Product colour

White

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

LAN controller

Dragon RTL8125BG

Memory channels

Dual-channel

Processor manufacturer

AMD

Motherboard chipset

AMD X870

Motherboard chipset family

AMD

ECC сompatibility

ECC & Non-ECC

Memory slots type

DIMM

Number of memory slots

4

Unbuffered memory

Yes

Number of HDDs supported

4

Parallel processing technology support

Crossfire

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Number of chassis fan connectors

4

Number of SATA III connectors

4

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

S/PDIF out port

Yes

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

3rd M.2 highest PCI Express generation

3.0

3rd M.2 largest key size

2280

Number of M.2 (M) slots

3

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Audio chip

Realtek ALC1220

Supported memory clock speed (max)

8000 MHz

RGB LED pin header

Yes

Digital audio optical out

1

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

Number of RGB LED pin headers

5

Number of water pump connectors

1

USB 3.2 Gen 2x2 connectors

1

USB4 Gen 2x2 ports quantity

2

Number of temperature sensor headers

1

Number of M.2 (E) slots

1

Specifiskas norādes

ean13

4710483949326

MPN

X870 PRO RS
