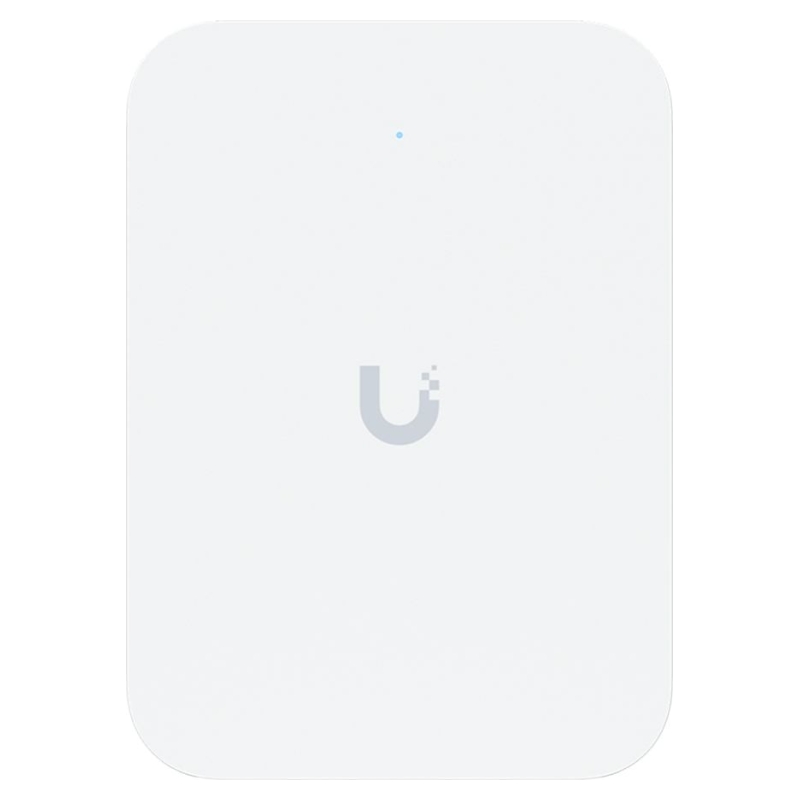

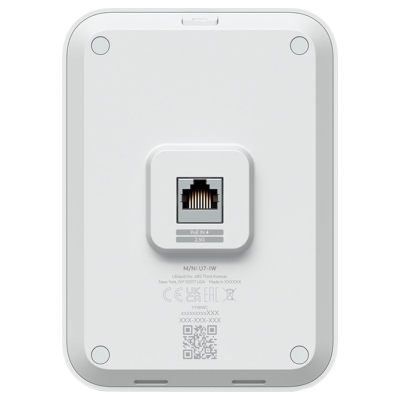

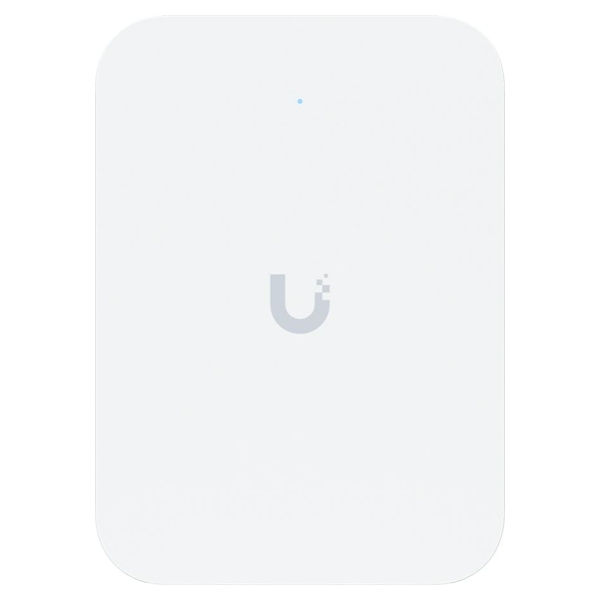

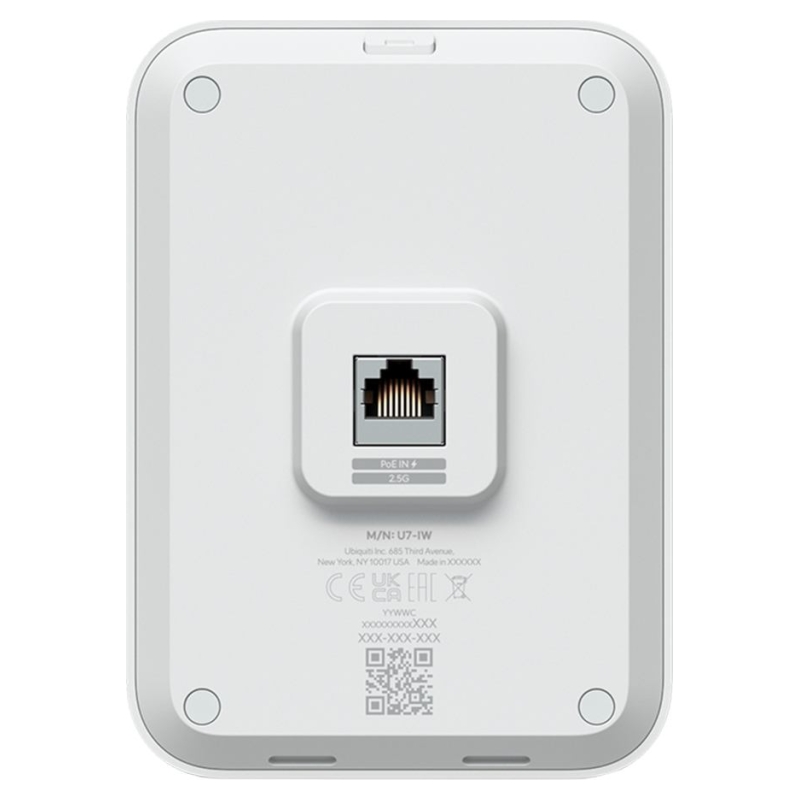

Ubiquiti UniFin U70IW Wall mounted WiFi 7 AP with 4 spatial streams and an integreated 2.5GbE PoE switch desined for hospitality

Ubiquiti UniFin U70IW Wall mounted WiFi 7 AP with 4 spatial streams and an integreated 2.5GbE PoE switch desined for hospitality

Write a review

€177.89

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

Local Area Network Architecture: Wi-Fi
Uplink Port Type: 1× 2.5 GbE
Number of Ports: 2
Total Number of Ports: 3
Switching Protocol: Ethernet
Data Link Protocol Supports: 2.5 Gbps
Device Location: External
Wireless Frequency: 2.4 GHz up to 688 Mbps 5 GHz up to 4.3 Gbps
Data Bit Rate: 4.3 Gbps
Wi-Fi Band Frequency: 2.4/5 GHz
Max. Range Indoors: 115 m^2
Status Indicator: LED indication of device status
Encryption Algorithm: TLS
Networking Compliant Standards: IEEE 802.1Q(VLAN) IEEE 802.11n IEEE 802.11ac IEEE 802.11r IEEE 802.11k IEEE 802.11v IEEE 802.11ax IEEE 802.11be
Networking Features: Power over Ethernet (PoE) Radius Authenticated Device Access 2x2 MIMO Dual Band Power over Ethernet plus (PoE+) MU-MIMO Band Steering Mesh Technology Multi-SSID Hotspot 2.0
Antenna: Internal
Certifications: CE, FCC, IC, SRRC
Amplification: 8 dBi
Radio Output Power: 24 dBm
LAN: 1 (RJ-45)
PoE in: 1 (RJ-45)
PoE out: 1 (RJ-45)
Power over Ethernet: DC 42.5-57 V
Power Consumption Operational: 13 W
External Color: White
Included Accessories: Mount kit
Built-in Devices: Reset Button
Depth (mm): 30.2 mm
Height (mm): 137 mm
Width (mm): 98.7 mm
Nominal Weight: 0.4 kg
Maximum Operating Ambient Temperature: 40 °C
Maximum Operating Humidity: 95 %
Minimum Operating Ambient Temperature: -30 °C
Minimum Operating Humidity: 5 %
Warranty Products Returnable: Yes
Warranty Term (month): 12 month(s)
Warranty Validation Criteria: Serial Number
Pack Length (mm): 147.5 mm
Pack Width (mm): 68.5 mm
Pack Height (mm): 196 mm
Pack Weight Brutto (kg): 0.6581 kg
Pack Weight Netto (kg): 0.4 kg
Pieces in pack: 1
Box Length (mm): 498 mm
Box Width (mm): 330 mm
Box Height (mm): 264 mm
Box Weight Brutto (kg): 7.8983 kg
Retail Packaging Net Weight Carton: 0 kg
Retail Packaging Net Weight Plastic: 0 kg
Packs in Box: 12
Package Type: Retail
EAN Code: 810084698754

Reference U7-IW

In stock 10 Items

Data sheet

Antenna: Internal
Package type: Retail
Networking features: Power over Ethernet (PoE)
Radius Authenticated Device Access
2x2 MIMO
Dual Band
Power over Ethernet plus (PoE+)
MU-MIMO
Band Steering
Mesh Technology
Multi-SSID
Hotspot 2.0
PoE in: 1 (RJ-45)
Warranty Products Returnable: Yes
Warranty Term (month): 12 month(s)
Warranty Validation Criteria: Serial Number
Pieces in pack: 1
Box Length (mm): 498 mm
Box Width (mm): 330 mm
Box Height (mm): 264 mm
Retail Packaging Net Weight Carton: 0 kg
Retail Packaging Net Weight Plastic: 0 kg
Packs in Box: 12
Data Link Protocol Supports: 2.5 Gbps
Device Location: External
Status Indicator: LED indication of device status
Networking Compliant Standards: IEEE 802.1Q(VLAN)
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11r
IEEE 802.11k
IEEE 802.11v
IEEE 802.11ax
IEEE 802.11be
Certifications: CE, FCC, IC, SRRC
LAN: 1 (RJ-45)
Power Consumption Operational: 13 W
Included Accessories: Mount kit
Maximum Operating Ambient Temperature: 40 °C
Maximum Operating Humidity: 95 %
Minimum Operating Ambient Temperature: -30 °C
Minimum Operating Humidity: 5 %
Built-in Devices: Reset Button
External Color: White
Local Area Network Architecture: Wi-Fi
Power over Ethernet: DC 42.5-57 V
PoE out: 1 (RJ-45)
Data Bit Rate: 4.3 Gbps
Wi-Fi Band Frequency: 2.4/5 GHz
Number of Ports: 2
Encryption Algorithm: TLS
Uplink Port Type: 1× 2.5 GbE
Switching Protocol: Ethernet
Amplification: 8 dBi
Radio Output Power: 24 dBm
Wireless Frequency: 2.4 GHz up to 688 Mbps
5 GHz up to 4.3 Gbps
Total Number of Ports: 3
Max. Range Indoors: 115 m^2
