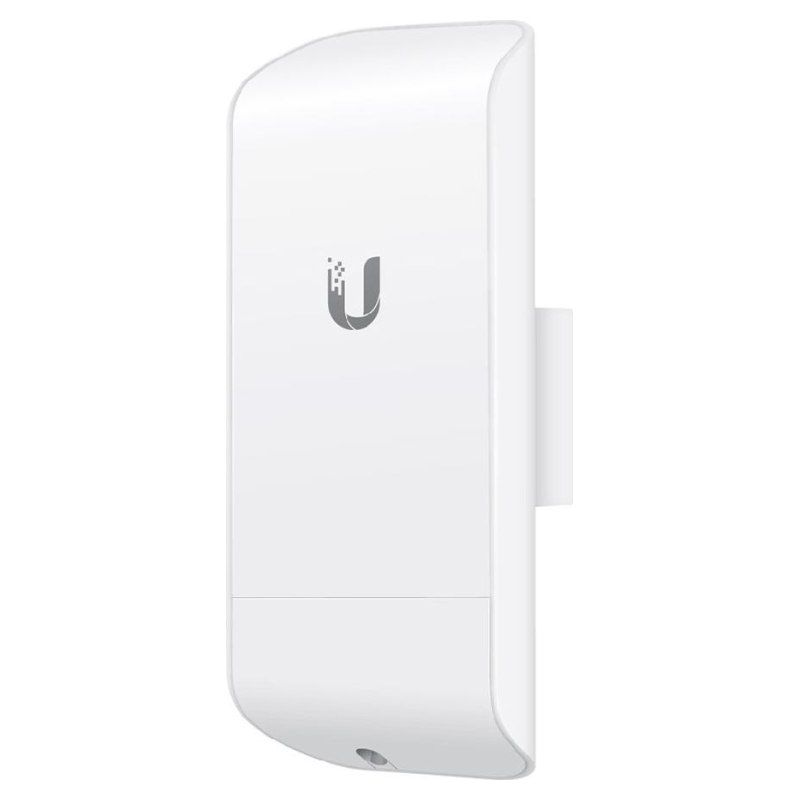

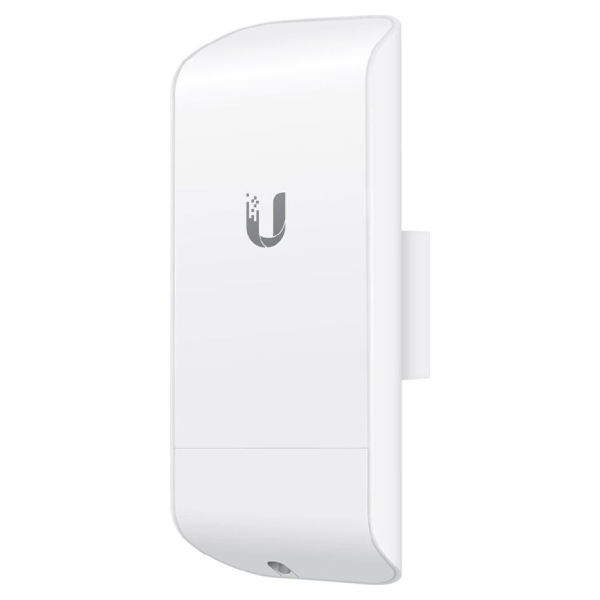

Ubiquiti airMAX NanoStation M2 loco; 2.4 GHz frequency band; Plug-and-play integration with airMAX antennas; 150+ Mbps, range 5+

Data sheet

Interface

Ethernet/Wi-Fi

Antenna

Internal

RAM

32 MB

Package type

Box

Networking features

Power over Ethernet (PoE)

Flash memory

8 MB

Warranty Products Returnable

Yes

Warranty Term (month)

24

Warranty Validation Criteria

Serial Number

Warranty Term Notes

24 months - for EU

Pieces in pack

1

Box Length (mm)

490 mm

Box Width (mm)

350 mm

Box Height (mm)

254 mm

Packs in Box

20

CPU

Atheros MIPS 24KC

Internal Clock Rate

400 MHz

Device Location

External

Network/Transport Protocol

TCP/IP
QoS

Certifications

FCC Part 15.247, IC RS210, CE

LAN

1 (RJ-45)

Power Consumption Operational

5.5 W

Maximum Operating Ambient Temperature

75 °C

Maximum Operating Humidity

95 %

Minimum Operating Ambient Temperature

-30 °C

Minimum Operating Humidity

5 %

External Color

White

Local Area Network Architecture

10Base-T/100Base-TX

Networking Form Factor

External

Max. Range Open Space

5 km

Data Bit Rate

150 Mbps

Wi-Fi Band Frequency

2.4 GHz

Uplink Port Type

1 x 10Base-T/100Base-TX

Specific References

EAN13

810354022333

MPN

LOCOM2(EU)
