Night Vision<br/>Power over Ethernet<br/>Fixed Focus<br/>Face Detection<br/>IR Cut Filter<br/>Two-way audio<br/>3D DNR<br/>Human Detection<br/>2D DNR<br/>HDR<br/>Smart Detection<br/>Vehicle Detection
Protection Standarts
IP66<br/>IK08
LAN
1 (RJ-45)
Built-in Devices
Card Reader (MicroSD) <br/>Reset Button
External Color
White
Mounting Capability
Ceiling/Wallmount
Included Accessories
Quick Start Guide <br/>Wall Kit
Certifications
CE, FCC, IC
Maximum Operating Ambient Temperature
50 °C
Minimum Operating Ambient Temperature
-30 °C
Maximum Operating Humidity
90 %
Minimum Operating Humidity
0 %
Power Device Type
Power over Ethernet
Power Device Location
External
Maximum Input Voltage
57 V
Maximum Power Consumption
20 W
Minimum Input Voltage
42.5 V
Depth (mm)
118 mm
Height (mm)
111 mm
Width (mm)
118 mm
Nominal Weight
0.99 kg
Warranty Products Returnable
Yes
Warranty Term (month)
12 month(s)
Warranty Validation Criteria
Serial Number
Warranty Term Notes
24 months - for EU
Pack Length (mm)
149.5 mm
Pack Width (mm)
149.5 mm
Pack Height (mm)
143.5 mm
Pack Weight Brutto (kg)
1.176 kg
Pack Weight Netto (kg)
0.5 kg
Pieces in pack
1
Box Length (mm)
524 mm
Box Width (mm)
374 mm
Box Height (mm)
234 mm
Box Weight Brutto (kg)
8.3 kg
Retail Packaging Net Weight Carton
0 kg
Retail Packaging Net Weight Plastic
0 kg
Packs in Box
6
Package Type
Retail
EAN Code
810084698457

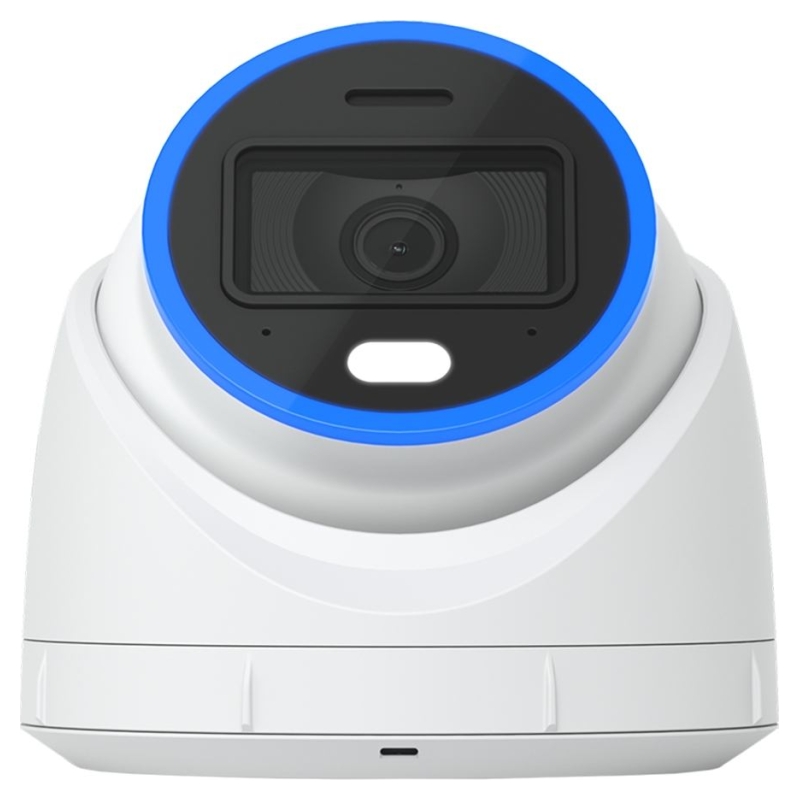

UVC-AI-TURRET-W
6 Items
Data sheet
Interface
Ethernet
Camera type
IP Camera
Package type
Retail
Maximum video resolution
3840x2160
Warranty Products Returnable
Yes
Warranty Term (month)
12 month(s)
Warranty Validation Criteria
Serial Number
Warranty Term Notes
24 months - for EU
Pieces in pack
1
Box Length (mm)
524 mm
Box Width (mm)
374 mm
Box Height (mm)
234 mm
Retail Packaging Net Weight Carton
0 kg
Retail Packaging Net Weight Plastic
0 kg
Packs in Box
6
Certifications
CE, FCC, IC
LAN
1 (RJ-45)
Included Accessories
Quick Start Guide Wall Kit
Maximum Operating Ambient Temperature
50 °C
Maximum Operating Humidity
90 %
Minimum Operating Ambient Temperature
-30 °C
Minimum Operating Humidity
0 %
Built-in Devices
Card Reader (MicroSD) Reset Button
Power Device Location
External
Maximum Input Voltage
57 V
Minimum Input Voltage
42.5 V
Maximum Power Consumption
20 W
External Color
White
Protection Standarts
IP66 IK08
Power Device Type
Power over Ethernet
Mounting Capability
Ceiling/Wallmount
Sensor Resolution
8 Mpixel
Maximum Frame Capture Rate
30 fps
Diagonal Viewing Angle
134.1°
Web Cam Features
Night Vision Power over Ethernet Fixed Focus Face Detection IR Cut Filter Two-way audio 3D DNR Human Detection 2D DNR HDR Smart Detection Vehicle Detection
