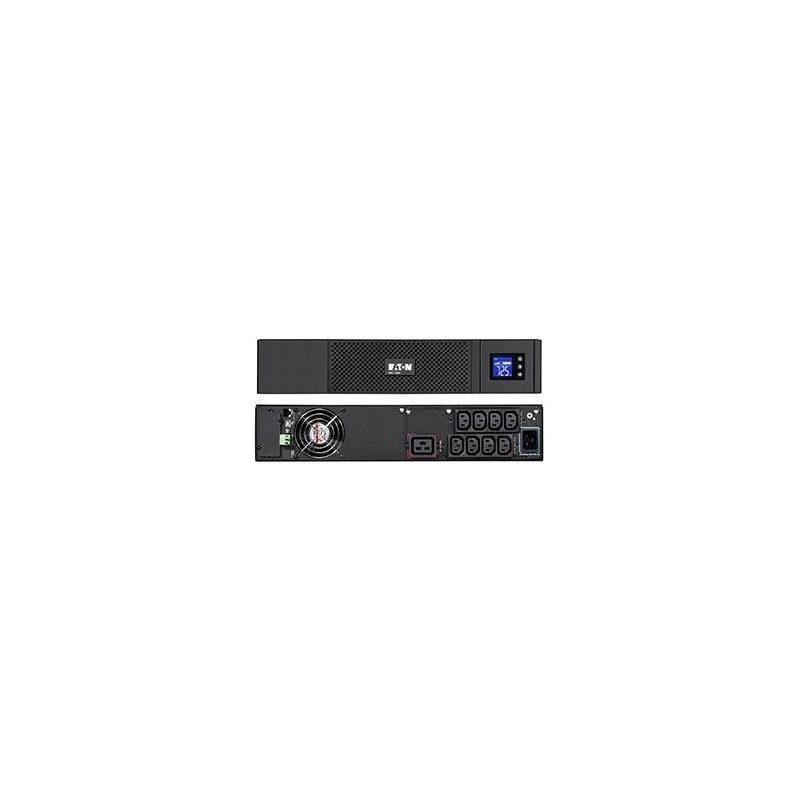

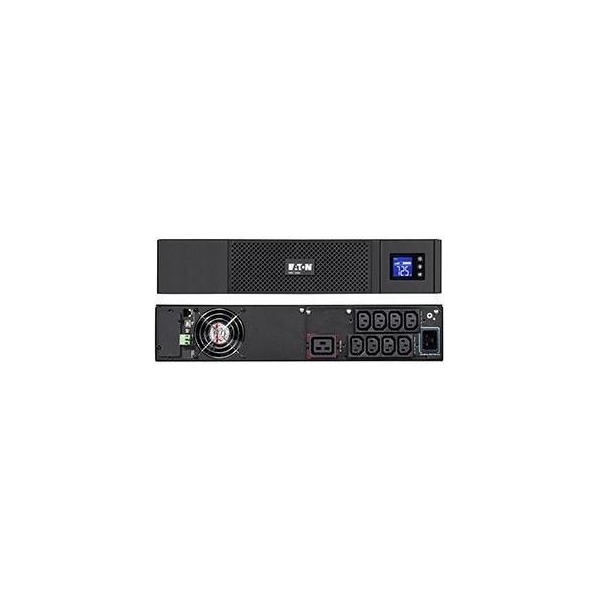

    Eaton UPS 5SC 2200i RT2U 5SC2200IRT

Eaton UPS 5SC 2200i RT2U 5SC2200IRT

€1,403.50
Tax included
Quantity
Add to wishlist
Last items in stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

UPS topology Line-Interactive
Output power capacity 2.2 kVA
Output power 1980 W
Input operation voltage (min) 184 V
Input operation voltage (max) 276 V
Input frequency 45/65 Hz
AC outlet types C13 coupler/C19 coupler
Power plug C20 coupler
USB port Yes
Serial interface Yes
Form factor Rackmount/Tower
Colour Black
Display type LED
Operating temperature (T-T) 0 - 40 °C
Weight 26.5 kg

Manufacturer Website:
https://powerquality.eaton.com/5SC2200iRT.aspx?cx=101&GUID=9A3C6000-5072-4B73-92AB-32F19E0E8BFB

Category Code
UPW
CnCode
85044095
Unit Box Height
0.19
Unit Box Length
0.75
Unit Box Width
0.585
Input frequency
45/65 Hz
Input operation voltage (max)
276 V
Input operation voltage (min)
184 V
Noise level
45 dB
Output frequency regulation
50/60 Hz
Output operation voltage (max)
240 V
Output operation voltage (min)
220 V
Output power
1980 W
Output power capacity
2.2 kVA
Power protection features
Overdischarge
UPS topology
Line-Interactive
AC outlet types
C13 coupler/C19 coupler
AC outlets quantity
9 AC outlet(s)
Power plug
C20 coupler
Serial interface
Yes
Serial interface type
RS-232
Serial ports quantity
1
USB port
Yes
Automatic battery test
Yes
Display type
LED
Form factor
Rackmount/Tower
Product colour
Black
Operating temperature (T-T)
0 - 40 °C
Certification
IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, CB (TUV)
Depth
552 mm
Height
86.2 mm
Weight
26500 g
Width
441 mm
Harmonized System (HS) code
85078000
Units per Shipping Box
1
Unit Calculated Volume
0.08336 cubm
Unit Calculated Weight
32.4 kg
5SC2200IRT
2 Items

Specific References

EAN13
743172088345
MPN
5SC2200IRT
