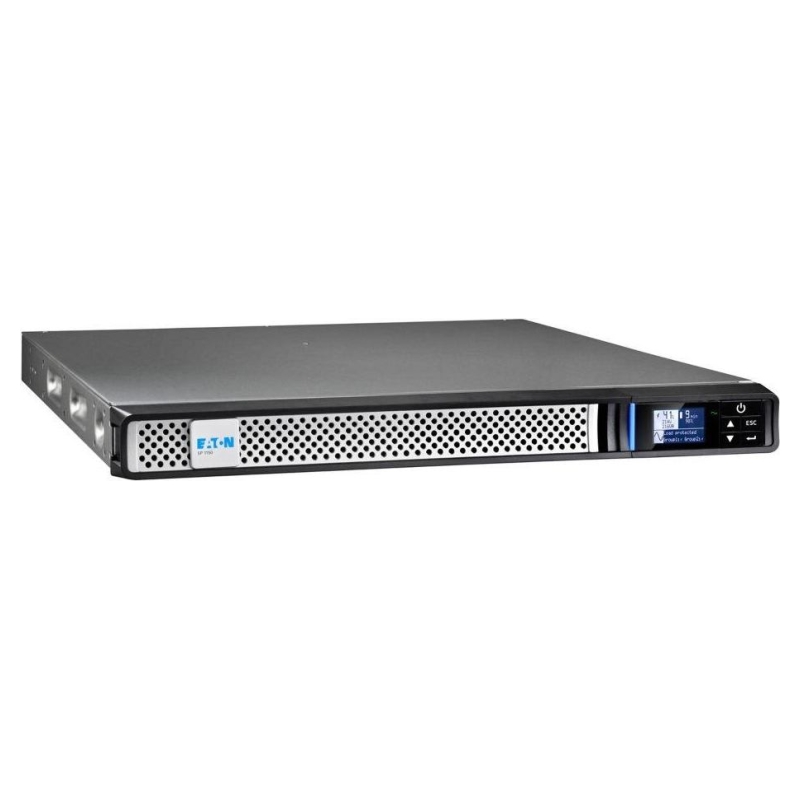

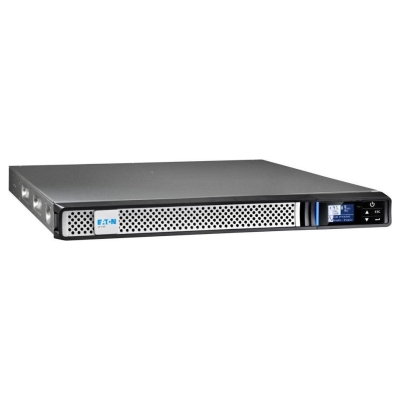

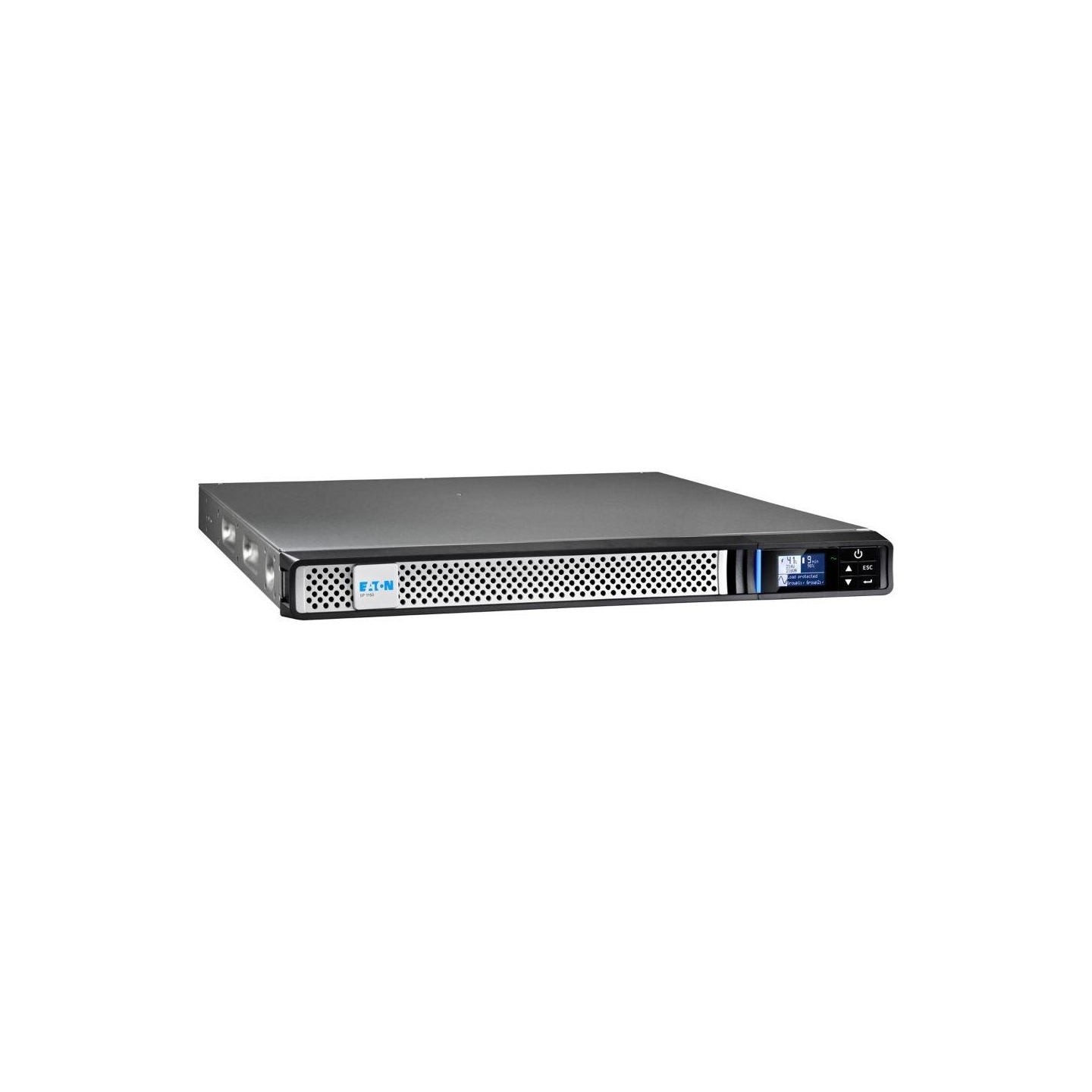

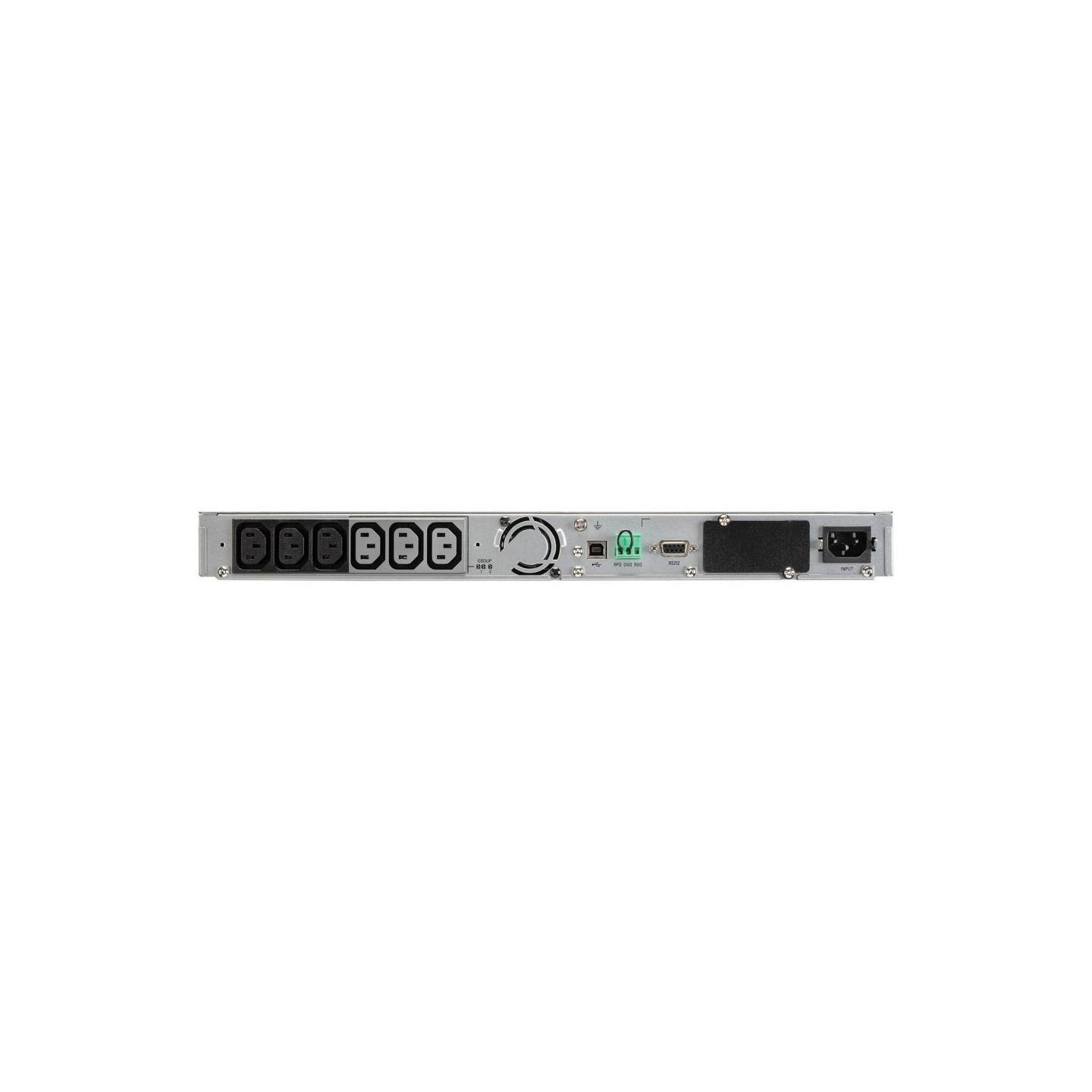

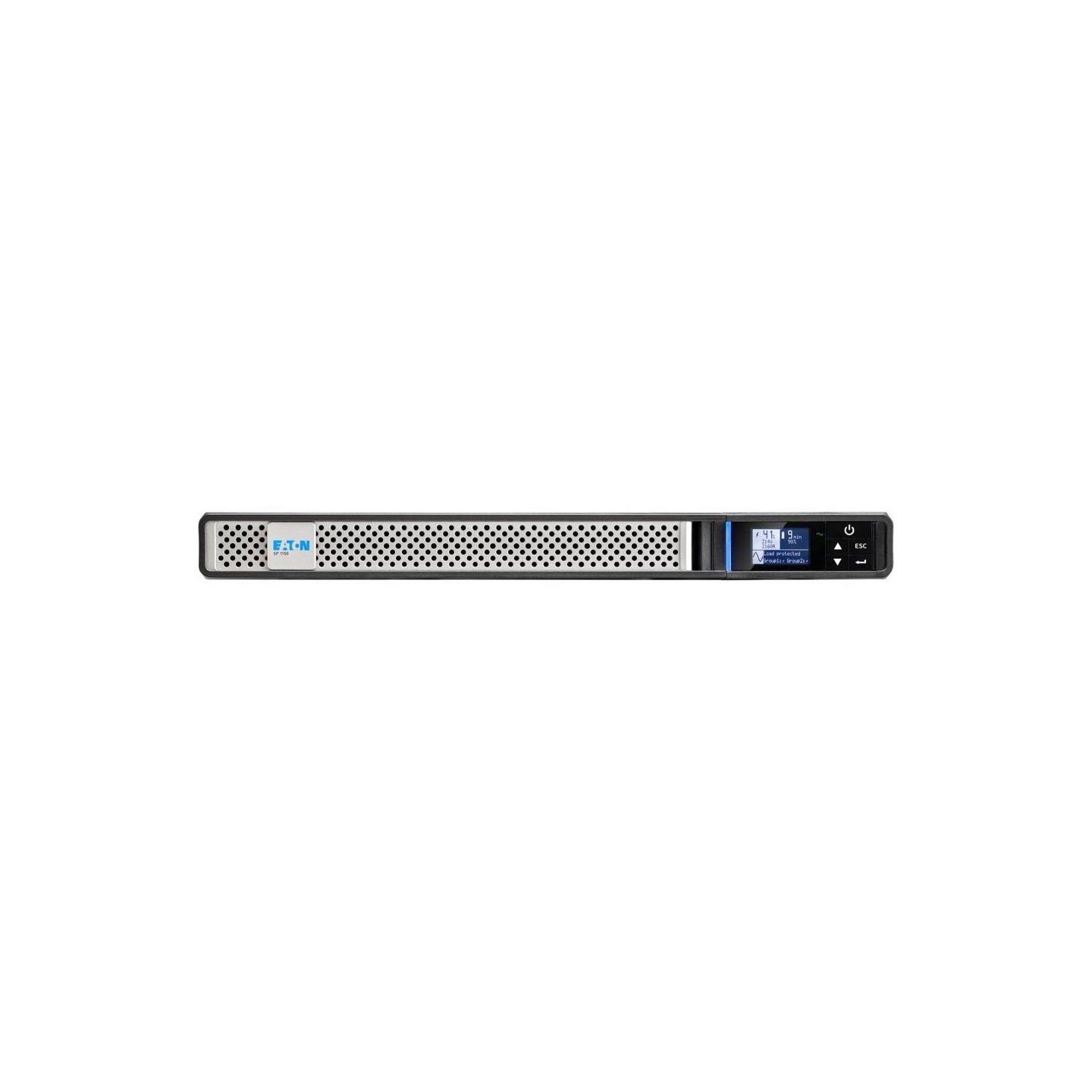

Eaton UPS|EATON|920 Watts|1150 VA|LineInteractive|5P1150IRNG2
- Write a review
€1,512.34
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
UPS topology Line-Interactive
Output power capacity 1.15 kVA
Output power 920 W
Waveform Sine
Input operation voltage (min) 150 V
Input operation voltage (max) 294 V
Input frequency 47/70 Hz
Output frequency 50/60 Hz
Heat dissipation 465 BTU/h
Number of input phases 1
Number of output phases 1
Efficiency 98.2 %
AC outlet types C13 coupler
Power plug C14 coupler
USB port Yes
Serial interface Yes
Battery technology Sealed Lead Acid (VRLA)
Battery voltage 6 V
Form factor Rackmount
Colour Black,Silver
Display type LCD
LED indicators Yes
Operating temperature (T-T) 0 - 40 °C
Operating altitude 0 - 3000 m
Rack mount kit Yes
Weight 14.3 kg
Manufacturer Website:
https://www.eaton.com/gr/en-gb/skuPage.5P1150IRNG2.html
- Category Code
- UPW
- CnCode
- 85044095
- Unit Box Height
- 0.175
- Unit Box Length
- 0.59
- Unit Box Width
- 0.54
- Automatic Voltage Regulation (AVR)
- Yes
- Efficiency
- 98.2 %
- Heat dissipation
- 465 BTU/h
- Input frequency
- 47/70 Hz
- Input operation voltage (max)
- 294 V
- Input operation voltage (min)
- 150 V
- Noise level
- 35 dB
- Number of input phases
- 1
- Number of output phases
- 1
- Output frequency
- 50/60 Hz
- Output operation voltage (max)
- 240 V
- Output operation voltage (min)
- 200 V
- Output power
- 920 W
- Output power capacity
- 1.15 kVA
- Power factor
- 0.8
- UPS topology
- Line-Interactive
- Waveform
- Sine
- AC outlet types
- C13 coupler
- AC outlets quantity
- 6 AC outlet(s)

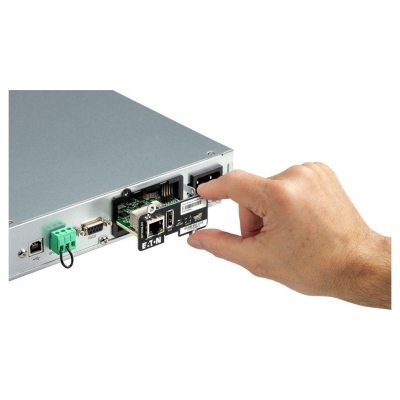

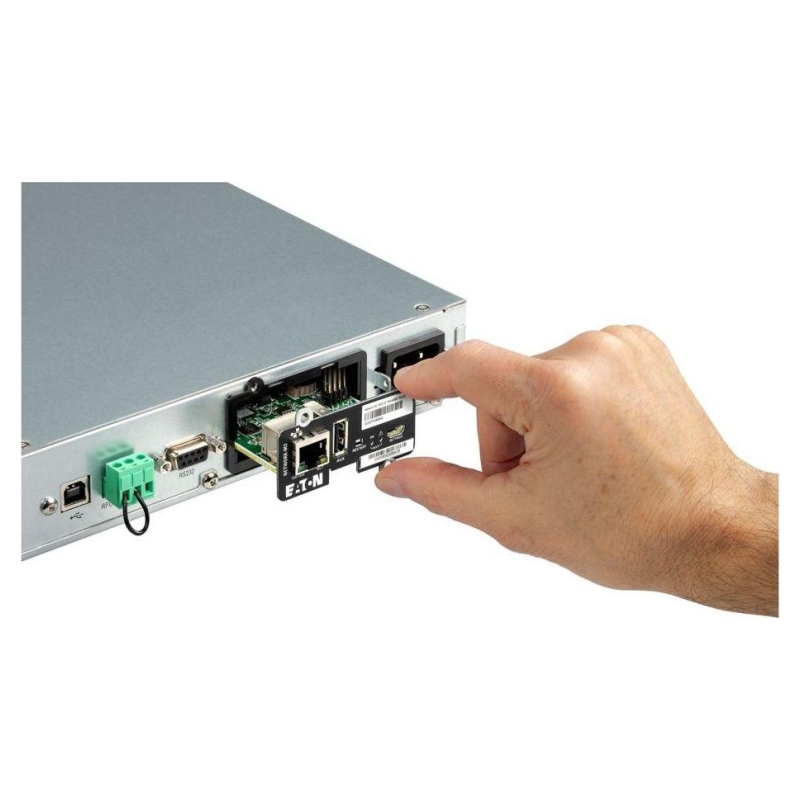

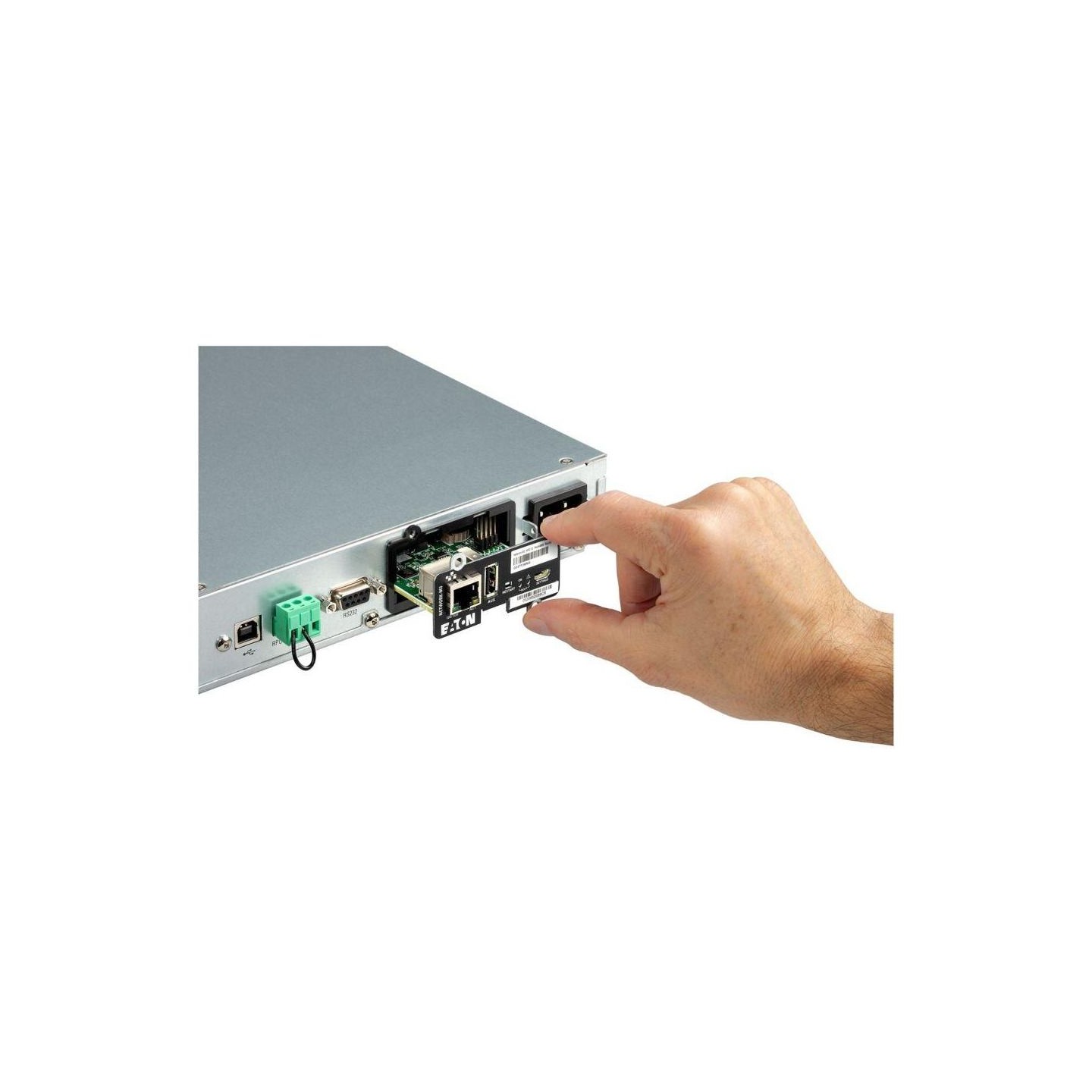

- Network card slot
- Yes
- Power plug
- C14 coupler
- Serial interface
- Yes
- Serial interface type
- RS-232
- Serial ports quantity
- 1
- USB port
- Yes
- USB port type
- USB Type-B
- Battery capacity
- 9 Ah
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery voltage
- 6 V
- Hot-swap battery
- Yes
- Number of battery cells
- 4
- Typical backup time at half load
- 12.5 min
- Display type
- LCD
- Form factor
- Rackmount
- LED indicators
- Yes
- Product colour
- Black,Silver
- Rack capacity
- 1U
- Operating altitude
- 0 - 3000 m
- Operating relative humidity (H-H)
- 0 - 90 %
- Operating temperature (T-T)
- 0 - 40 °C
- Cables included
- USB cable
- Certification
- EMC IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
- Compliance certificates
- Low Voltage Directive (LVD)/RoHS
- Quick installation guide
- Yes
- Rack mount kit
- Yes
- Waste Electrical and Electronic Equipment (WEEE) compliance
- Yes
- Depth
- 509 mm
- Height
- 43.2 mm
- Weight
- 14280 g
- Width
- 438 mm
- Model
- Eaton 5P Gen2
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.055755 cubm
- Unit Calculated Weight
- 19.2 kg
5P1150IRNG2
1 Item
Specific References
- EAN13
- 3553340710407
- MPN
- 5P1150IRNG2
