Latvija
- New
Availability:
3 In Stock

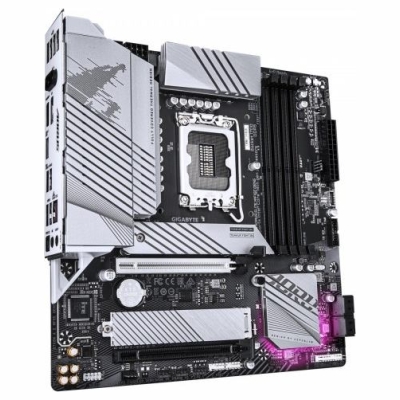

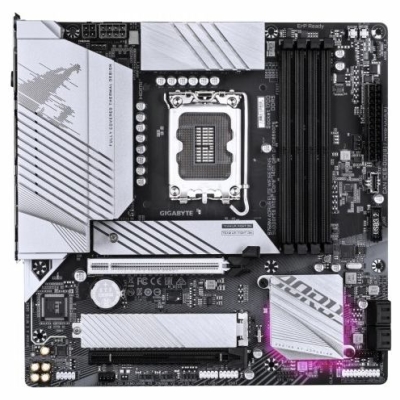

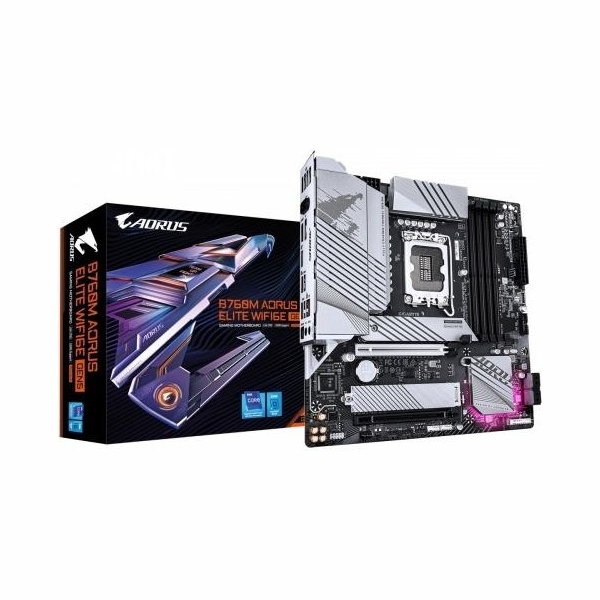

Gigabyte Motherboard B760M AORUS ELITE WIFI6 GEN5 S1700 4DDR5 mATX
- Write a review
€193.11
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBGBAIIEB760U16
- Barcode
- 4719331872069
- Model
- B760M Aorus Elite
- CPU socket
- LGA1700
- Processor family
- Intel Celeron
- Processor family
- Intel Pentium
- Processor family
- Intel Core
- Generation
- Twelve
- Generation
- Thirteenth
- Generation
- Fourteenth
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B760 Express Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 5200 MHz
- Memory bus frequency
- 5400 MHz
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 5800 MHz
- Memory bus frequency
- 6000 MHz
- Memory bus frequency
- 7600 MHz
- Memory bus frequency
- 7400 MHz
- Memory bus frequency
- 7000 MHz
- Memory bus frequency
- 7200 MHz
- Memory bus frequency
- 6800 MHz
- Memory bus frequency
- 6600 MHz
- Memory bus frequency
- 6400 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 4000 MHz
- Memory bus frequency
- 6200 MHz
- Max memory size
- 256
- Expansion slots
- 1 x PCIe 4.0 x 4
- Expansion slots
- 2 x M.2
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
- Graphics
- Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3.Support for native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3
- Sound card
- Realtek ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- Network interface
- Bluetooth
- Network interface
- Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module:Intel Wi-Fi 6E AX210 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard
- USB ports at back panel
- 9
- USB ports on motherboard
- 3
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 3
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 3
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

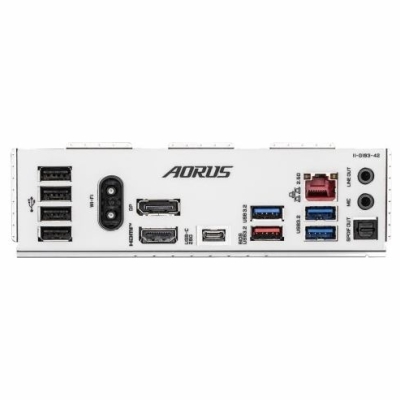

- External connectors
- 1 x Line Out
- External connectors
- 2 x SMA
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 1 x S/PDIF
- External connectors
- 4 x USB 2.0
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x USB 3.2 Gen 2 Type-A
- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- Onboard connectors
- 1 x Reset button
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB 3.0 header
- Onboard connectors
- 1 x USB 3.2 Gen 2 Type-C
- Onboard connectors
- 2 x Thunderbolt
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin 12V power
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x Q-Flash Plus button
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 1 x Clear CMOS jumper
- BIOS
- 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- micro ATX
- Dimensions
- 24.4 x 24.4 cm
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- Norton Internet Security (OEM version) LAN bandwidth management software
- Designation
- CE+WEEE
B760M A E WF6E GEN5
6 Items
Specific References
- EAN13
- 4719331872069
- MPN
- B760M A E WF6E GEN5
