4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen 8500/8300 Series processors) RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Graphics
1x DisplayPort Support DisplayPort 1.2, maximum resolution of 4K 60Hz
Sound card
Realtek ALC897 7.1-Channel High Definition Audio
Network interface
1 x 10/100/1000/2500/5000 Mbit/s
Network interface
Bluetooth
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
Realtek 8126VB 5G LAN Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
USB ports at back panel
8
USB ports on motherboard
9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
3
FireWire (IEEE 1394)
No
COM connector / port
Yes
LPT connector / port
No

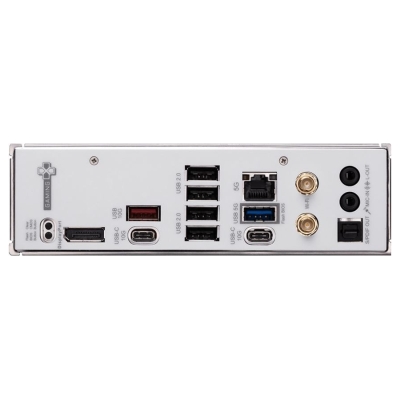

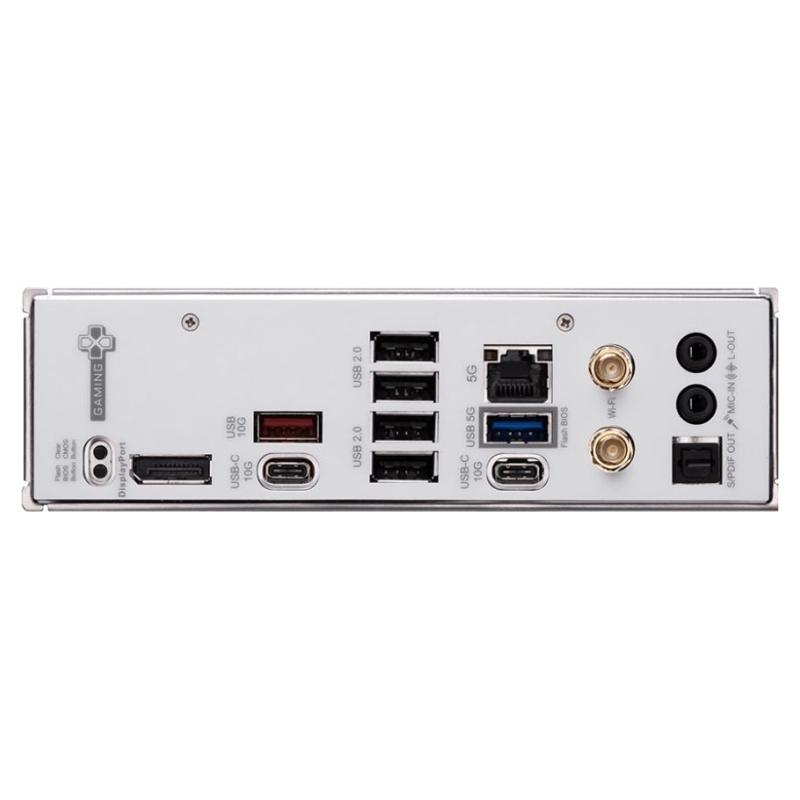

External connectors
1 x DisplayPort
External connectors
1 x RJ-45
External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
2 x SMA
External connectors
4 x USB 2.0
External connectors
2 x USB 3.2 Gen 2 Type-C
External connectors
1 x S/PDIF
External connectors
1 x Flash BIOS Button
External connectors
1 x USB 3.2 Gen 2 Type-A
External connectors
1 x USB 3.2 Gen 1 Type-A
External connectors
1 x Przycisk Clear CMOS
Onboard connectors
1 x USB 3.2 Gen 2 Type-C
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x TPM header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x Chassis intrusion header
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
4 x USB 2.0/1.1
Onboard connectors
1 x Serial port header
Onboard connectors
1 x RGB LED strip header
Onboard connectors
3 x Addressable LED
Onboard connectors
2 x System panel header
Onboard connectors
4 x EZ Debug LED
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 8-pin PCIe
Onboard connectors
4 x 4pin Chassis fan
Onboard connectors
4 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x EZ Conn-header
Onboard connectors
1 x Tuning Controller connector
Form factor
ATX
Dimensions
243.84 mm x 304.8 mm
Accessories included
Quick Installation Guide European Union Regulatory Notice EZ Wi-Fi Antenna SATA Cable 3 x EZ M.2 Clip II Cable sticker EZ M.2 Clip II Remover 1 to 2 EZ Conn-Cable (V1)
