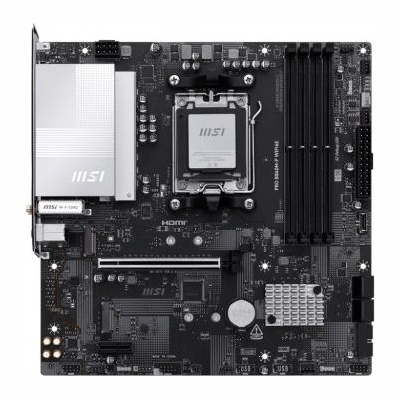

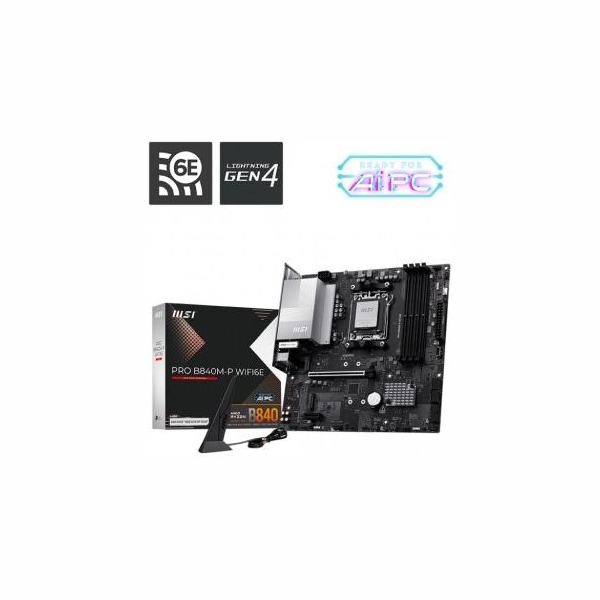

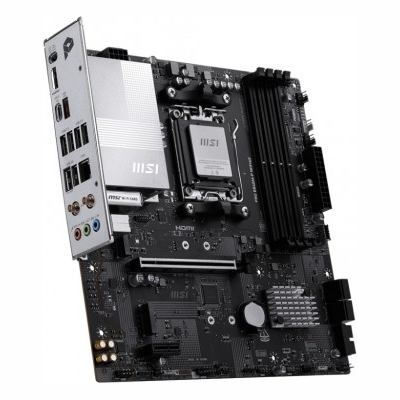

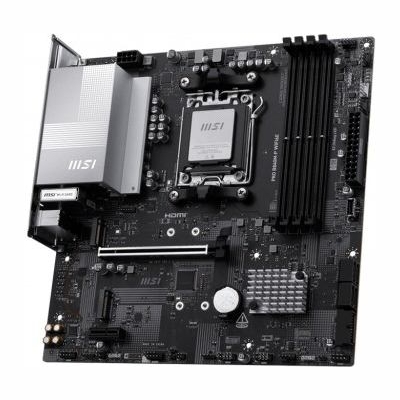

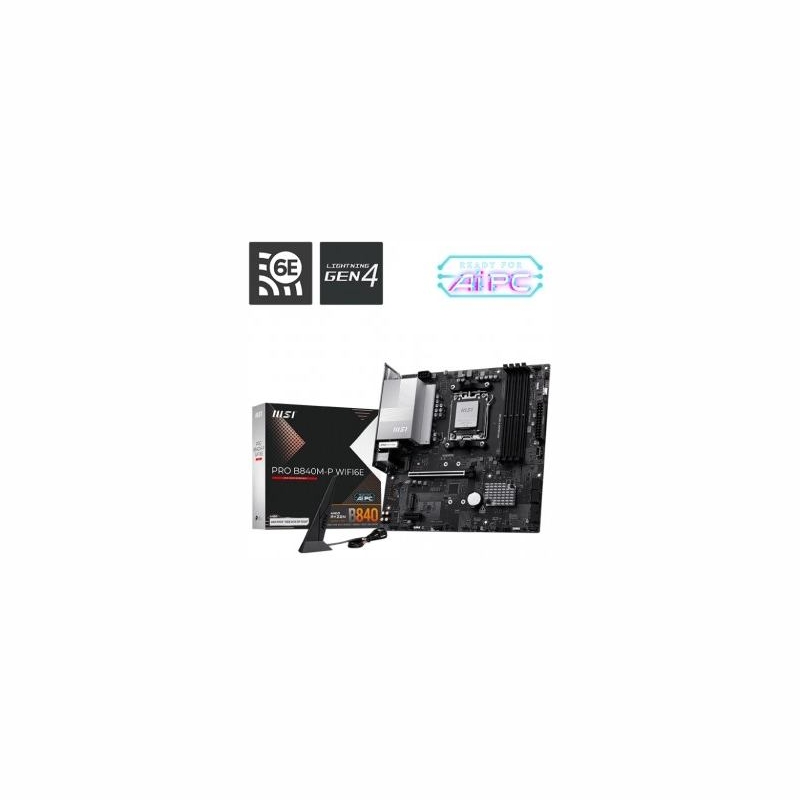

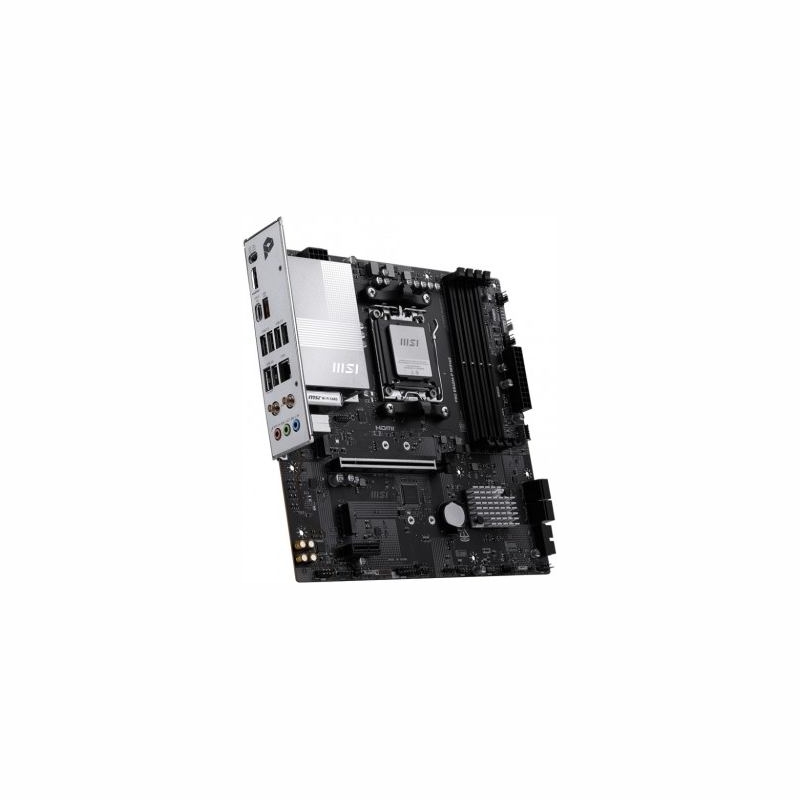

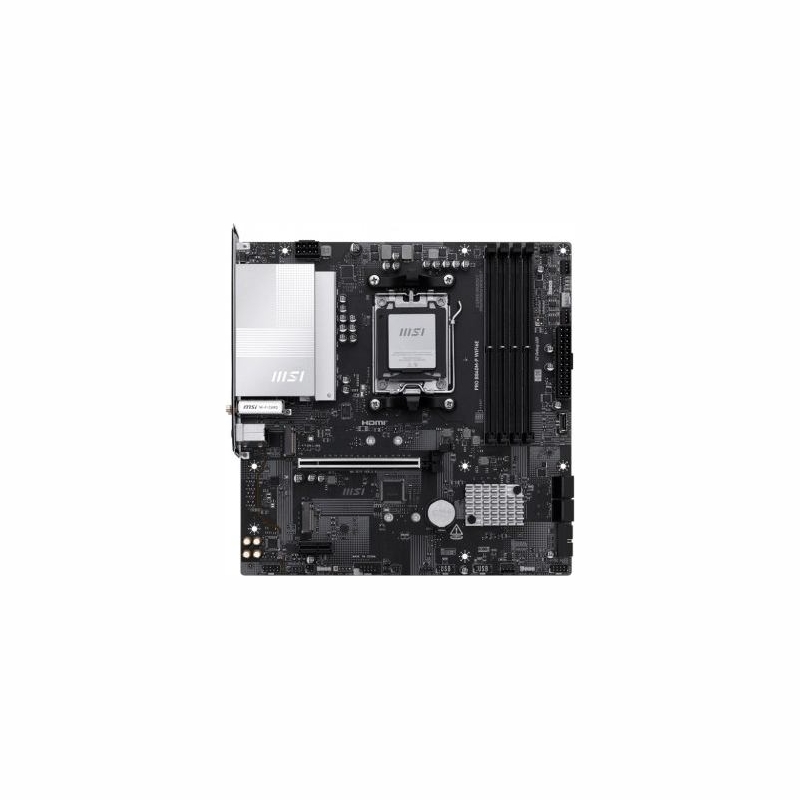

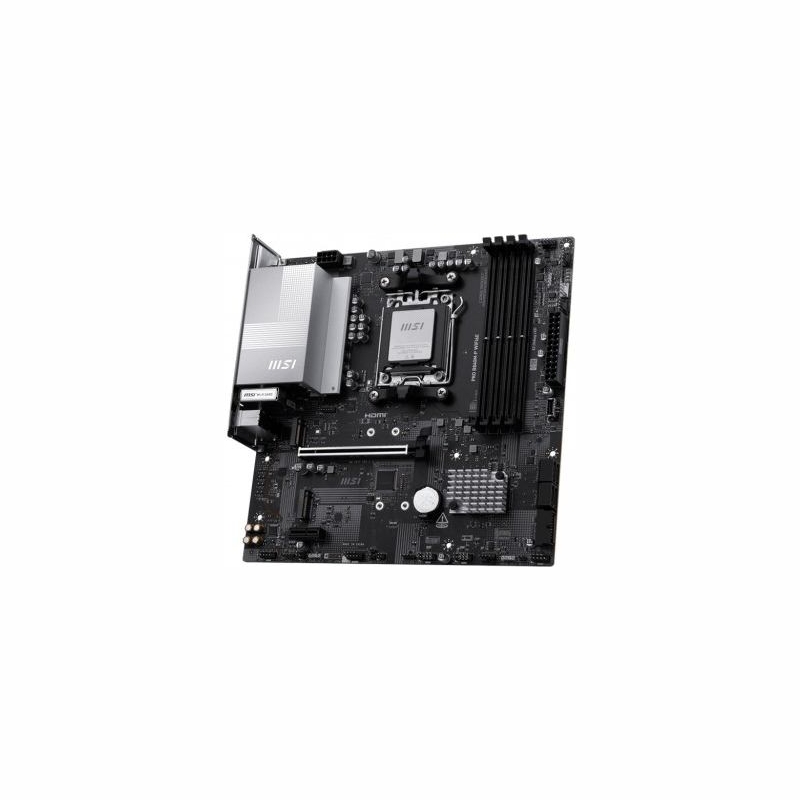

MSI Motherboard PRO B840M-P WIFI6E AM5 4DDR5 ATX
- Write a review
€161.02
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBMSIAA8B840U02
- Barcode
- 4711377361804
- Model
- PRO B840M-P WIFI6E
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen 9
- Processor family
- AMD Ryzen 3
- Processor family
- AMD Ryzen 5
- Processor family
- AMD Ryzen 7
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B840
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 6400 MHz
- Memory bus frequency
- 8000 MHz
- Max memory size
- 256
- Expansion slots
- 2 x M.2
- Expansion slots
- 1 x PCIe 3.0 x 1
- Expansion slots
- 1 x PCIe 4.0 x 16
- Expansion slots
- 1 x PCIe x 1
- Expansion slots
- 1 x PCIe x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_2 slot Supports up to PCIe 4.0 x4 Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
- Graphics
- 1x HDMI Supports HDMI 2.1, maximum resolution 4K 60 Hz
- Sound card
- Realtek ALC897 7.1-Channel High Definition Audio
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- Network interface
- Bluetooth
- Network interface
- Realtek 8125D 2.5G LAN Wi-Fi 6E Wireless module pre-installed in M.2 slot (Key-E) Supports MU-MIMO TX/RX, 2.4 GHz / 5 GHz / 6 GHz* (160 MHz) up to 2.4 Gb/s Supports 802.11 a/b/g/n/ac/ax Supports Bluetooth 5.3**, FIPS, FISMA
- USB ports at back panel
- 8
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 5
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 2
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No

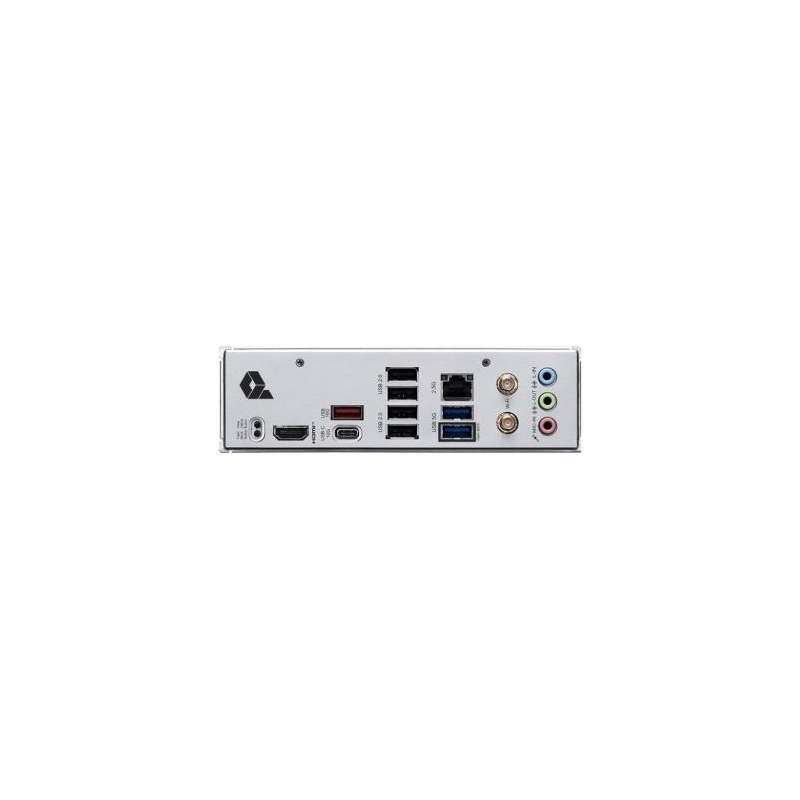

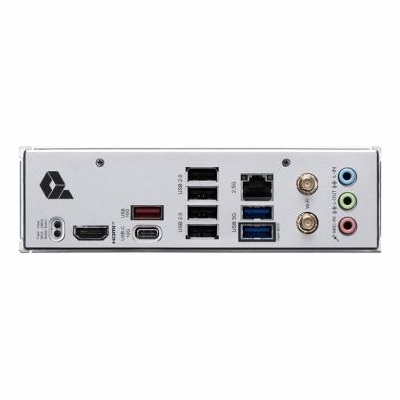

- External connectors
- 1 x RJ-45
- External connectors
- 1 x Przycisk Clear CMOS
- External connectors
- 4 x USB 2.0
- External connectors
- 2 x USB 3.2 Gen 1 Type-A
- External connectors
- 1 x USB 3.2 Gen 2 Type-A
- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- External connectors
- 2 x SMA
- External connectors
- 1 x MIC
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x Flash BIOS Button
- Onboard connectors
- 2 x System panel header
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 1 x Tuning Controller connector
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 3 x 4pin Chassis fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 2 x USB 3.2 Gen 1 Type-A
- Form factor
- micro ATX
- Dimensions
- 243.84 x 243.84 mm
- Supported operating systems
- Windows 11
- Designation
- CE+WEEE
PRO B840M-P WIFI6E
7 Items
Specific References
- EAN13
- 4711377361804
- MPN
- PRO B840M-P WIFI6E
