CPU 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 Integrated in the CPU 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Graphics
1 x DisplayPort, supporting a maximum resolution of 5120x2880 at 60 Hz * Support for DisplayPort 1.4, HDCP 2.3 and HDR versions. 2 HDMI ports supporting a maximum resolution of 4096x2160 at 60 Hz * Support HDMI 2.1, HDCP 2.3 and HDR versions. Support for up to 3 displays simultaneously Maximum shared memory 16 GB
Sound card
Realtek audio codec Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1 * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
Network interface
1 x 10/100/1000 Mbit/s
Network interface
Wi-Fi 802.11a/b/g/n/ac
Network interface
Bluetooth
Network interface
Realtek GbE LAN chip (10/100/1000 Mbit) Wireless communication module Intel Wi-Fi AC 3168 (For PCB rev. 1.0/1.2/1.3) / Intel Wi-Fi AC 9260 (For PCB rev. 1.1) / Realtek Wi-Fi AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE) (For PCB rev. 1.4) WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate * Actual data rate may vary depending on environment and equipment.
USB ports at back panel
6
USB ports on motherboard
4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
6
FireWire (IEEE 1394)
No
COM connector / port
Yes
LPT connector / port
No

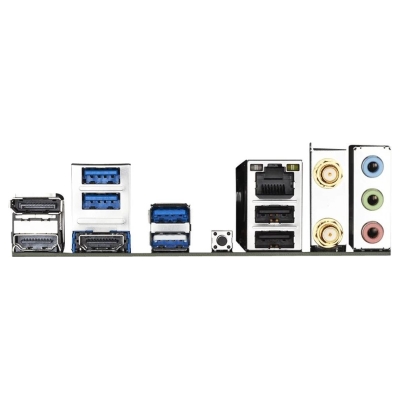

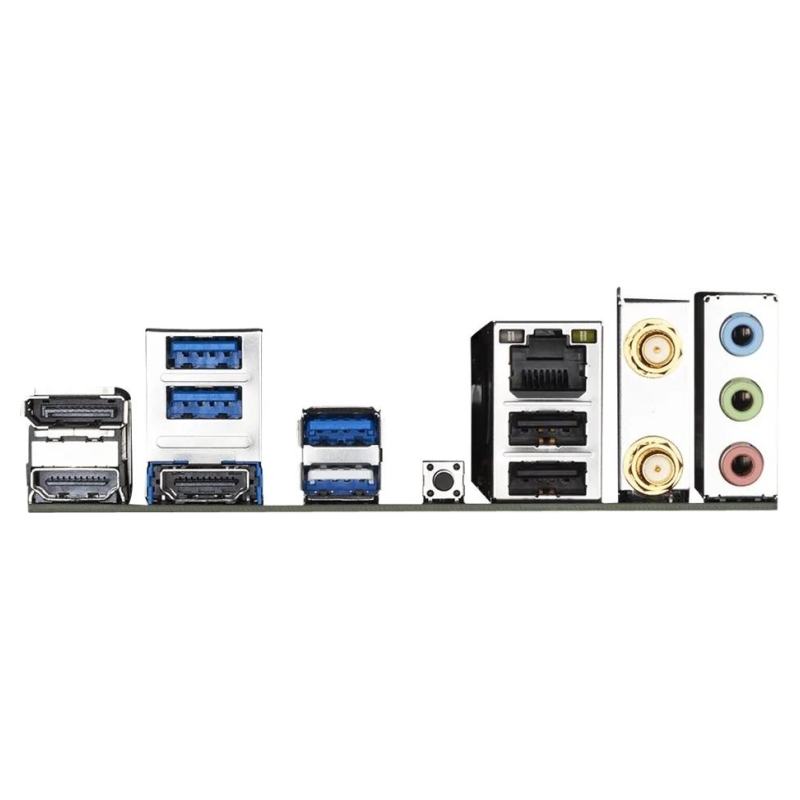

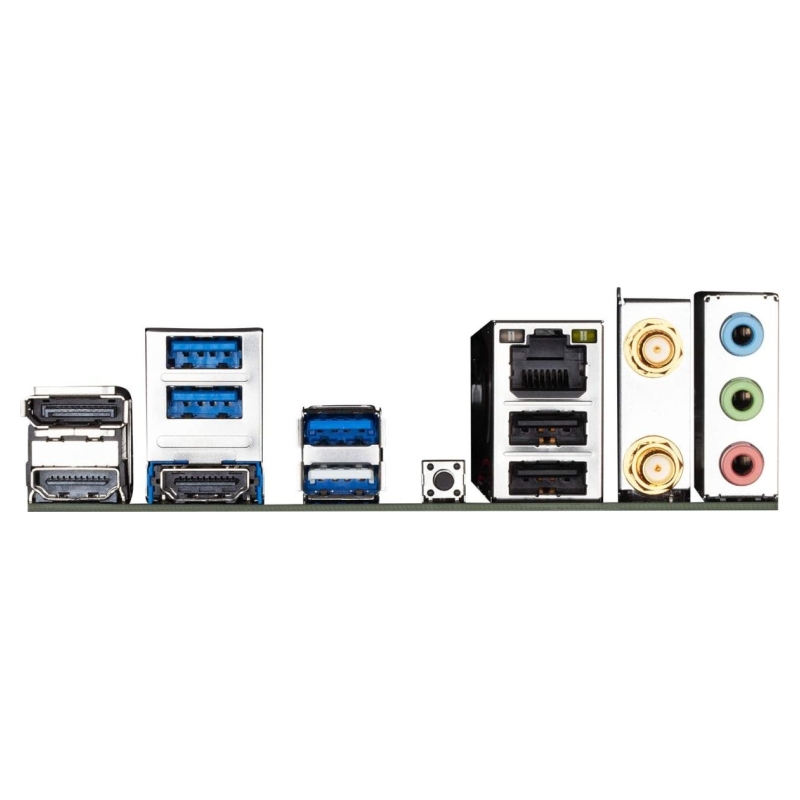

External connectors
2 x USB 2.0
External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
4 x USB 3.0
External connectors
2 x HDMI
External connectors
1 x DisplayPort
External connectors
2 x SMA
External connectors
1 x Q-Flash Plus button
Onboard connectors
1 x TPM header
Onboard connectors
1 x USB 3.0 header
Onboard connectors
1 x Serial port header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin Chassis fan
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
1 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
1 x USB 2.0/1.1 header
Onboard connectors
1 x System panel header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Clear CMOS jumper
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
mini ITX
Dimensions
17 x 17 cm
Supported operating systems
Windows 11
Supported operating systems
Windows 10
Software
Norton Internet Security (wersja OEM) LAN bandwidth management software
Other information
Voltage detection Temperature detection Fan speed detection Overheating warning Fan failure warning Fan speed control *Whether fan speed control is supported depends on the installed cooler.
