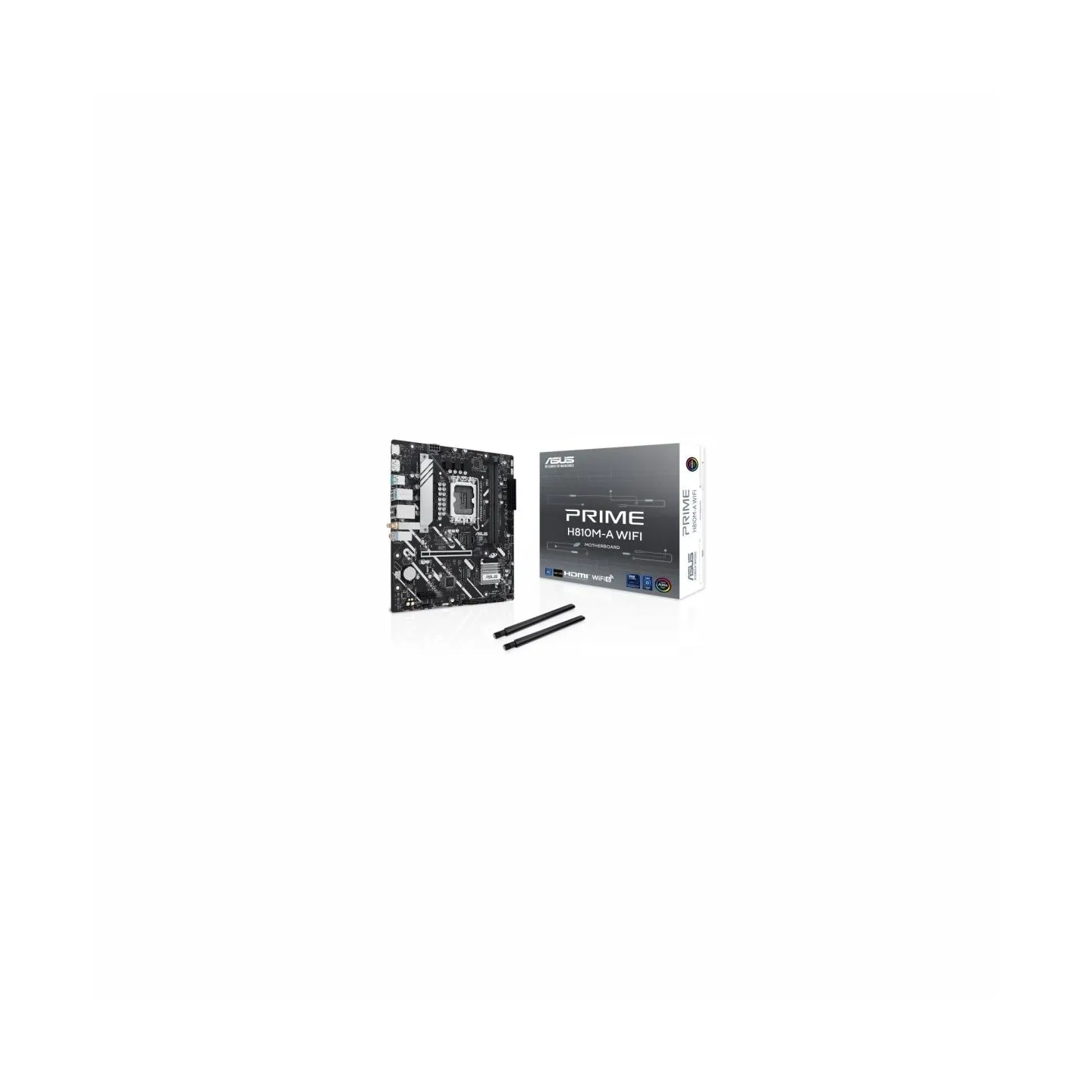

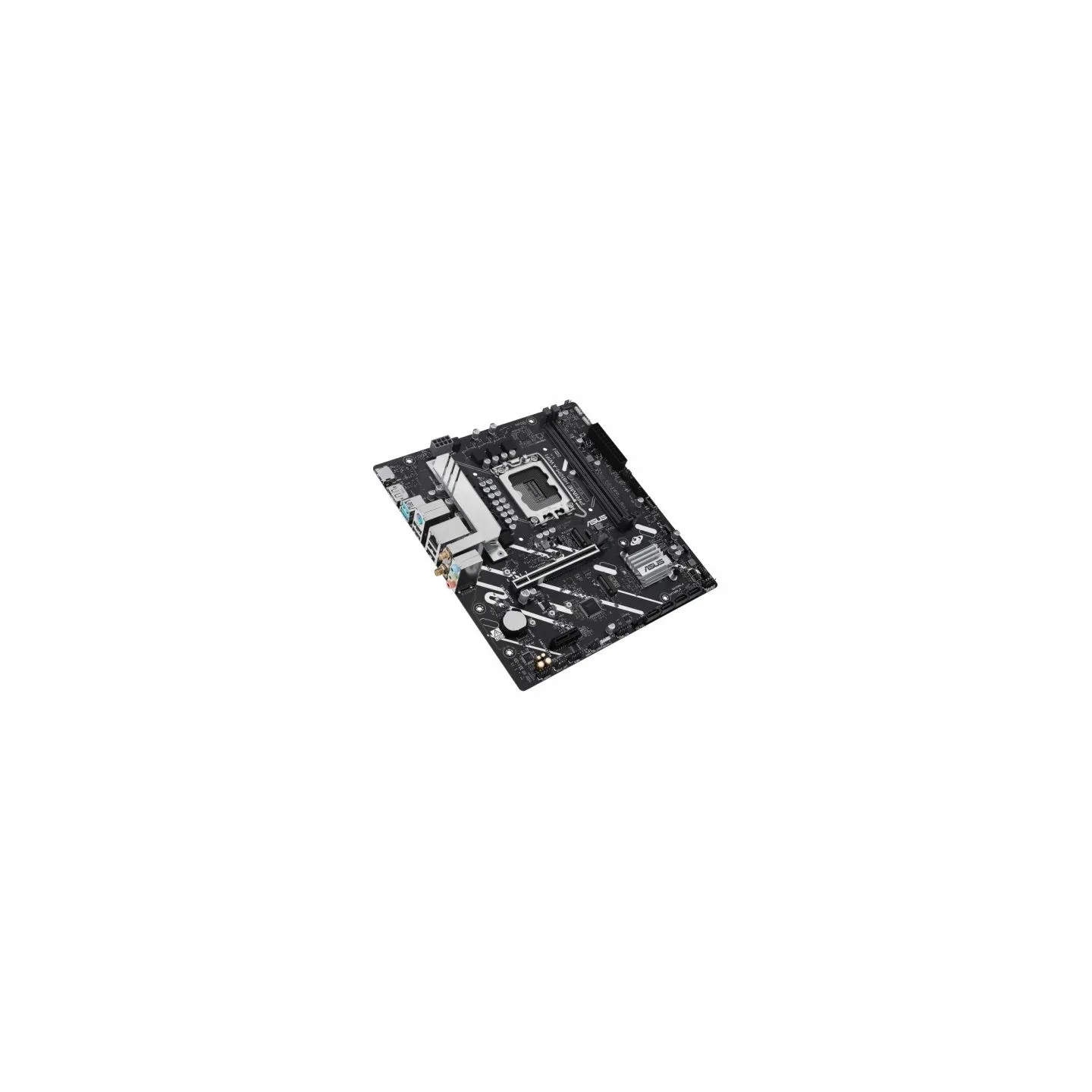

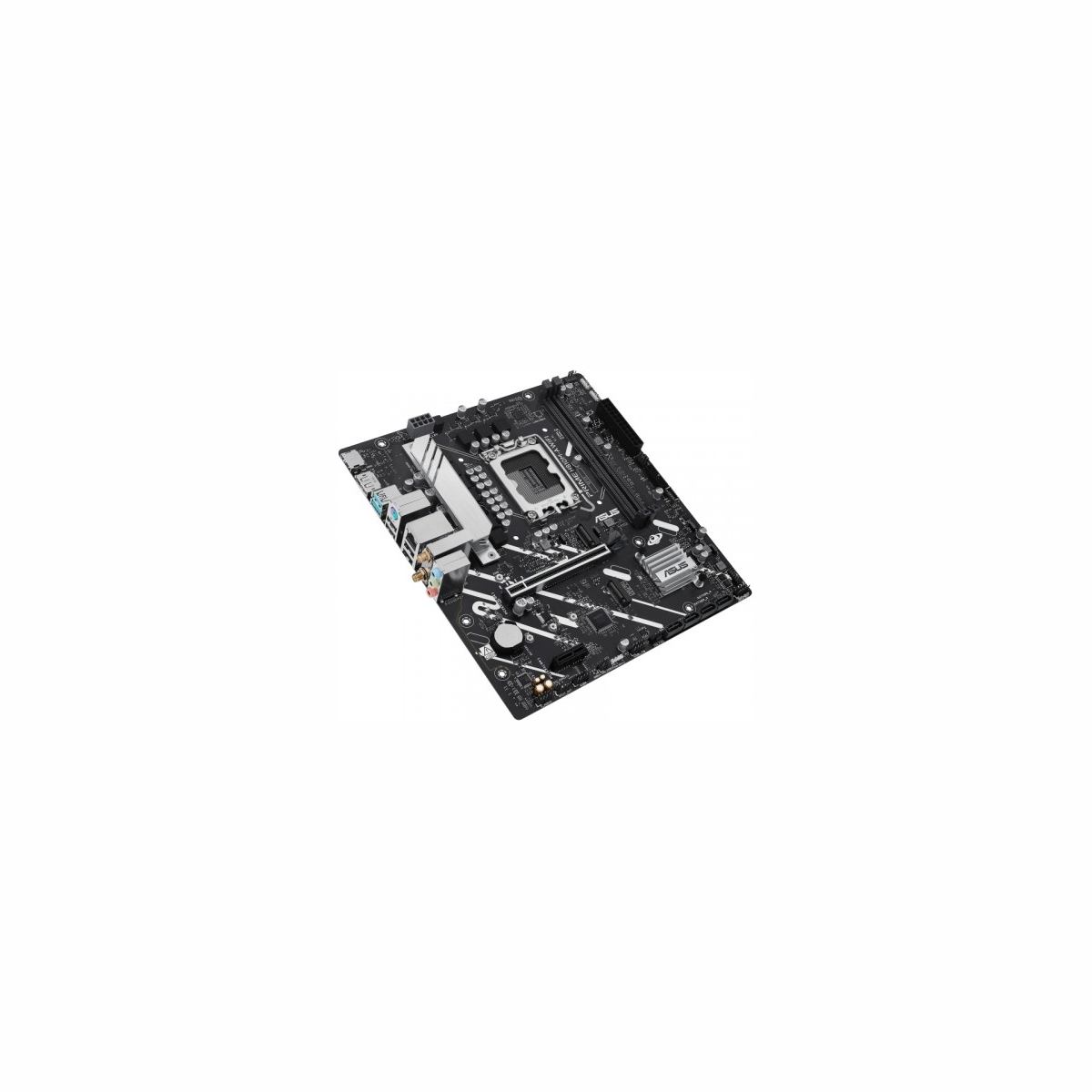

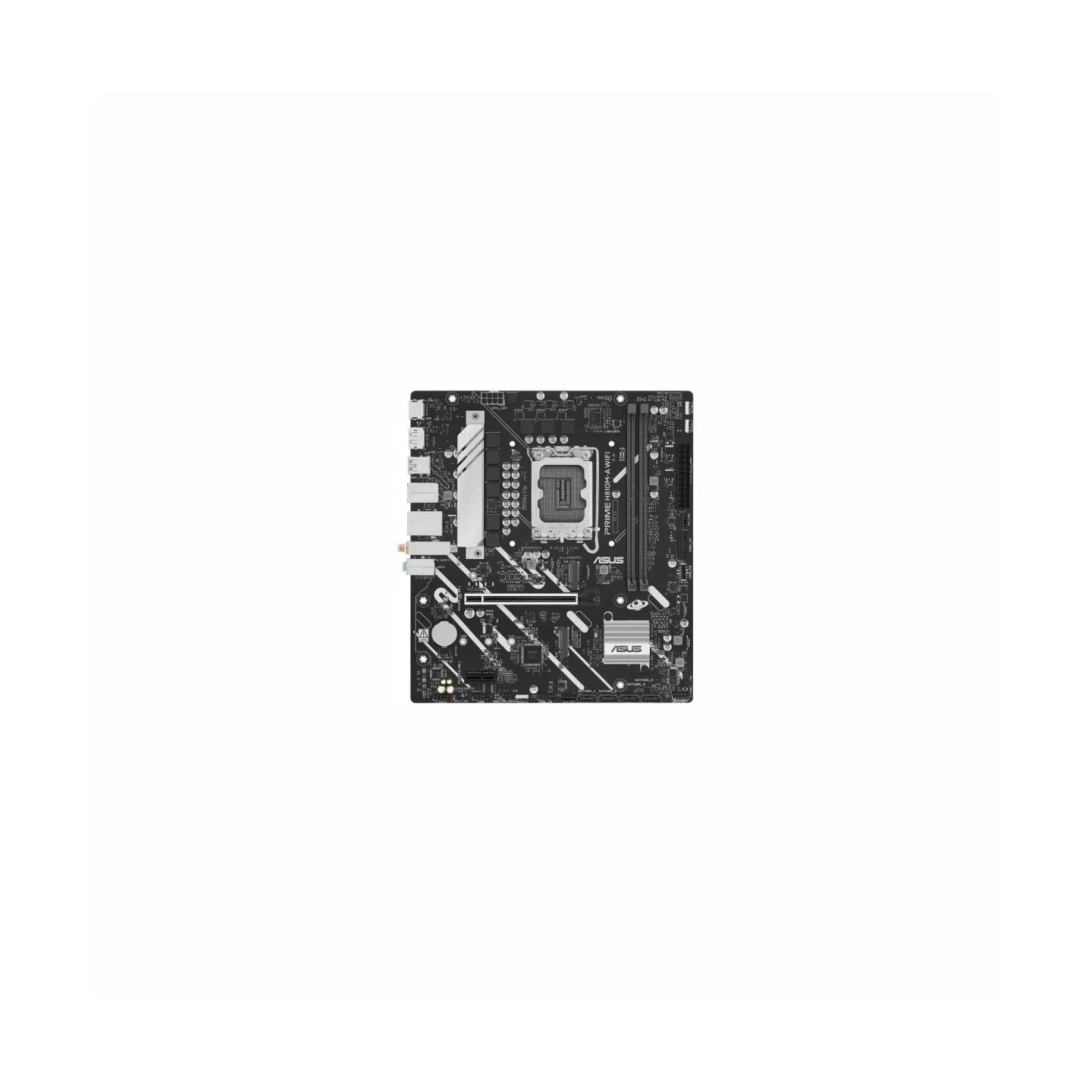

Asus Motherboard PRIME H810M-A WIFI s1851 XDDR5 USBC mATX
- Write a review
€159.32
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBASUIIFB810U00
- Barcode
- 4711387842522
- Model
- PRIME H810M-A WIFI
- CPU socket
- LGA1851
- Processor family
- Intel Core Ultra
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- H810 Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 2
- Memory bus frequency
- 6400 MHz
- Max memory size
- 128
- Expansion slots
- 1 x PCIe 4.0 x 16
- Expansion slots
- 1 x PCIe 4.0 x 1
- Max. number of SATA devices
- 4
- Detailed data on disk/drive interfaces
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel H810 Chipset M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports
- Graphics
- 1 x DisplayPort 1 x HDMI
- Sound card
- Realtek 7.1 Surround Sound High Definition Audio CODEC: Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features: Audio Shielding Premium audio capacitors Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
- Network interface
- 1 x 10/100/1000 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- Network interface
- Bluetooth
- Network interface
- LAN: 1 x Intel 1Gb Ethernet port* ASUS LANGuard *With Intel I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3. Wireless & Bluetooth: Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth v5.3* * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
- USB ports at back panel
- 6
- USB ports on motherboard
- 5
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 3
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 2
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No
- External connectors
- 1 x Wi-Fi Module
- External connectors
- 2 x USB 3.2 Gen 2 Type-A
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 4 x USB 2.0
- External connectors
- 1 x Line Out
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 2 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 2 x 4pin Chassis fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x S/PDIF Out header
- Onboard connectors
- 1 x 4pin CPU fan
- BIOS
- 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
- Form factor
- micro ATX
- Dimensions
- 24.4 x 22.2 cm
- Accessories included

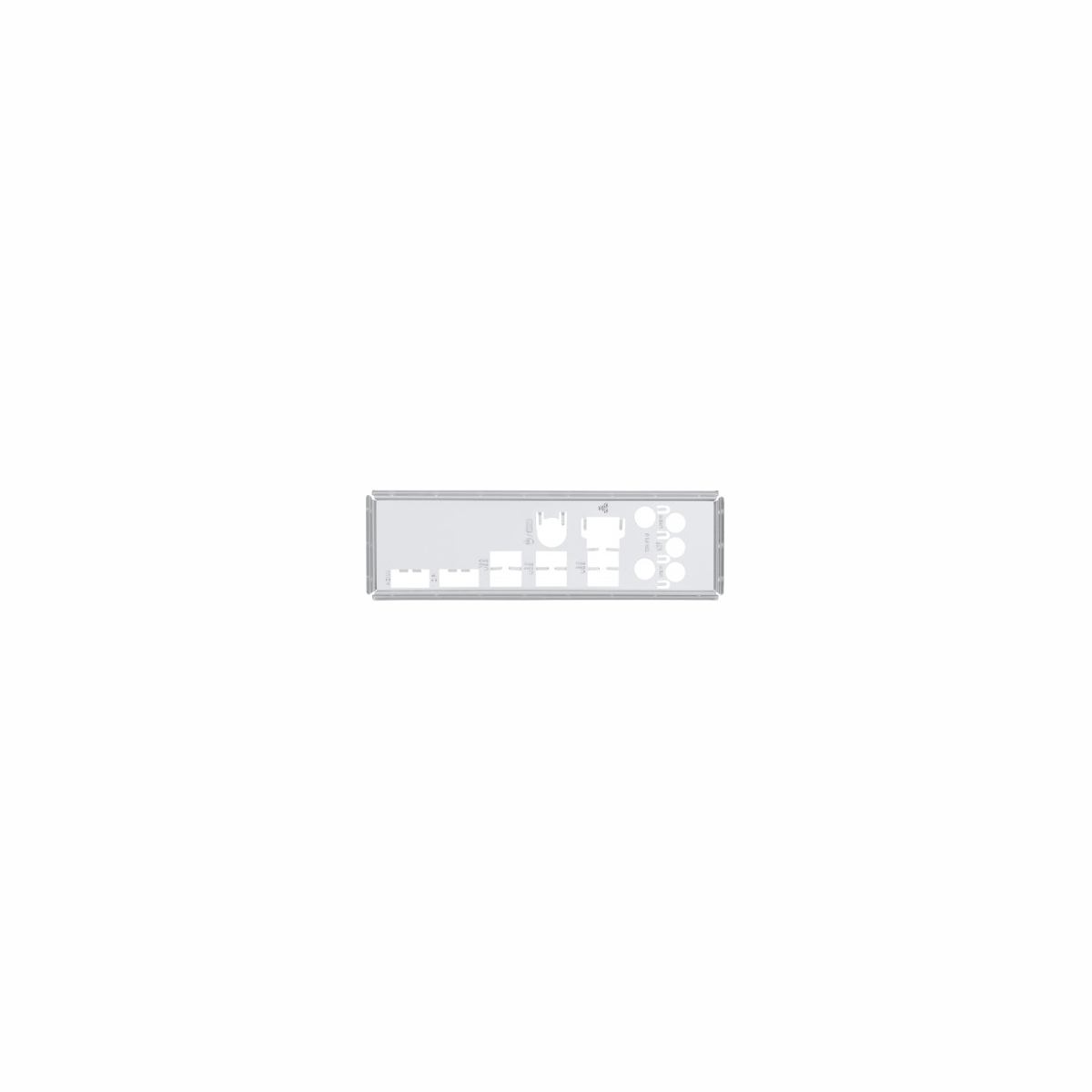

- 2 x SATA 6Gb/s cables ASUS Wi-Fi moving antenna I/O shield Screw package for M.2 SSD Quick start guide
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- WOL by PME, PXE
- Designation
- CE+WEEE
PRIME H810M-A WIFI
1 Item
Specific References
- EAN13
- 4711387842522
- MPN
- PRIME H810M-A WIFI
New
