CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors
Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Sound card
7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/axe
Network interface
Bluetooth
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN: 802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports Dual-Band 2x2 with extended 6GHz band* support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.2 Supports MU-MIMO
USB ports at back panel
8
USB ports on motherboard
9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
2
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

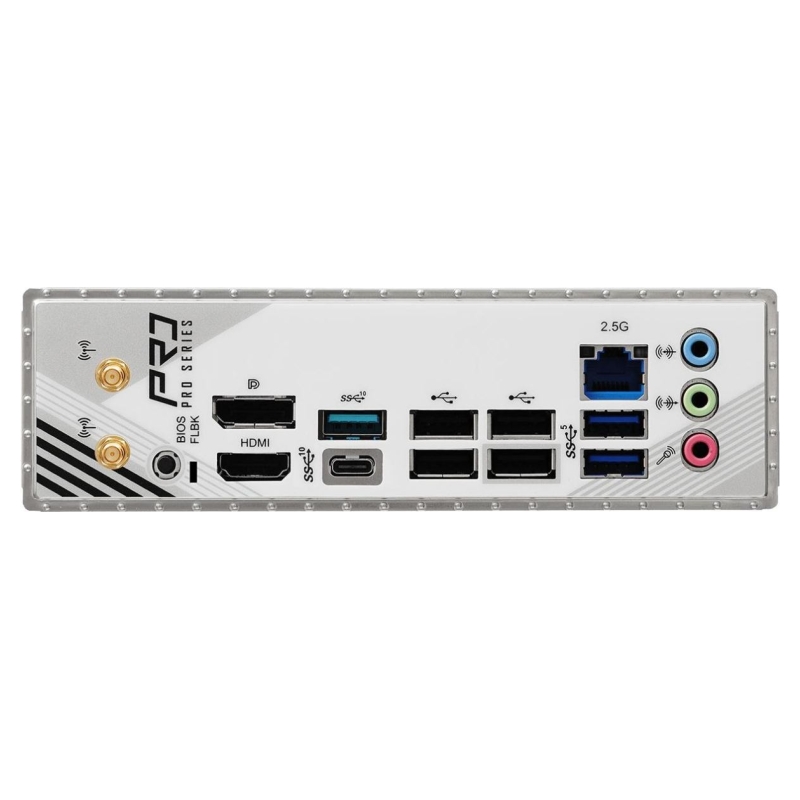

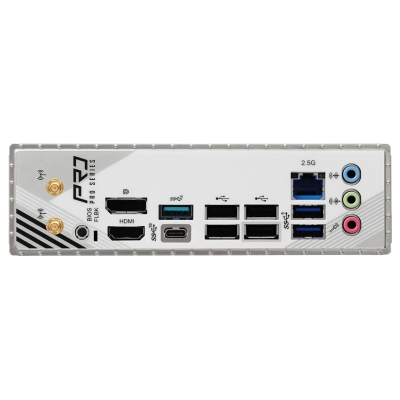

External connectors
1 x MIC
External connectors
1 x Line Out
External connectors
1 x DisplayPort
External connectors
1 x USB 3.2 Gen 2 Type-A
External connectors
1 x USB 3.2 Gen 2 Type-C
External connectors
2 x SMA
External connectors
1 x RJ-45
External connectors
4 x USB 2.0
External connectors
2 x USB 3.2 Gen 1 Type-A
External connectors
1 x Flash BIOS Button
External connectors
1 x HDMI
External connectors
1 x Line In
Onboard connectors
1 x Power LED and Speaker Header
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
3 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
4 x USB 2.0/1.1
Onboard connectors
2 x 4pin wentylator CPU
Onboard connectors
3 x 4pin Chassis fan
Onboard connectors
1 x 4pin 12V power
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x RGB LED strip header
Onboard connectors
4 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x USB 3.2 Gen 1 Type-C
Onboard connectors
1 x TPM header
Onboard connectors
3 x Addressable LED
BIOS
256Mb AMI UEFI Legal BIOS ze wsparciem GUI
Form factor
micro ATX
Dimensions
24.4 x 24.4 cm

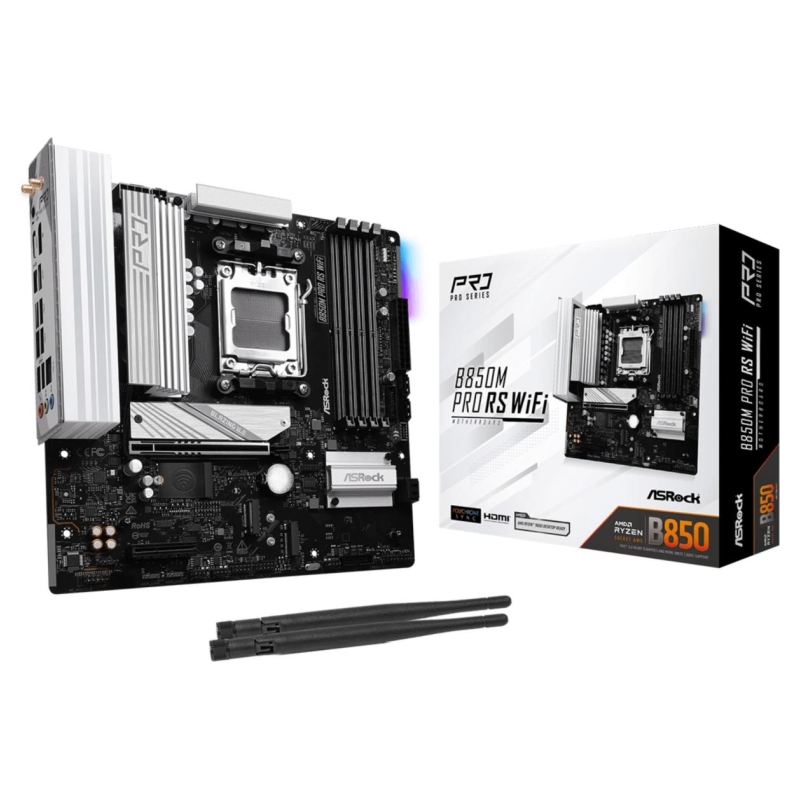

Accessories included
2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas
Supported operating systems
Windows 11
Supported operating systems
Windows 10
Software
Software: ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash
