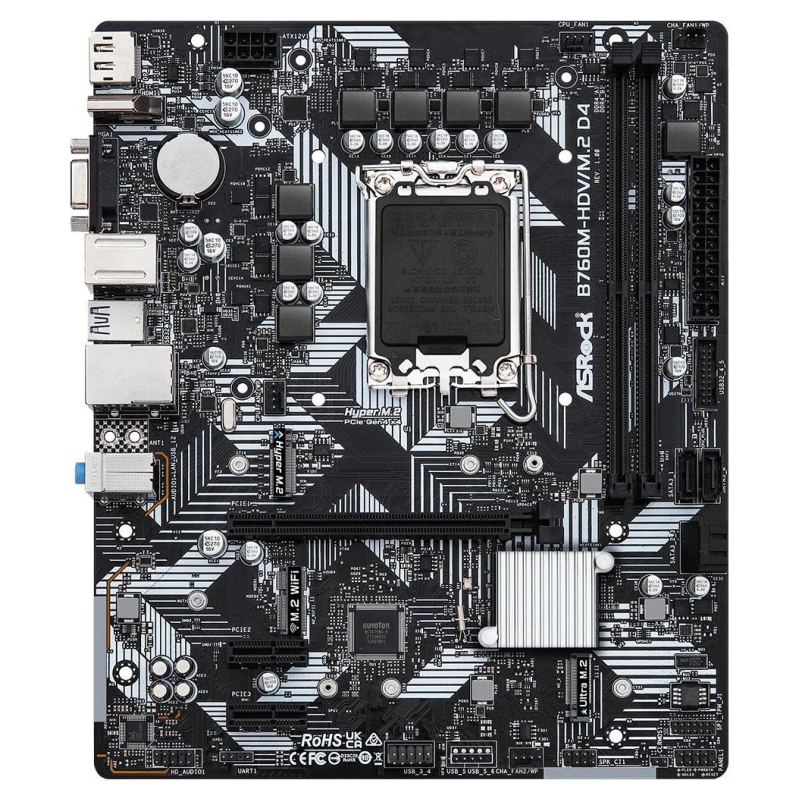

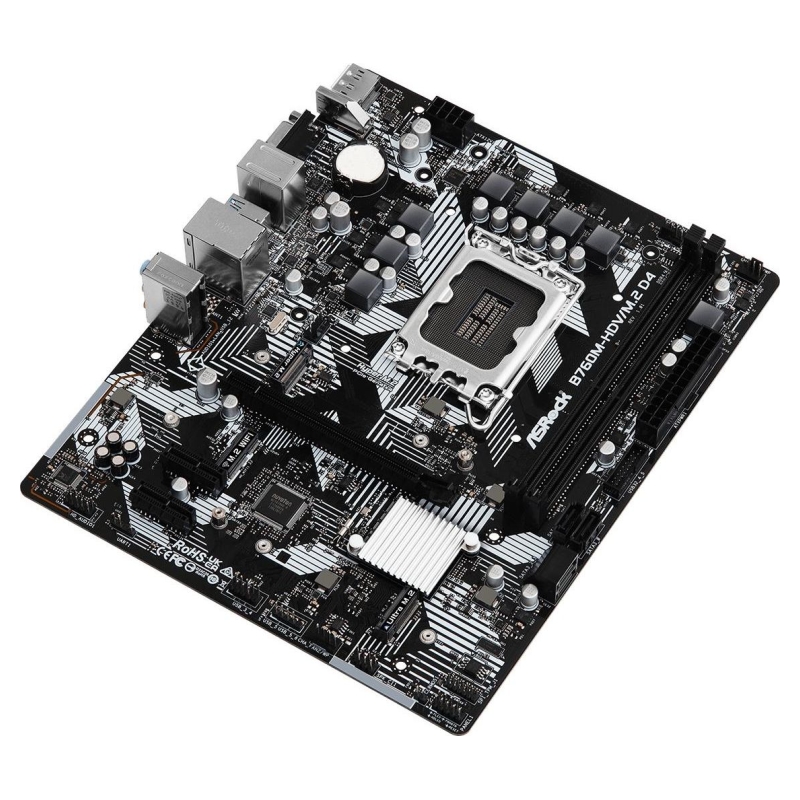

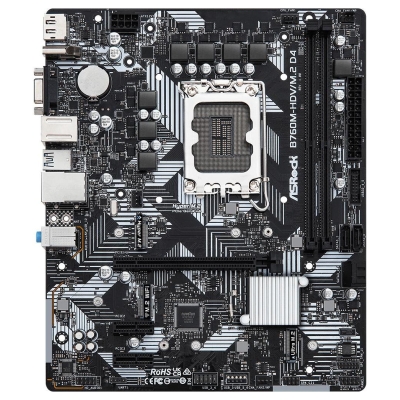

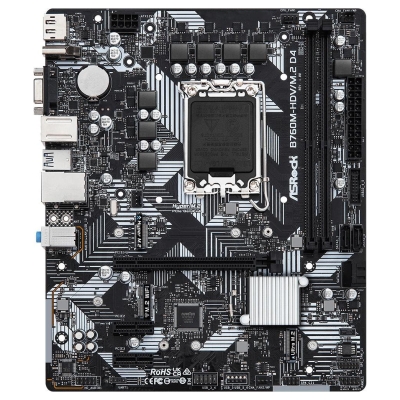

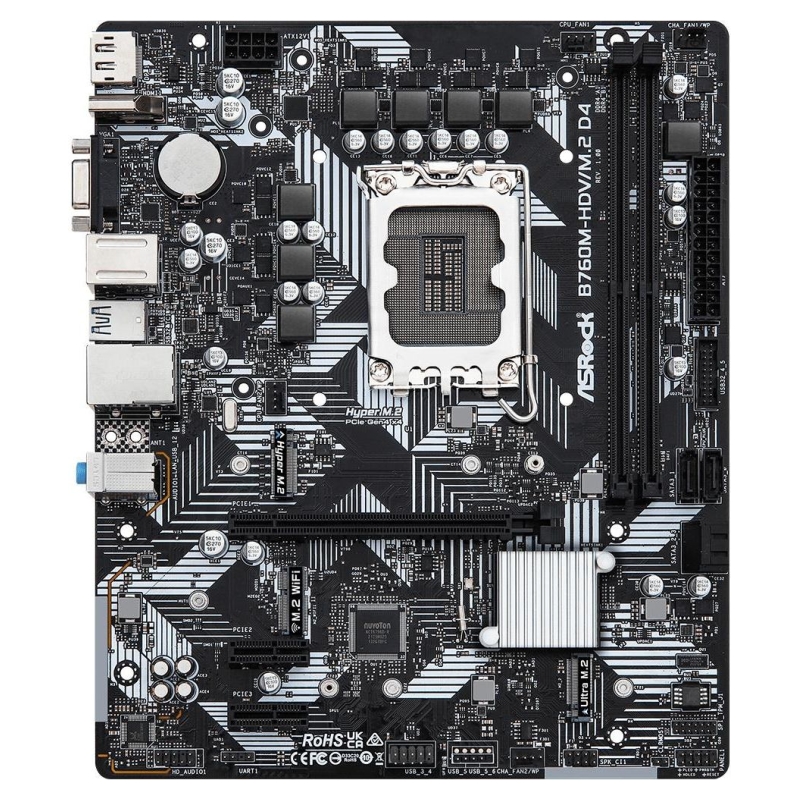

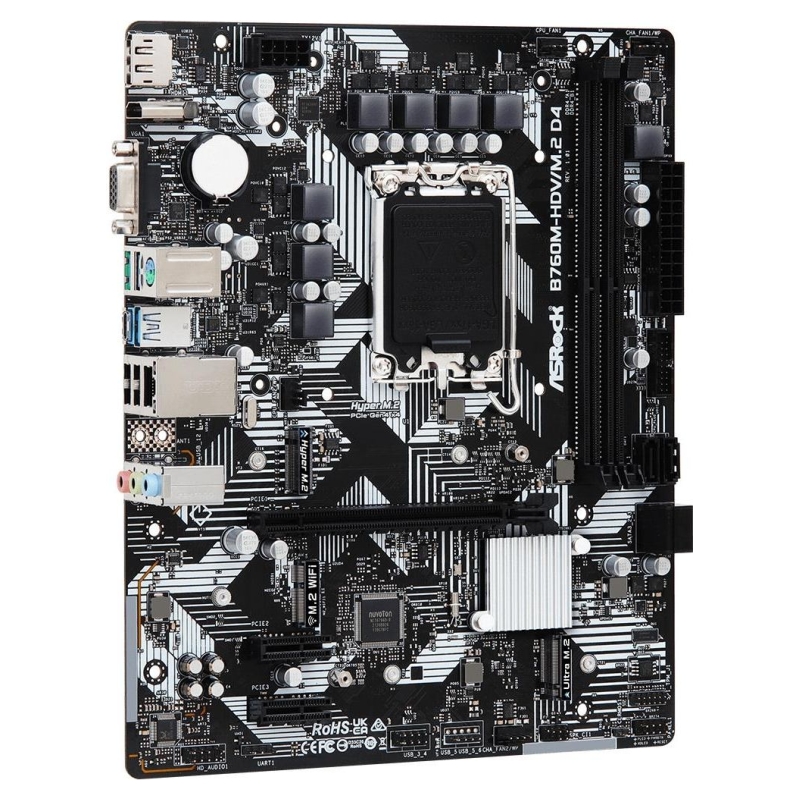

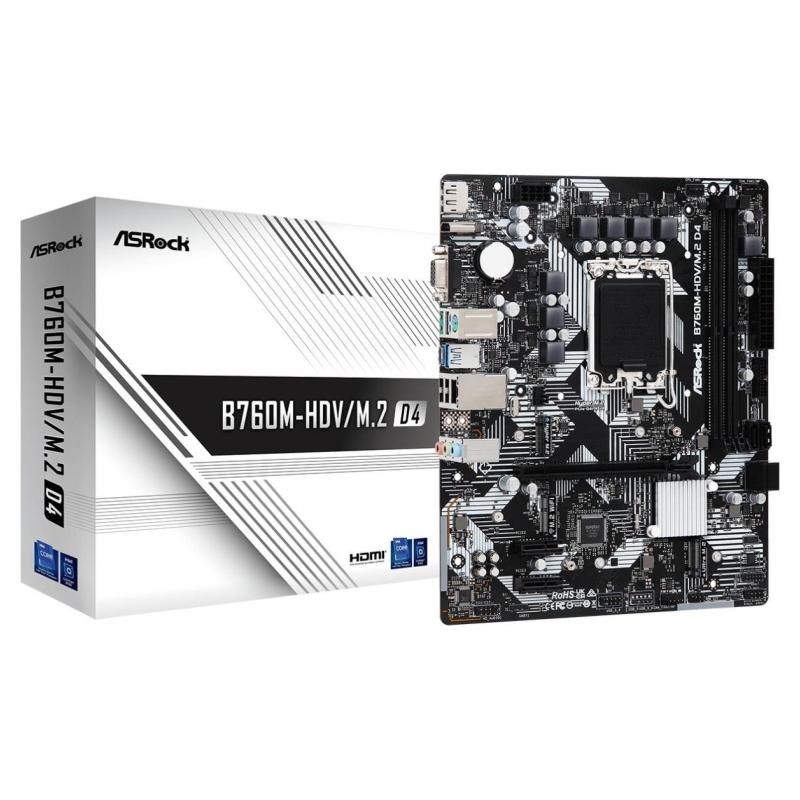

Asrock Motherboard B760M-HDV/M.2 D4 s1700 2DDR4 DP/HDMI mATX
- Write a review
€94.94
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBASRIIEB760U05
- Barcode
- 4710483942020
- Model
- B760M-HDV/M.2 D4
- CPU socket
- LGA1700
- Processor family
- Intel Celeron
- Processor family
- Intel Core i9
- Processor family
- Intel Core i7
- Processor family
- Intel Core i3
- Processor family
- Intel Core i5
- Processor family
- Intel Pentium
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B760
- Memory type
- DDR4
- Number of DDR4 slots
- 2
- Memory bus frequency
- 5333 MHz
- Max memory size
- 64
- Expansion slots
- 2 x PCIe 3.0 x 1
- Expansion slots
- 1 x PCIe 4.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes 4 x SATA3 6.0 Gb/s Connectors
- Graphics
- Intel Xe Graphics Architecture (Gen 12) HDMI 2.1 TMDS Compatible, HDCP 2.3 support up to 4K 60Hz DisplayPort 1.4 with DSC (compressed), HDCP 2.3 support up to 8K 60Hz / 5K 120Hz D-Sub, up to Full HD (1920x1080) 60Hz *Intel UHD Graphics Built-in Visual and image output technologies can only be supported by processors with an integrated GPU.
- Sound card
- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
- Network interface
- 1 x 10/100/1000 Mbit/s
- Network interface
- Gigabit LAN 10/100/1000 Mb/s Realtek 8111H
- USB ports at back panel
- 6
- USB ports on motherboard
- 5
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 5
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 1
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

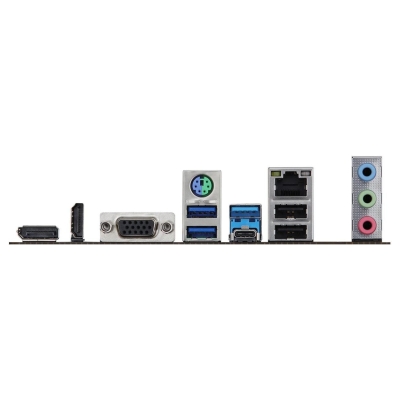

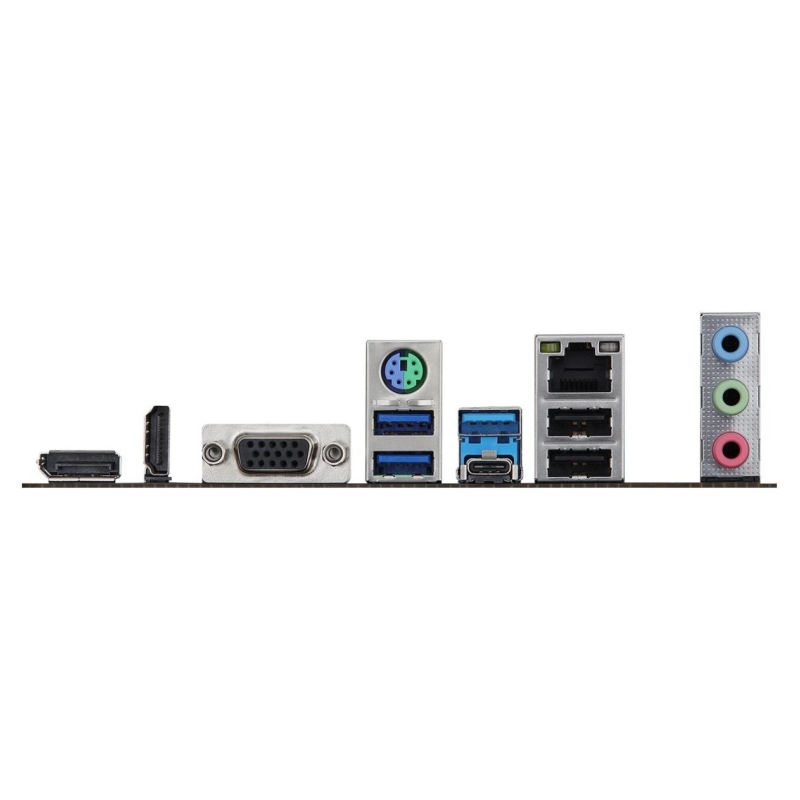

- External connectors
- 3 x USB 3.0
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 2 x USB 2.0
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 1 x D-Sub
- External connectors
- 1 x USB 3.1 Type-C
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 2 x 4pin case fan liquid cooling
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 3 x USB 2.0/1.1 header
- Onboard connectors
- 2 x USB 3.0 header
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x U.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Form factor
- micro ATX
- Dimensions
- 24.4 x 20.1 cm
- Accessories included
- User manual I/O cover 2 x SATA data cable 3 x Screws for M.2 slot
- Supported operating systems
- Windows 11
- Supported operating systems
- Windows 10
- Software
- Software: ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI Automatic ASRock Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
- Designation
- CE+WEEE
B760M-HDV/M.2 D4
30 Items
Specific References
- EAN13
- 4710483942020
- MPN
- B760M-HDV/M.2 D4
