1 x M.2 connector (M2A_CPU), integrated with the processor, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 series processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000-Phoenix 1 series processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000-Phoenix 2 series processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated with the chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs1 x M.2 connector (M2B_SB), integrated with chipset, supporting Socket 3, M Key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD drives
Graphics
Integrated graphics processor with AMD Radeon Graphics support + ASMedia USB4 controller 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz Integrated graphics processor - AMD Radeon Graphics support 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
Bluetooth
Network interface
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard
USB ports at back panel
10
USB ports on motherboard
8
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
5
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

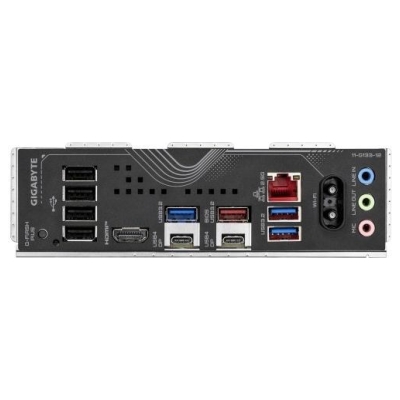

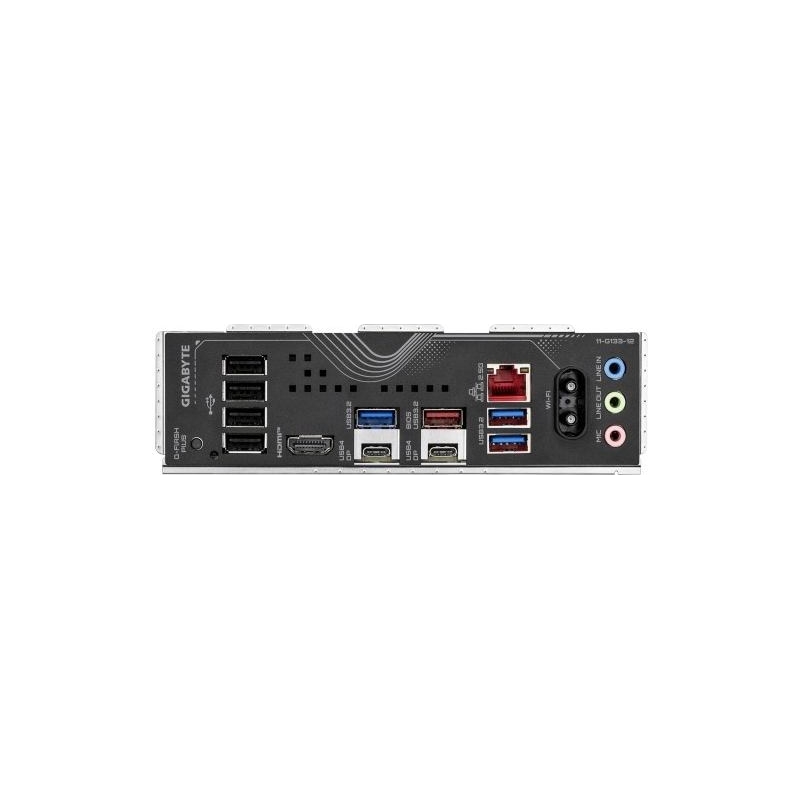

External connectors
3 x USB 3.0
External connectors
1 x RJ-45
External connectors
2 x USB4 Type-C
External connectors
4 x USB 2.0
External connectors
1 x MIC
External connectors
1 x Line Out
External connectors
1 x HDMI
External connectors
1 x Line In
External connectors
2 x SMA
External connectors
1 x USB 3.1
External connectors
1 x Q-Flash Plus button
Onboard connectors
4 x 4pin Chassis fan
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x Power button
Onboard connectors
1 x TPM header
Onboard connectors
1 x System panel header
Onboard connectors
2 x USB C
Onboard connectors
1 x 4pin 12V power
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
3 x M.2
Onboard connectors
4 x USB 2.0/1.1
Onboard connectors
2 x USB 3.1
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
1 x Reset button
Onboard connectors
1 x Reset jumper
Onboard connectors
1 x RGB LED strip header
Onboard connectors
3 x Addressable LED
BIOS
1 x 256 Mbit flash Using licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX
Dimensions
30.5 x 24.4 cm
Supported operating systems
Windows 11
Software
Norton Internet Security (OEM version) LAN bandwidth management software
