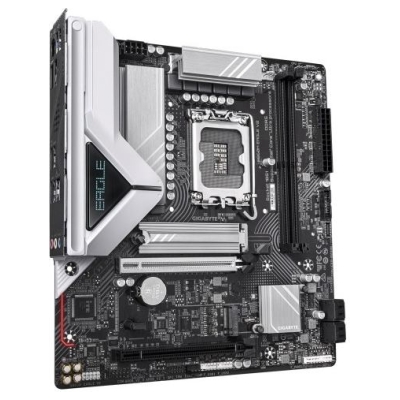

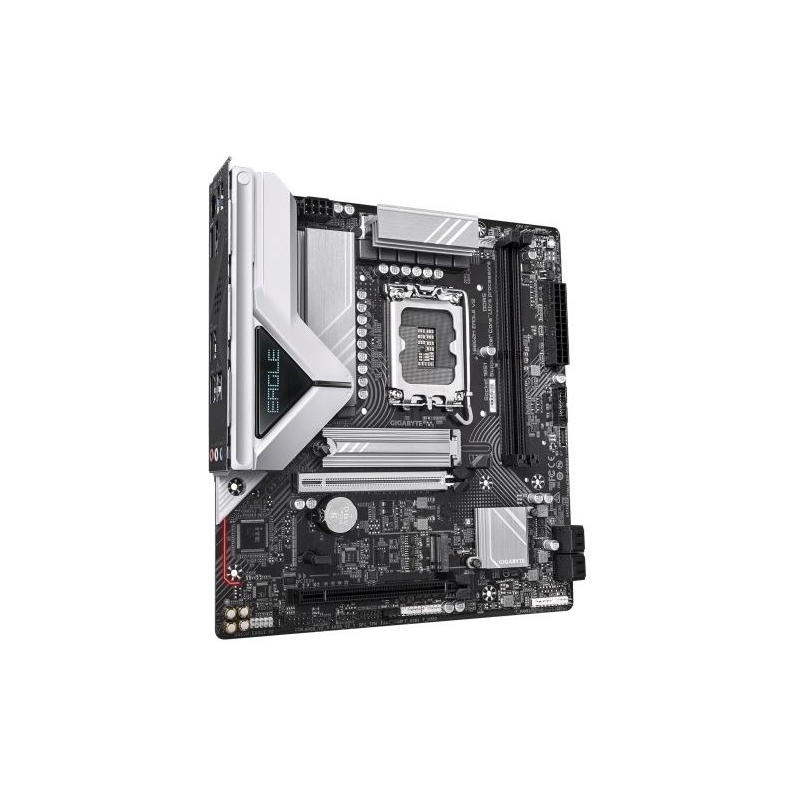

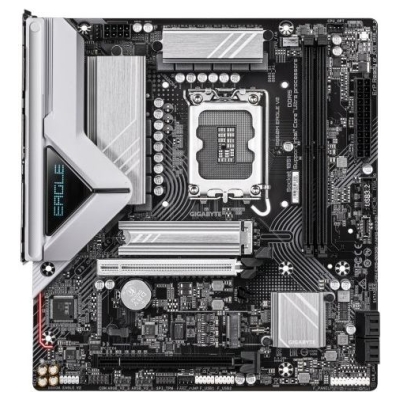

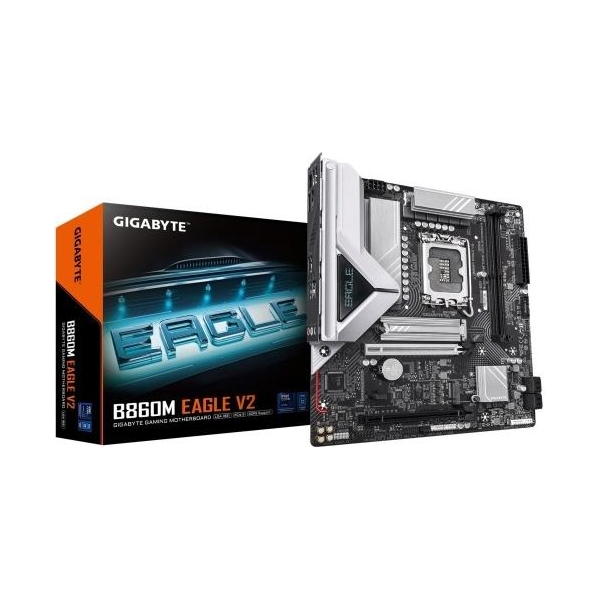

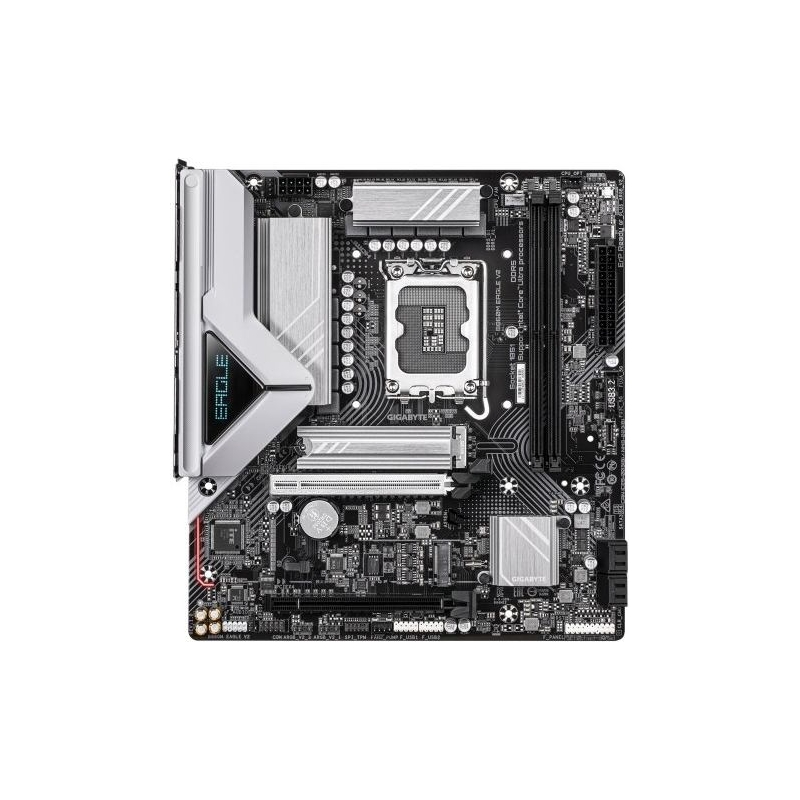

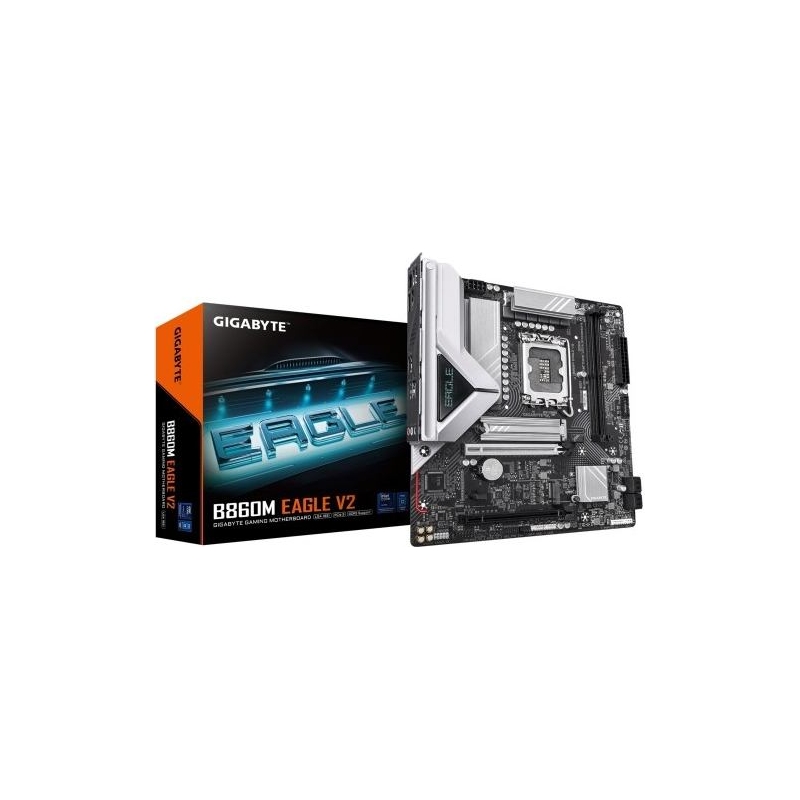

Gigabyte Motherboard B860M EAGLE v2 s1851 2DDR5 HDMI/DP mATX
- Write a review
€161.38
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBGBAIIFB860U07
- Barcode
- 4719331869656
- Model
- B860M EAGLE V2
- CPU socket
- LGA1851
- Processor family
- Intel Core Ultra
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B860 Express Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 2
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 133 MHz
- Memory bus frequency
- 7800 MHz
- Memory bus frequency
- 7900 MHz
- Memory bus frequency
- 7950 MHz
- Memory bus frequency
- 8000 MHz
- Memory bus frequency
- 8200 MHz
- Memory bus frequency
- 7400 MHz
- Memory bus frequency
- 7600 MHz
- Memory bus frequency
- 7200 MHz
- Memory bus frequency
- 7000 MHz
- Memory bus frequency
- 6800 MHz
- Memory bus frequency
- 6600 MHz
- Memory bus frequency
- 6400 MHz
- Memory bus frequency
- 8266 MHz
- Memory bus frequency
- 8400 MHz
- Max memory size
- 128
- Expansion slots
- 1 x PCIe 5.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU 1 PCI Express x16 slot, supporting PCIe 5.0 and operating at x16 mode (PCIEX16) Chipset 1 PCI Express x16 slot, supporting PCIe 4.0 and operating at x4 mode (PCIEX4)
- Graphics
- Integrated Graphics Support: Intel HD Graphics 1 × HDMI port, supporting a maximum resolution of 4096 × 2160 at 60 Hz Supports HDMI 2.1 and HDCP 2.3 1 × DisplayPort, supporting a maximum resolution of 3840 × 2160 at 144 Hz Supports DisplayPort 2.1
- Sound card
- Realtek audio codec Supports High Definition Audio Audio channels: 2/4/5.1/7.1 Supports S/PDIF Out
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- USB ports at back panel
- 6
- USB ports on motherboard
- 3
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 5
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

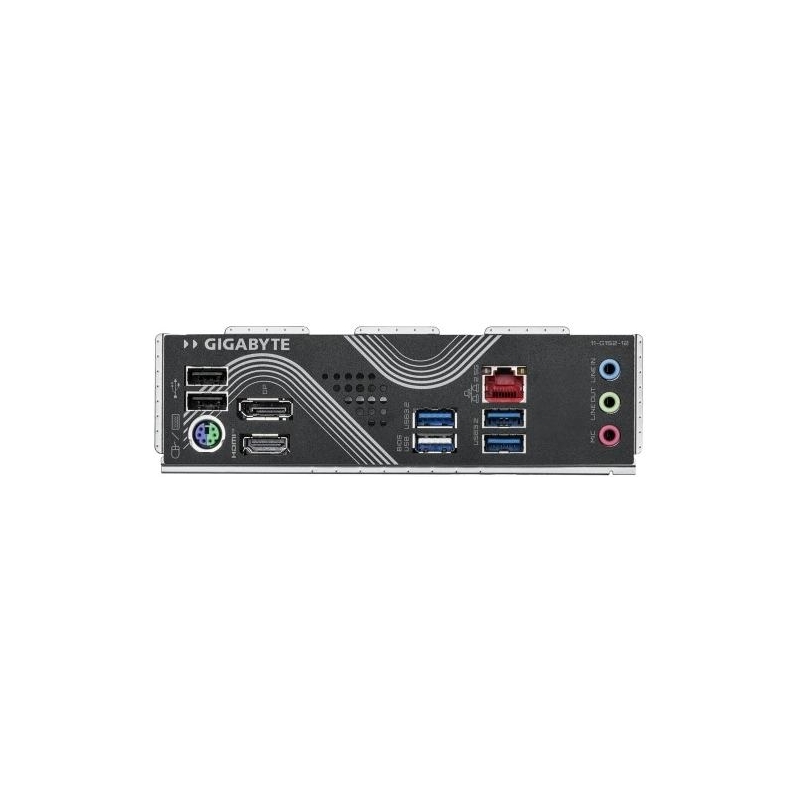

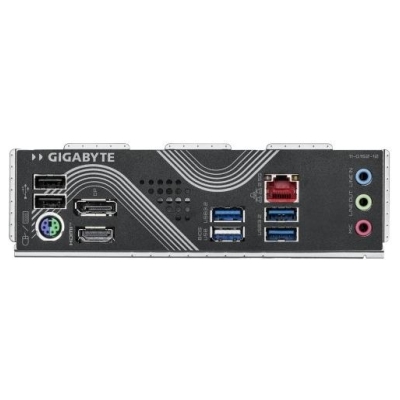

- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 3 x USB 2.0
- External connectors
- 3 x USB 3.0
- Onboard connectors
- 1 x Q-Flash Plus button
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB 3.0 header
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 1 x TPM header
- BIOS
- 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- micro ATX
- Dimensions
- 24.4 x 22.5 cm
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- Norton Internet Security (wersja OEM) LAN bandwidth management software
- Designation
- CE+WEEE
B860M EAGLE V2
30 Items
Specific References
- EAN13
- 4719331869656
- MPN
- B860M EAGLE V2
