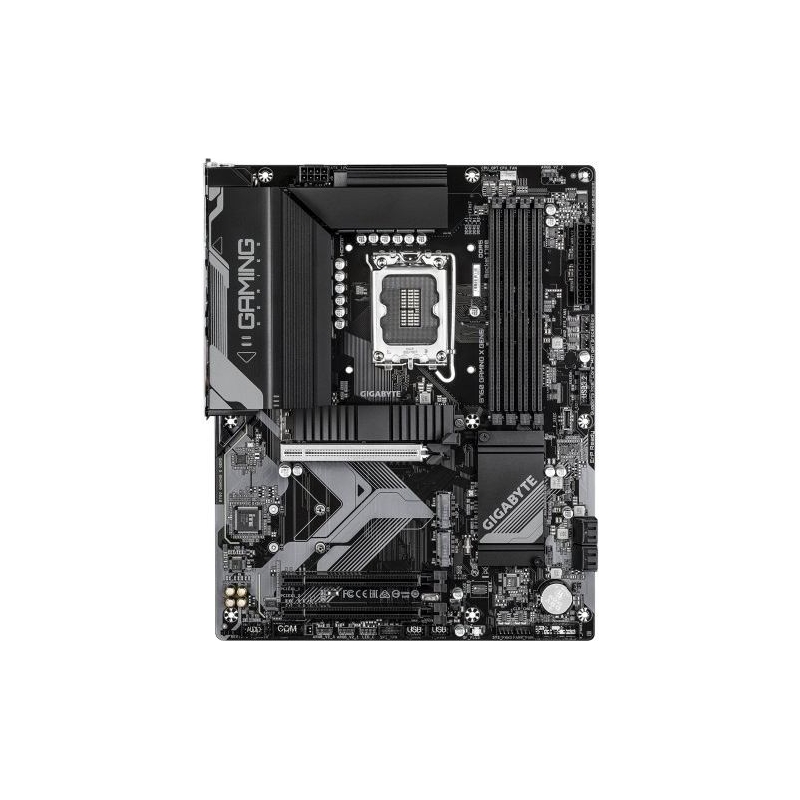

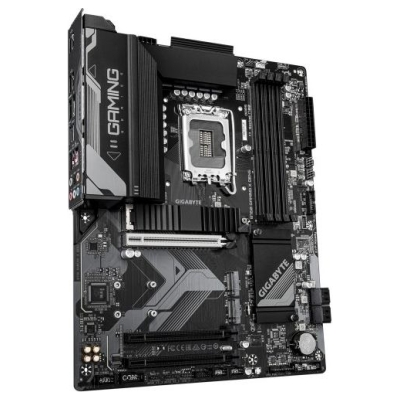

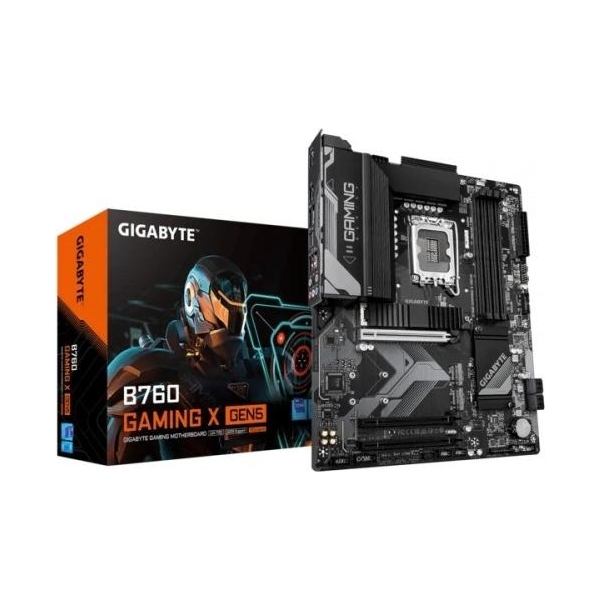

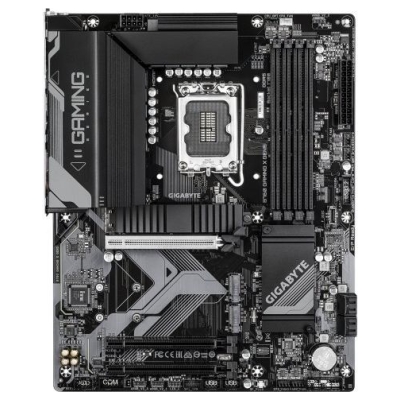

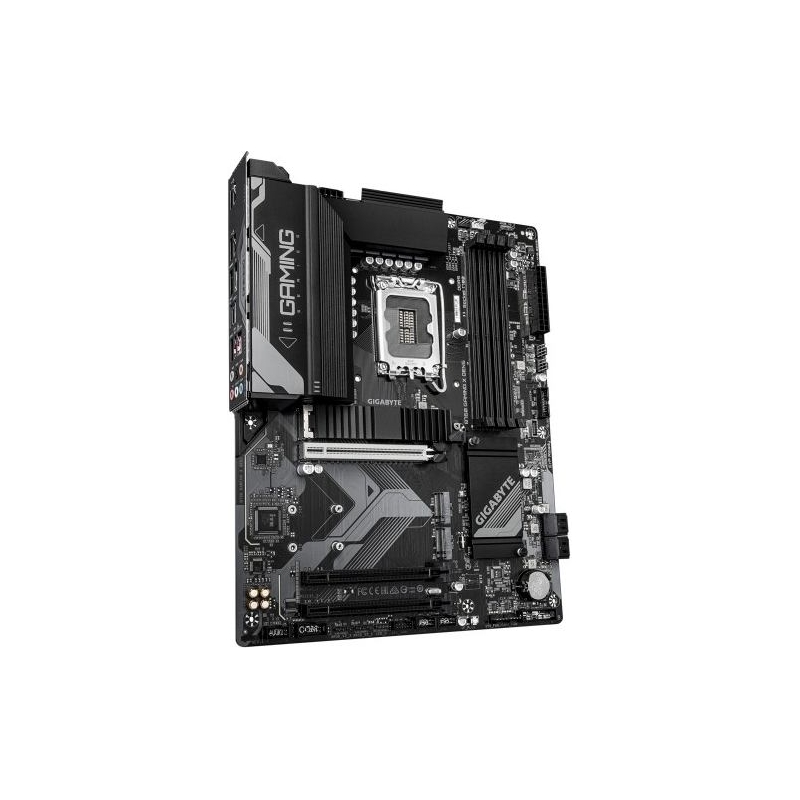

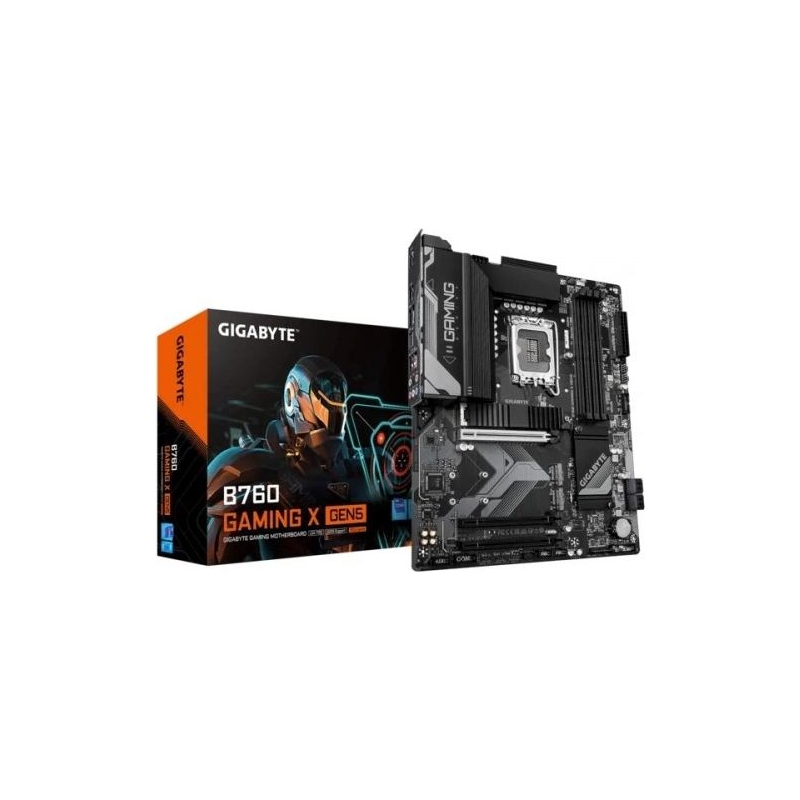

Gigabyte Motherboard B760 GAMING X GEN5 s170 0 4DDR5 DP/HDMI ATX
- Write a review
€161.38
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBGBAIIEB760A11
- Barcode
- 4719331872120
- Model
- B760 Gaming X
- CPU socket
- LGA1700
- Processor family
- Intel Pentium
- Processor family
- Intel Core
- Processor family
- Intel Celeron
- Integrated CPU
- Yes
- Chipset manufacturer
- Intel
- Chipset type
- Intel B760 Express Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 133 MHz
- Memory bus frequency
- 4400 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 5200 MHz
- Memory bus frequency
- 5600 MHz
- Max memory size
- 256
- Expansion slots
- 3 x PCIe 4.0 x 4
- Expansion slots
- 1 x PCIe 5.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and operating at x16 mode (PCIEX16) Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and operating at x1 mode (PCIEX1_1, PCIEX1_2)
- Graphics
- Integrated Graphics Processor: Intel HD Graphics support 1 x DisplayPort, supporting a maximum resolution of 4096 x 2304 at 60 Hz Supports DisplayPort 1.2 and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 at 60 Hz Supports HDMI 2.1 and HDCP 2.3 Supports native HDMI 2.1 TMDS-compatible ports
- Sound card
- Realtek audio codec High Definition Audio support Audio channels: 2/4/5.1/7.1 S/PDIF Out support
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- USB ports at back panel
- 8
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 3
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 1
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No

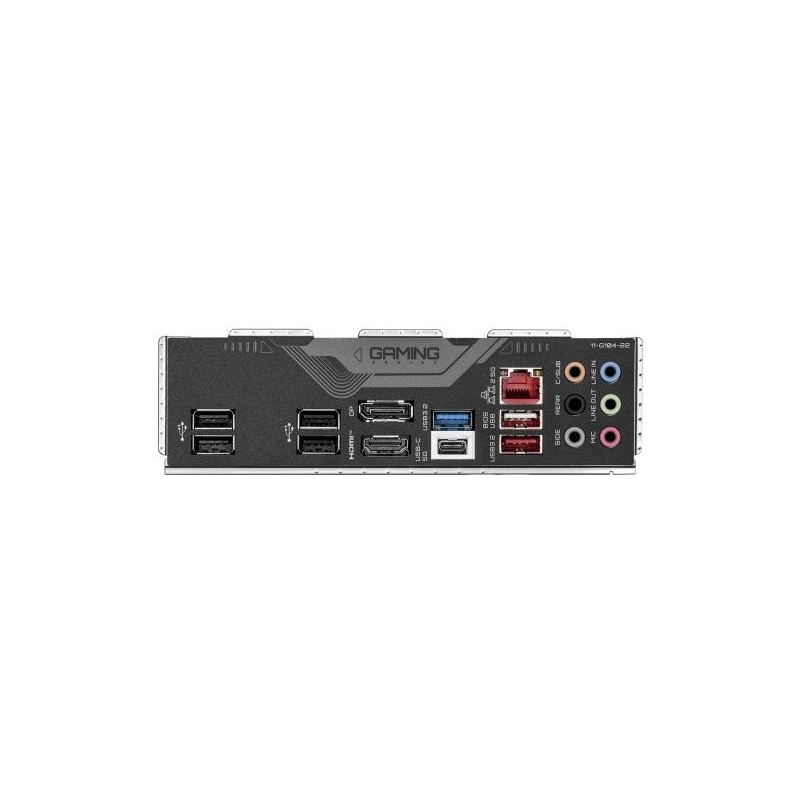

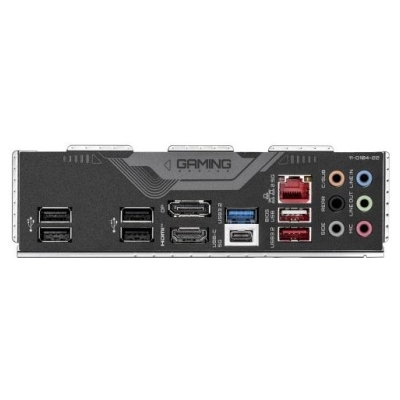

- External connectors
- 1 x USB 3.0 Type-C
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x Side Speaker
- External connectors
- 1 x Central Speaker / Subwoofer
- External connectors
- 1 x Rear Speaker
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 5 x USB 2.0
- External connectors
- 1 x USB 3.0
- External connectors
- 2 x SMA
- External connectors
- 1 x USB 3.1
- Onboard connectors
- 1 x Q-Flash Plus button
- Onboard connectors
- 1 x USB 3.0 header
- Onboard connectors
- 1 x USB 3.2 Gen 2 Type-C
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 3 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x S/PDIF Out header
- BIOS
- 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- ATX
- Dimensions
- 30.5 x 24.4 cm
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Designation
- CE+WEEE
B760 GAMING X GEN5
30 Items
Specific References
- EAN13
- 4719331872120
- MPN
- B760 GAMING X GEN5
