Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports) AMD X870E Chipset DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately. 4 x SATA 6Gb/s ports
Graphics
1 x HDMITM port 2 x USB4 (40Gbps) ports support USB Type-C display outputs
Sound card
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking High quality 120 dB SNR stereo playback output and 110 dB SNR recording input Supports up to 32-Bit/384 kHz playback on front panel Audio Features SupremeFX Shielding Technology ESS ES9219 QUAD DAC LED-illuminated audio jacks Rear optical S/PDIF out port Premium audio capacitors
Network interface
1 x 10Gbit/s 10GBase-T
Network interface
1 x 10/100/1000/2500/5000 Mbit/s
Network interface
Ethernet: 1 x Realtek 5Gb Ethernet 1 x Marvell AQtion 10Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate Bluetooth v5.4
USB ports at back panel
12
USB ports on motherboard
10
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
11
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No
External connectors
2 x USB 3.2 Gen 2 Type-C
External connectors
1 x Flash BIOS Button
External connectors
1 x Wi-Fi Module
External connectors
1 x HDMI
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
2 x RJ-45
External connectors
1 x S/PDIF
External connectors
8 x USB 3.2 Gen 2 Type-A
External connectors
1 x Przycisk Clear CMOS
External connectors
2 x USB4 Type-C
Onboard connectors
1 x RSVD header
Onboard connectors
2 x 4pin case fan liquid cooling
Onboard connectors
2 x 4pin Radiator Fan headers
Onboard connectors
1 x VRM Heatsink Fan header
Onboard connectors
1 x Thermal sensor connector
Onboard connectors
12 x ProbeIt Measurement Points
Onboard connectors
2 x BCLK button
Onboard connectors
1 x OC PCIe switch
Onboard connectors
1 x Slow mode switch
Onboard connectors
1 x USB 3.2 Gen 2 Type-C
Onboard connectors
1 x USB 3.2 Gen 2x2 Type-C
Onboard connectors
1 x System panel header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Power button
Onboard connectors
1 x Pause switch
Onboard connectors
1 x Przycisk USB BIOS
Onboard connectors
2 x RSVD switchs
Onboard connectors
1 x Flex Key pin
Onboard connectors
1 x Safe Boot button
Onboard connectors
1 x ReTry button
Onboard connectors
2 x ARGB Gen 2 headers
Onboard connectors
2 x Addressable LED
Onboard connectors
5 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
1 x SlimSAS
Onboard connectors
1 x 8-pin PCIe
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin wentylator OPT CPU
Onboard connectors
2 x 4pin Chassis fan
Onboard connectors
4 x USB 2.0/1.1
Onboard connectors
4 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x LN2 Mode jumper
BIOS
2 x 256 Mb Flash ROM, UEFI AMI BIOS
Form factor
E-ATX
Dimensions
30.5 x 27.7 cm

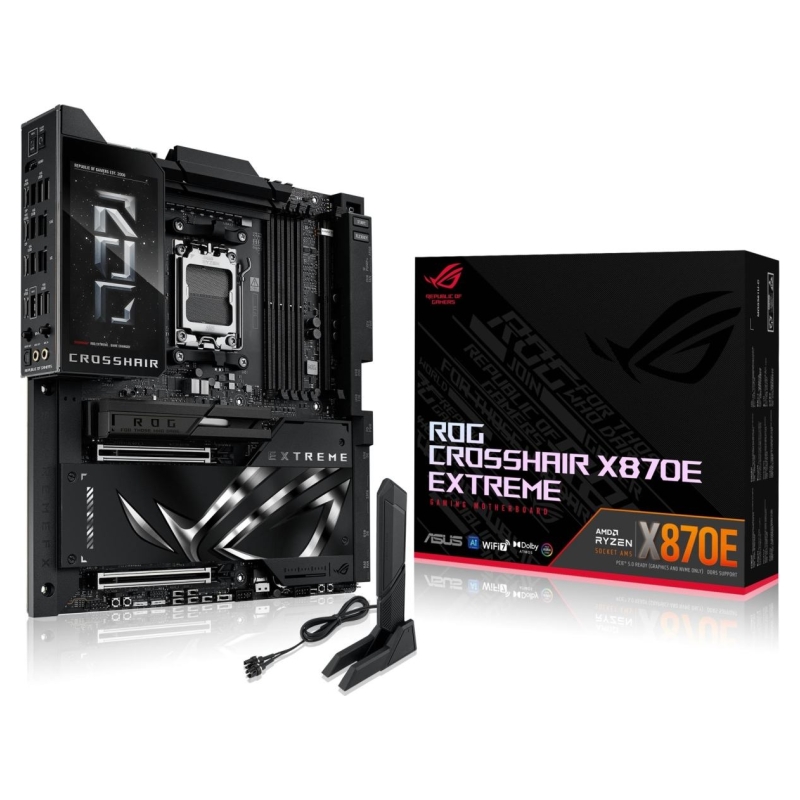

Accessories included
1-to-3 ARGB splitter cable 1-to-2 ARGB splitter cable 2 x 1-to-4 fan splitter cable 2 x ROG weave SATA 6G cable packages 3-in-1 Thermistor cables pack ROG DIMM.2 with heatsink M.2 pad package for ROG Q-DIMM.2 2 x Thermal pad for ROG Q-DIMM.2 2 x Thermal pad for M.2 22110 DDR5 Fan holder ROG Fan Kit ASUS WiFi Q-Antenna Q-connector ROG logo plate sticker ROG screwdriver ROG stickers ROG VIP card M.2 Q-Slide package 5 x M.2 backplate rubber packages ROG Bottle Opener USB drive with utilities and drivers Quick start guide
Supported operating systems
Windows 11
Software
ROG Exclusive Software ROG CPU-Z Dolby Atmos Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate AIDA64 Extreme (1 year full version) Aura Creator Aura Sync Fan Xpert 4 (with AI Cooling II) GameFirst HWiNFO Power Saving LCD Display ASUS AI Advisor ASUS DriverHub Turbo Vcore ASUS GlideX USB Wattage Watcher WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS MyHotkey FlexKey
