Supports a total of 2 M.2 slots and 4 SATA 6 Gb/s ports AMD Ryzen 9000 and 7000 Series Desktop Processors M.2_1 Slot (M key), Type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 Slot (M key), Type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 Slot (M key), Type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 Slot (M key), Type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD A620 Chipset 4 × SATA 6 Gb/s ports
Graphics
1 × DisplayPort 1 × VGA port 1 × DVI-D port 1 × HDMI port Notes: DisplayPort: Supports up to 8K@60Hz according to the DisplayPort 1.4 specification. HDMI: Supports 4K@60Hz according to the HDMI 2.1 specification.
Sound card
Realtek 7.1 Surround Sound High Definition Audio Codec Supports jack detection, multi-streaming, and front panel jack retasking Supports playback up to 24-bit/192 kHz
Network interface
1 x 10/100/1000 Mbit/s
Network interface
1 x Realtek 1Gb Ethernet ASUS LANGuard
USB ports at back panel
6
USB ports on motherboard
6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
2
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
2
FireWire (IEEE 1394)
No
COM connector / port
Yes
LPT connector / port
Yes

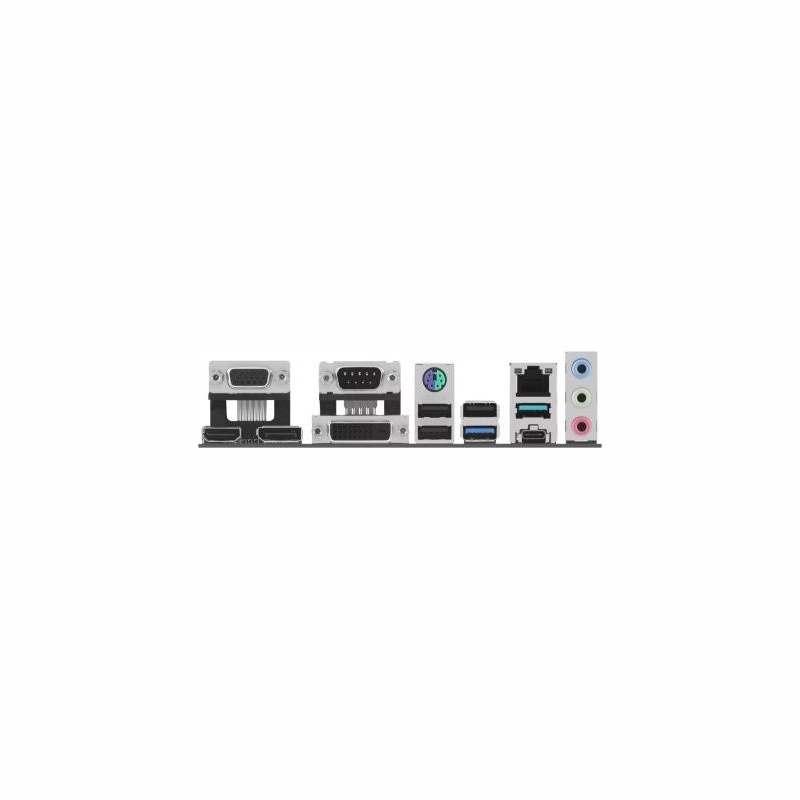

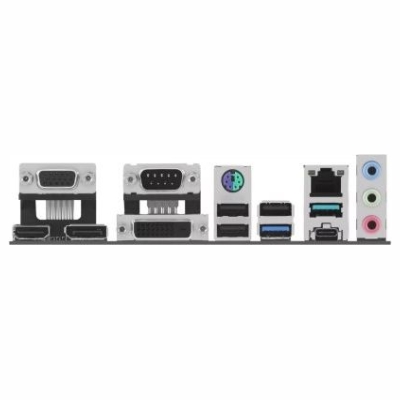

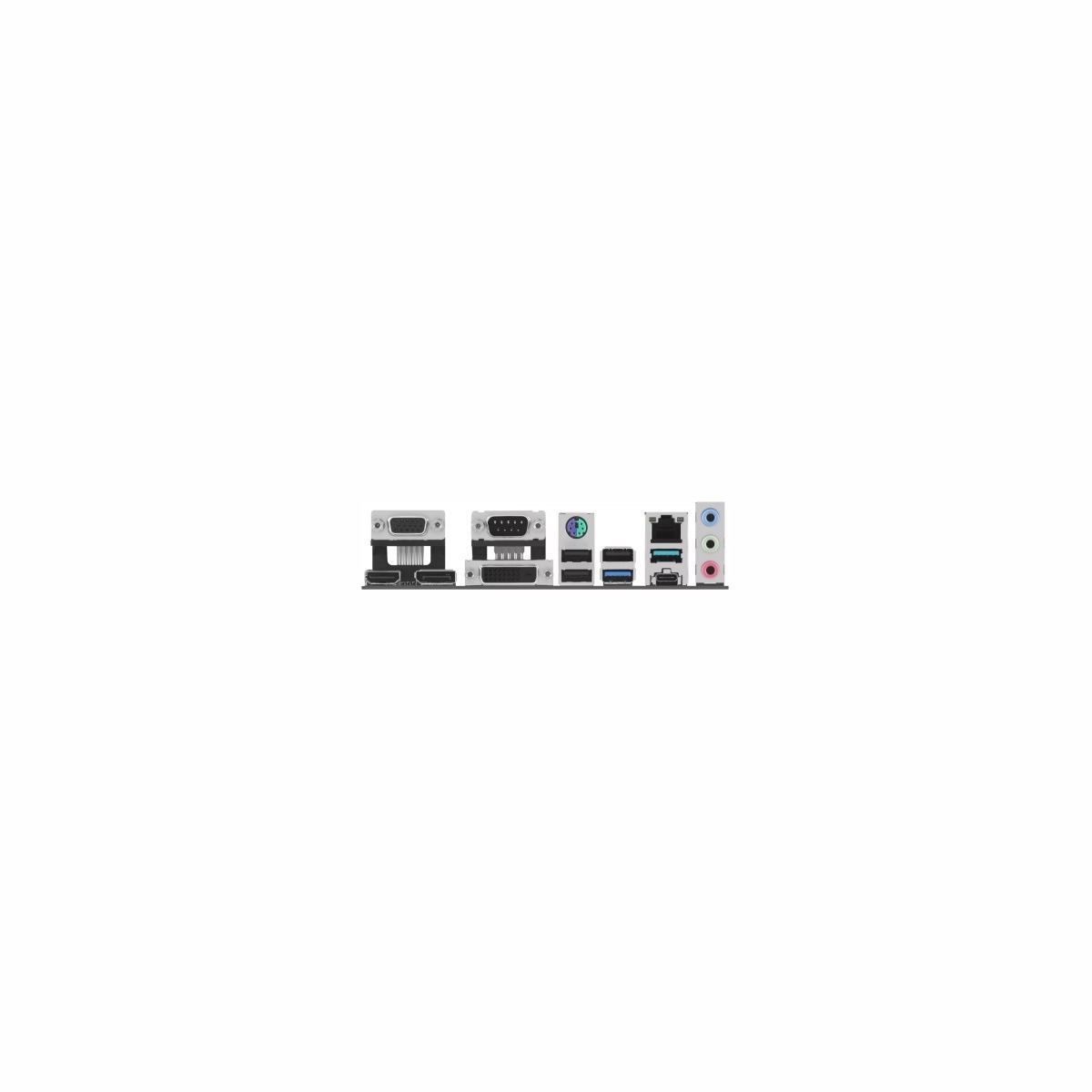

External connectors
1 x D-Sub
External connectors
1 x DisplayPort
External connectors
1 x PS/2 Keyboard/MouseCombo
External connectors
1 x DVI-D
External connectors
1 x HDMI
External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
3 x USB 2.0
External connectors
1 x USB 3.0
External connectors
1 x USB 3.1
External connectors
1 x USB 3.1 Type-C
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
2 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.0 header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x Front panel audio header
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
micro ATX
Dimensions
24.4 x 22.4 cm
Accessories included

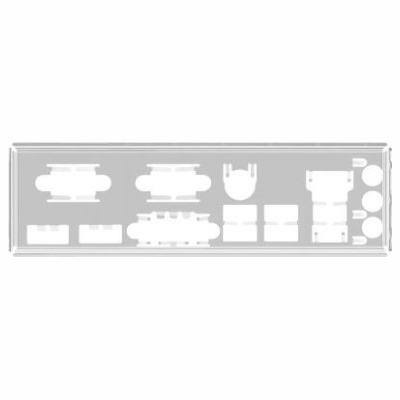

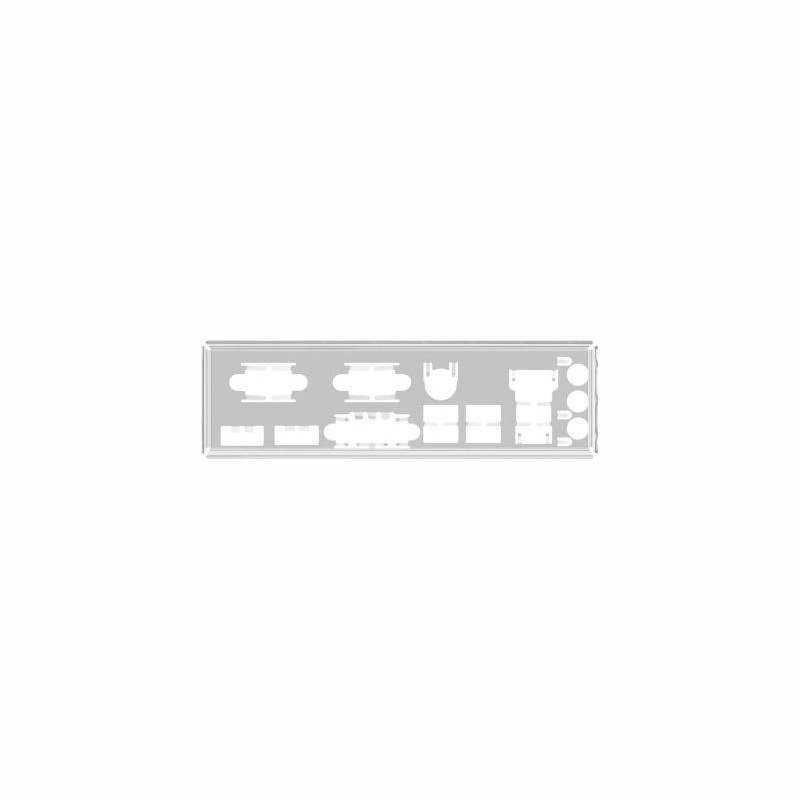

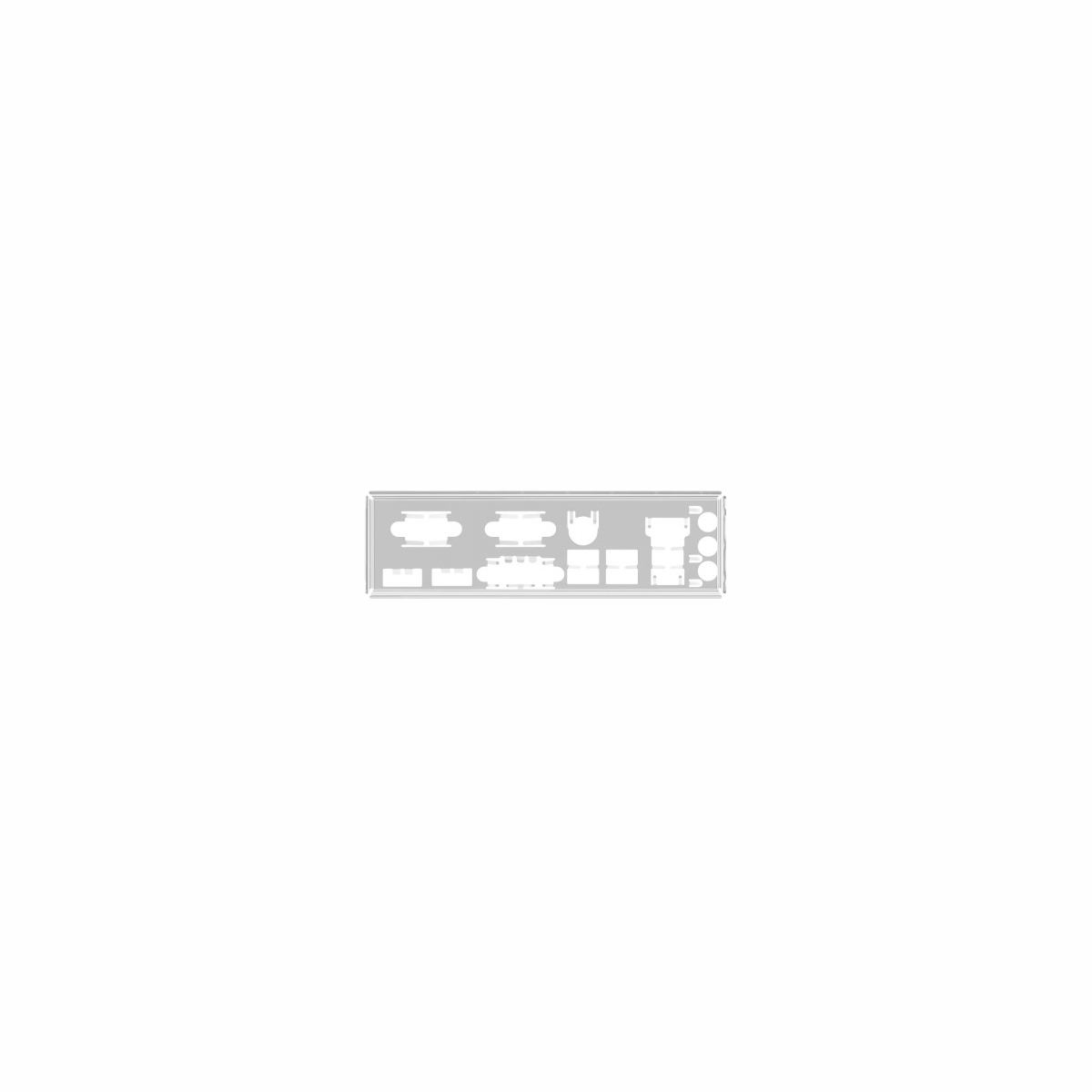

Cables 2 × SATA 6 Gb/s cables I/O shield 2 × M.2 screws ACC Express activation key card User manual
Supported operating systems
Windows 11
Supported operating systems
Windows 10
Software
ASUS Exclusive Software IT Management software supported ASUS Control Center Express (ACCE)
