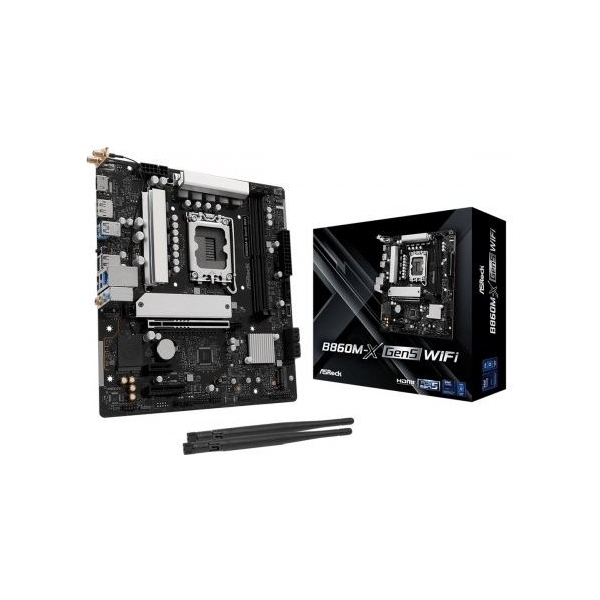

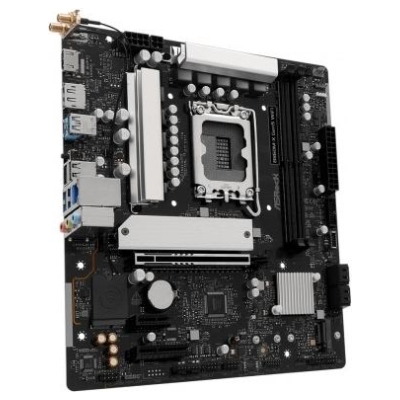

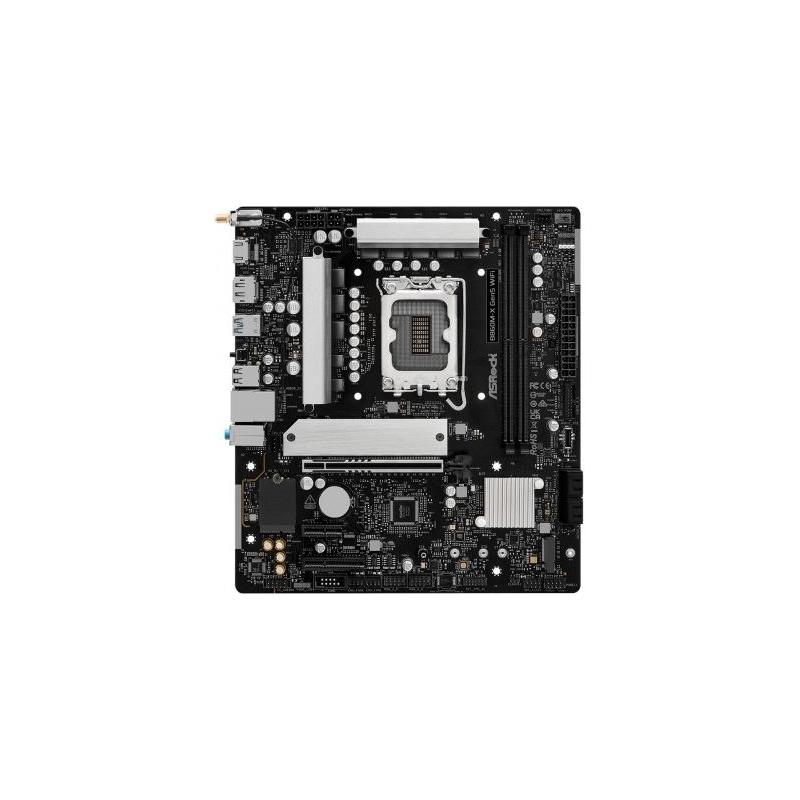

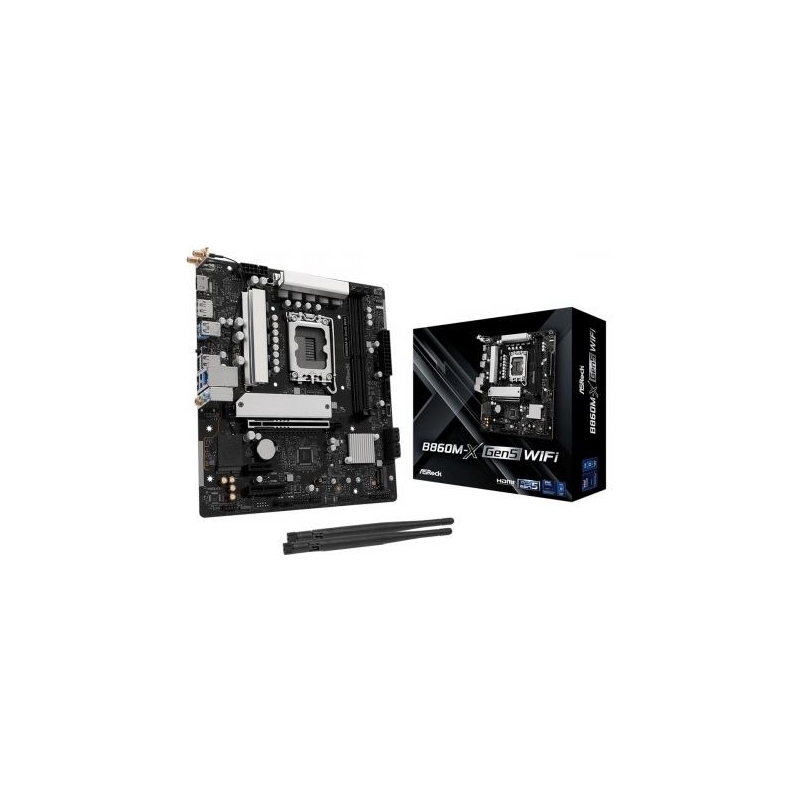

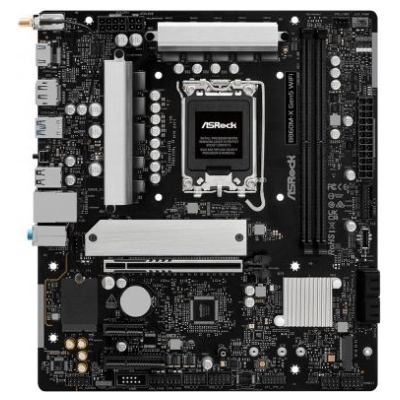

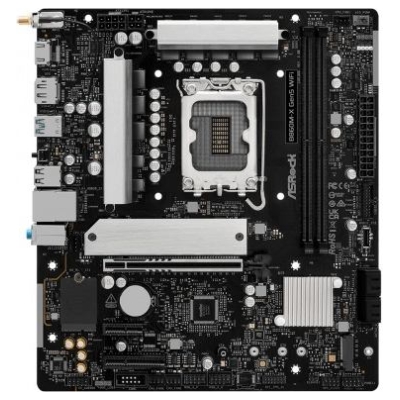

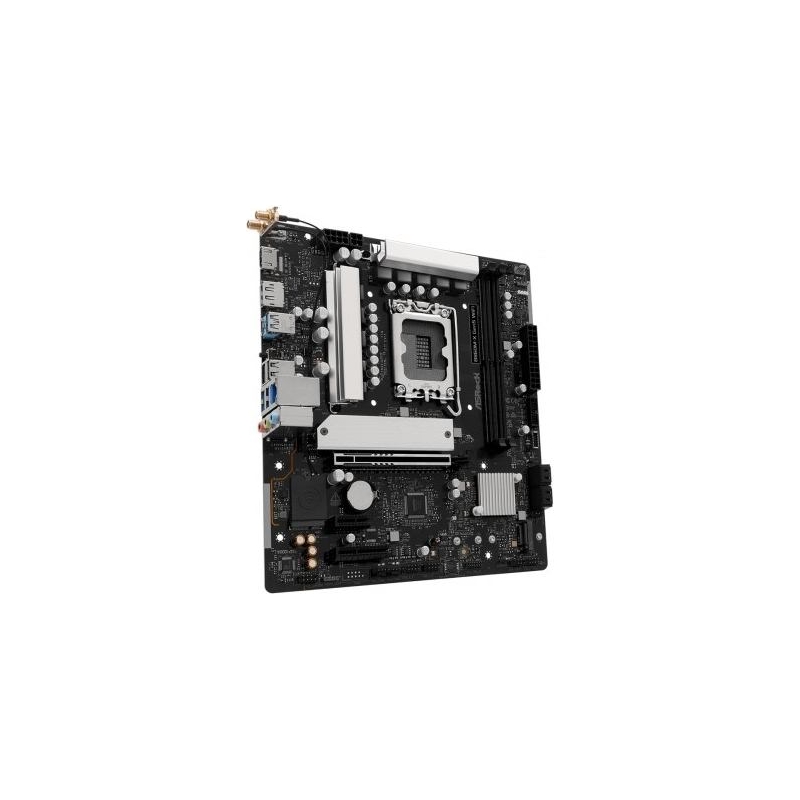

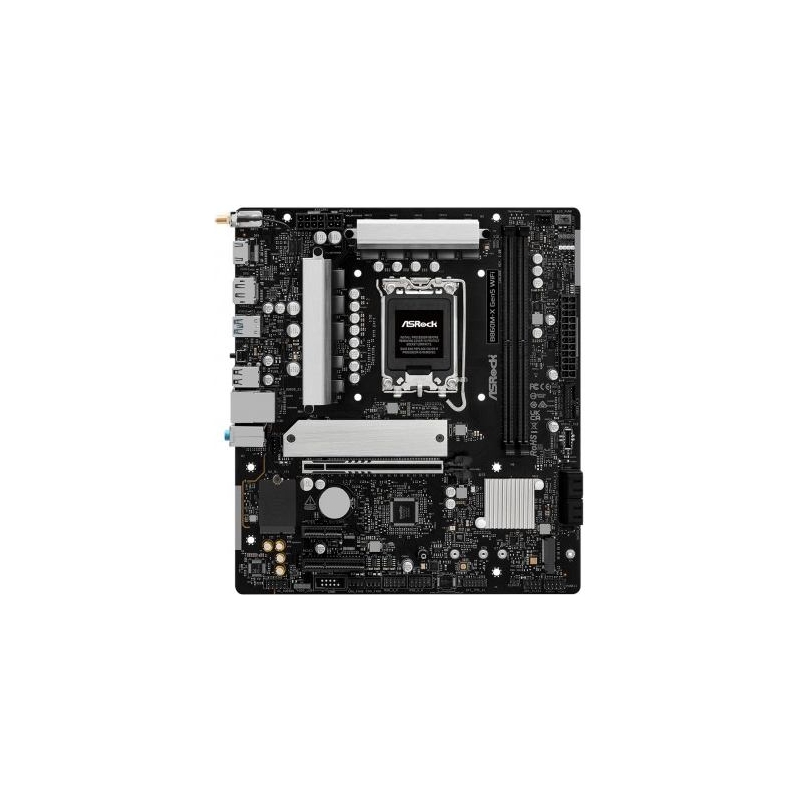

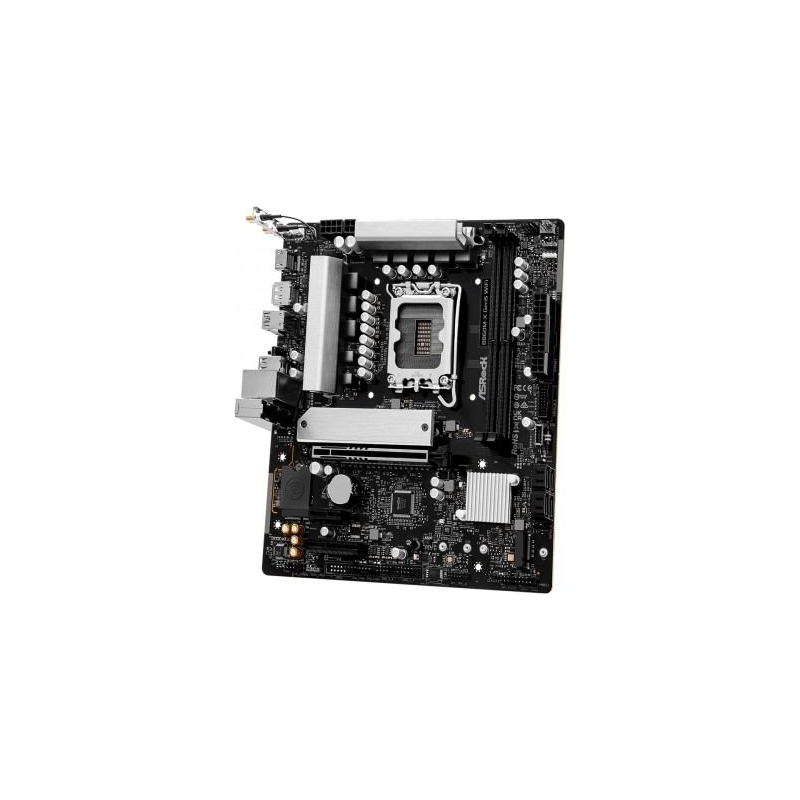

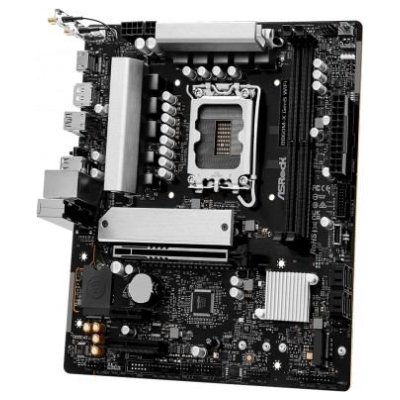

Asrock B860M-X GEN5 WIFI s1851 2DDR5 mATX
- Write a review
€173.53
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBASRIIFB860U04
- Barcode
- 4711581490734
- Model
- B860M-X Gen5 WiFi
- CPU socket
- LGA1851
- Processor family
- Intel Core Ultra
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B860
- Memory type
- DDR5
- Number of DDR5 slots
- 2
- Memory bus frequency
- 9066 MHz
- Max memory size
- 128
- Expansion slots
- 1 x PCIe 4.0 x 1
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 1 x PCIe 4.0 x 4
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors
- Sound card
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Network interface
- Bluetooth
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/axe
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN: 802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports Dual-Band 2x2 with extended 6GHz band* support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3
- USB ports at back panel
- 6
- USB ports on motherboard
- 6
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 6
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 1
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No
- External connectors
- 1 x Line In
- External connectors
- 1 x DisplayPort
- External connectors
- 2 x USB 2.0
- External connectors
- 2 x SMA
- External connectors
- 1 x Flash BIOS Button
- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- External connectors
- 1 x Central Speaker / Subwoofer
- External connectors
- 3 x USB 3.0
- External connectors
- 1 x MIC
- External connectors
- 1 x HDMI
- External connectors
- 1 x RJ-45
- Onboard connectors
- 1 x 4pin 12V power
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 2 x 4pin wentylator CPU
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-A
- BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Form factor
- micro ATX
- Accessories included
- I/O Shield SATA Data Cables ASRock WiFi 2.4/5/6 GHz Antennas Screw for M.2 Socket Standoff for M.2 Socket
- Supported operating systems
- Windows 11
- Software
- Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI Automatyczny Instalator Sterowników ASRock ASRock Funkcja Instant Flash
- Designation
- CE+WEEE
B860M-X GEN5 WIFI
9 Items
Specific References
- EAN13
- 4711581490734
- MPN
- B860M-X GEN5 WIFI
