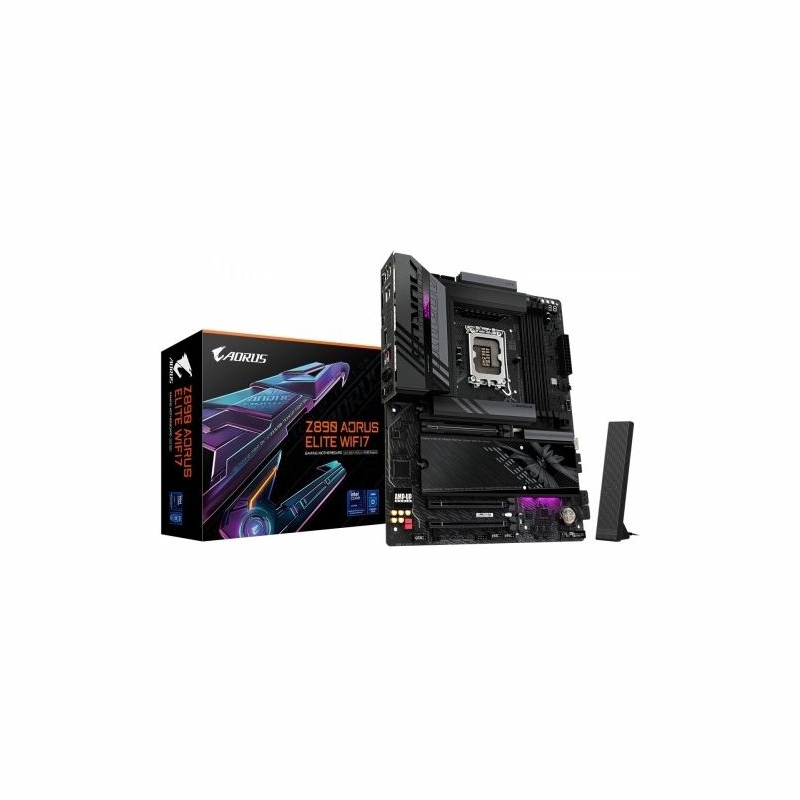

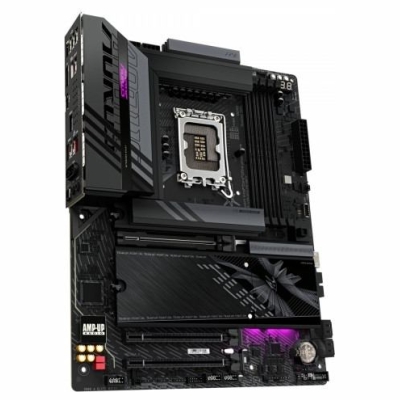

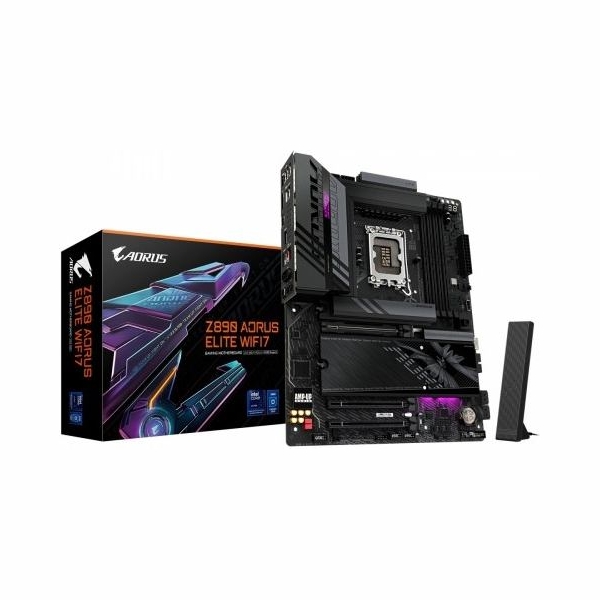

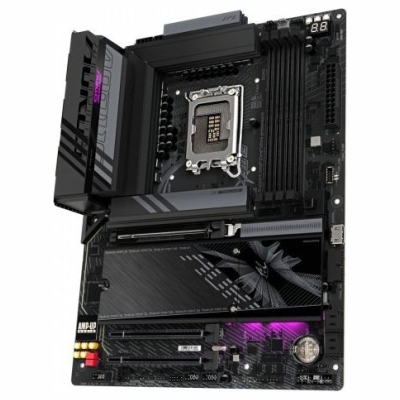

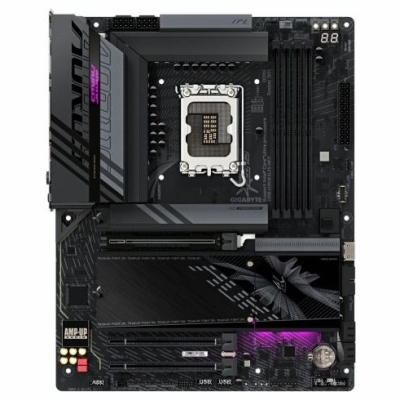

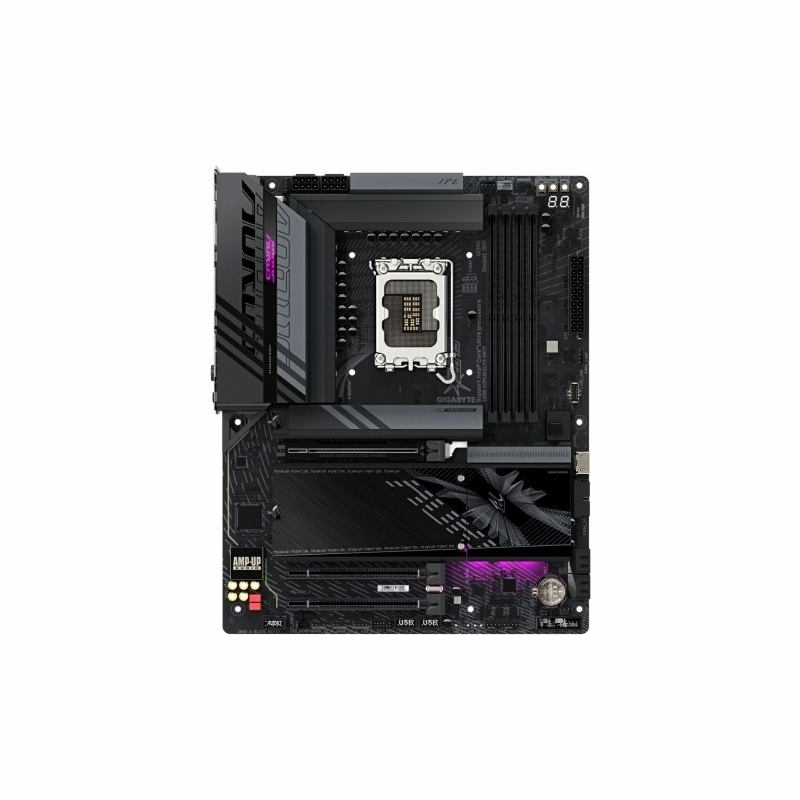

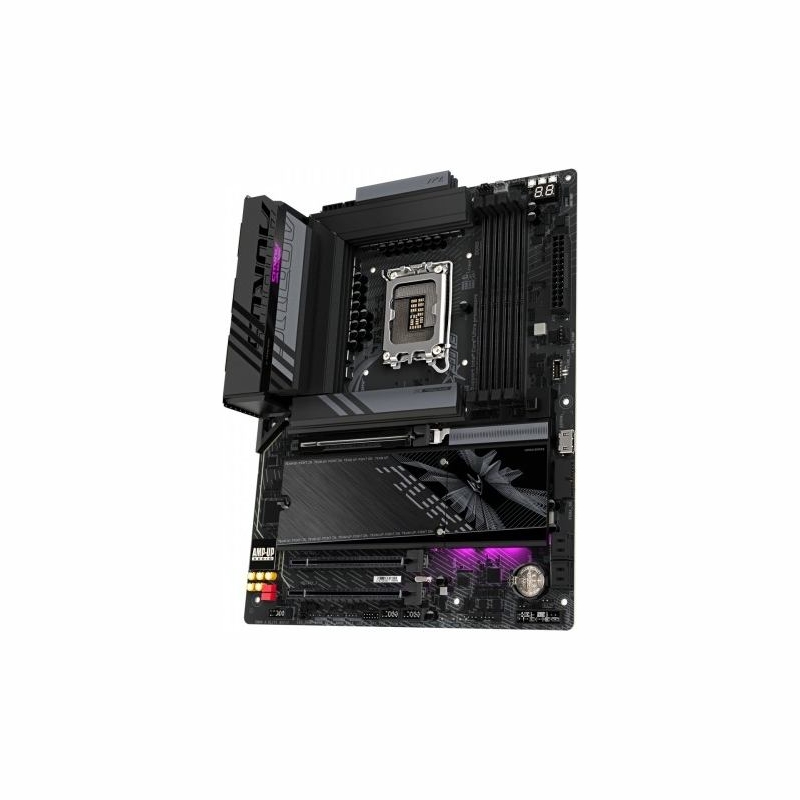

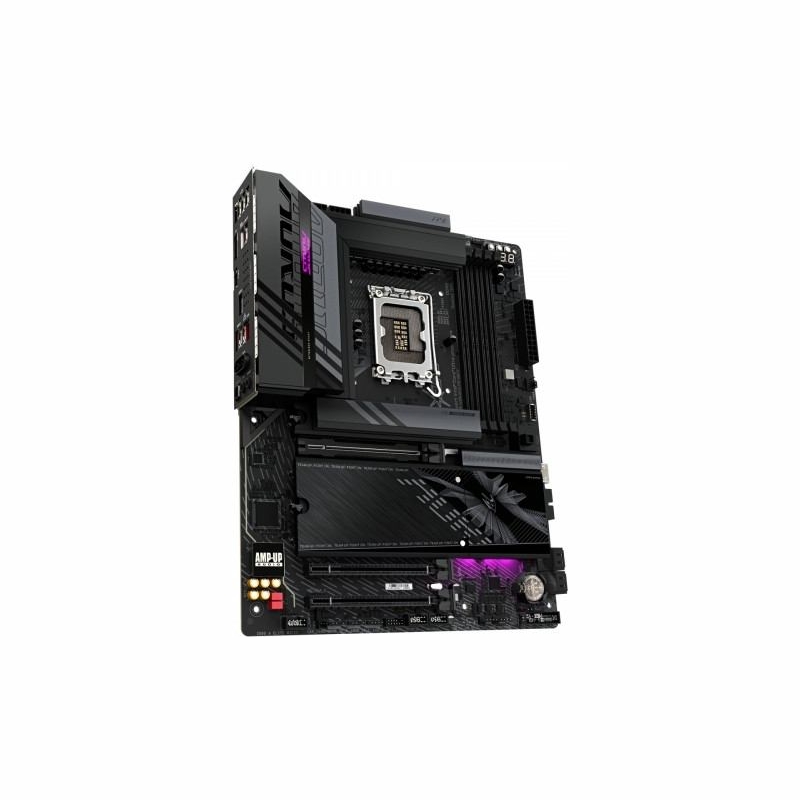

Gigabyte Motherboard Z890 A ELITE WIFI7

Write a review

€315.87

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

SKU: KBGBAIIFZ890A05
Barcode: 4719331864507
Model: Z890 A ELITE WIFI7
CPU socket: LGA1851
Processor family: Intel Core Ultra
Integrated CPU: Yes
Chipset manufacturer: Intel
Chipset type: Intel Z890 Express Chipset
Memory type: DDR5
Number of DDR5 slots: 4
Memory bus frequency: 7950 MHz
Memory bus frequency: 8000 MHz
Memory bus frequency: 8200 MHz
Memory bus frequency: 8400 MHz
Memory bus frequency: 7800 MHz
Memory bus frequency: 7900 MHz
Memory bus frequency: 7600 MHz
Memory bus frequency: 7400 MHz
Memory bus frequency: 7200 MHz
Memory bus frequency: 7000 MHz
Memory bus frequency: 6800 MHz
Memory bus frequency: 6600 MHz
Memory bus frequency: 6400 MHz
Memory bus frequency: 6200 MHz
Memory bus frequency: 5600 MHz
Memory bus frequency: 5800 MHz
Memory bus frequency: 6000 MHz
Memory bus frequency: 8600 MHz
Memory bus frequency: 8800 MHz
Memory bus frequency: 8266 MHz
Memory bus frequency: 8933 MHz
Memory bus frequency: 9066 MHz
Memory bus frequency: 9200 MHz
Max memory size: 256
Expansion slots: 2 x M.2
Expansion slots: 1 x PCIe 5.0 x 16
Expansion slots: 2 x PCIe 4.0 x 4
Max. number of SATA devices: 4
RAID: Yes
Detailed data on disk/drive interfaces: Expansion SlotsCPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)Storage InterfaceCPU:- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)Chipset:- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Graphics: Integrated Graphics Processor - Intel HD Graphics support:- 1 Intel Thunderbolt 4 connector (USB4 USB Type-C port), supporting DisplayPort and Thunderbolt video outputWhen a Thunderbolt monitor is installed, the maximum supported resolution is 5120x2880@60 Hz with 24 bpp (single display output).When a USB4 USB Type-C monitor is installed, the maximum supported resolution is 3840x2160@240 Hz (single display output).* Due to limited I/O resources of the computer architecture, the number of Thunderbolt devices that can be used depends on the number of PCI Express devices installed. (For more information, please refer to 2-6 Back Panel Connectors.)* Support DisplayPort 2.1 and HDCP 2.3- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz* Support HDMI 1.4- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support DisplayPort 2.1 and HDCP 2.3(Graphics specifications may vary depending on CPU support.)Support for up to three displays simultaneously
Sound card: Realtek ALC1220 CODEC* The line-out jack on the rear panel supports DSD audio.High-Resolution Audio2/4/5.1/7.1-channel* The audio jack functionality can be changed via audio software. To configure 7.1-channel audio, you must access the audio software for audio settings.S/PDIF output support
Network interface: 1 x 10/100/1000/2500 Mbit/s
Network interface: Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface: Bluetooth
Network interface: LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless communication module MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports 11be 160MHz wireless standard (Actual data transfer rate may vary depending on environment and equipment.)
USB ports at back panel: 9
USB ports on motherboard: 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports: 4
FireWire (IEEE 1394): No
COM connector / port: No
LPT connector / port: No

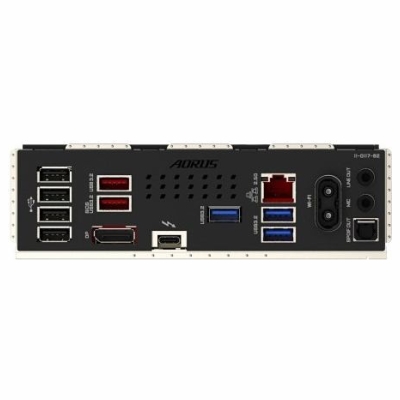

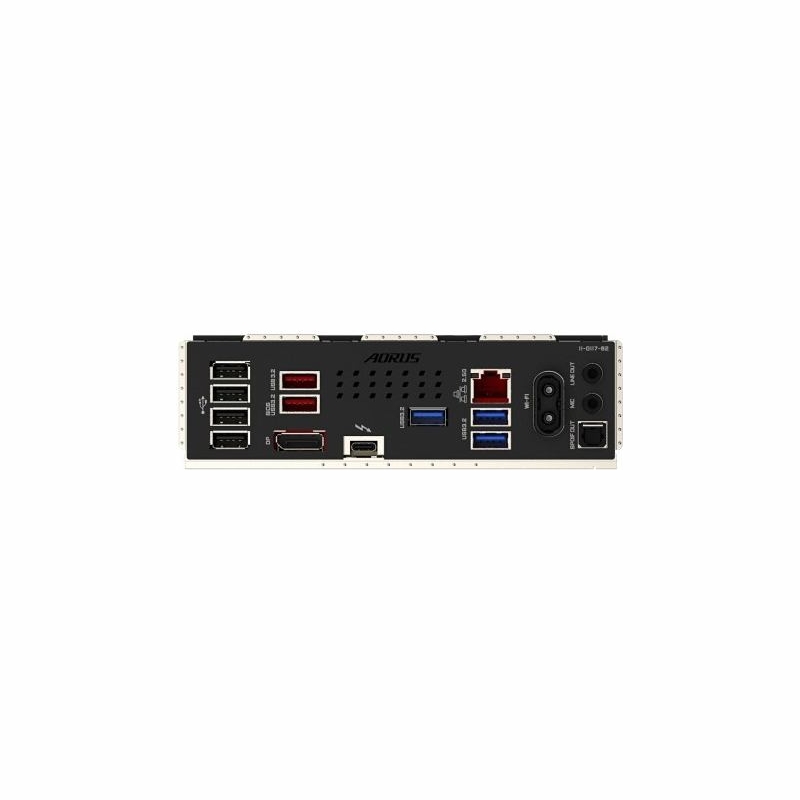

External connectors: 2 x USB 3.2 Gen 2 Type-A
External connectors: 3 x USB 3.2 Gen 1 Type-A
External connectors: 4 x USB 2.0
External connectors: 1 x DisplayPort
External connectors: 1 x Line Out
External connectors: 1 x MIC
External connectors: 1 x RJ-45
External connectors: 1 x Thunderbolt 4
External connectors: 1 x S/PDIF
External connectors: 2 x SMA
Onboard connectors: 1 x HDMI
Onboard connectors: 1 x Power button
Onboard connectors: 1 x System panel header
Onboard connectors: 1 x Clear CMOS jumper
Onboard connectors: 1 x Front panel audio header
Onboard connectors: 1 x 24pin ATX zasilanie
Onboard connectors: 4 x M.2
Onboard connectors: 1 x USB C
Onboard connectors: 4 x SATA III 6Gb/s
Onboard connectors: 2 x USB 2.0/1.1 header
Onboard connectors: 1 x USB 3.2 Gen 1 Type-A
Onboard connectors: 1 x 4pin CPU fan
Onboard connectors: 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors: 3 x 4pin Chassis fan
Onboard connectors: 1 x 4-pin water-pump-fan
Onboard connectors: 2 x 8pin 12V
Onboard connectors: 1 x Reset jumper
Onboard connectors: 1 x Reset button
Onboard connectors: 1 x TPM header
Onboard connectors: 1 x Q-Flash Plus button
Onboard connectors: 1 x RGB LED strip header
Onboard connectors: 3 x Addressable LED
BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor: ATX
Dimensions: 30.5 cm x 24.4 cm
Supported operating systems: Windows 11
Software: Norton Internet Security (OEM version) LAN bandwidth management software
Designation: CE+WEEE
