1x PCI-E x16 slot Supports x16 (For Ryzen 7000 Series processors) Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors) Supports x4 (For Ryzen 5 8500G processor) 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 NVMe storage devices
Graphics
1x HDMI HDMI 2.1 support, maximum resolution 4K 60 Hz* 1x DisplayPort DP 1.4 support, maximum resolution 4K 60 Hz* *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
Sound card
Realtek ALC897 Codec 7.1-Channel High Definition Audio
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
Bluetooth
Network interface
Realtek RTL8125BG 2.5Gbps LAN AMD Wi-Fi 6E The wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz, 160MHz bandwidth on 2.4GHz/5GHz or 6GHz bands* Supports 802.11 a/b/g/n/ac/ax Supports Bluetooth 5.3** *Wi-Fi 6E 6GHz may depend on each country's regulations and will be ready in Windows 11. **Bluetooth 5.3 will be available on Windows 10 version 21H1 and Windows 11.

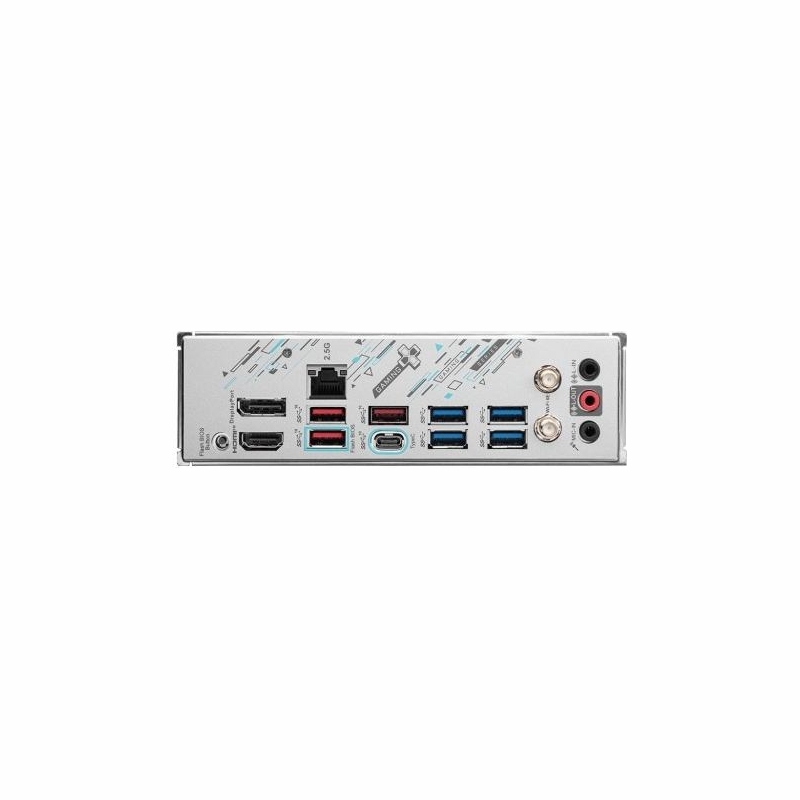

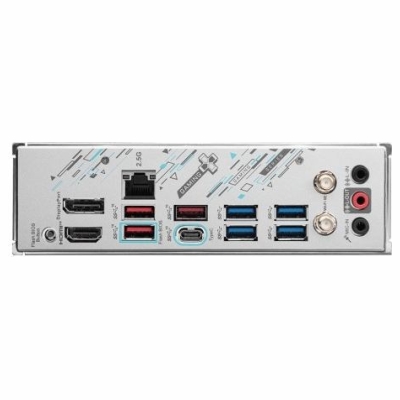

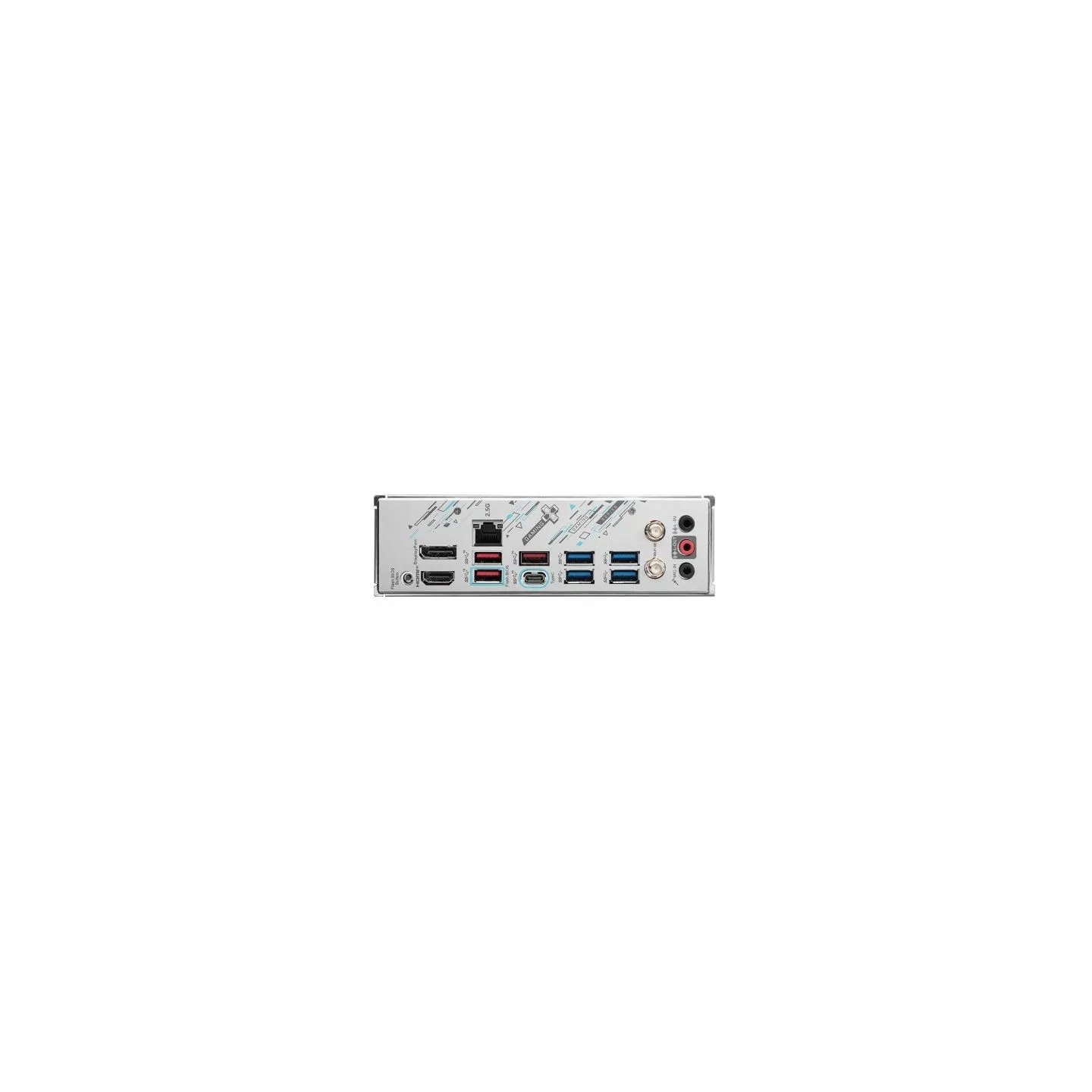

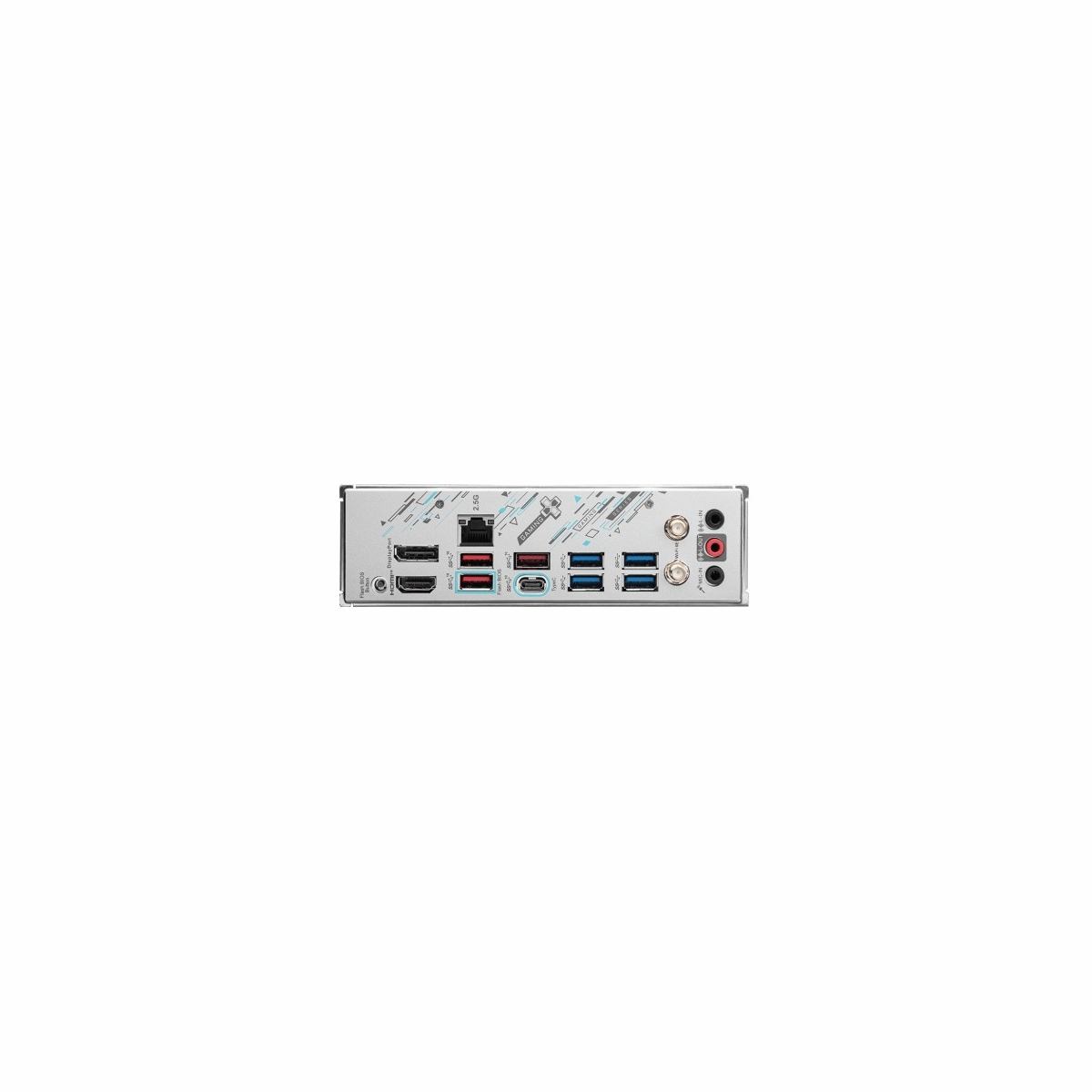

USB ports at back panel
8
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
