1 x PCI Express x16 slot (PCIEX16), integrated in the CPU AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) Chipset 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) SATA connectors 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices* RAID 5 is only available on AMD Ryzen 9000 Series Processors.RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Graphics
Integrated graphics processor with AMD Radeon Graphics support + ASMedia USB4 controller 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz Support DisplayPort 1.4 and HDR.Integrated graphics processor - AMD Radeon graphics support 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support HDMI 2.1, HDCP 2.3 and HDR. ** Support native HDMI 2.1 TMDS compliant ports. 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support HDMI 1.4.
Sound card
Realtek ALC1220 Codec * The line-out jack on the rear panel supports DSD audio. High Definition Audio Support Audio Channels 2/4/5.1/7.1 * The audio jack functionality can be changed via audio software. To configure 7.1-channel audio, please go to the audio software for audio settings. S/PDIF Out Support
Network interface
Bluetooth
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
No
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax
Network interface
LAN Realtek 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) Wireless communication module MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard
USB ports at back panel
12
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
3
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

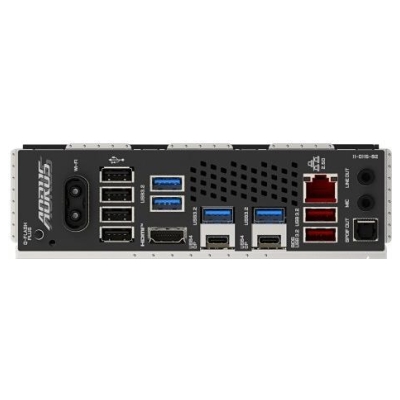

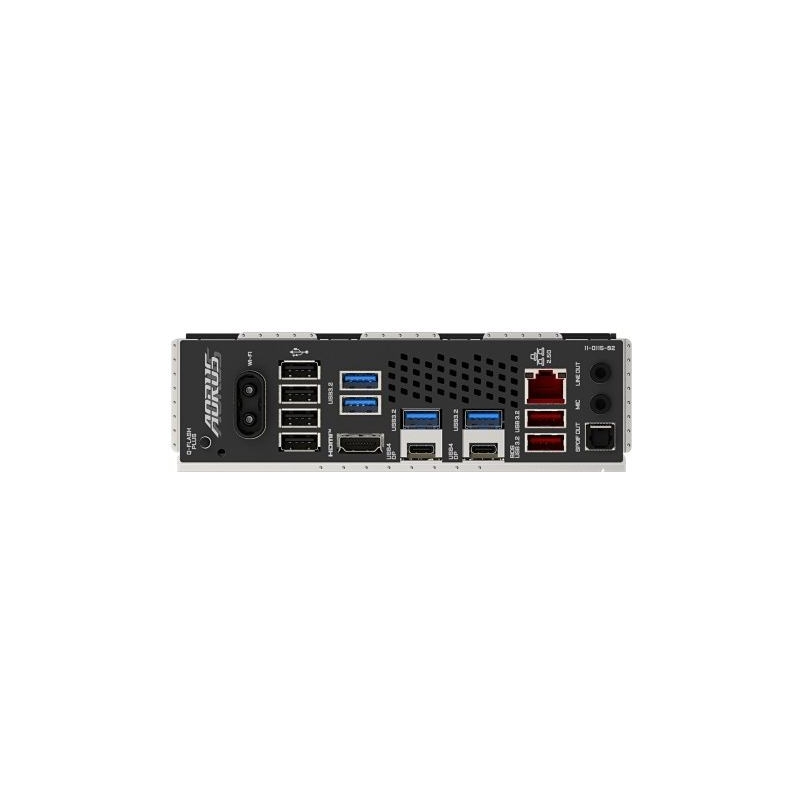

External connectors
1 x HDMI
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
2 x USB 3.1
External connectors
2 x USB4 Type-C
External connectors
4 x USB 2.0
External connectors
4 x USB 3.0
External connectors
1 x S/PDIF
External connectors
1 x Line Out
External connectors
2 x SMA
External connectors
1 x Q-Flash Plus button
Onboard connectors
1 x Reset button
Onboard connectors
1 x Power button
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
4 x 4pin Chassis fan
Onboard connectors
2 x 4pin case fan liquid cooling
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
4 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.0 header
Onboard connectors
1 x USB C
Onboard connectors
1 x HDMI
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x TPM header
Onboard connectors
1 x System panel header
Onboard connectors
1 x Reset jumper
Onboard connectors
1 x Thermal sensor connector
Onboard connectors
1 x Noise detection header
Onboard connectors
1 x RGB LED strip header
Onboard connectors
3 x Addressable LED
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX
Supported operating systems
Windows 11
Software
Norton Internet Security (OEM version) LAN bandwidth management software
