Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors(Series 2)* M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports *Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
Graphics
1 x DisplayPort 1 x HDMI port 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output
Sound card
Realtek 7.1 Surround Sound High Definition Audio CODEC: Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features: Audio Shielding Rear optical S/PDIF out port Premium audio capacitors Dedicated audio PCB layers
Network interface
Bluetooth
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
Ethernet: 1 x Realtek 2.5Gb Ethernet TUF LANGuard Wireless & Bluetooth: 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4
USB ports at back panel
8
USB ports on motherboard
5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
3
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

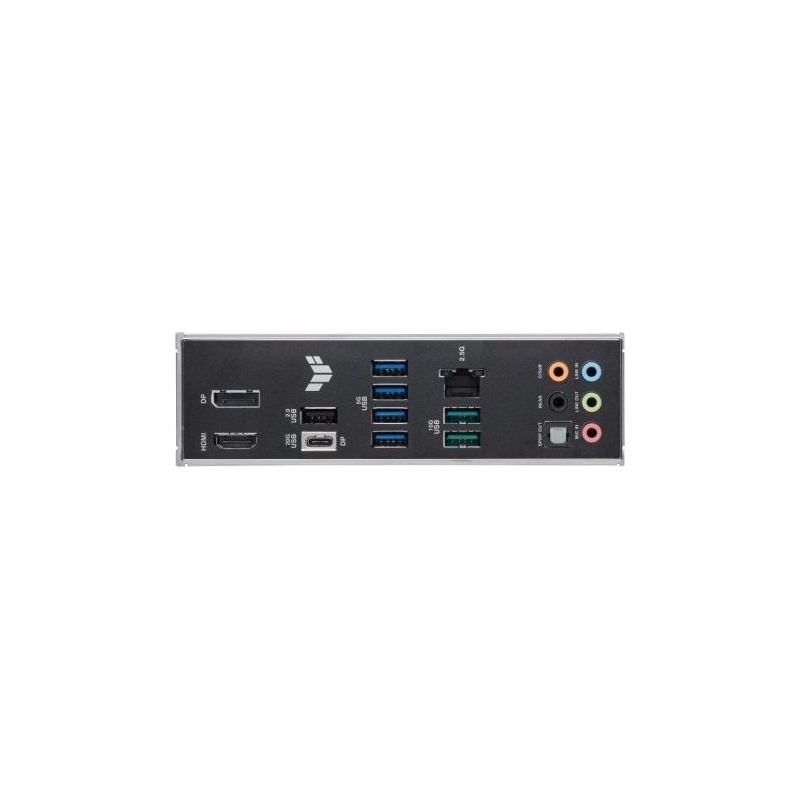

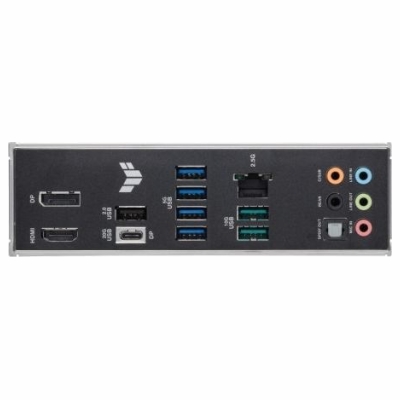

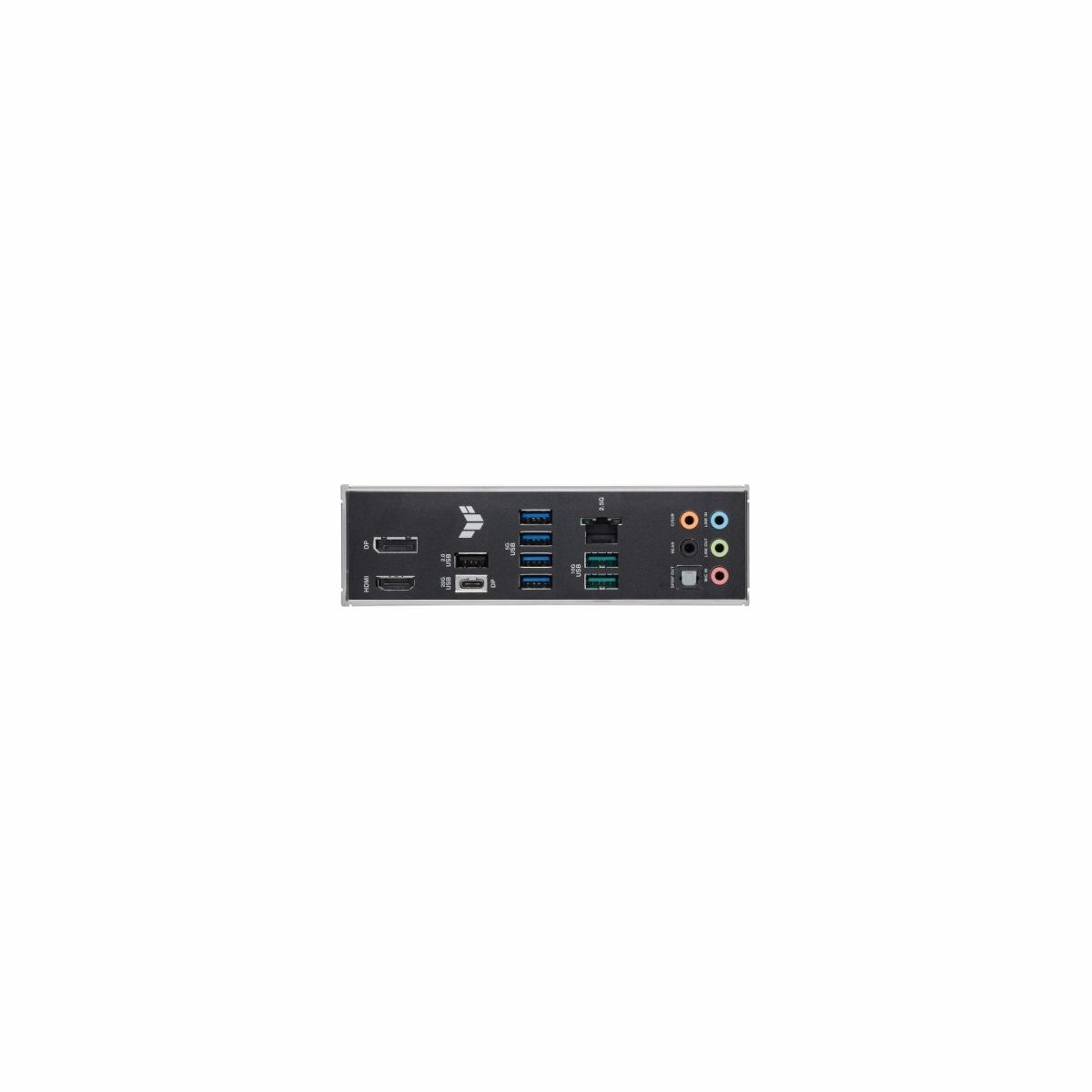

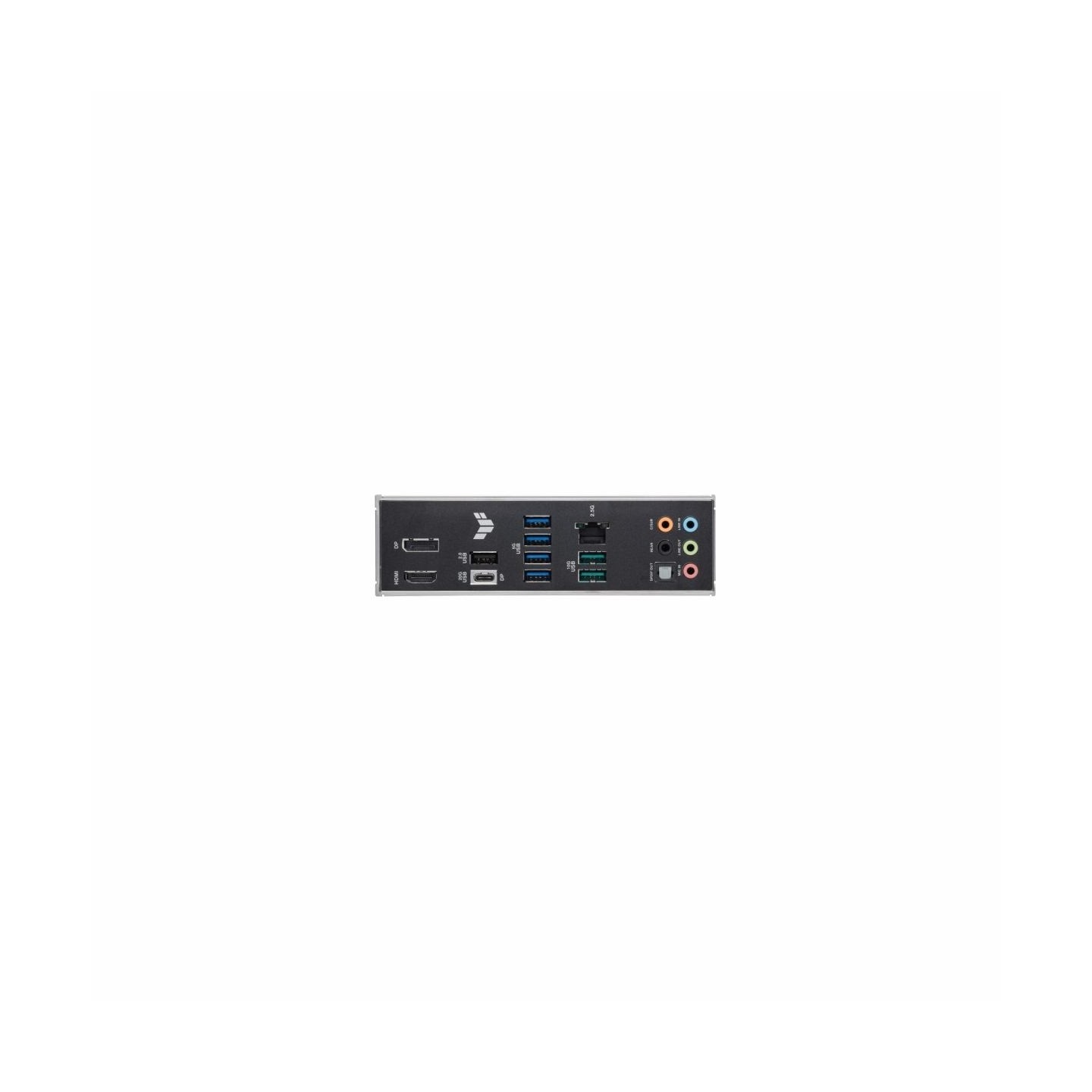

External connectors
2 x USB 3.2 Gen 2 Type-A
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
1 x S/PDIF
External connectors
1 x USB 2.0
External connectors
4 x USB 3.2 Gen 1 Type-A
External connectors
1 x Line In
External connectors
1 x Central Speaker / Subwoofer
External connectors
1 x Wi-Fi Module
External connectors
1 x USB 3.2 Gen 2x2 Type-C
External connectors
1 x DisplayPort
External connectors
1 x HDMI
External connectors
1 x Rear Speaker
Onboard connectors
1 x Chassis intrusion header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x System panel header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin wentylator OPT CPU
Onboard connectors
3 x 4pin Chassis fan
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
3 x Addressable LED
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
3 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
2 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x USB 3.2 Gen 2 Type-C
Onboard connectors
1 x Thunderbolt header
BIOS
2 x 128 Mb Flash ROM, UEFI AMI BIOS
Form factor
micro ATX
Dimensions
24.4 x 24.4 cm
Accessories included
2 x SATA 6Gb/s cable ASUS WiFi Q-Antenna 2 x M.2 Rubber Package TUF Gaming sticker Screw package for M.2 SSD Quick start guide
