Latvija
- New
Availability:
5 In Stock

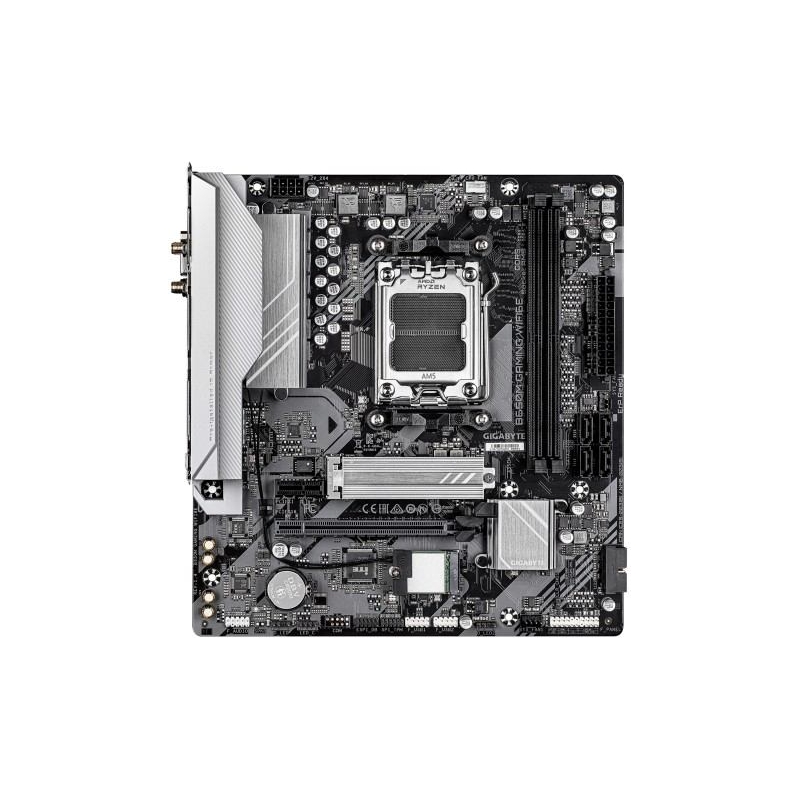

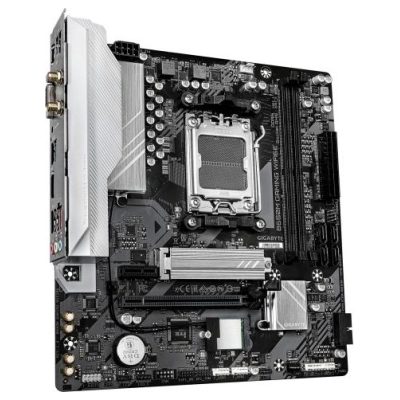

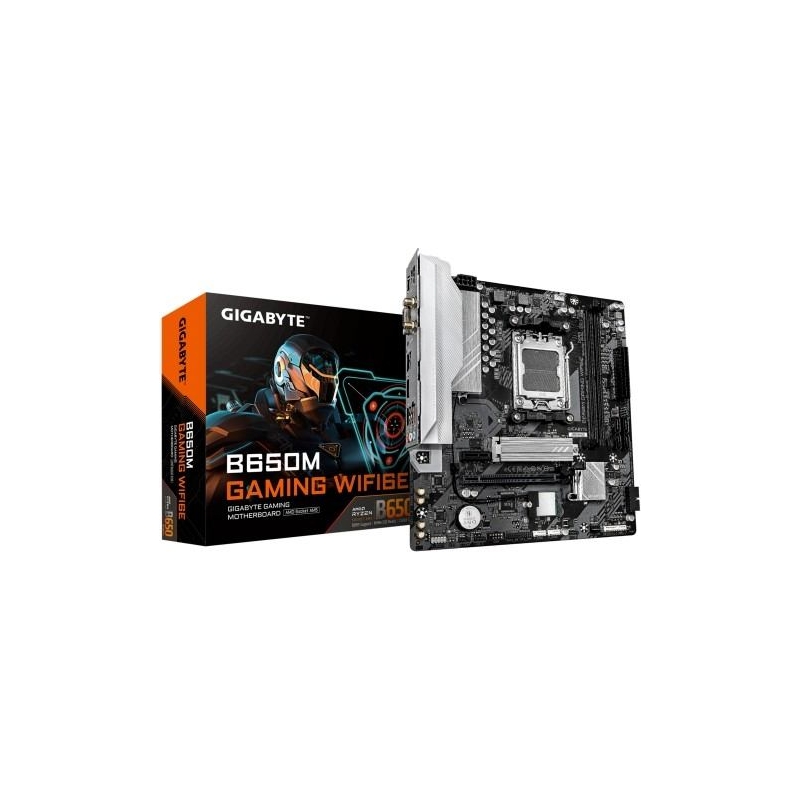

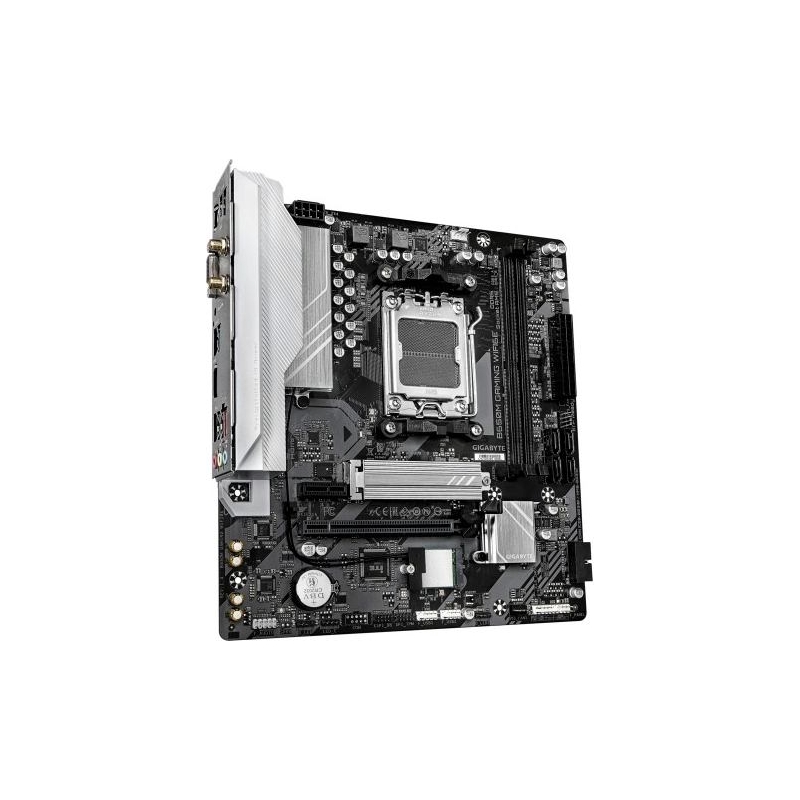

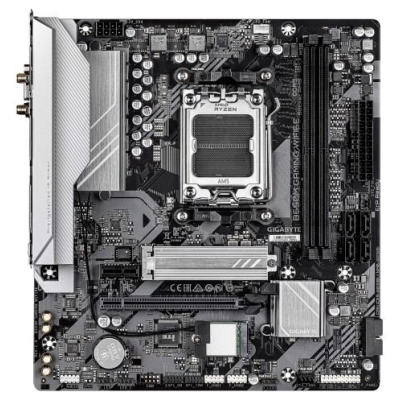

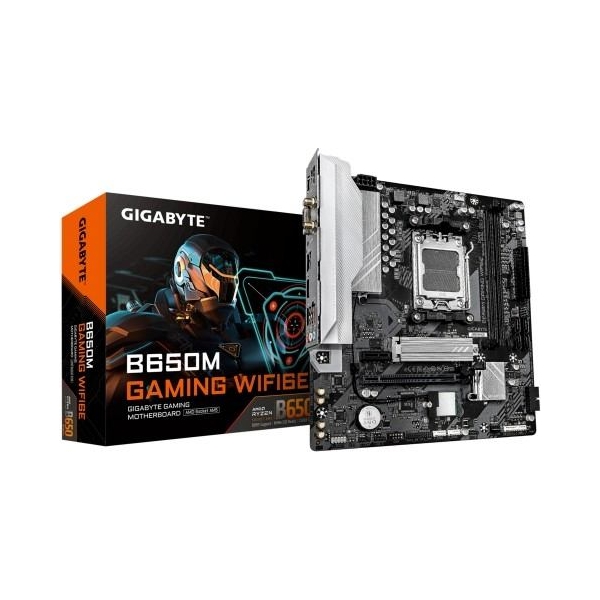

Gigabyte Motherboard B650M GAMING WIFI6E 2DDR5 HDMI/DSub M2 m.ATX
- Write a review
€139.31
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBGBAAA8B650U05
- Barcode
- 4719331867942
- Model
- B650M GAMING WIFI6E
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen 7
- Processor family
- AMD Ryzen 9
- Processor family
- AMD Ryzen 3
- Processor family
- AMD Ryzen 5
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B650
- Memory type
- DDR5
- Number of DDR5 slots
- 2
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 6400 MHz
- Memory bus frequency
- 5200 MHz
- Memory bus frequency
- 6200 MHz
- Memory bus frequency
- 6800 MHz
- Memory bus frequency
- 6000 MHz
- Memory bus frequency
- 4400 MHz
- Memory bus frequency
- 7200 MHz
- Memory bus frequency
- 6600 MHz
- Memory bus frequency
- 7600 MHz
- Max memory size
- 128
- Expansion slots
- 1 x PCIe x 16
- Expansion slots
- 1 x M.2
- Expansion slots
- 1 x PCIe 3.0 x 1
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSD: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 złącza SATA 6Gb/sRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices
- Graphics
- Integrated Graphics Processor - AMD Radeon Graphics support 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- Sound card
- Realtek audio codec Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1
- Network interface
- Bluetooth
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- LAN Realtek 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps) Realtek Wi-Fi 6E RTL8852CE wireless communication module WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless
- USB ports at back panel
- 6
- USB ports on motherboard
- 3
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 3
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

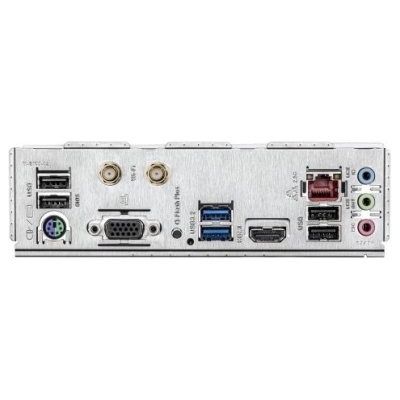

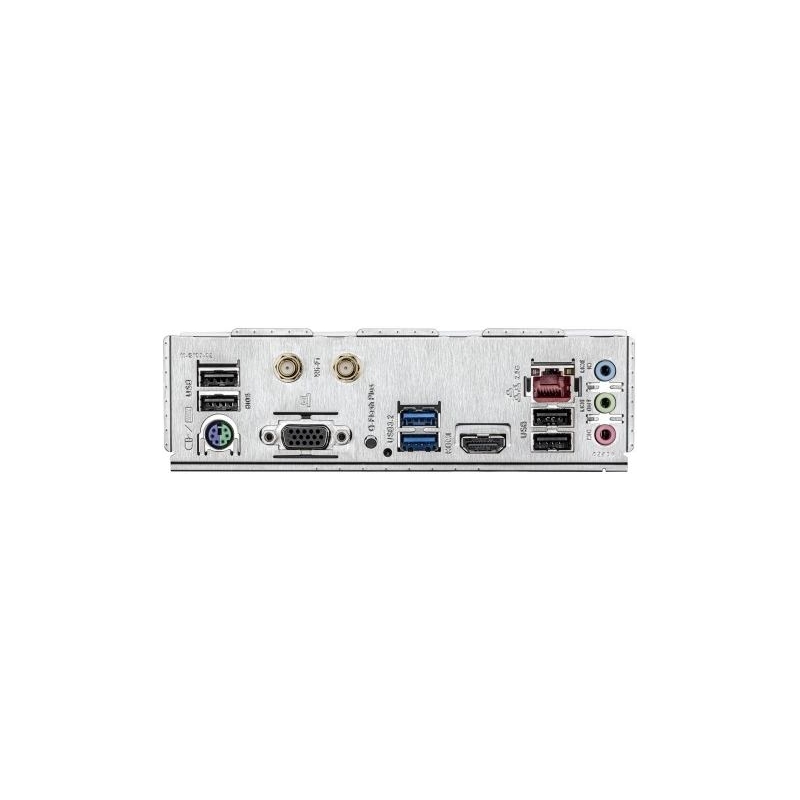

- External connectors
- 1 x D-Sub
- External connectors
- 1 x RJ-45
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 4 x USB 2.0
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 2 x USB 3.2 Gen 1 Type-A
- External connectors
- 1 x Q-Flash Plus button
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 2 x Addressable LED
- Onboard connectors
- 1 x M.2
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 2 x 4pin Chassis fan
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x 4pin CPU fan
- BIOS
- 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- micro ATX
- Dimensions
- 24 x 22.5 cm
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- Norton Internet Security (wersja OEM) LAN bandwidth management software
- Designation
- CE+WEEE
B650M GAMING WIFI6E
20 Items
Specific References
- EAN13
- 4719331867942
- MPN
- B650M GAMING WIFI6E
