- New
Availability:
20 In Stock

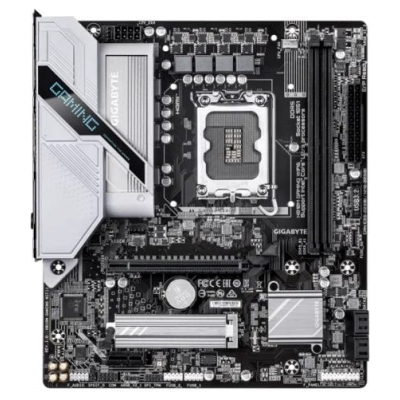

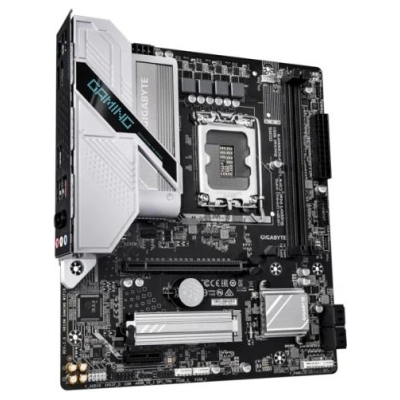

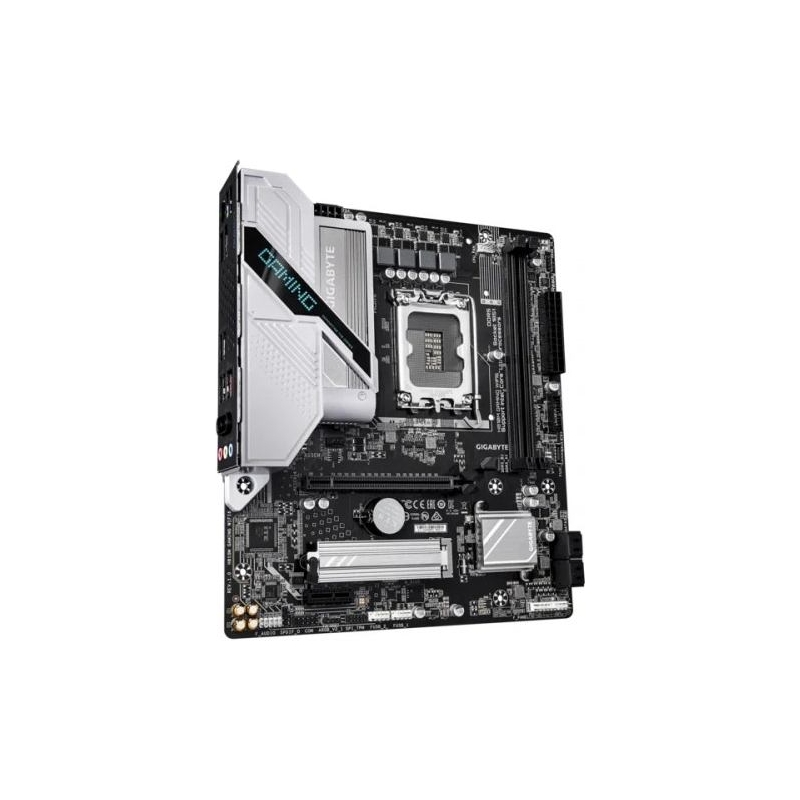

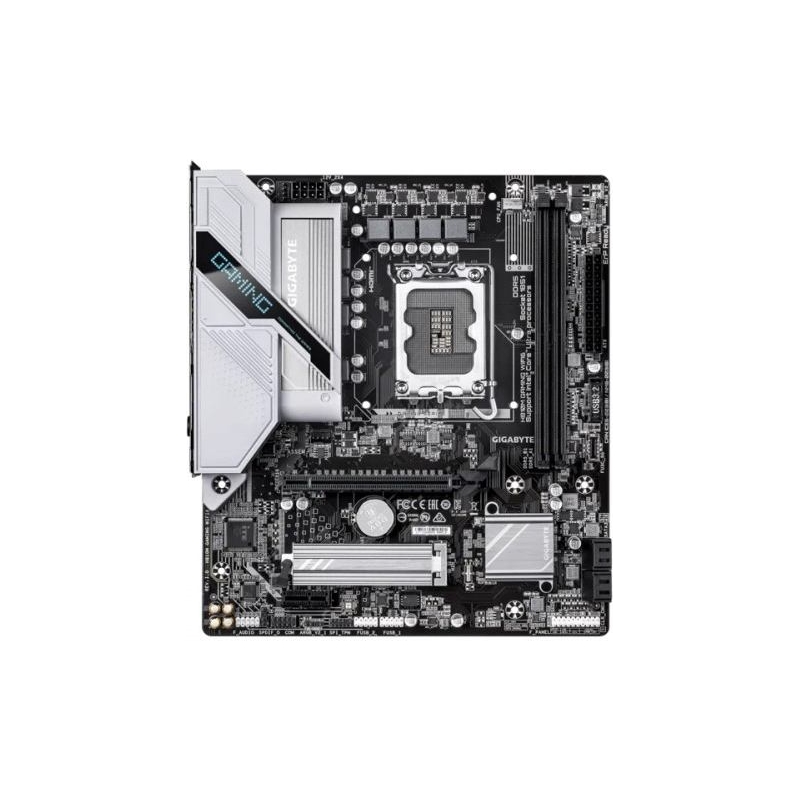

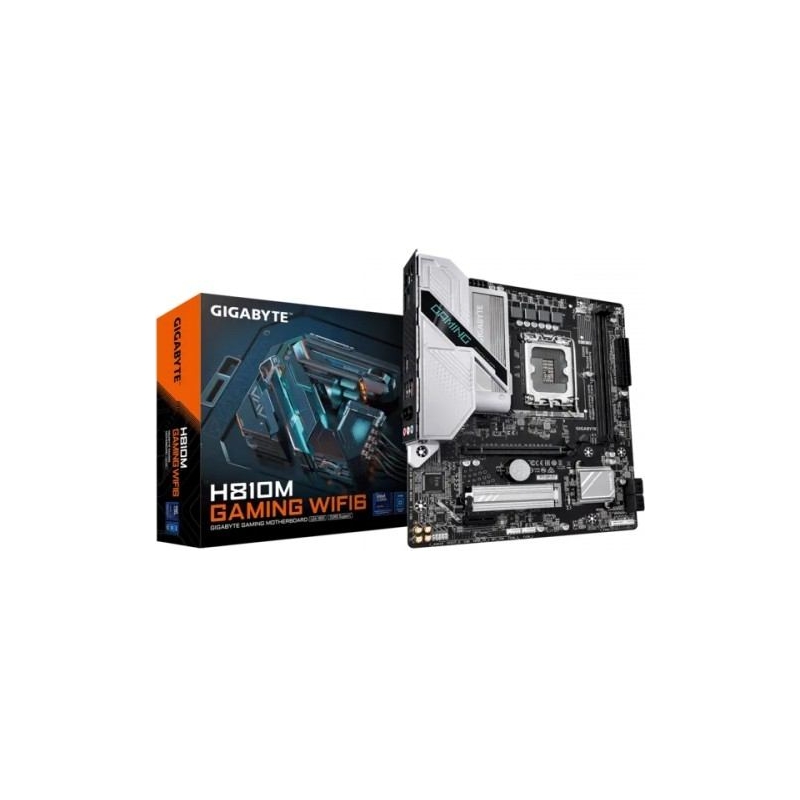

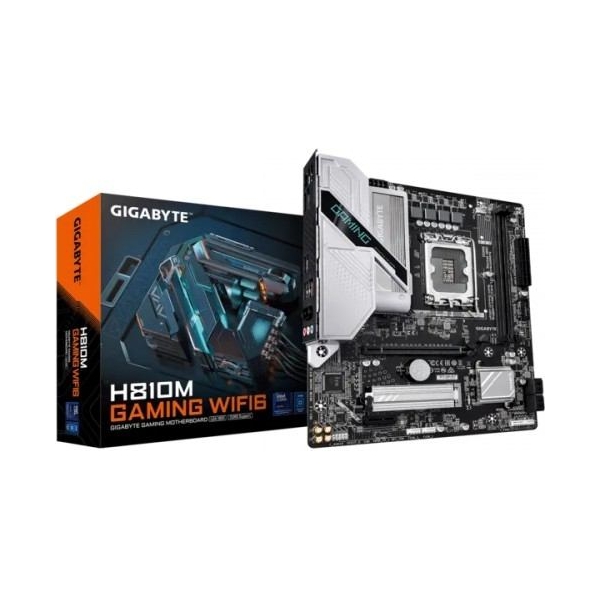

Gigabyte Motherboard H810M GAMING WIFI6
- Write a review
€128.28
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBGBAIIFH810U00
- Barcode
- 4719331869090
- Model
- H810M GAMING WIFI6
- CPU socket
- LGA1851
- Processor family
- Intel Core Ultra
- Generation
- first
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel H810 Express
- Memory type
- DDR5
- Number of DDR5 slots
- 2
- Memory bus frequency
- 6400 MHz
- Memory bus frequency
- 5600 MHz
- Max memory size
- 128
- Expansion slots
- 1 x PCIe 4.0 x 16
- Expansion slots
- 1 x PCIe 3.0 x 1
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
- Graphics
- Integrated Graphics Processor - Intel HD Graphics support 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.1 version and HDCP 2.3) 1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz (Support for DisplayPort 2.1 version.
- Sound card
- Realtek audio codec High Definition Audio Support Audio Channels: 2/4/5.1/7.1 Support for S/PDIF Out
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- Network interface
- Bluetooth
- Network interface
- LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless communication module: Realtek Wi-Fi 6 RTL8851BE Wi-Fi a, b, g, n, ac, and ax, supporting 2.4/5 GHz frequency bands BLUETOOTH 5.3 Supports the 11ax 80 MHz wireless standard
- USB ports at back panel
- 6
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 4
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No

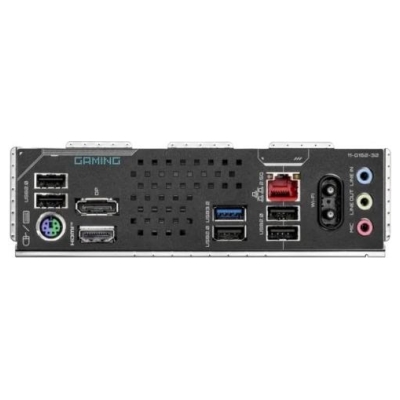

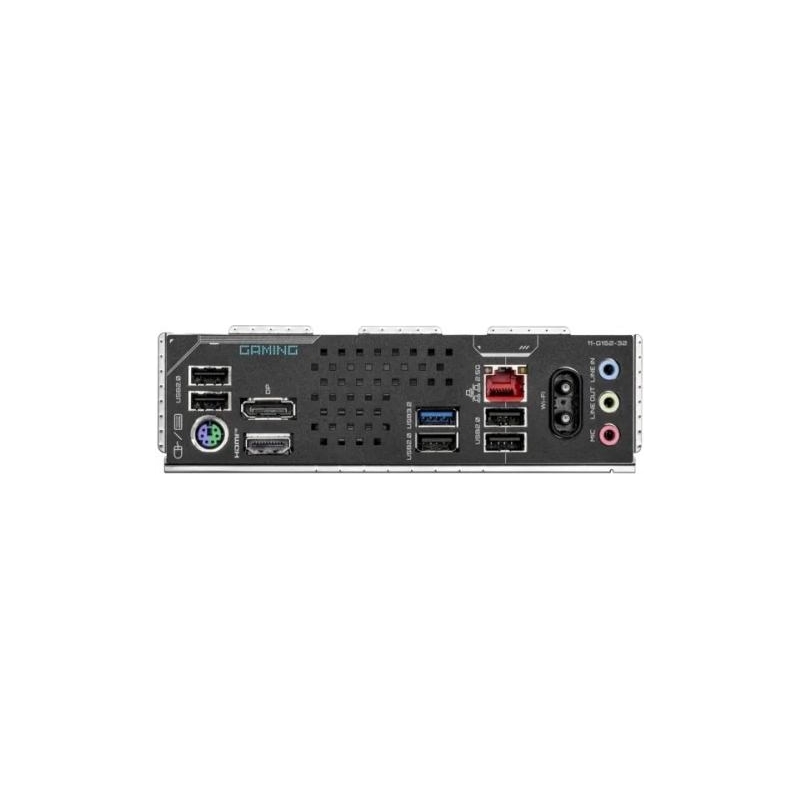

- External connectors
- 1 x USB 3.2 Gen 1 Type-A
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 5 x USB 2.0
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 2 x 4pin Chassis fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 2 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x S/PDIF Out header
- BIOS
- 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- micro ATX
- Dimensions
- 24.4 x 21.5 cm
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- Norton Internet Security (wersja OEM) LAN bandwidth management software
- Designation
- CE+WEEE
H810M GAMING WIFI6
19 Items
Specific References
- EAN13
- 4719331869090
- MPN
- H810M GAMING WIFI6
