3 x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4 x SATA 6G
Graphics
1 x HDMI - Support HDMI 2.1, maximum resolution of 4K 60Hz* 1 x DisplayPort - Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1 x Type-C DisplayPort - Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Sound card
Realtek ALC897 Codec 7.1-Channel High Definition Audio
Network interface
1 x 10/100/1000/2500/5000 Mbit/s
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
Bluetooth
Network interface
LAN: Realtek 8126 5Gbps LAN WIRELESS LAN & BLUETOOTH: Intel Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM

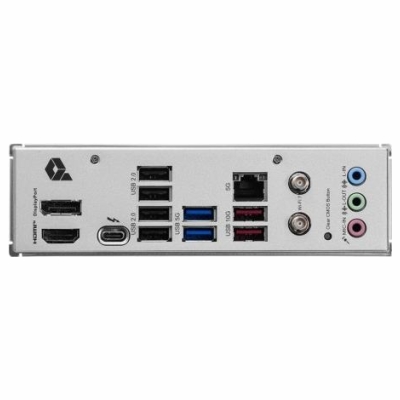

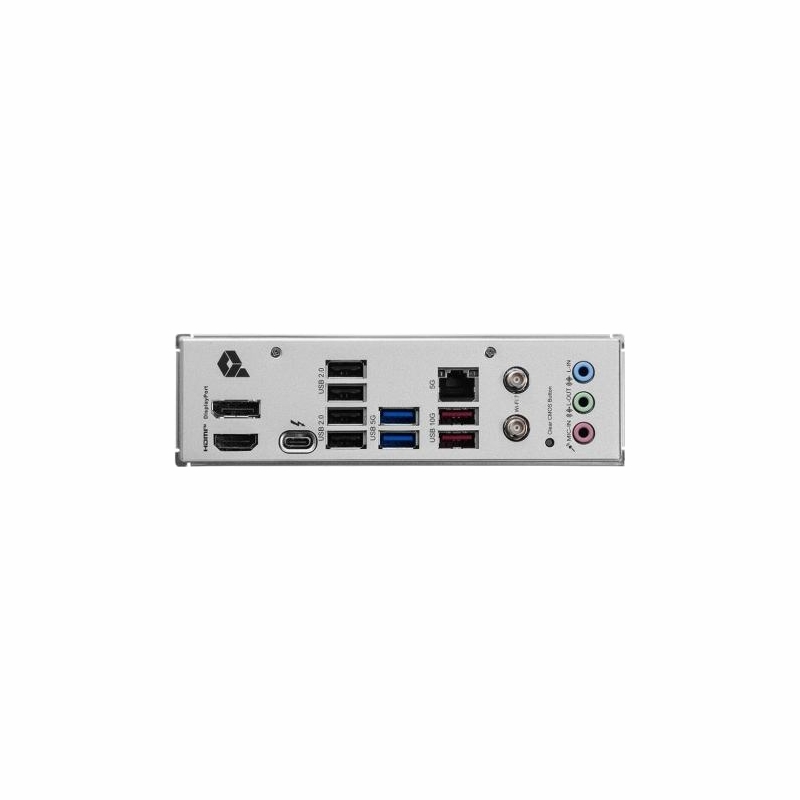

USB ports at back panel
8
USB ports on motherboard
9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
