- SKU
- KBMSIIIEZ790A04
- Barcode
- 4711377015738
- Model

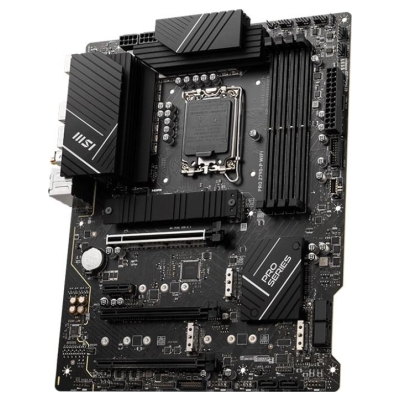

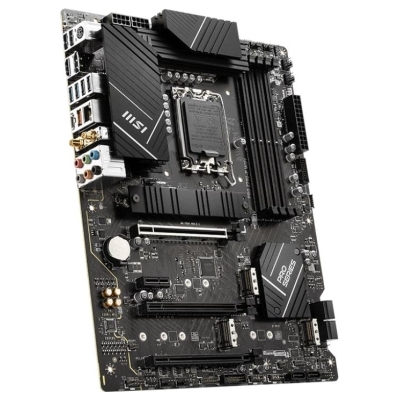

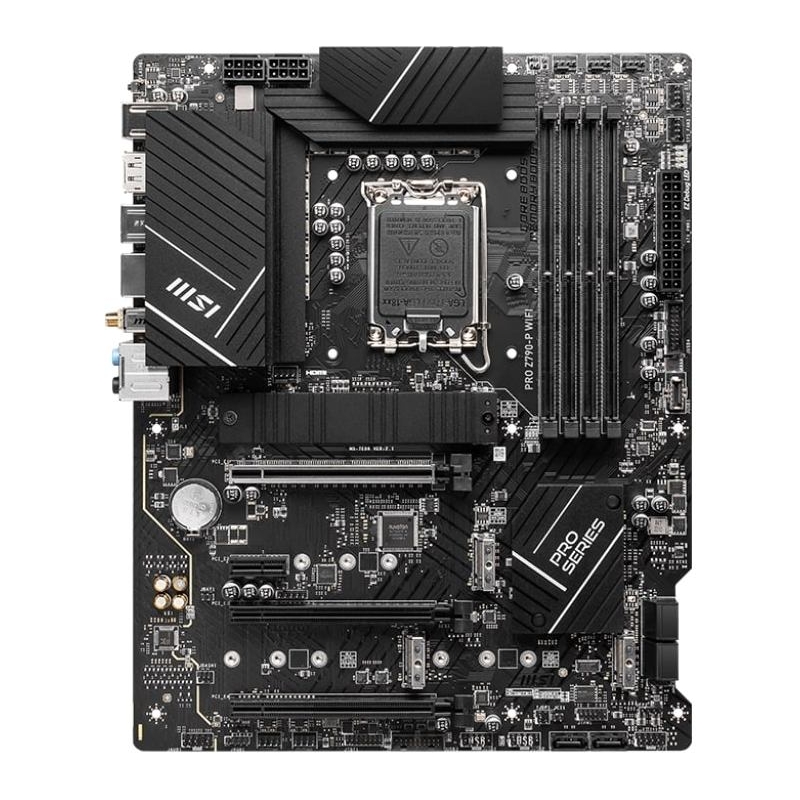

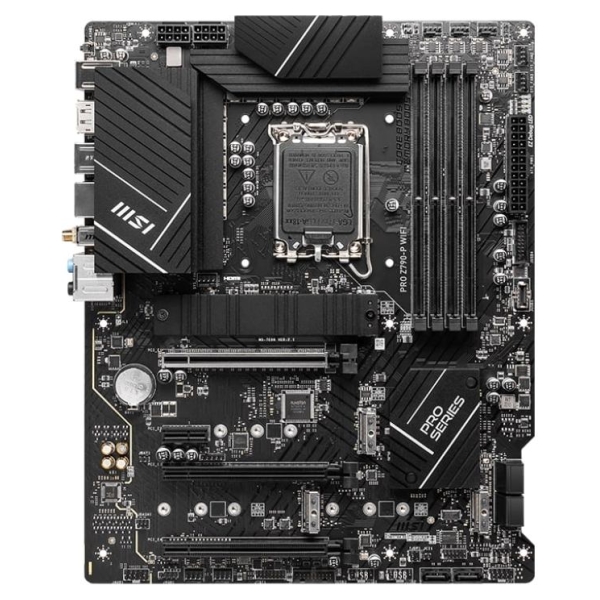

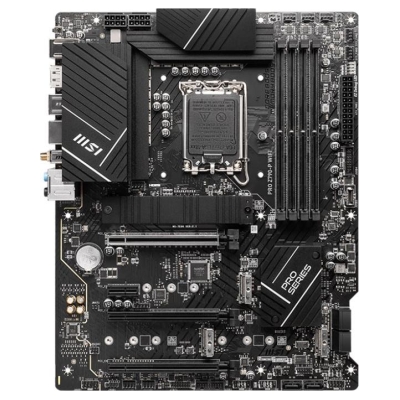

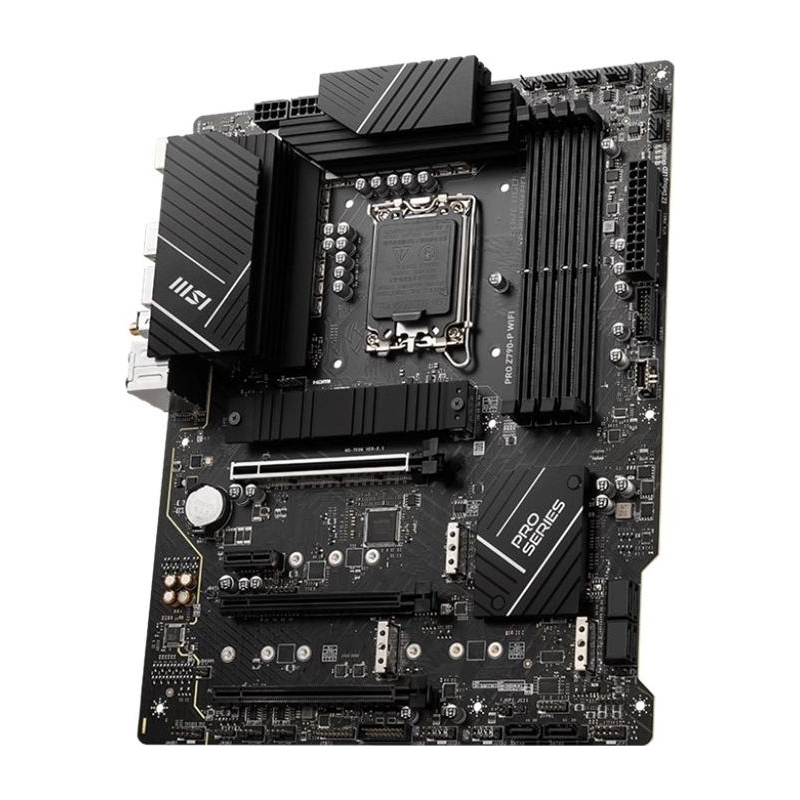

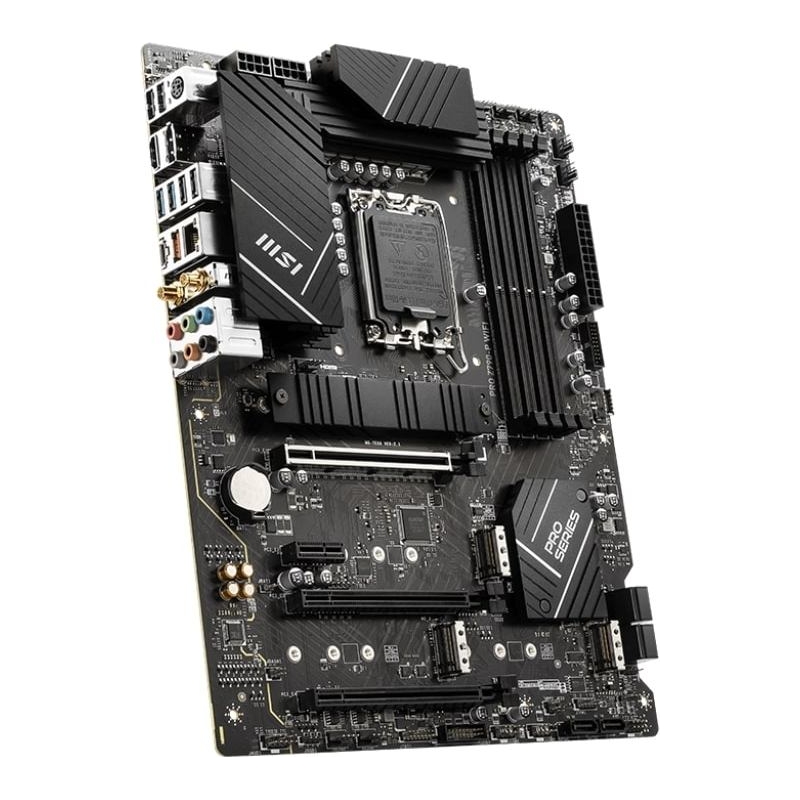

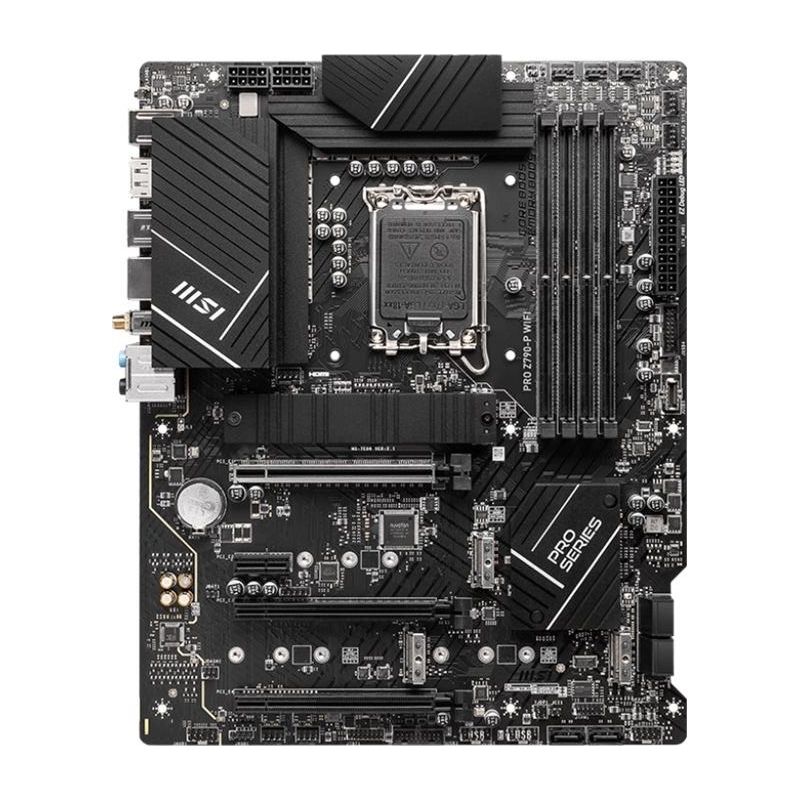

- PRO Z790-P WIFI
- CPU socket
- LGA1700
- Processor family
- Intel Core i9
- Processor family
- Intel Pentium Gold
- Processor family
- Intel Celeron
- Processor family
- Intel Core i3
- Processor family
- Intel Core i5
- Processor family
- Intel Core i7
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- INTEL Z790
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 5200 MHz
- Memory bus frequency
- 5400 MHz
- Memory bus frequency
- 5000 MHz
- Memory bus frequency
- 5800 MHz
- Memory bus frequency
- 6000 MHz
- Memory bus frequency
- 6200 MHz
- Memory bus frequency
- 6400 MHz
- Memory bus frequency
- 6600 MHz
- Memory bus frequency
- 6800 MHz
- Memory bus frequency
- 7000 MHz
- Memory bus frequency
- 4800 MHz
- Max memory size
- 128
- Expansion slots
- 2 x PCIe 3.0 x 1
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 1 x PCIe 4.0 x 16
- Max. number of SATA devices
- 6
- RAID
- Yes
- Detailed data on disk/drive interfaces
- 4x M.2 slot: M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G port
- Graphics
- 1x HDMI 1x DisplayPort Support for HDMI 2.1 with HDR, maximum resolution of 4K 60Hz DP 1.4 support, maximum resolution of 4K 60Hz
- Sound card
- Realtek ALC897 Codec 7.1-Channel High Definition Audio
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Bluetooth
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- Network interface
- Intel 2.5Gbps LAN Intel Wi-Fi 6E 802.11 a/ b/ g/ n/ ac/ ax Wireless module is pre-installed in M.2 socket (Key-E) MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps SBluetooth 5.3, FIPS, FISMA
- USB ports at back panel
- 8
- USB ports on motherboard
- 9
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 6
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 3
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

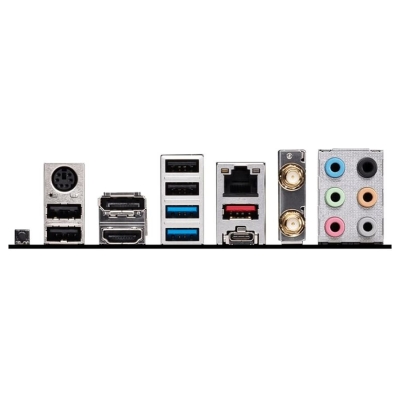

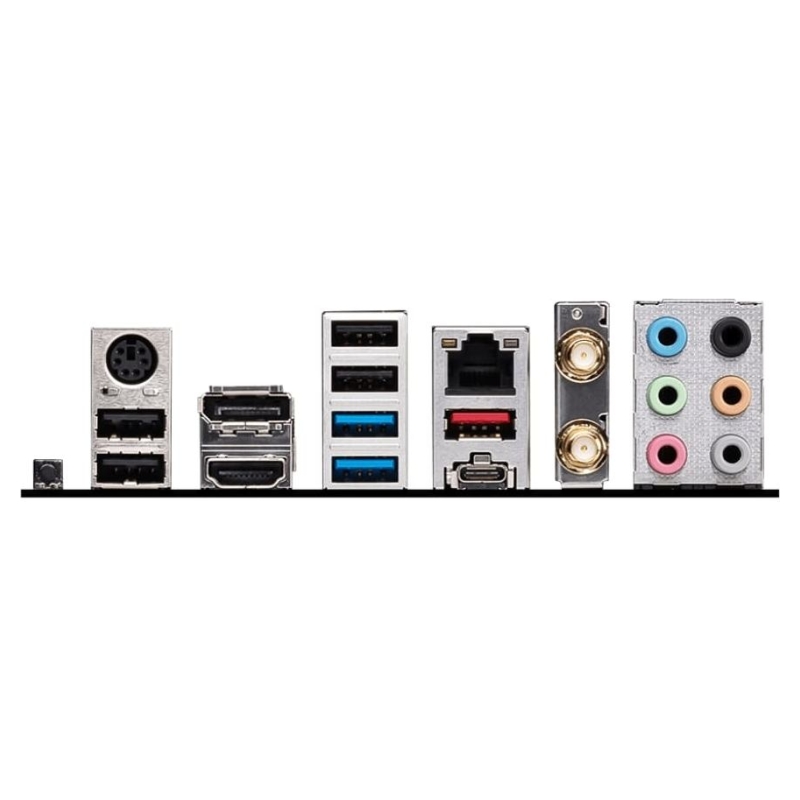

- External connectors
- 1 x USB 3.1 Type-C
- External connectors
- 2 x SMA
- External connectors
- 1 x Side Speaker
- External connectors
- 1 x Central Speaker / Subwoofer
- External connectors
- 1 x Rear Speaker
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 4 x USB 2.0
- External connectors
- 2 x USB 3.0
- External connectors
- 1 x HDMI
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x USB 3.1
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 1 x Flash BIOS Button
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 4 x USB 3.0
- Onboard connectors
- 1 x USB C
- Onboard connectors
- 4 x M.2
- Onboard connectors
- 6 x SATA III 6Gb/s
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 6 x 4pin wentylator obudowy
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 2 x Addressable LED
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 1 x 4pin CPU fan
- Form factor
- ATX
- Dimensions
- 243.84 x 304.8 mm
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Designation
- CE+WEEE
PRO Z790-P WIFI
5 Items
Specific References
- EAN13
- 4711377015738
- MPN
- PRO Z790-P WIFI
