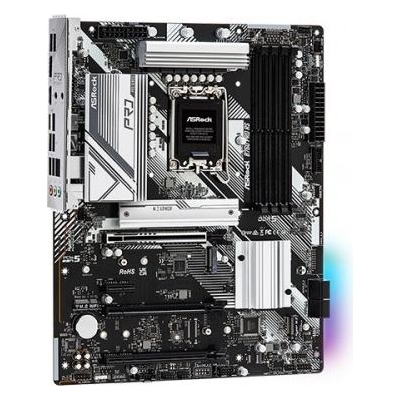

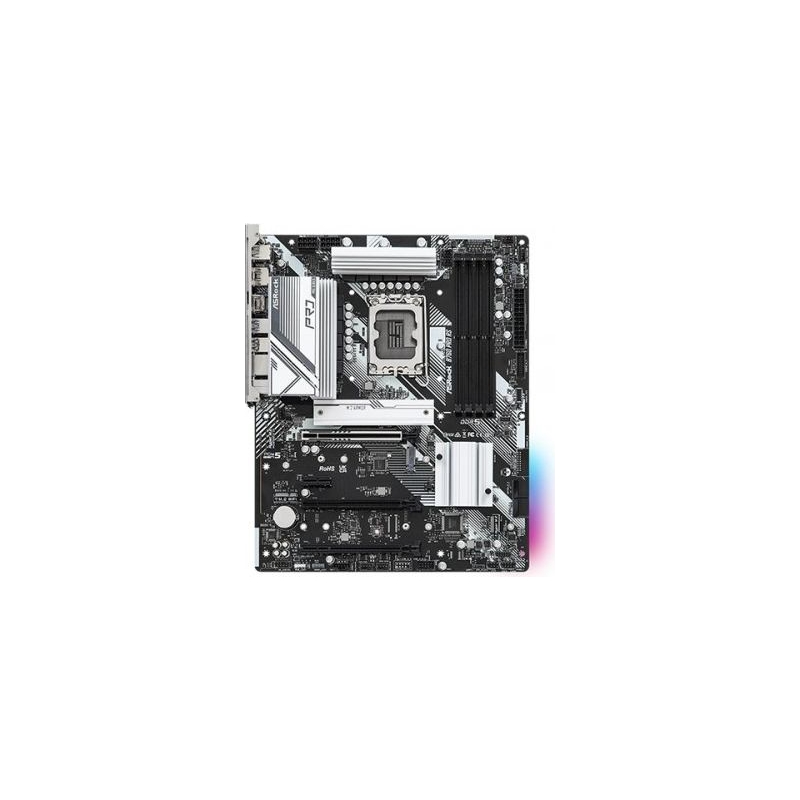

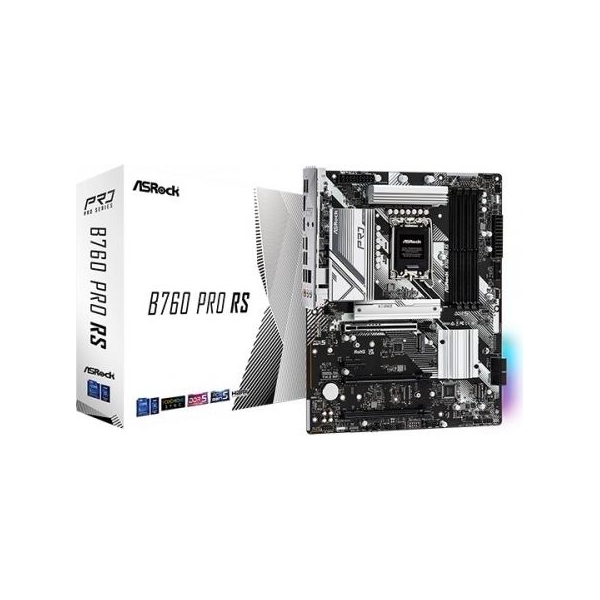

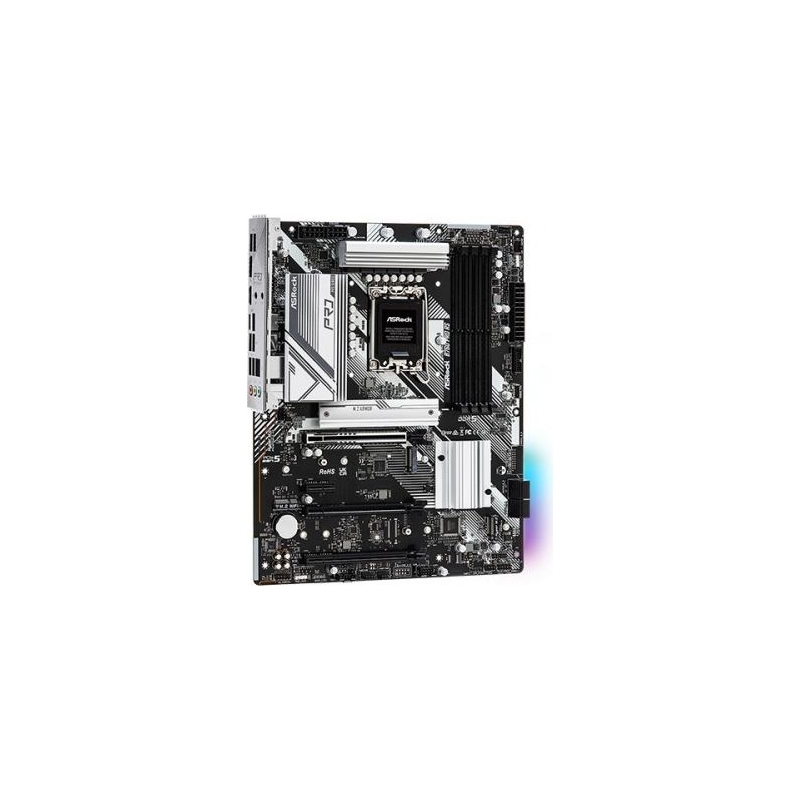

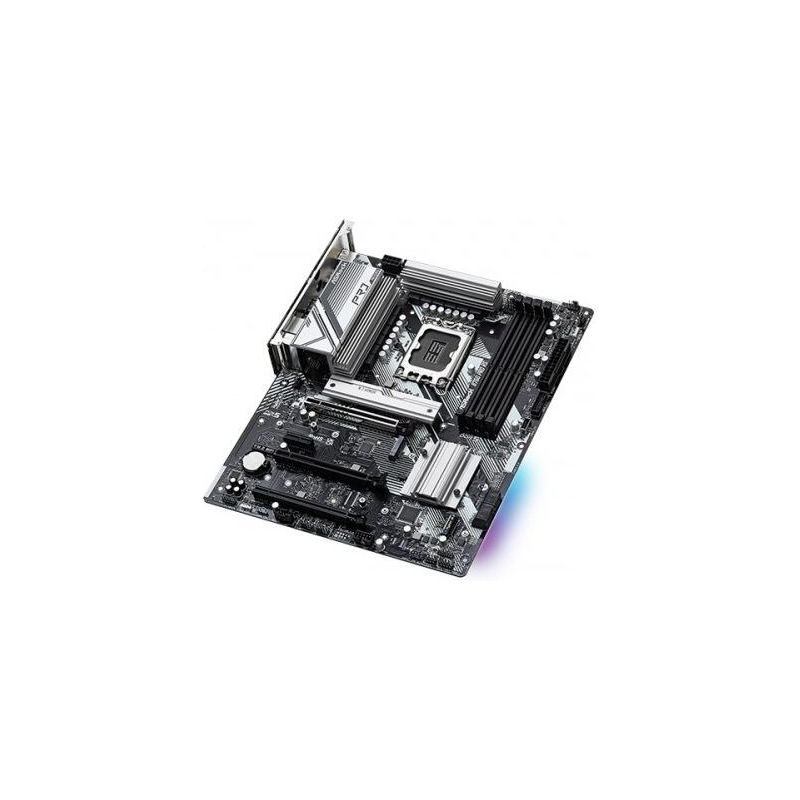

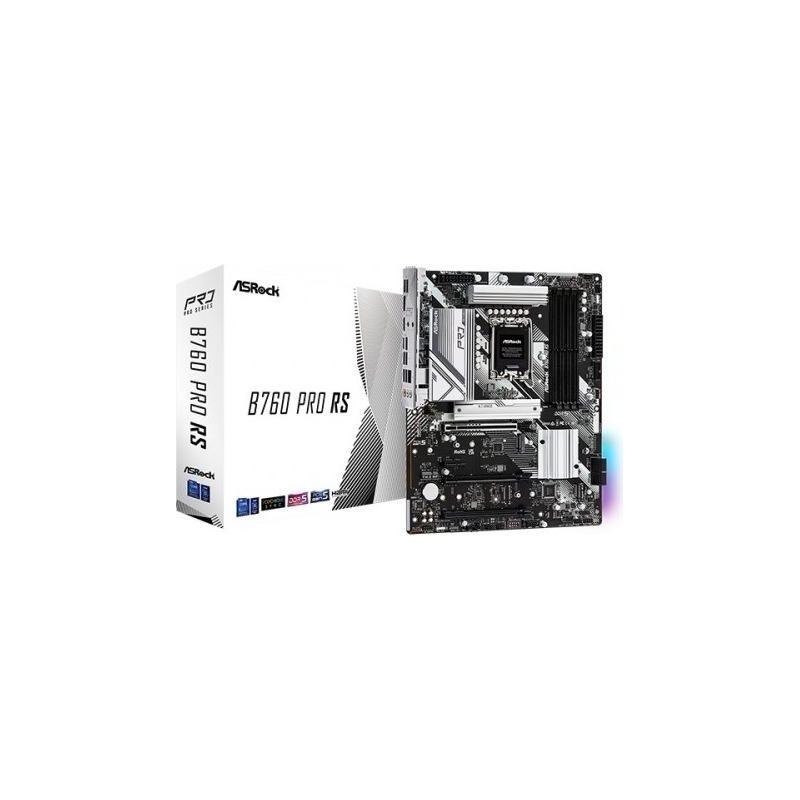

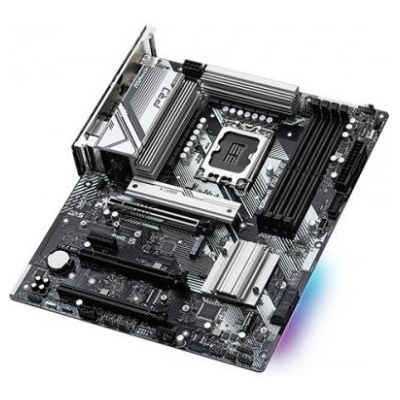

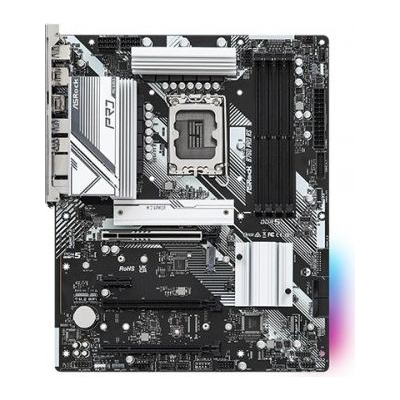

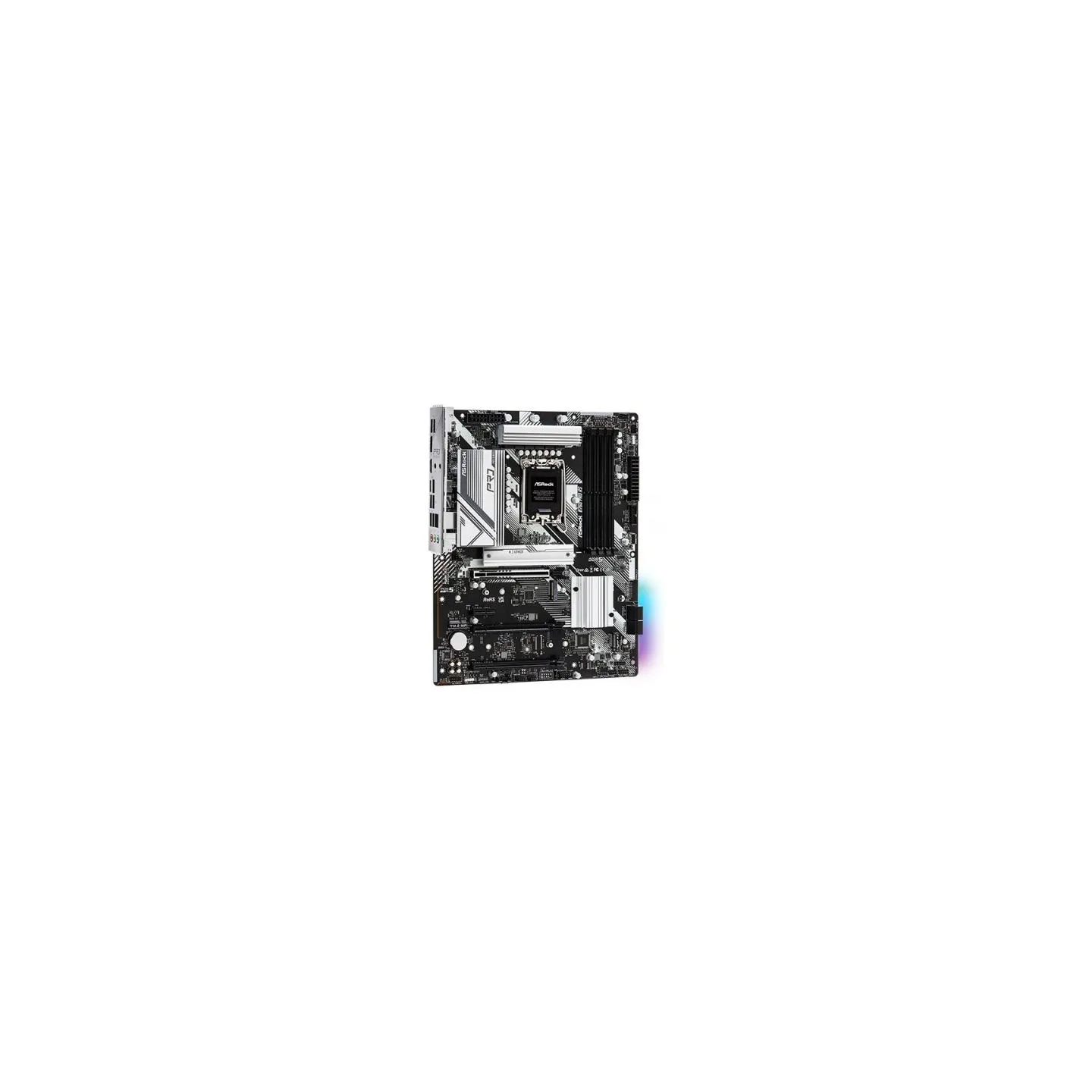

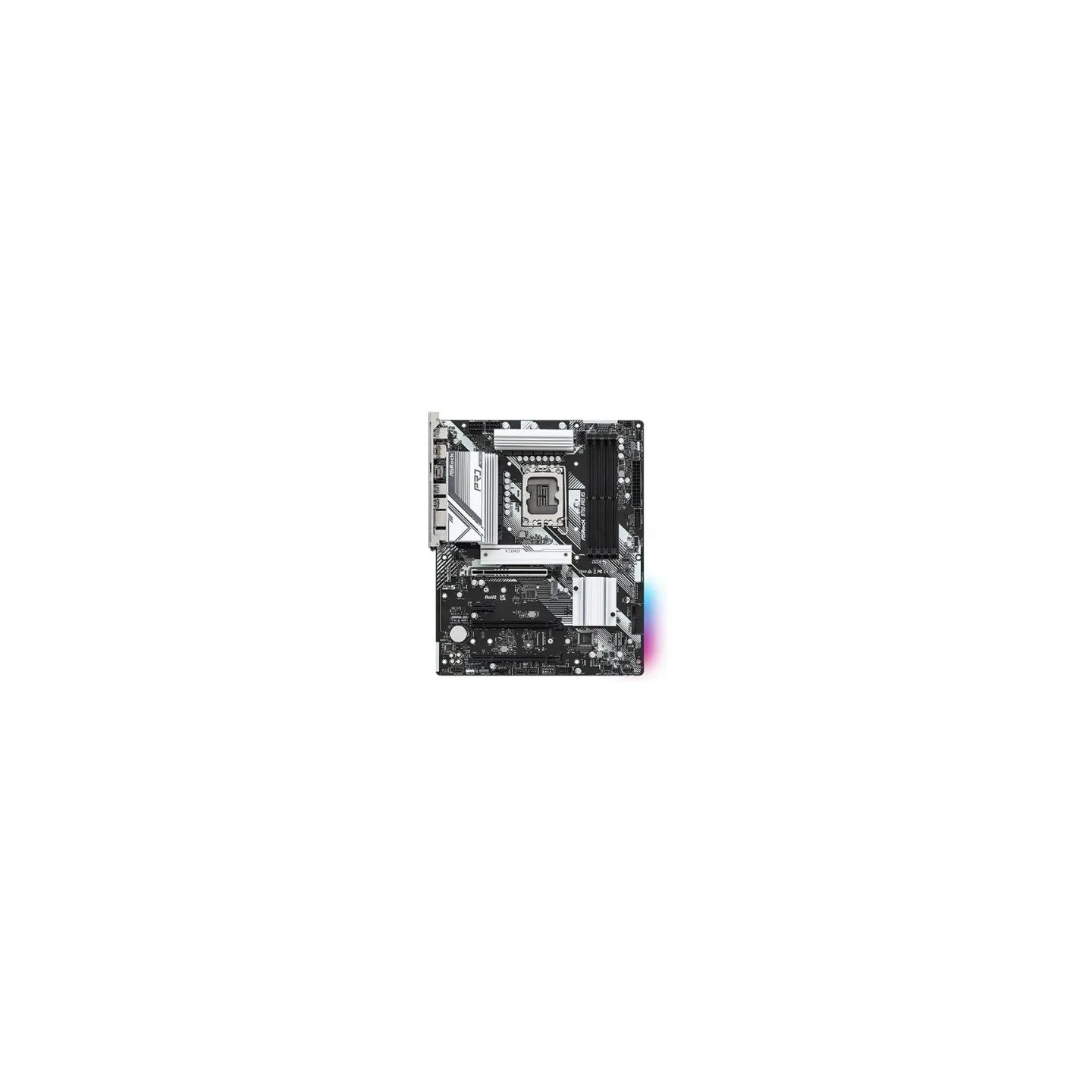

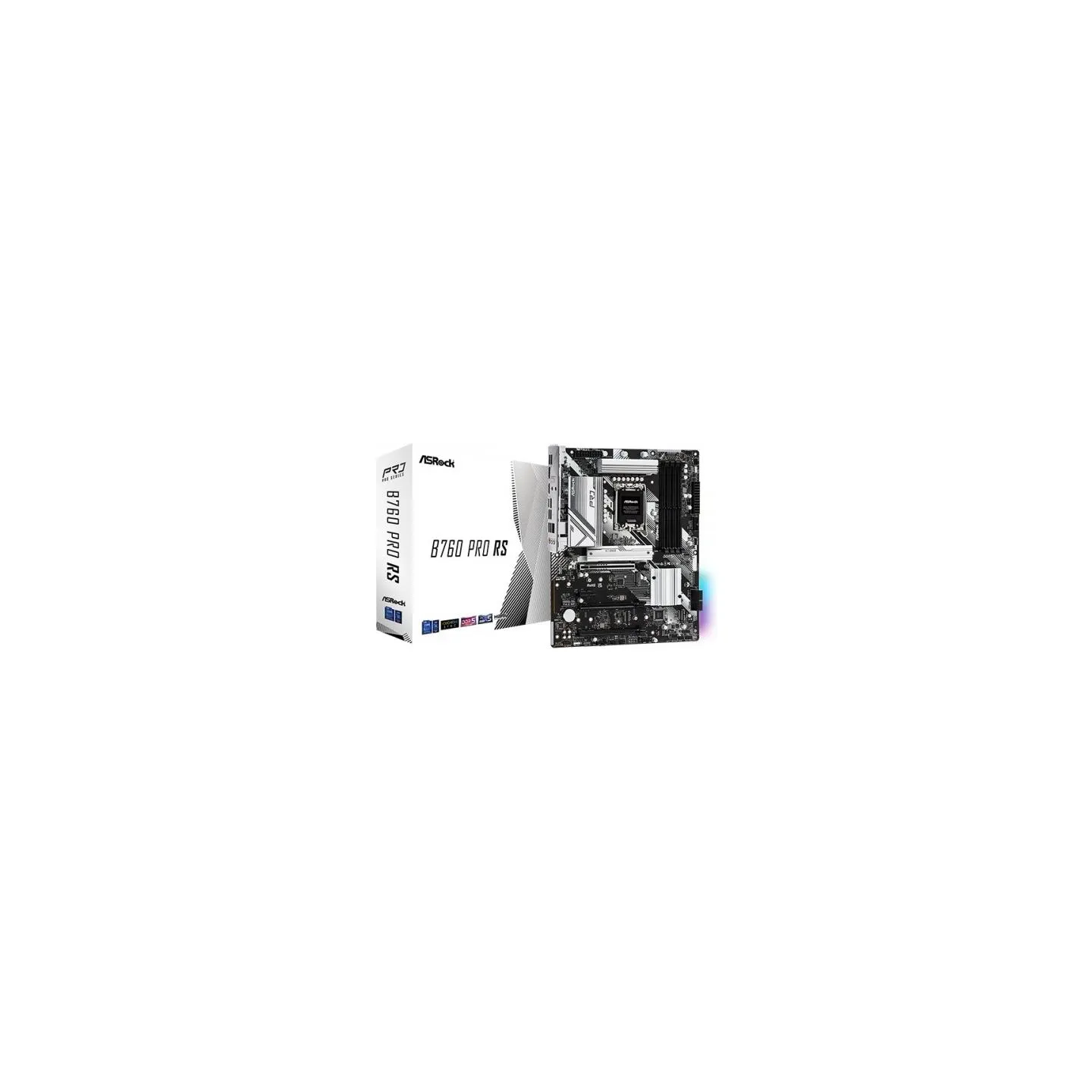

Asrock Motherboard B760 Pro RS s1700 4DDR5 DP/HDMI/eDP M.2 ATX
- Write a review
€143.37
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBASRIIEB760A01
- Barcode
- 4710483942044
- Model
- B760 Pro RS
- CPU socket
- LGA1700
- Processor family
- Intel Core i9
- Processor family
- Intel Core i7
- Processor family
- Intel Core i3
- Processor family
- Intel Core i5
- Processor family
- Intel Pentium
- Processor family
- Intel Celeron
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B760
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 7200 MHz
- Max memory size
- 128
- Expansion slots
- 1 x PCIe 4.0 x 16
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 1 x PCIe 3.0 x 16
- Expansion slots
- 1 x PCIe 3.0 x 1
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports 2260/2280 mode PCIe Gen4x4 (64Gbps) chipset: 1 x M.2 Socket (M2_2, Key M), supports 2260/2280 mode PCIe Gen4x2 (32Gbps) 1 x Hyper M.2 Socket (M2_3, Key M), supports 2260/2280 mode PCIe Gen4x4 (64Gbps) 4 x SATA3 6.0Gb/s connector
- Graphics
- Intel Xe Graphics Architecture (12th Gen) eDP 1.4, supports max. resolution up to Full HD 60Hz HDMI 2.1 compatible with TMDS, supports HDCP 2.3 and max. resolution up to 4K 60Hz DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max resolution up to 8K 60Hz / 5K 120Hz *Onboard Intel UHD graphics and VGA output can only be supported on processors with integrated GPU
- Sound card
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- 2.5 Gigabit LAN 10/100/1000/2500Mbps Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
- USB ports at back panel
- 8
- USB ports on motherboard
- 5
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 6
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 3
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

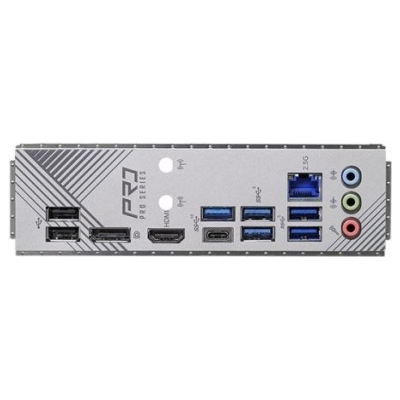

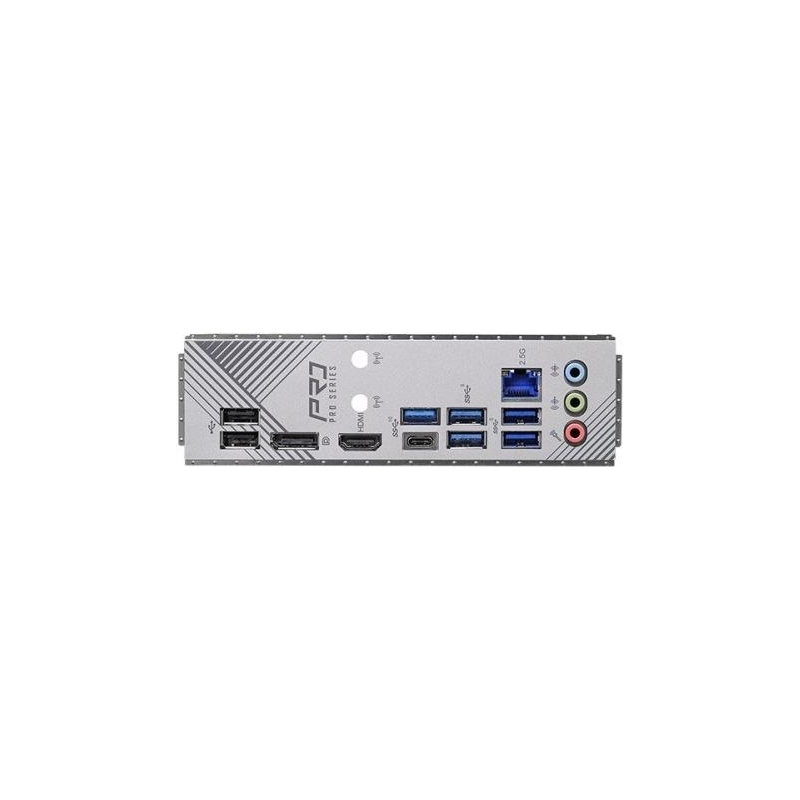

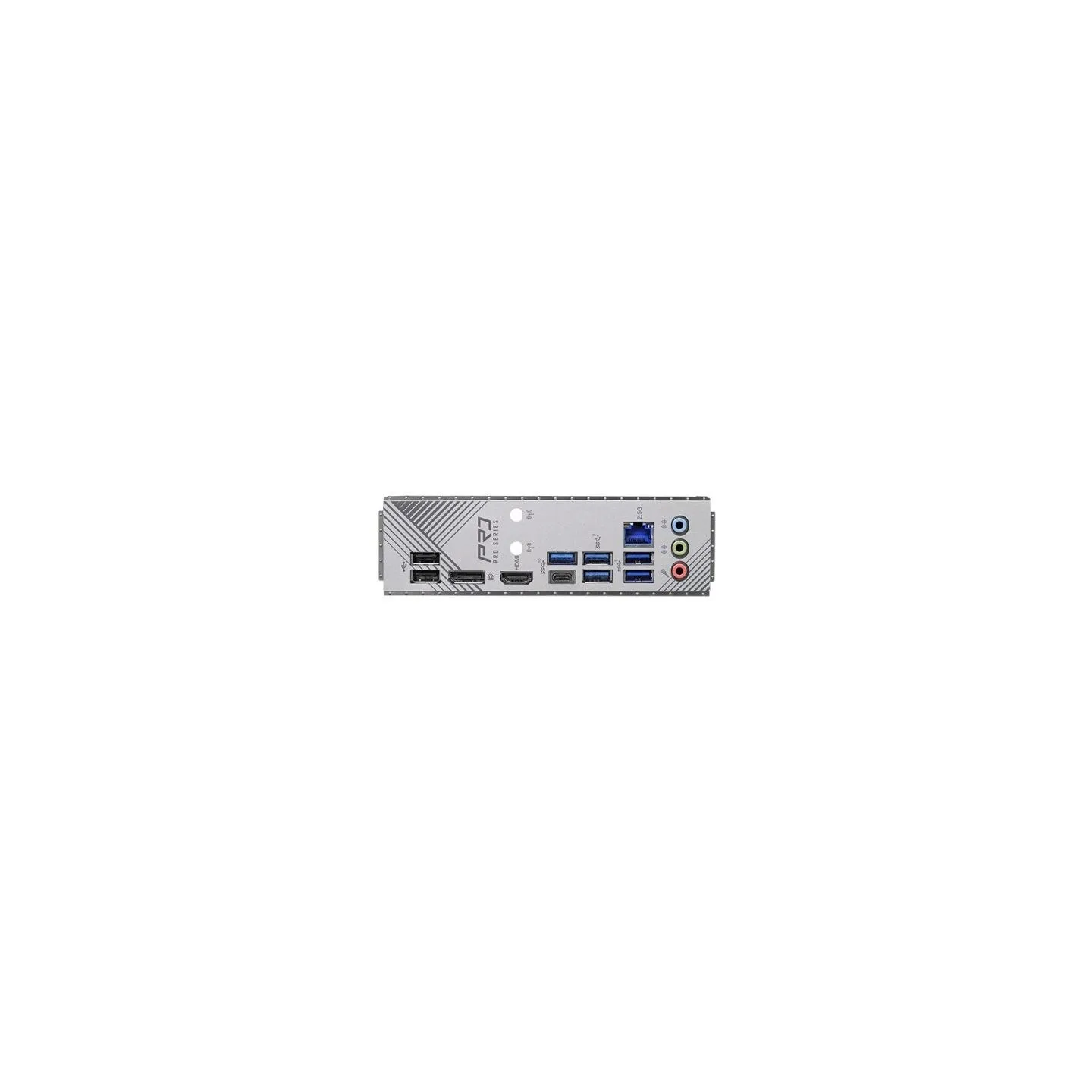

- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 2 x USB 2.0
- External connectors
- 4 x USB 3.0
- External connectors
- 1 x USB 3.1
- External connectors
- 1 x USB 3.1 Type-C
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 2 x Addressable LED
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 5 x 4pin case fan liquid cooling
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 2 x RGB LED Strip
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 2 x USB 3.0 header
- Onboard connectors
- 1 x USB C
- Onboard connectors
- 1 x Thunderbolt header
- Onboard connectors
- 1 x Power LED and Speaker Header
- Onboard connectors
- 3 x M.2
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x eDP
- BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Form factor
- ATX
- Dimensions
- 30.5 x 24.4 cm
- Accessories included
- User manual 2 x SATA data cable 4 x Screws for M.2 slots Spacer for M.2 slot
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- Software: ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
- Designation
- CE+WEEE
B760 PRO RS
30 Items
Specific References
- EAN13
- 4710483942044
- MPN
- B760 PRO RS
