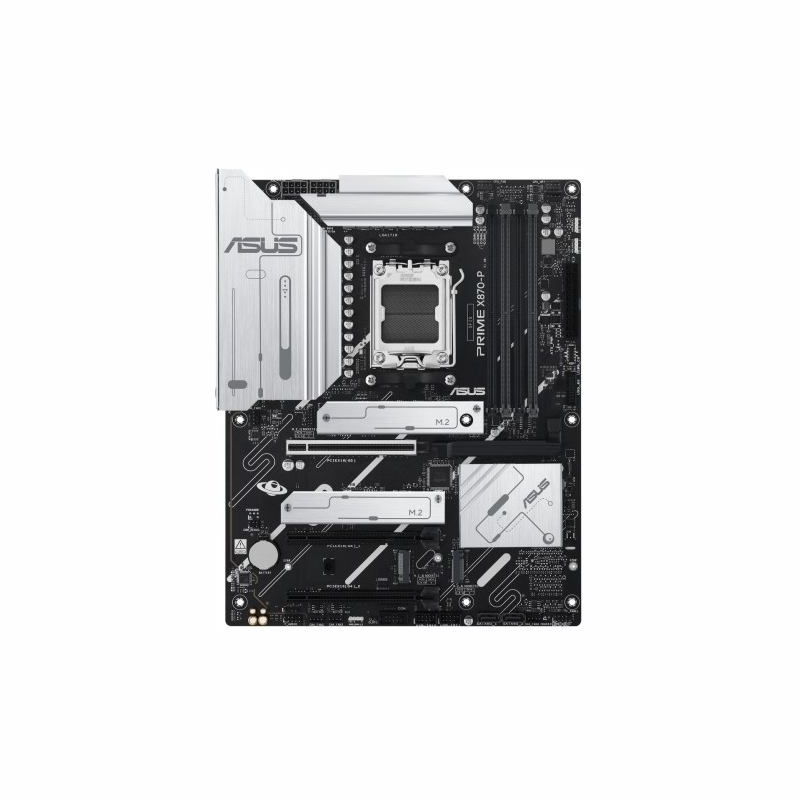

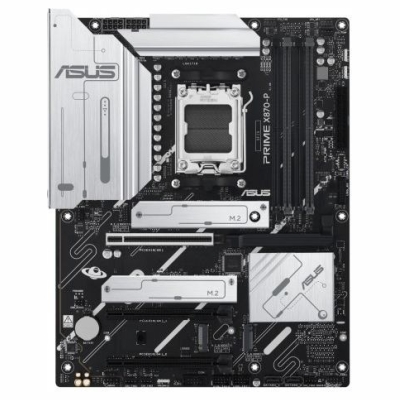

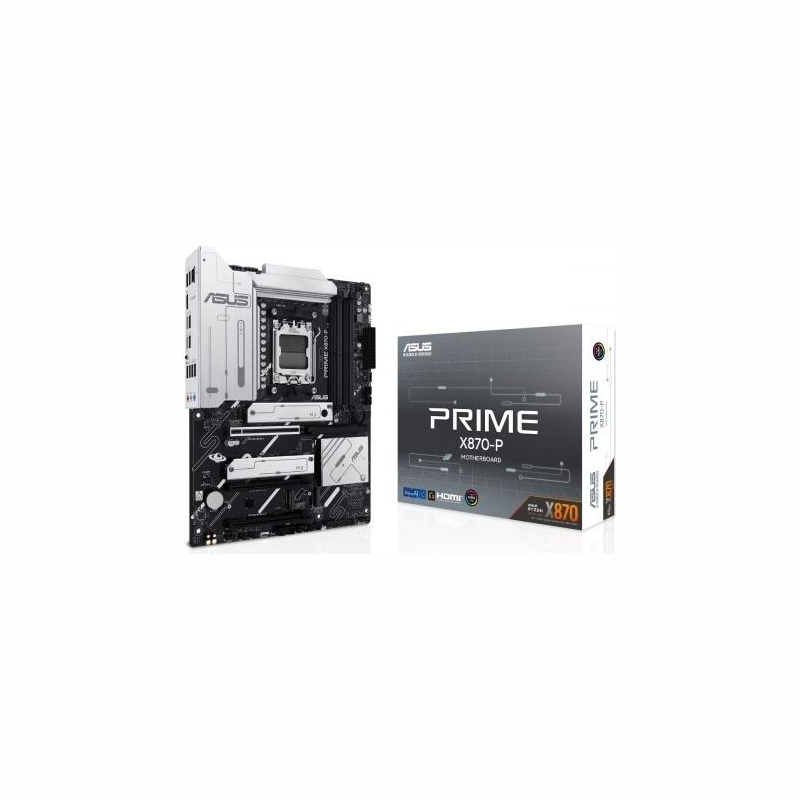

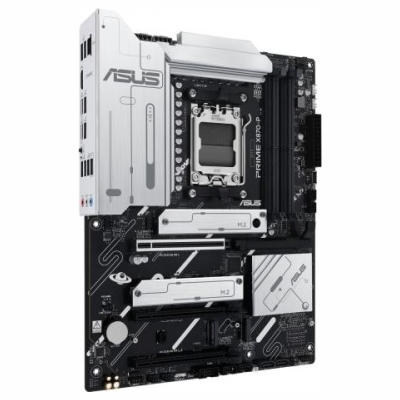

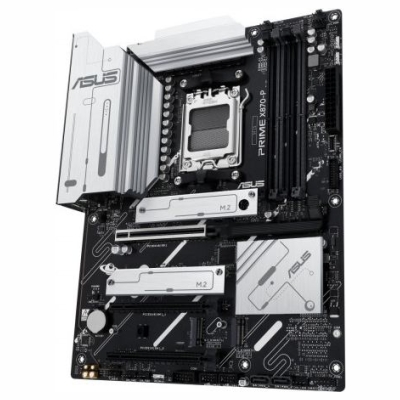

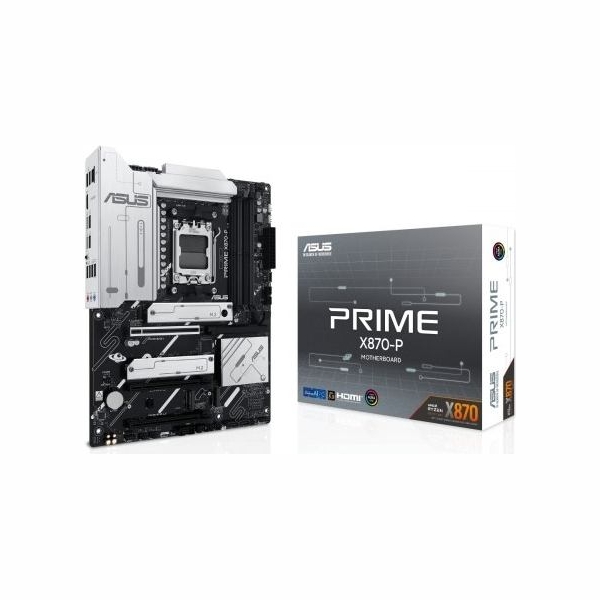

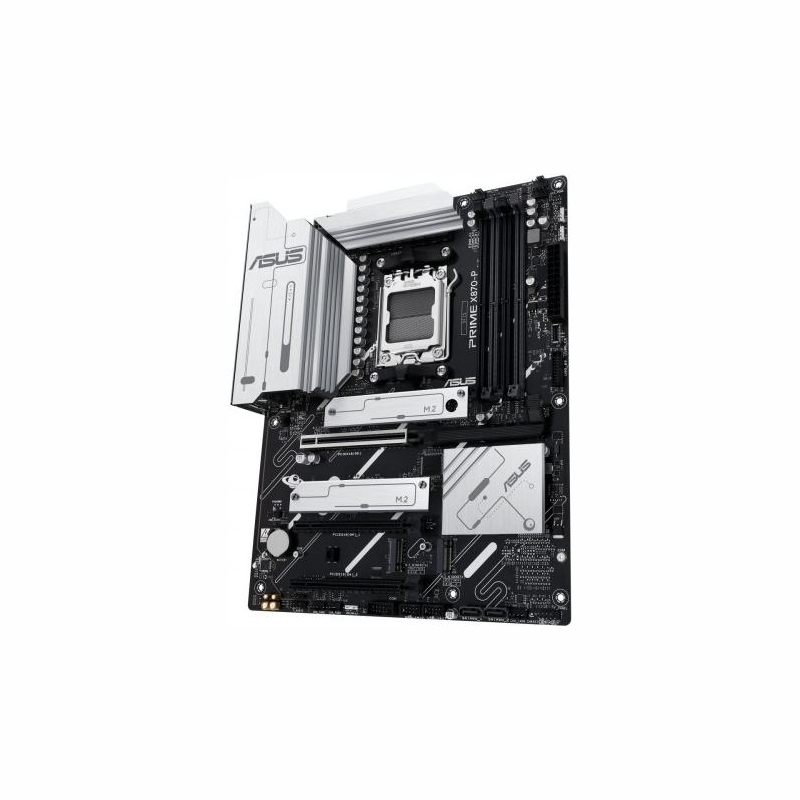

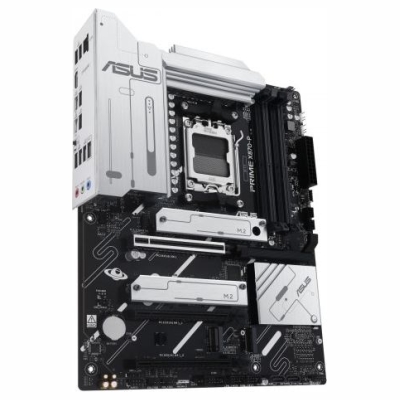

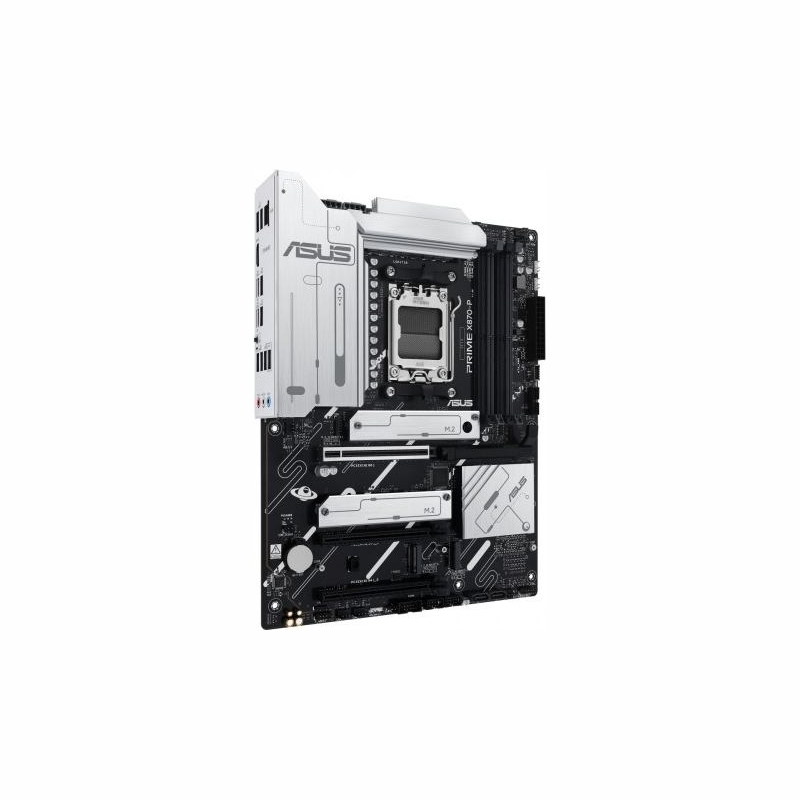

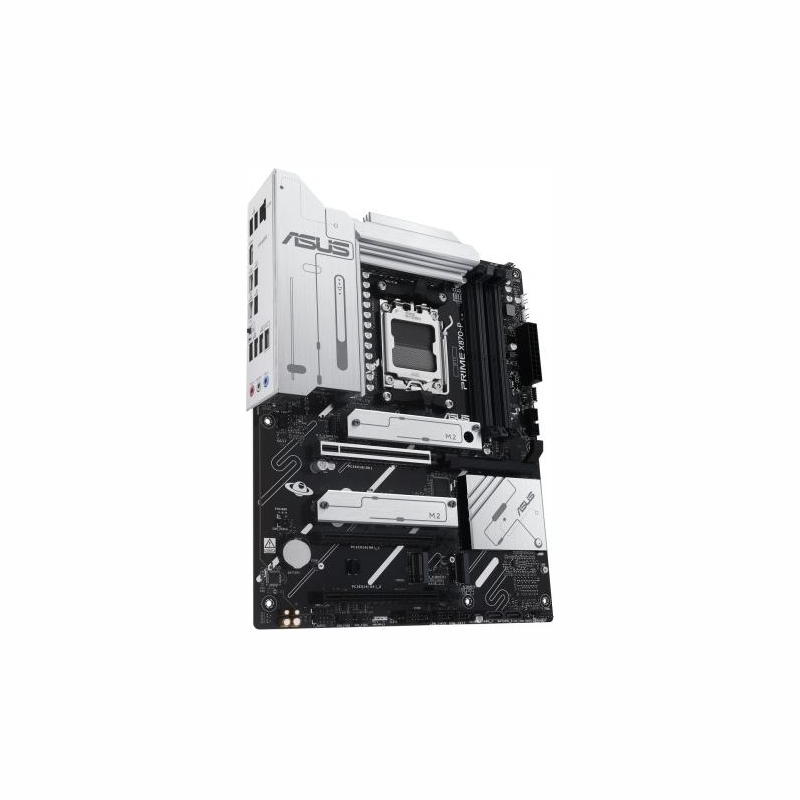

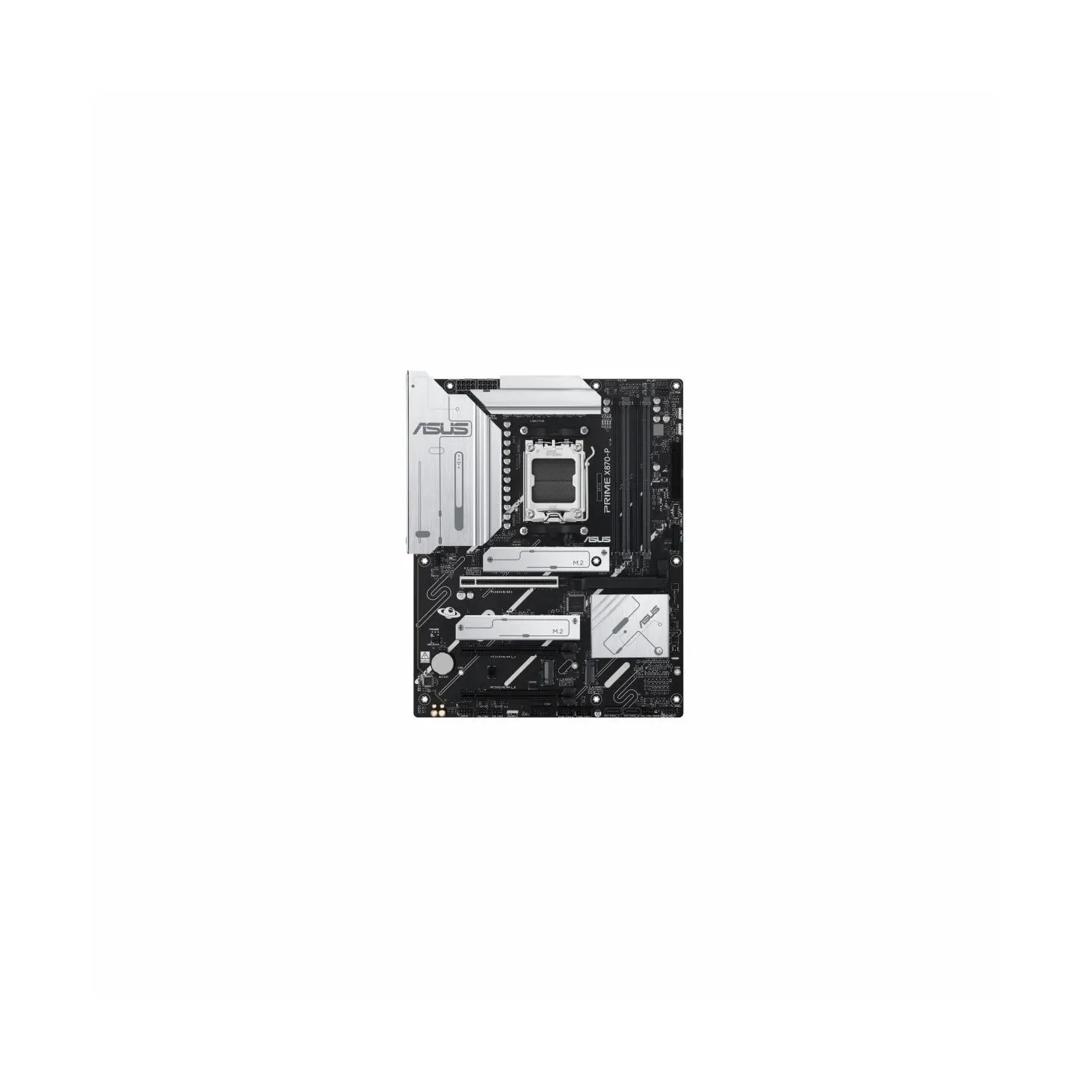

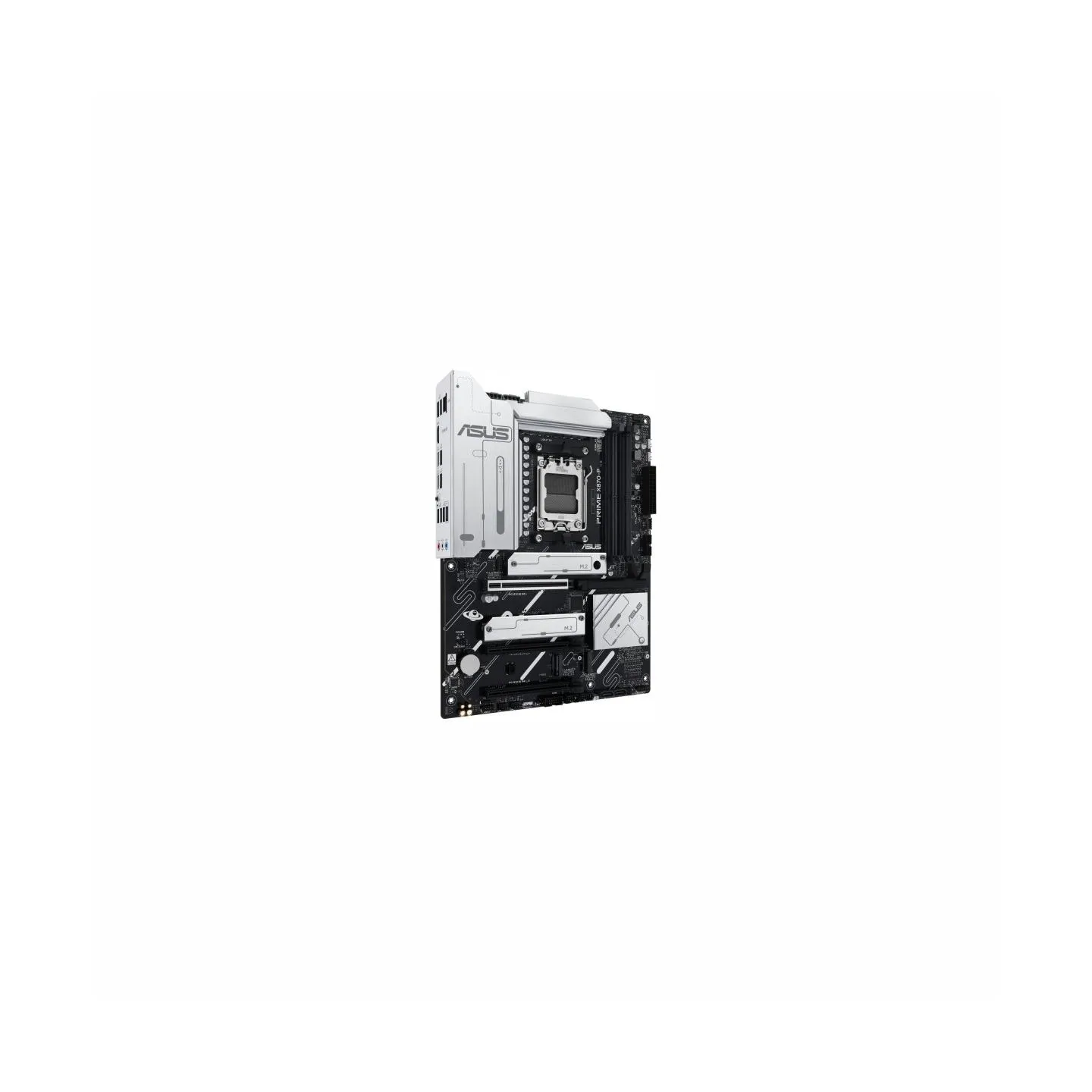

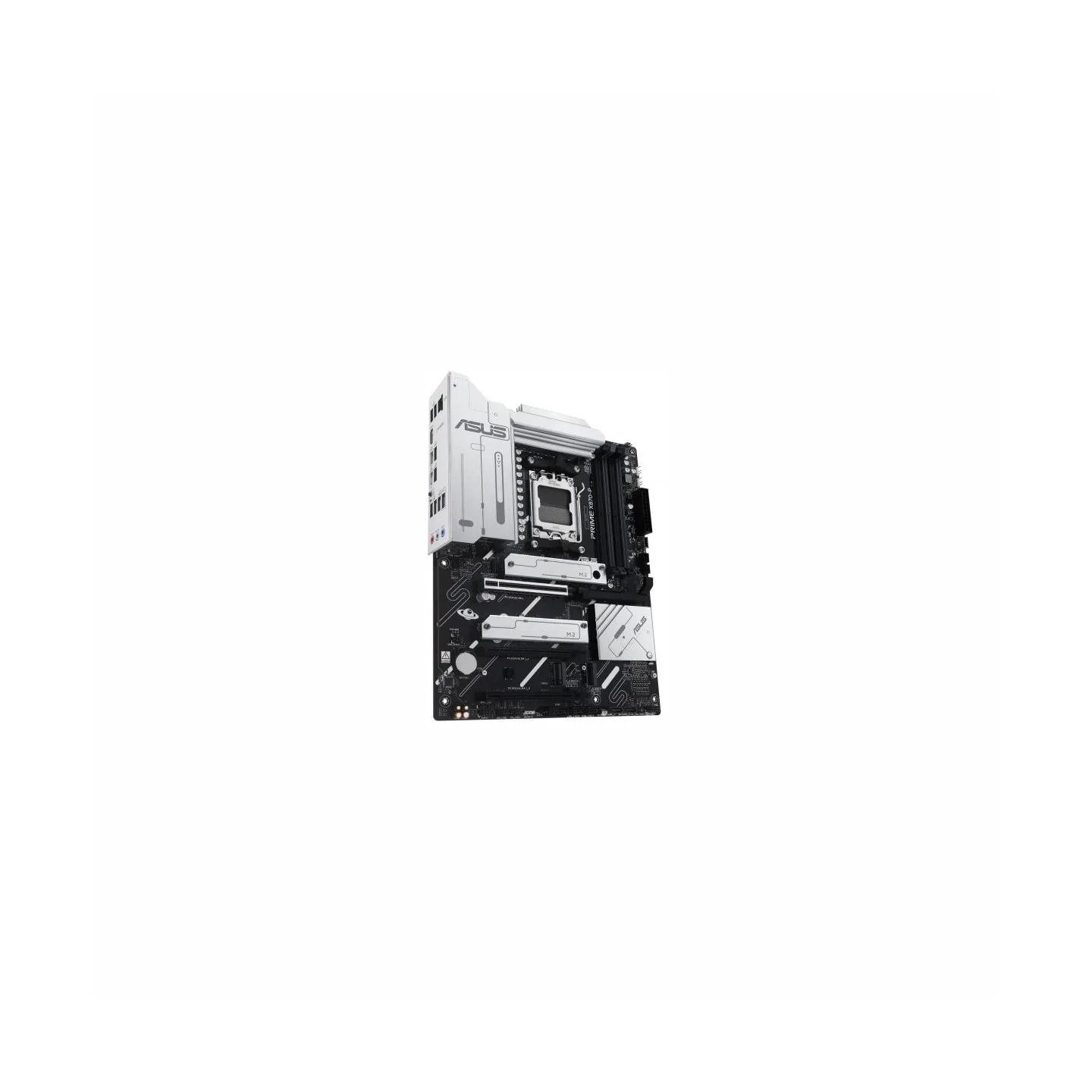

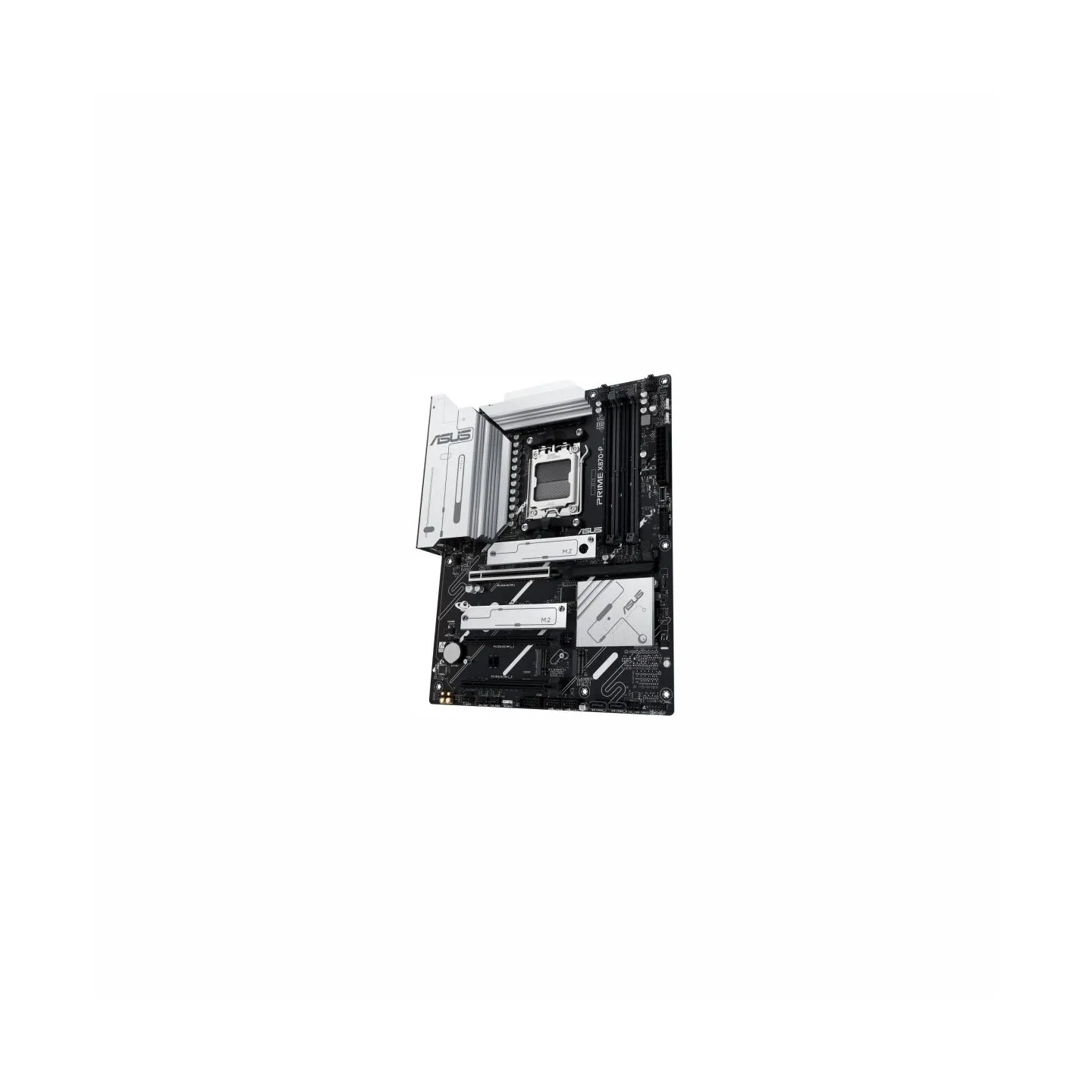

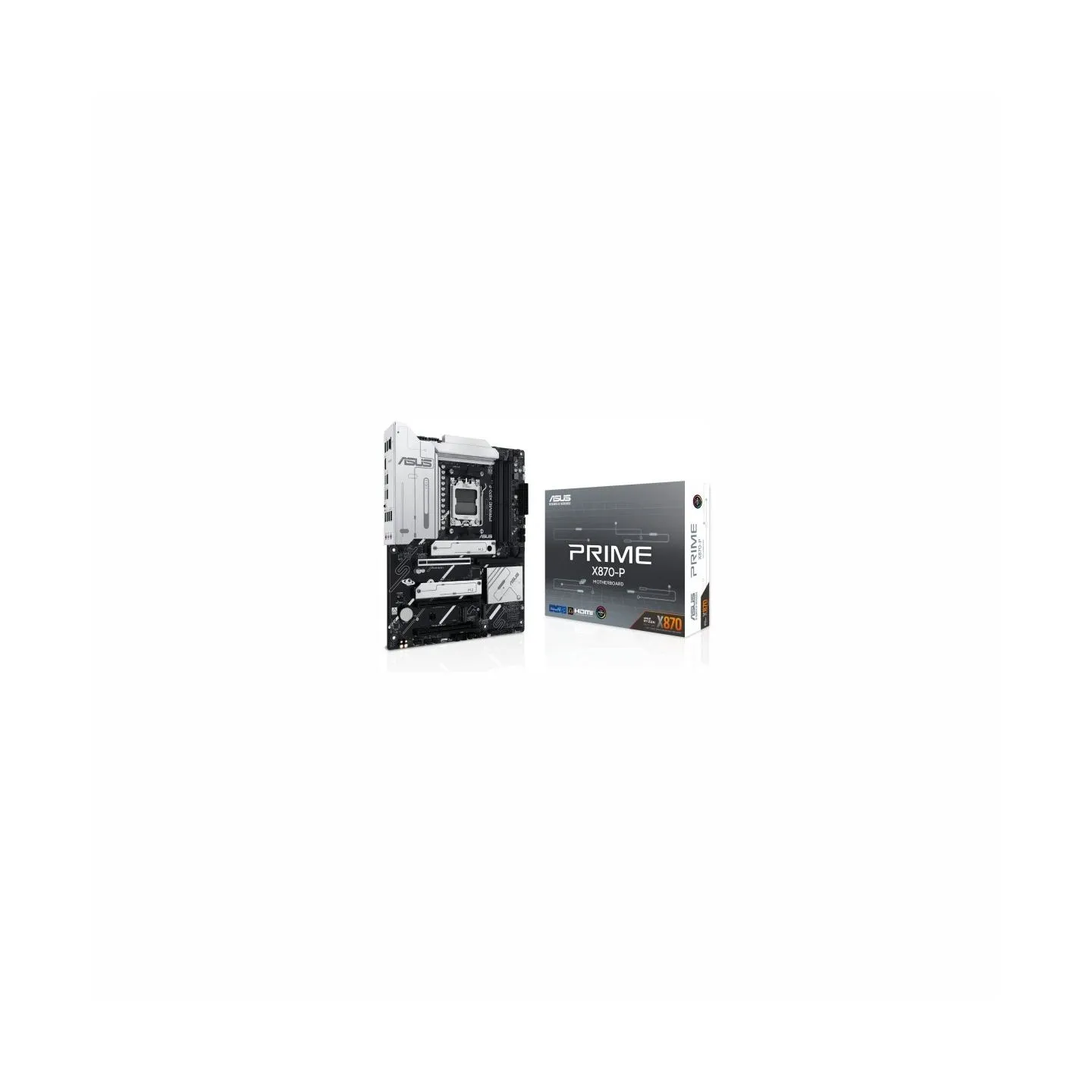

Asus Motherboard PRIME X870-P AM5 4DDR5 HDMI/USB-C ATX
- Write a review
€326.91
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBASUAA8X870A03
- Barcode
- 4711387723036
- Model
- PRIME X870-P
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen 7
- Processor family
- AMD Ryzen 3
- Processor family
- AMD Ryzen 5
- Processor family
- AMD Ryzen 9
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD X870 Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 8000 MHz
- Max memory size
- 192
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 4 x M.2
- Expansion slots
- 3 x PCIe 4.0 x 16
- Max. number of SATA devices
- 2
- RAID
- Yes
- Detailed data on disk/drive interfaces
- Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*AMD Ryzen 9000 & 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)AMD Ryzen 8000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)AMD X870 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)***2 x SATA 6Gb/s ports**** AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU.** PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3. PCIEX16(G4)_1 and PCIEX16(G4)_2 will be disabled when M.2_3 runs.*** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
- Graphics
- 1 x HDMI port**2 x USB4 (40Gbps) ports support USB Type-C display outputs**** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.** Supports 4K@60Hz as specified in HDMI 2.1.*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.**** VGA resolution support depends on processors' or graphic cards' resolution.
- Sound card
- Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack Detection, Streaming, Front Panel Jack Reassignment- Supports up to 24-bit/192 kHz playbackAudio Features- Audio Shielding- Premium Audio Capacitors- Dedicated PCB Audio Layers* A chassis with an HD audio module on the front panel is required to support 7.1 Surround Sound audio output.
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- 1 x Realtek 2.5Gb Ethernet ASUS LANGuard
- USB ports at back panel
- 10
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 5
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 4
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No
- External connectors
- 4 x USB 2.0
- External connectors
- 3 x USB 3.0
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 1 x USB 3.1
- External connectors
- 2 x USB4 Type-C
- External connectors
- 1 x Flash BIOS Button
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin wentylator OPT CPU
- Onboard connectors
- 4 x 4pin Chassis fan
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 4 x M.2
- Onboard connectors
- 2 x SATA III 6Gb/s
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB 3.0 header
- Onboard connectors
- 1 x USB C
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x S/PDIF Out header
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 3 x Addressable LED
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Form factor
- ATX
- Dimensions
- 30.5 cm x 24.4 cm
- Accessories included
- 2 x SATA 6Gb/s Cables M.2 Rubber Pack 2 x M.2 SSD Screw Packs Quick Start Guide
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- ASUS Exclusive SoftwareArmory Crate- Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)- Power SavingASUS DriverHubTurboV CoreASUS CPU-ZNorton 360 for Deluxe (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode- ASUS MyHotkey
- Designation
- CE+WEEE
PRIME X870-P
30 Items
Specific References
- EAN13
- 4711387723036
- MPN
- PRIME X870-P
