CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 2 x SATA3 6.0 Gb/s Connectors
Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x USB 3.2 Gen2 Type-C, supports DP 1.4 HBR3 and max. resolution up to 4K 60Hz (DP-alt mode supports DP1.4a)
Sound card
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Nahimic Audio
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/axe
Network interface
Bluetooth
Network interface
LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Killer E3100G Supports Killer LAN Software Wireless LAN: 802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports Dual-Band 2x2 with extended 6GHz band support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.2 Supports MU-MIMO
USB ports at back panel
8
USB ports on motherboard
5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
3
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No
External connectors
2 x SMA
External connectors
1 x HDMI
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
1 x S/PDIF
External connectors
4 x USB 2.0
External connectors
1 x USB 3.2 Gen 1 Type-A
External connectors
2 x USB 3.2 Gen 2 Type-A
External connectors
1 x USB 3.2 Gen 2 Type-C
External connectors
1 x Flash BIOS Button
Onboard connectors
1 x USB 3.2 Gen 1 Type-C
Onboard connectors
1 x Thermistor Cable Header
Onboard connectors
2 x Addressable LED
Onboard connectors
2 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
2 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin Chassis fan
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
2 x M.2
Onboard connectors
1 x Front panel audio header
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form factor
mini ITX
Dimensions
17 x 17 cm
Accessories included

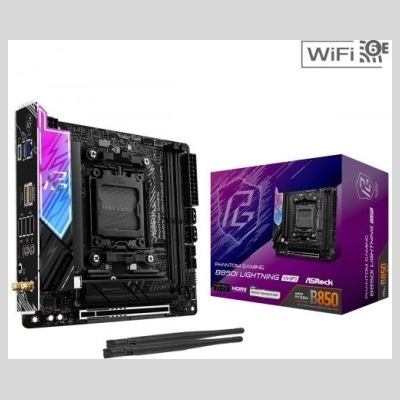

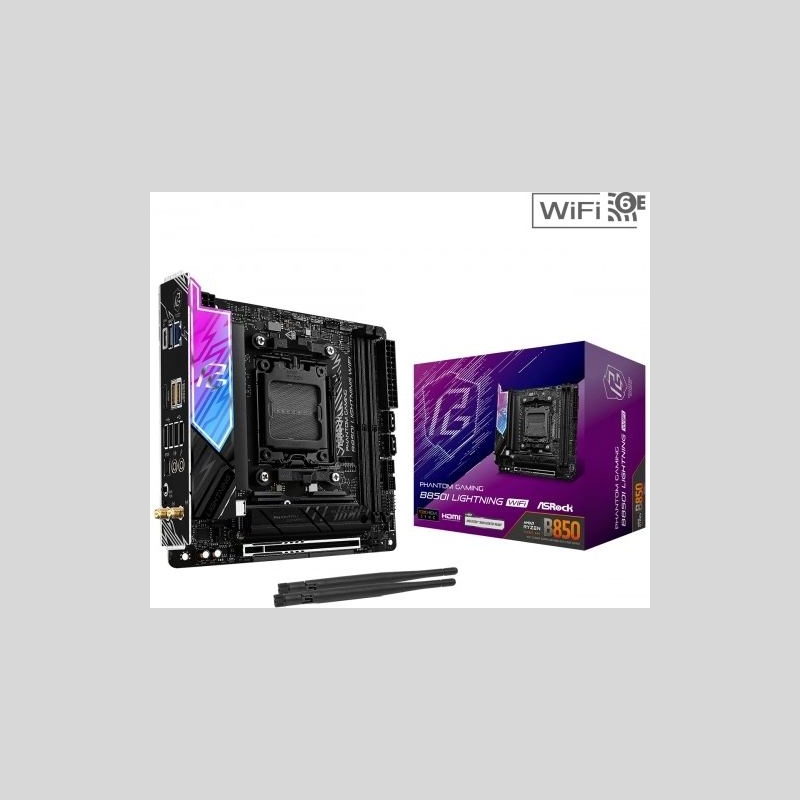

2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 2 x Screws for M.2 Sockets Thermistor Cable
Supported operating systems
Windows 10
Supported operating systems
Windows 11
Software
Software: ASRock Motherboard Utility (Phantom Gaming Tuning) Killer Control Center ASRock Polychrome SYNC UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash
