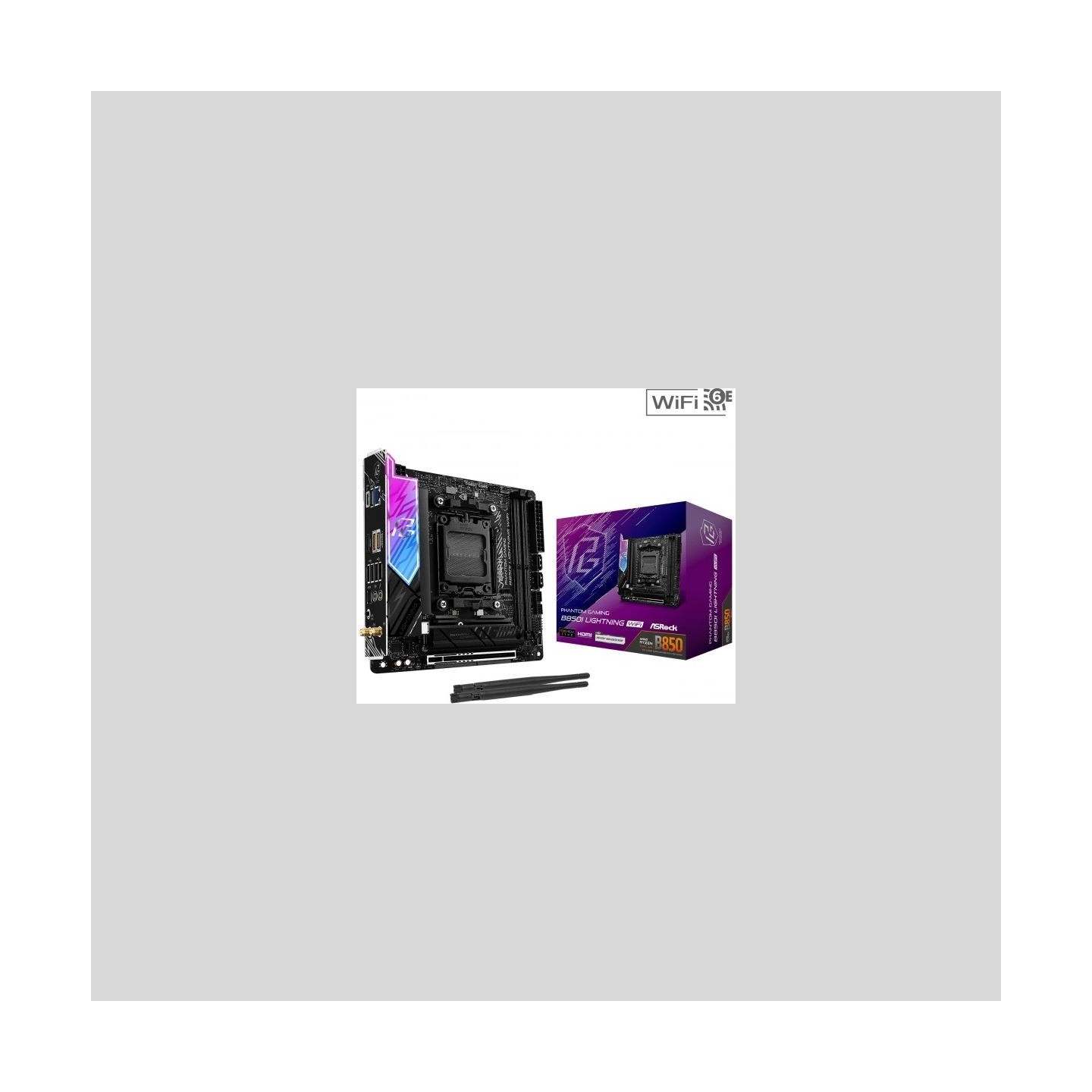

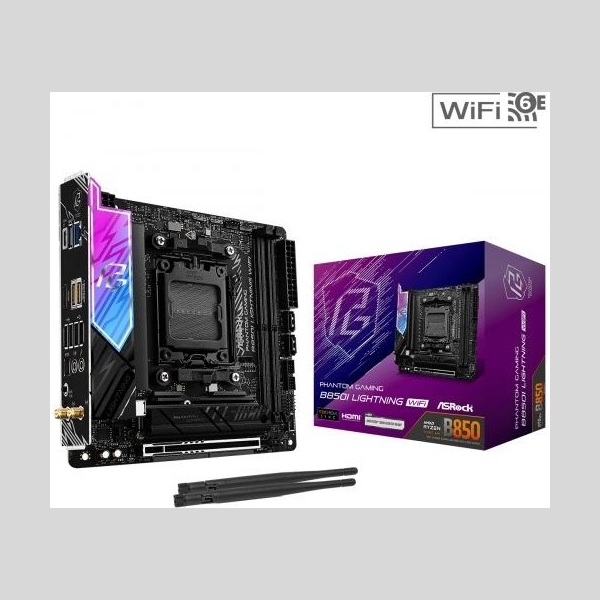

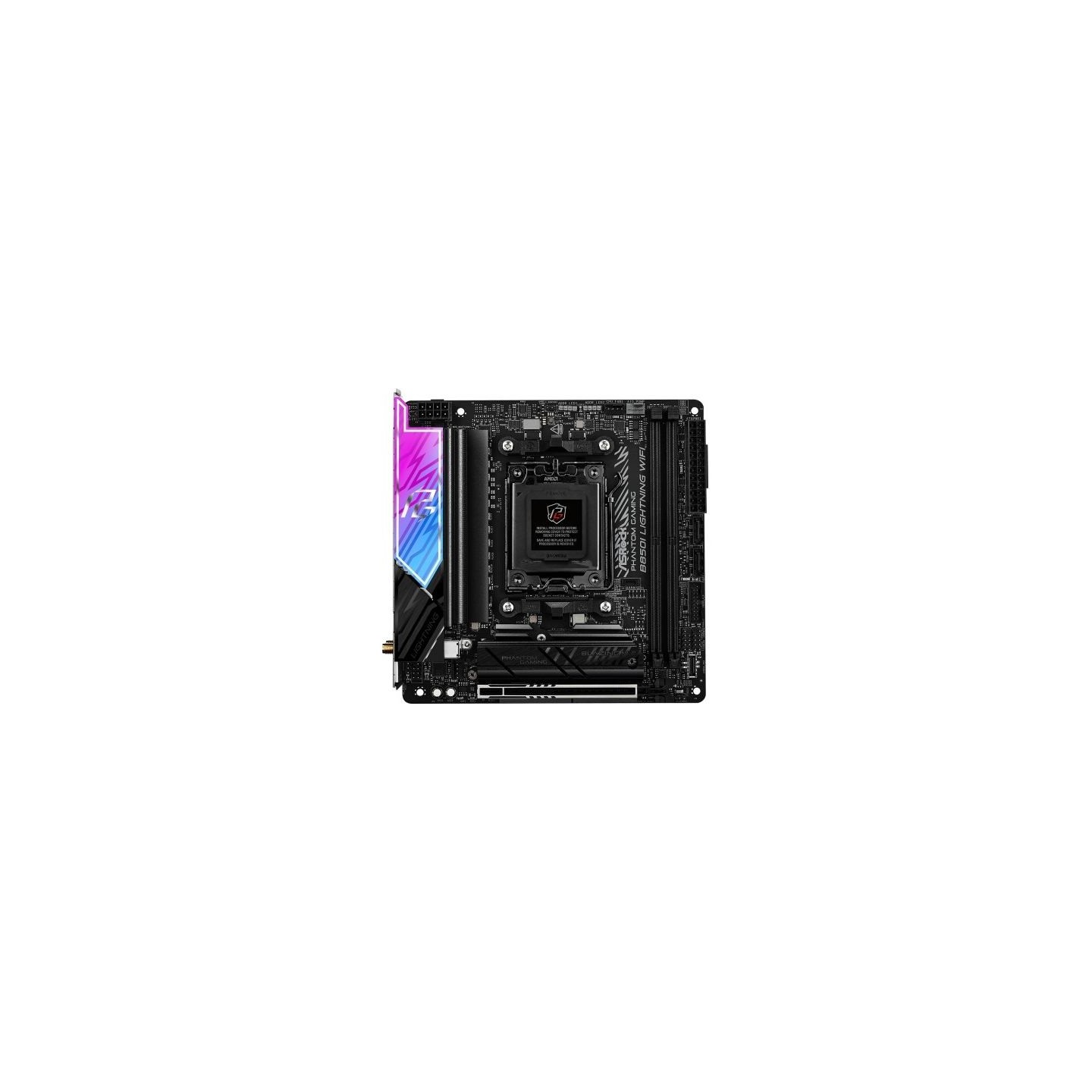

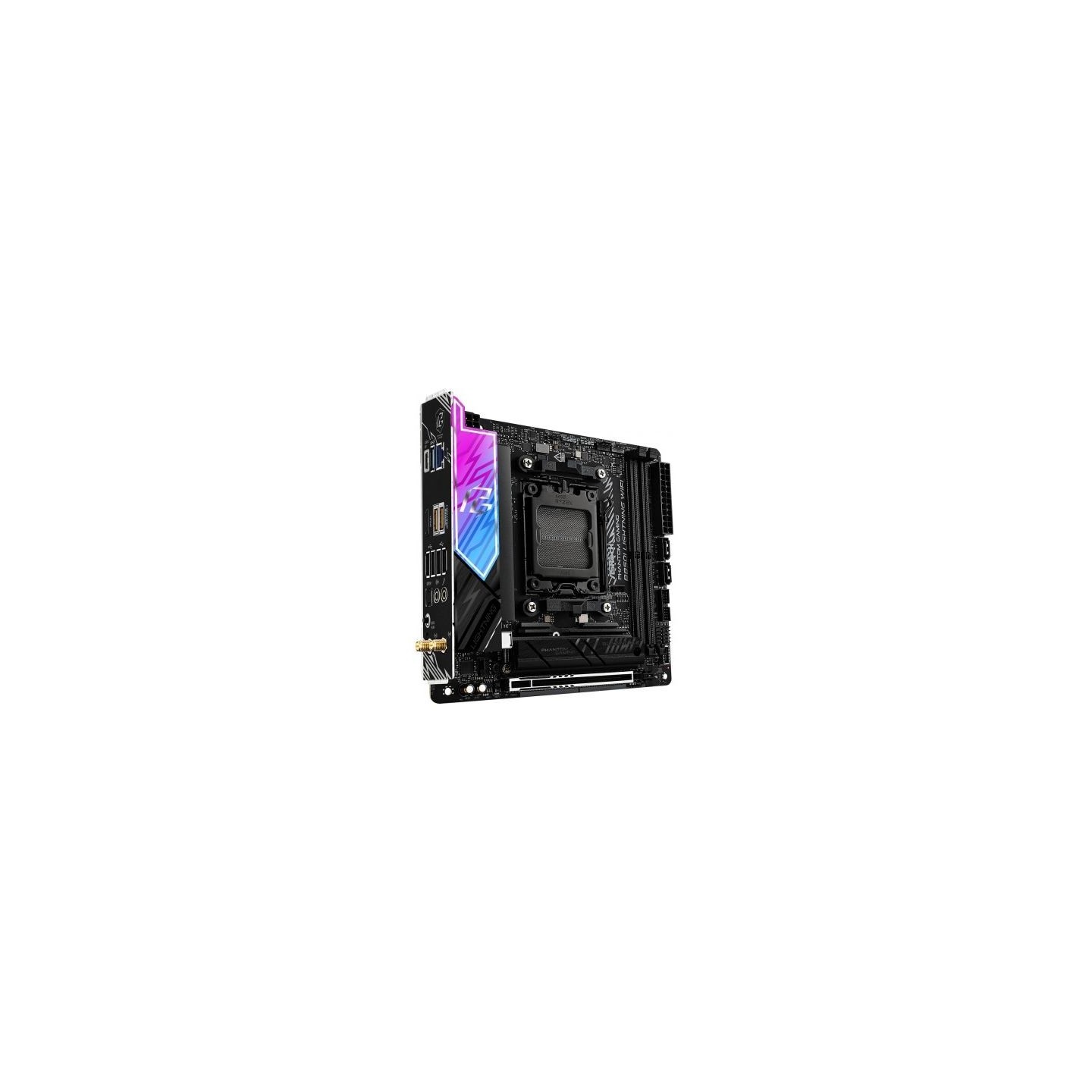

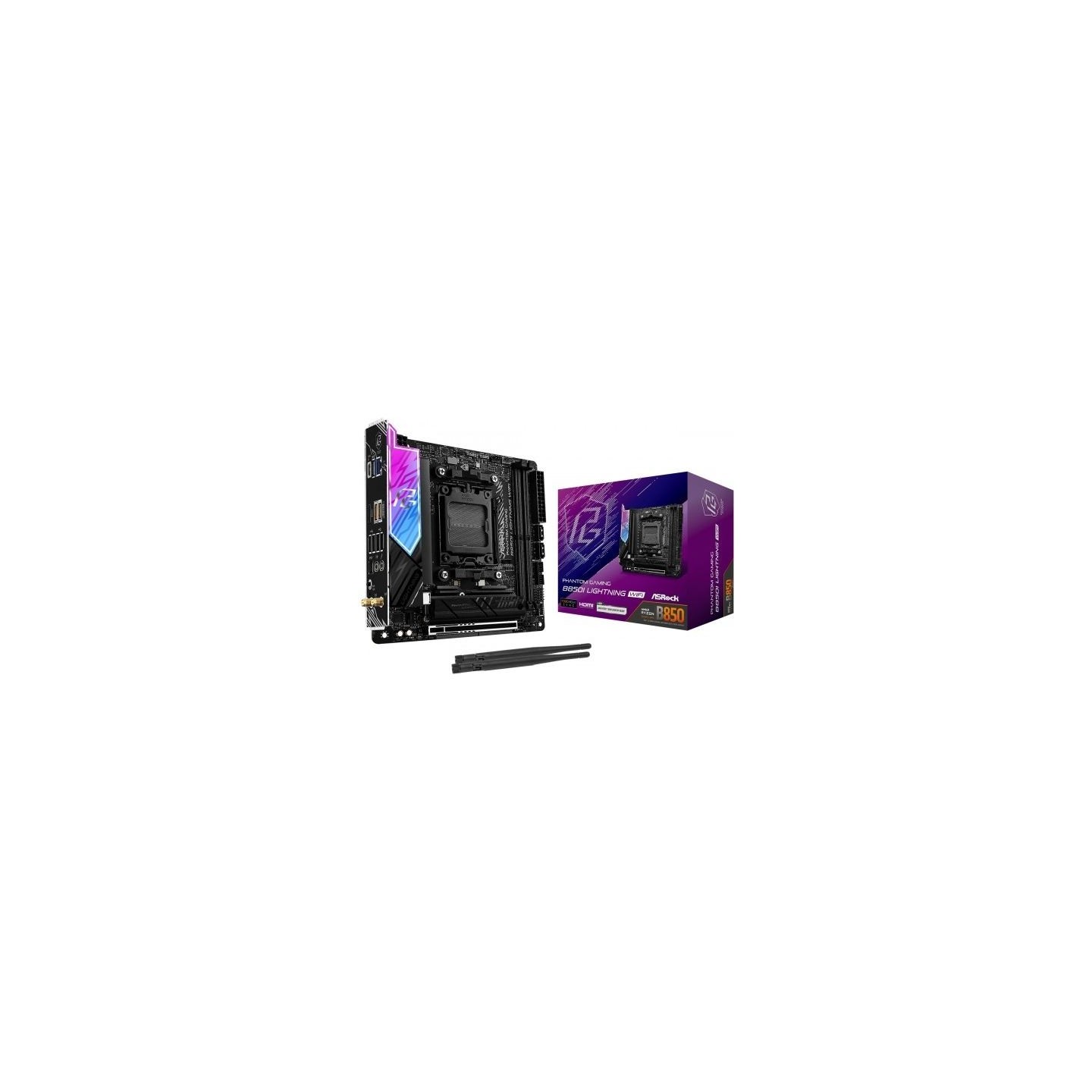

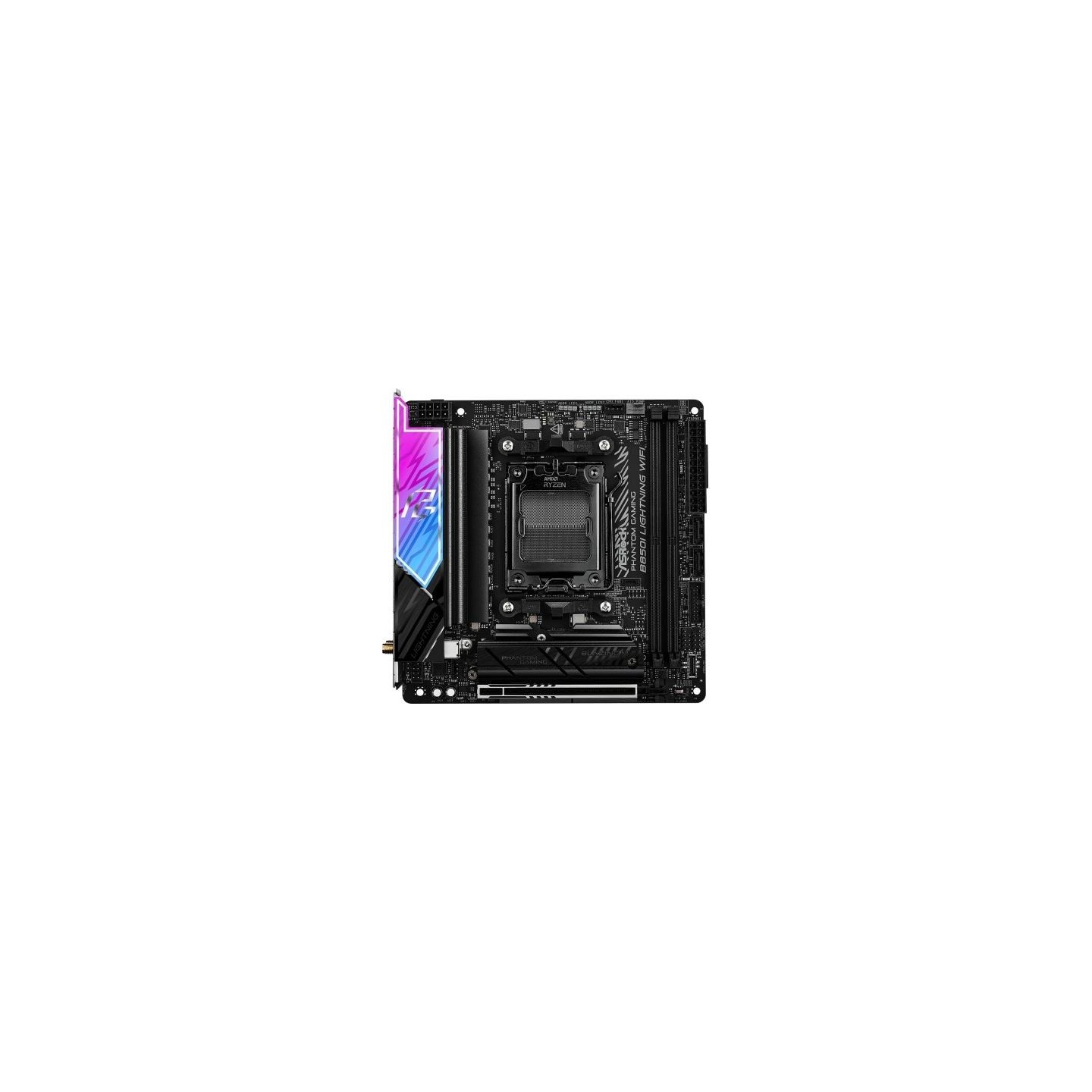

Asrock Motherboard B850I LIGHTNING WIFI AM5 2DDR5 ITX
Price:
€244.43
Tax included
Share on
- SKU
- KBASRAA8B850M00
- Barcode
- 4711581490130
- Model
- B850I LIGHTNING WIFI
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B850
- Memory type
- DDR5
- Number of DDR5 slots
- 2
- Memory bus frequency
- 8200 MHz
- Max memory size
- 128
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 1 x M.2
- Max. number of SATA devices
- 2
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 2 x SATA3 6.0 Gb/s Connectors
- Graphics
- Integrated AMD RDNA graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x USB 3.2 Gen2 Type-C, supports DP 1.4 HBR3 and max. resolution up to 4K 60Hz (DP-alt mode supports DP1.4a)
- Sound card
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Nahimic Audio
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/axe
- Network interface
- Bluetooth
- Network interface
- LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Killer E3100G Supports Killer LAN Software Wireless LAN: 802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports Dual-Band 2x2 with extended 6GHz band support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.2 Supports MU-MIMO
- USB ports at back panel
- 8
- USB ports on motherboard
- 5
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 4
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 3
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No
- External connectors
- 2 x SMA
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 1 x S/PDIF
- External connectors
- 4 x USB 2.0
- External connectors
- 1 x USB 3.2 Gen 1 Type-A
- External connectors
- 2 x USB 3.2 Gen 2 Type-A
- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- External connectors
- 1 x Flash BIOS Button
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 1 x Thermistor Cable Header
- Onboard connectors
- 2 x Addressable LED
- Onboard connectors
- 2 x SATA III 6Gb/s
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 2 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin Chassis fan
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 1 x Front panel audio header
- BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Form factor
- mini ITX
- Dimensions
- 17 x 17 cm
- Accessories included
- 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 2 x Screws for M.2 Sockets Thermistor Cable
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- Software: ASRock Motherboard Utility (Phantom Gaming Tuning) Killer Control Center ASRock Polychrome SYNC UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash
- Designation
- CE+WEEE
