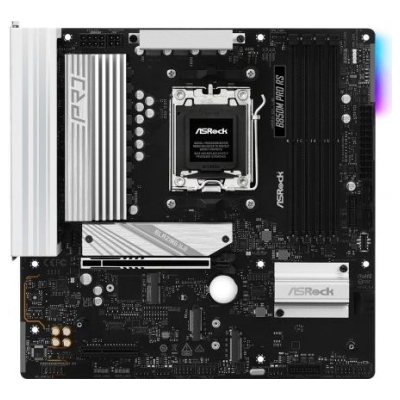

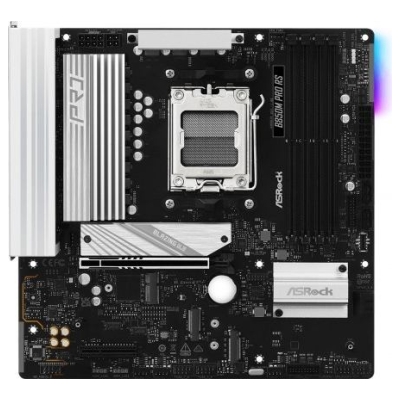

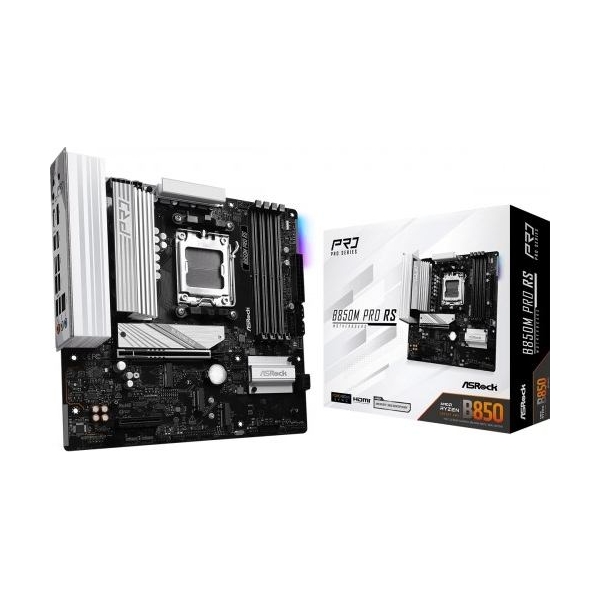

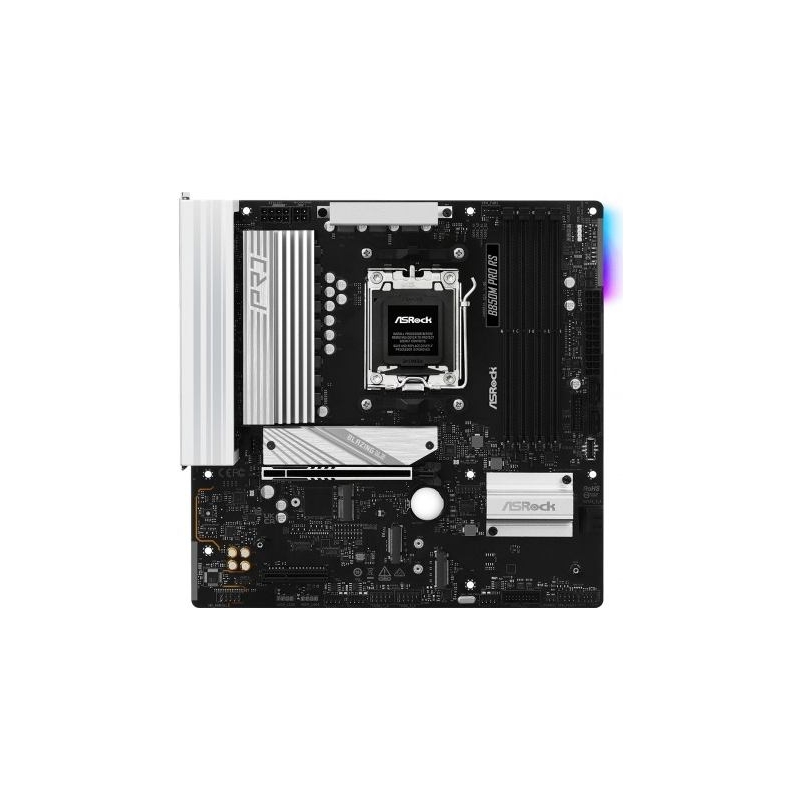

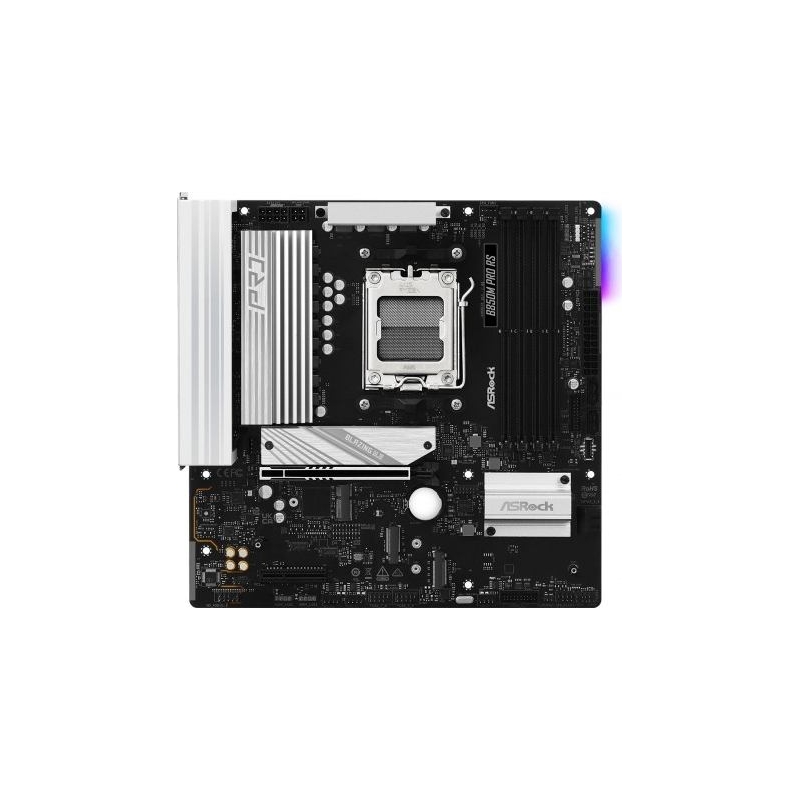

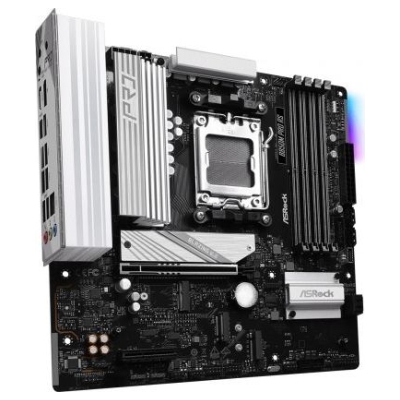

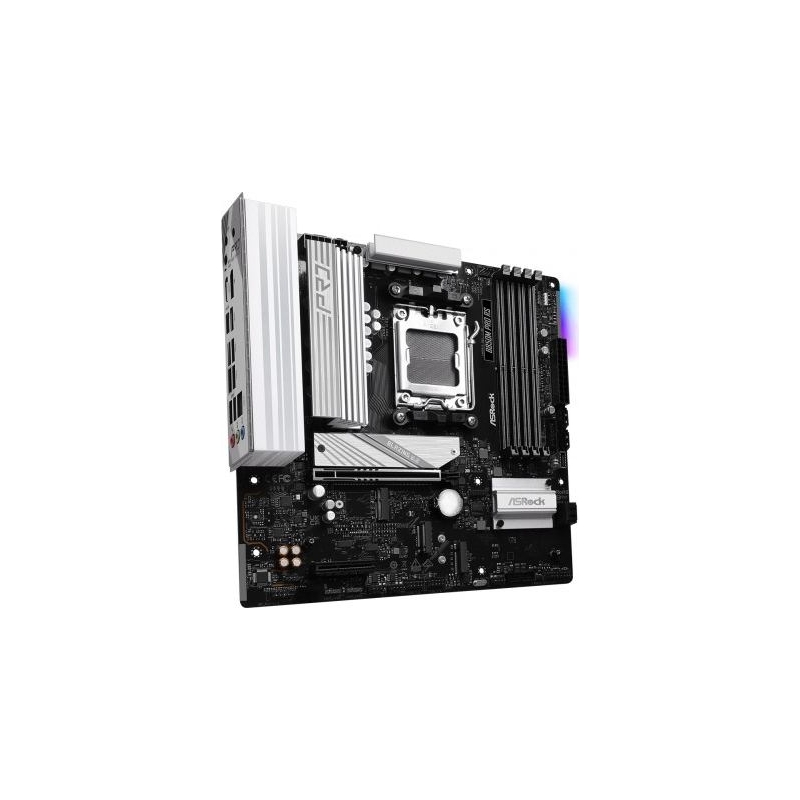

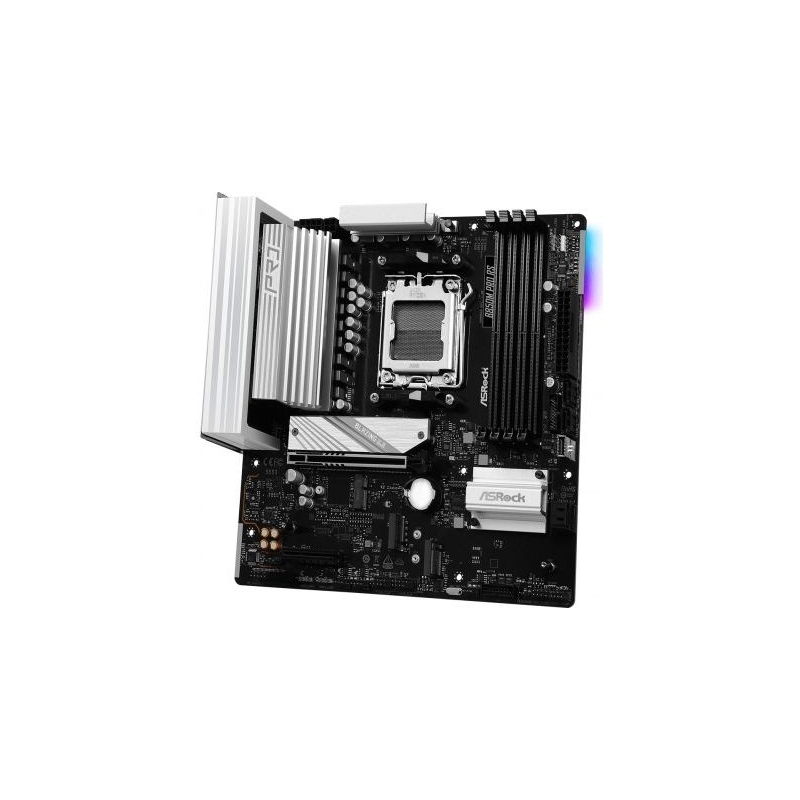

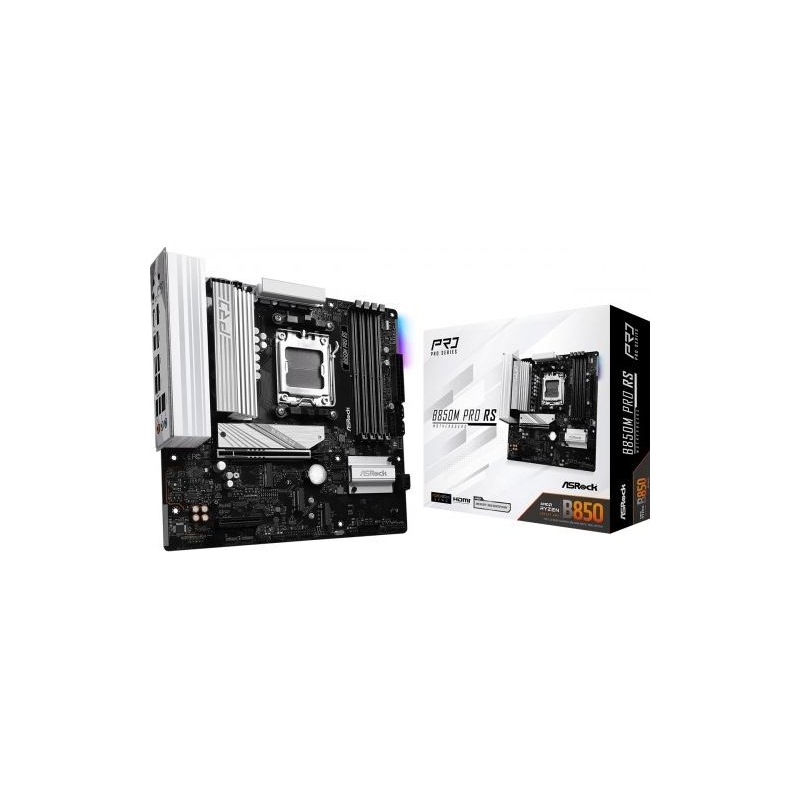

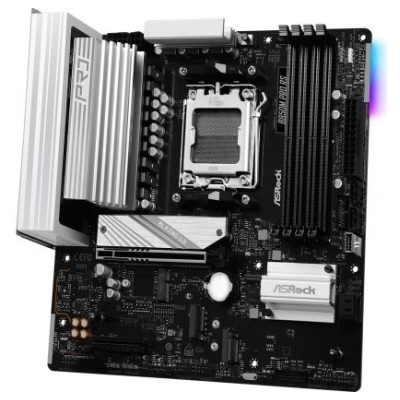

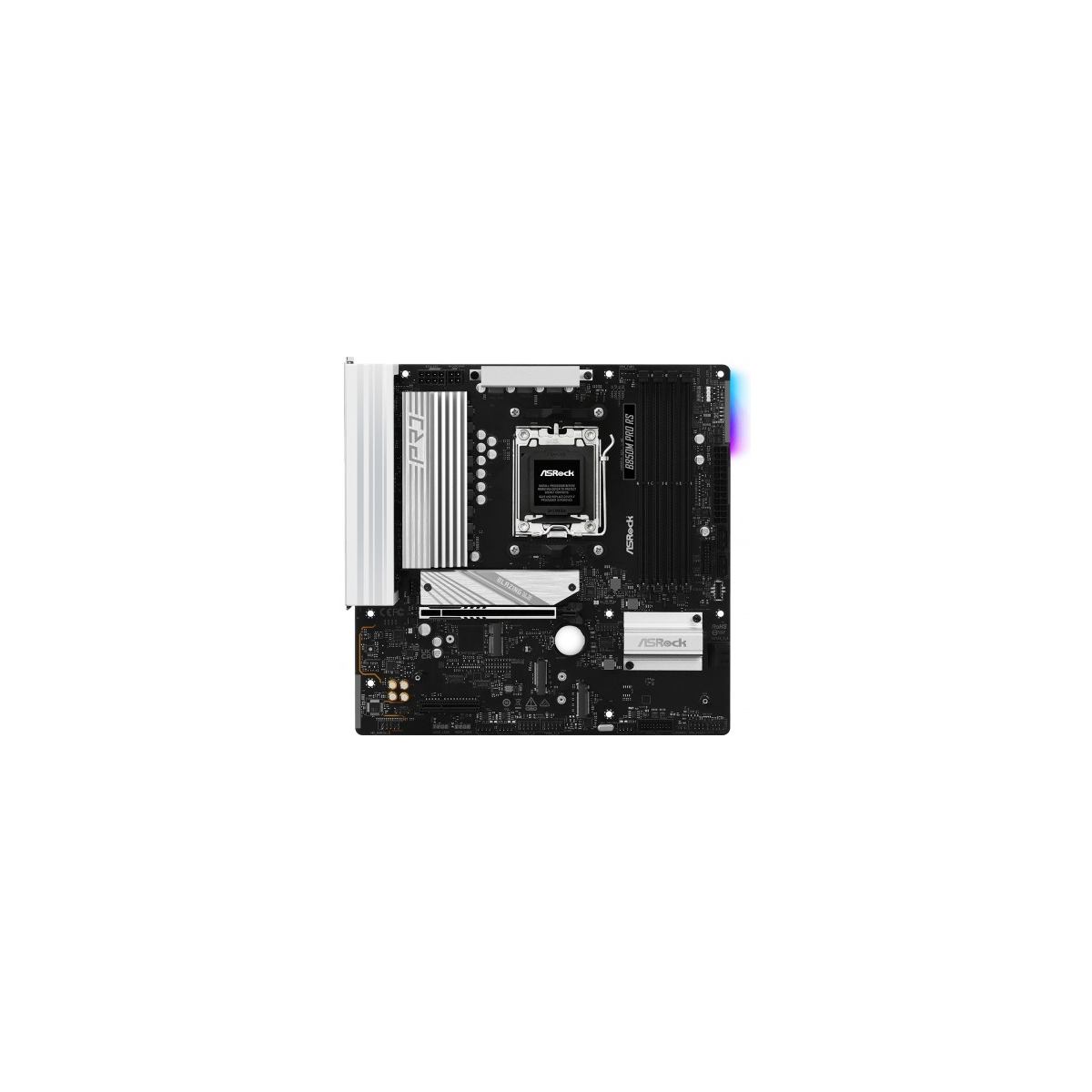

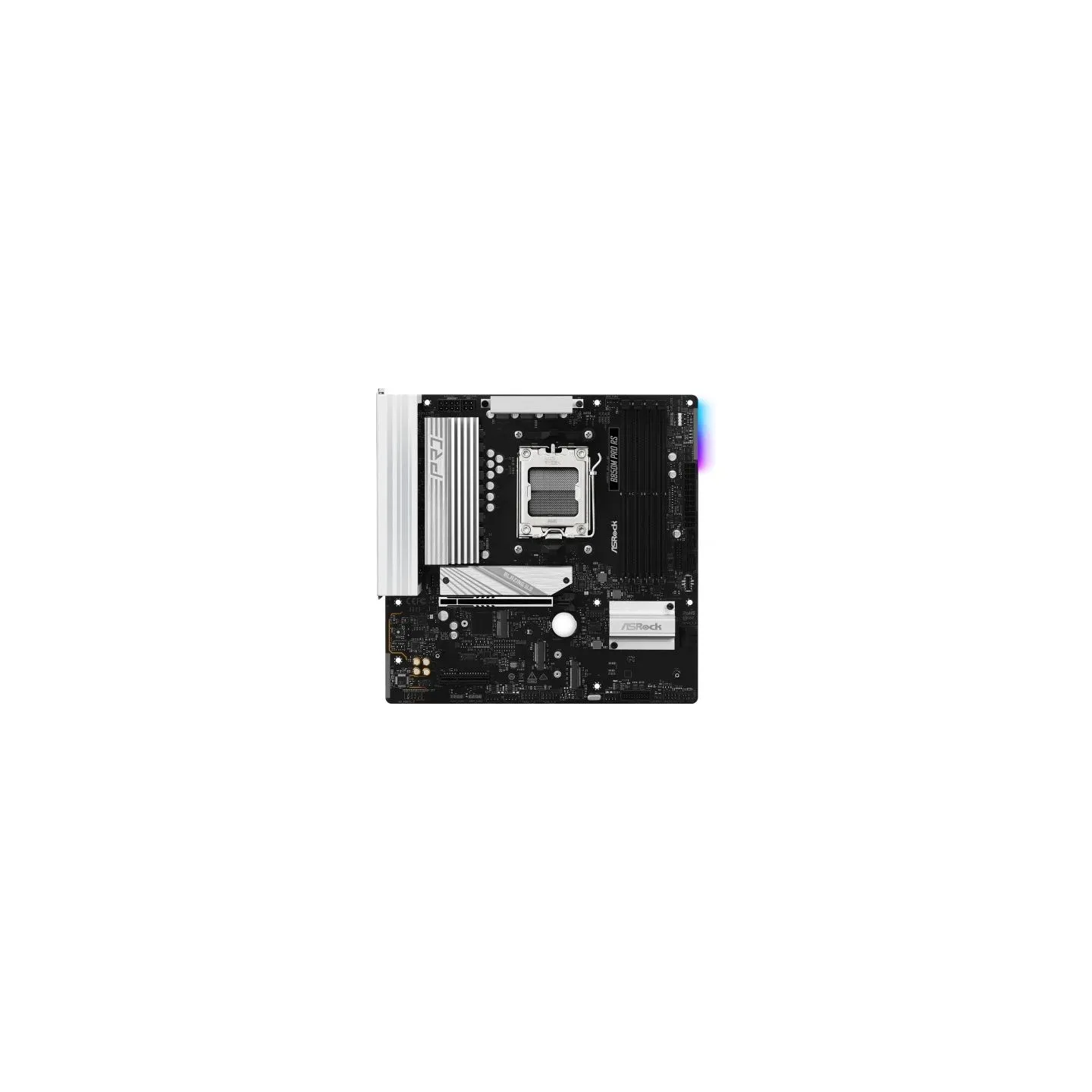

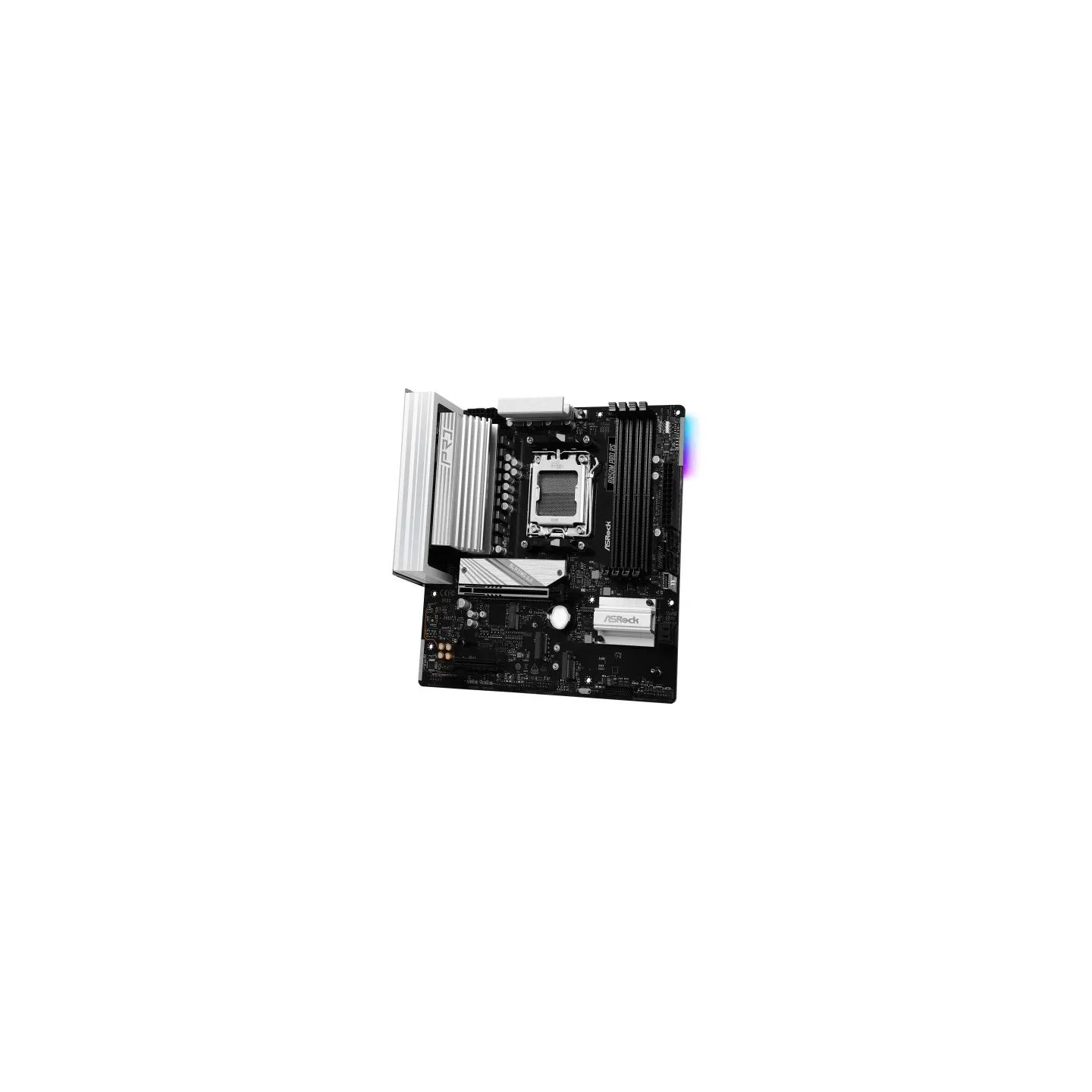

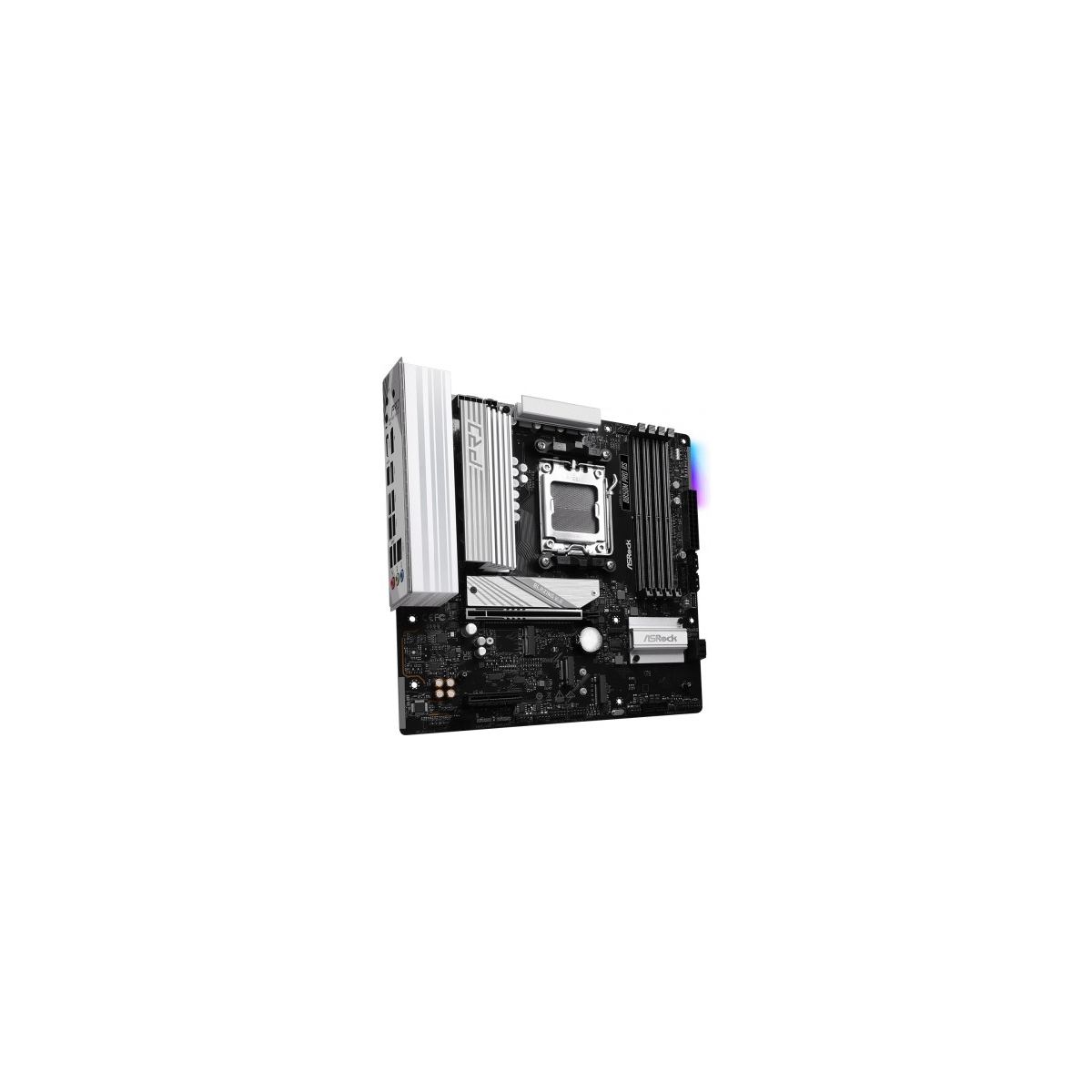

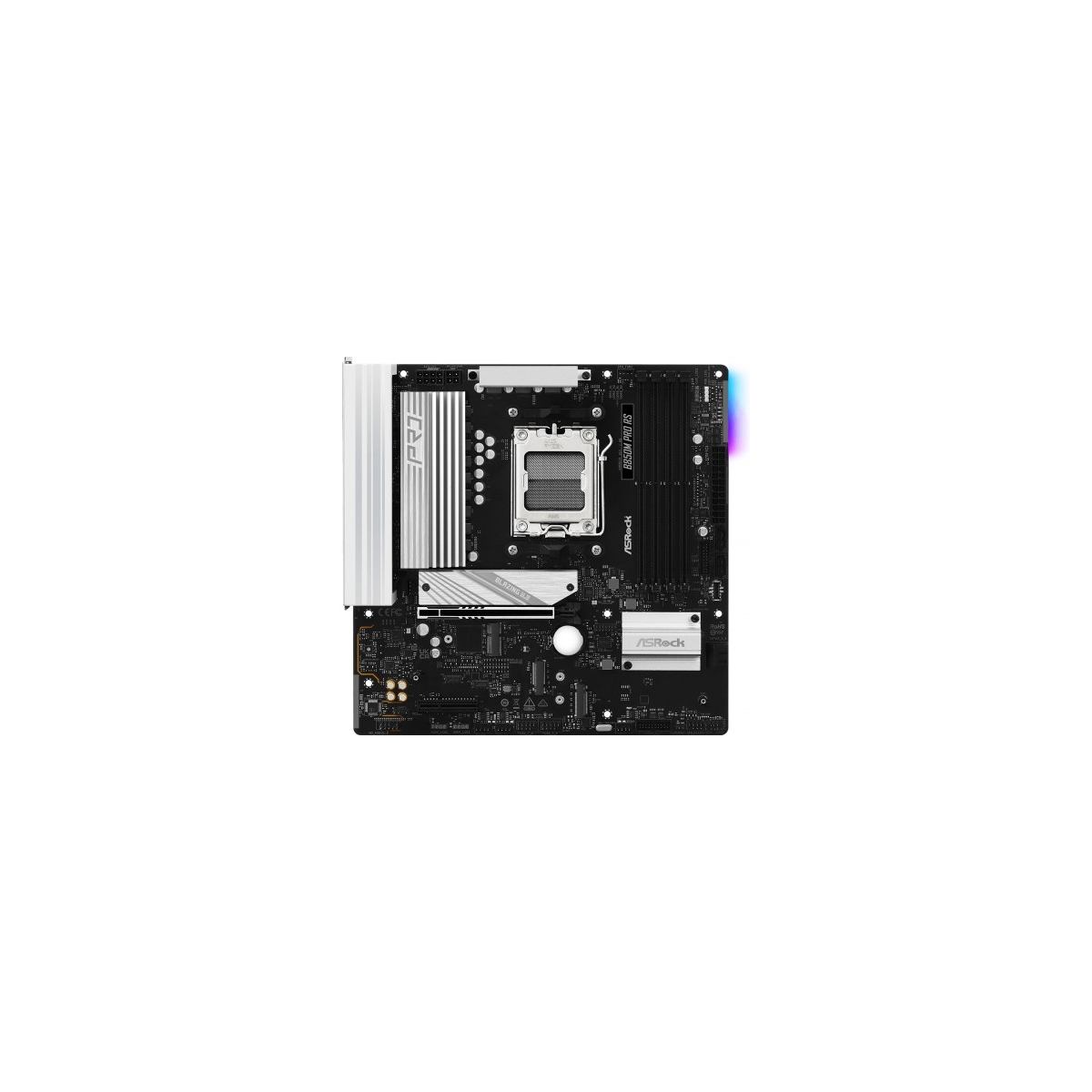

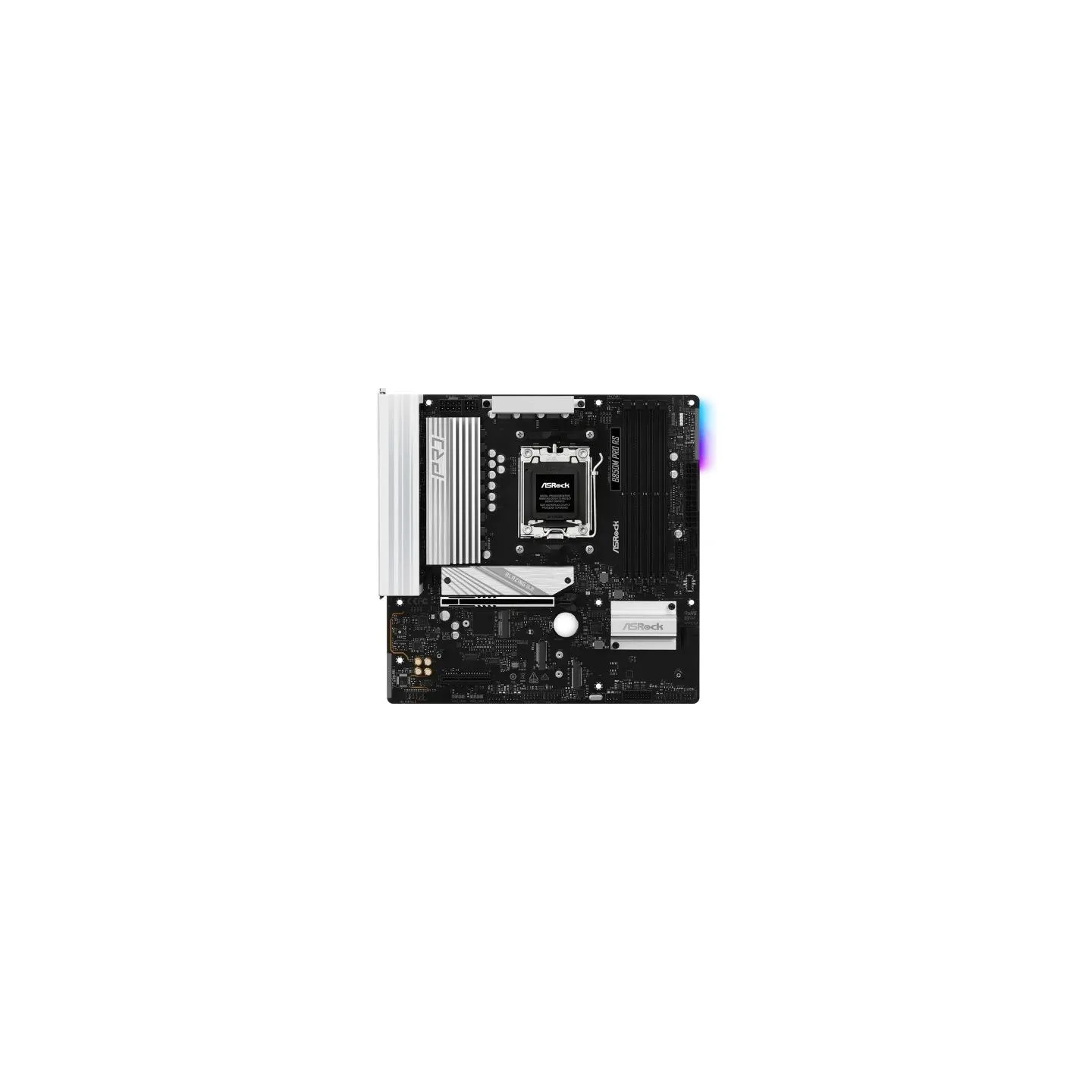

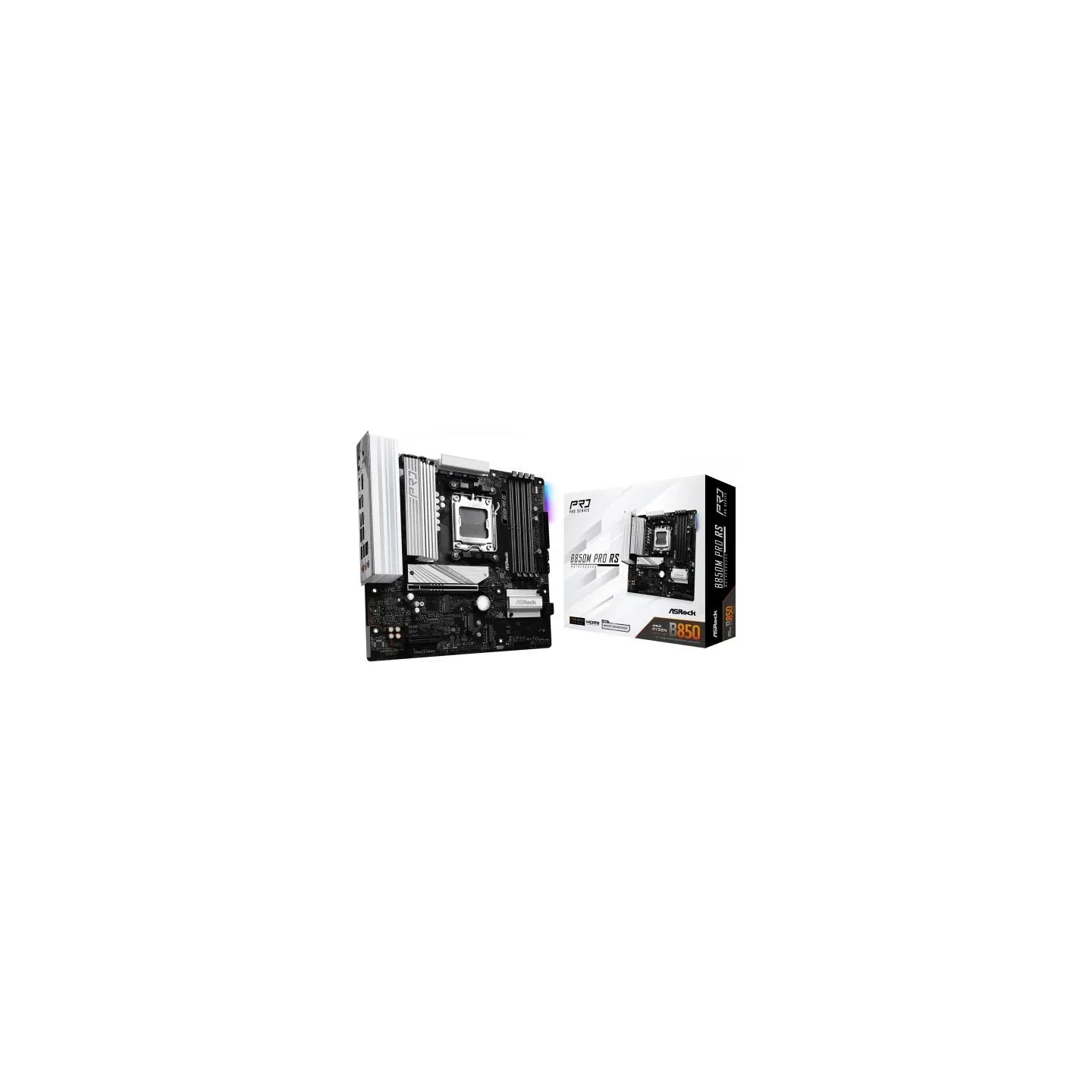

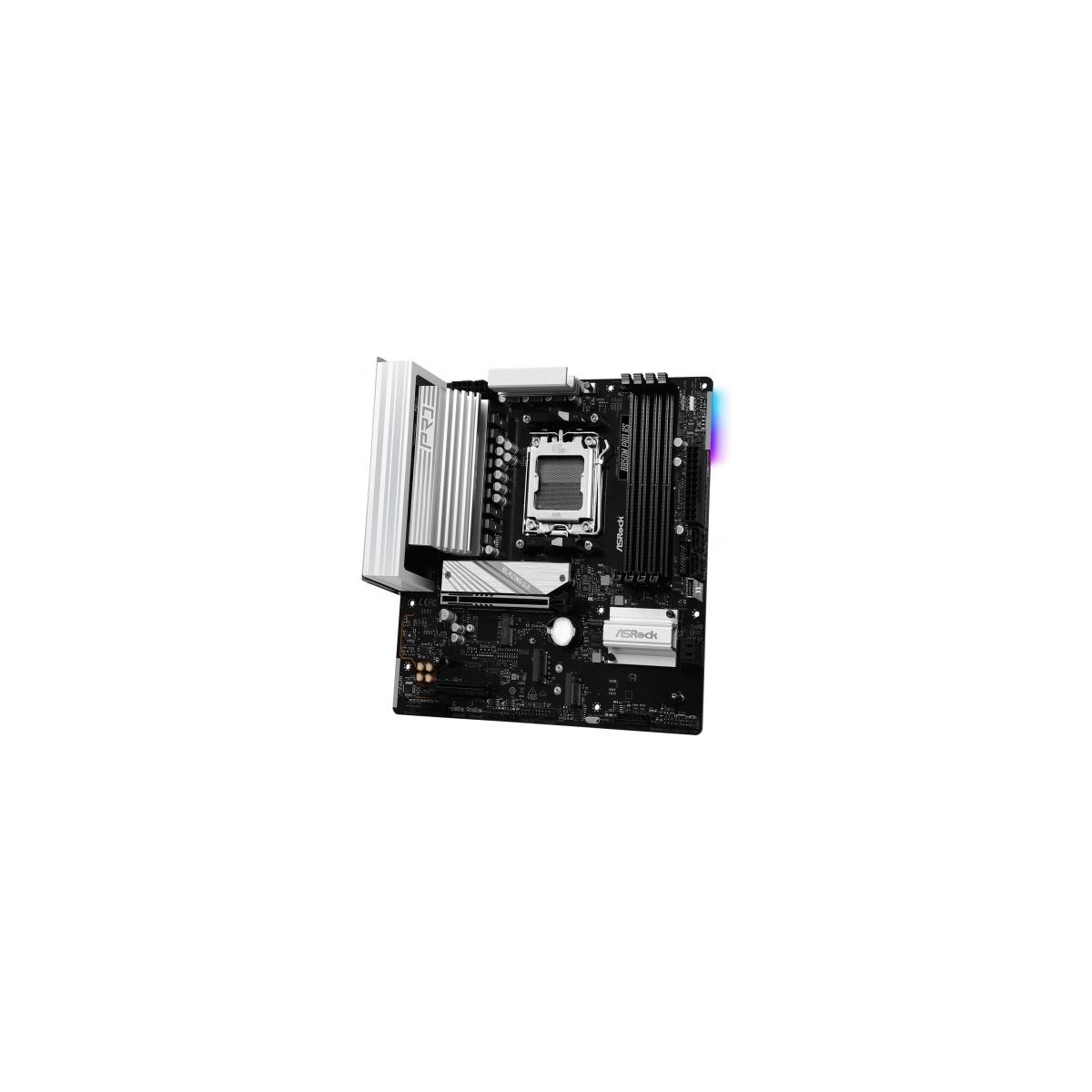

Asrock Motherboard B850M PRO RS AM5 4DDR5 mATX
- SKU
- KBASRAA8B850U03
- Barcode
- 4711581490345
- Model
- B850M PRO RS
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B850
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 8000 MHz
- Max memory size
- 256
- Expansion slots
- 1 x M.2
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 1 x PCIe 4.0 x 4
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors
- Sound card
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- USB ports at back panel
- 8
- USB ports on motherboard
- 9
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 7
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 2
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No
- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- External connectors
- 1 x USB 3.2 Gen 2 Type-A
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 4 x USB 2.0
- External connectors
- 2 x USB 3.2 Gen 1 Type-A
- External connectors
- 2 x SMA
- External connectors
- 1 x Flash BIOS Button
- Onboard connectors
- 1 x Power LED and Speaker Header
- Onboard connectors
- 2 x 4pin wentylator CPU
- Onboard connectors
- 3 x 4pin Chassis fan
- Onboard connectors
- 1 x 4pin 12V power
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 3 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 4 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 1 x Front panel audio header
- Form factor
- micro ATX
- Dimensions
- 24.4 x 24.4 cm
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Designation
- CE+WEEE
B850M PRO RS
17 Items
Specific References
- EAN13
- 4711581490345
- MPN
- B850M PRO RS
