Total supports 2 M.2 and 4 SATA 6Gb/s ports: AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports *AMD RAIDXpert2 technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Graphics
1 DisplayPort* 1 HDMI port** * Supports up to 8K @ 60Hz, compliant with DisplayPort 1.4. ** Supports 4K@60Hz according to HDMI 2.1. *** Support for VGA resolution depends on the resolution of the CPU or graphics card.
Sound card
Realtek 7.1 Surround Sound High Definition Audio CODEC: Supports: plug-in detection, multi-streaming, changing plug-in tasks on the front panel Supports playback up to 24-bit/192kHz Audio Features: Sound shielding High-quality audio capacitors Dedicated audio PCB layers
Network interface
Bluetooth
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Ethernet: Realtek 2.5Gb ethernet TUF LANGuard Wireless communication: WiFi 6 2x2 WiFi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
USB ports at back panel
8
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
3
FireWire (IEEE 1394)
No
COM connector / port
Yes
LPT connector / port
No

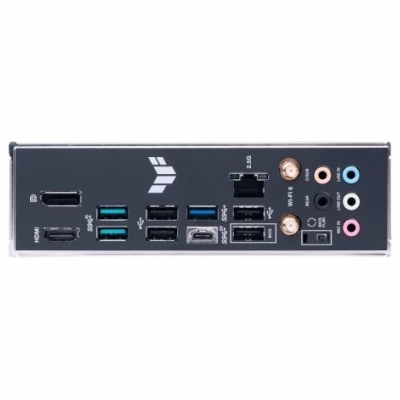

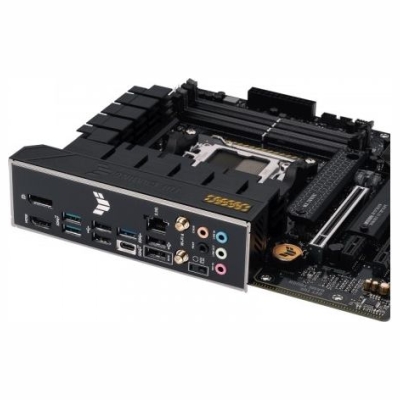

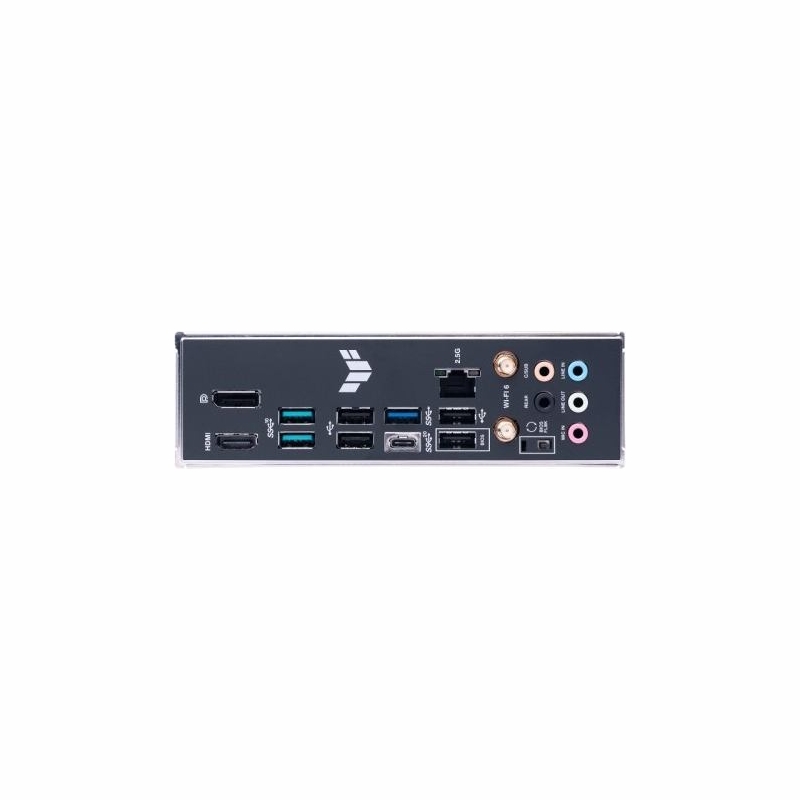

External connectors
1 x RJ-45
External connectors
1 x MIC
External connectors
1 x DisplayPort
External connectors
1 x Flash BIOS Button
External connectors
2 x USB 3.1
External connectors
1 x Line Out
External connectors
1 x HDMI
External connectors
1 x Line In
External connectors
1 x Central Speaker / Subwoofer
External connectors
2 x SMA
External connectors
4 x USB 2.0
External connectors
1 x Rear Speaker
External connectors
1 x USB 3.0
External connectors
1 x USB 3.1 Type-C
Onboard connectors
2 x M.2
Onboard connectors
1 x USB C
Onboard connectors
4 x USB 2.0/1.1
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
1 x Serial port header
Onboard connectors
3 x Addressable LED
Onboard connectors
1 x 4pin wentylator OPT CPU
Onboard connectors
3 x 4pin Chassis fan
Onboard connectors
1 x 4pin 12V power
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
1 x Front panel audio header
Onboard connectors
2 x USB 3.0 header
Onboard connectors
1 x Thunderbolt header
Onboard connectors
1 x Clear CMOS button
Onboard connectors
1 x 4-pin water-pump-fan
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
micro ATX
Dimensions
24.4 x 24.4 cm
Supported operating systems
Windows 11
Supported operating systems
Windows 10
Software
TUF GAMING CPU-Z: DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR ASUS Exclusive Software Armoury Crate: Aura Creator Aura Sync Fan Xpert 2+ Power Saving Two-Way AI Noise Cancellation AI Suite 3: TurboV EVO DIGI+ VRM PC Cleaner UEFI BIOS: ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode
