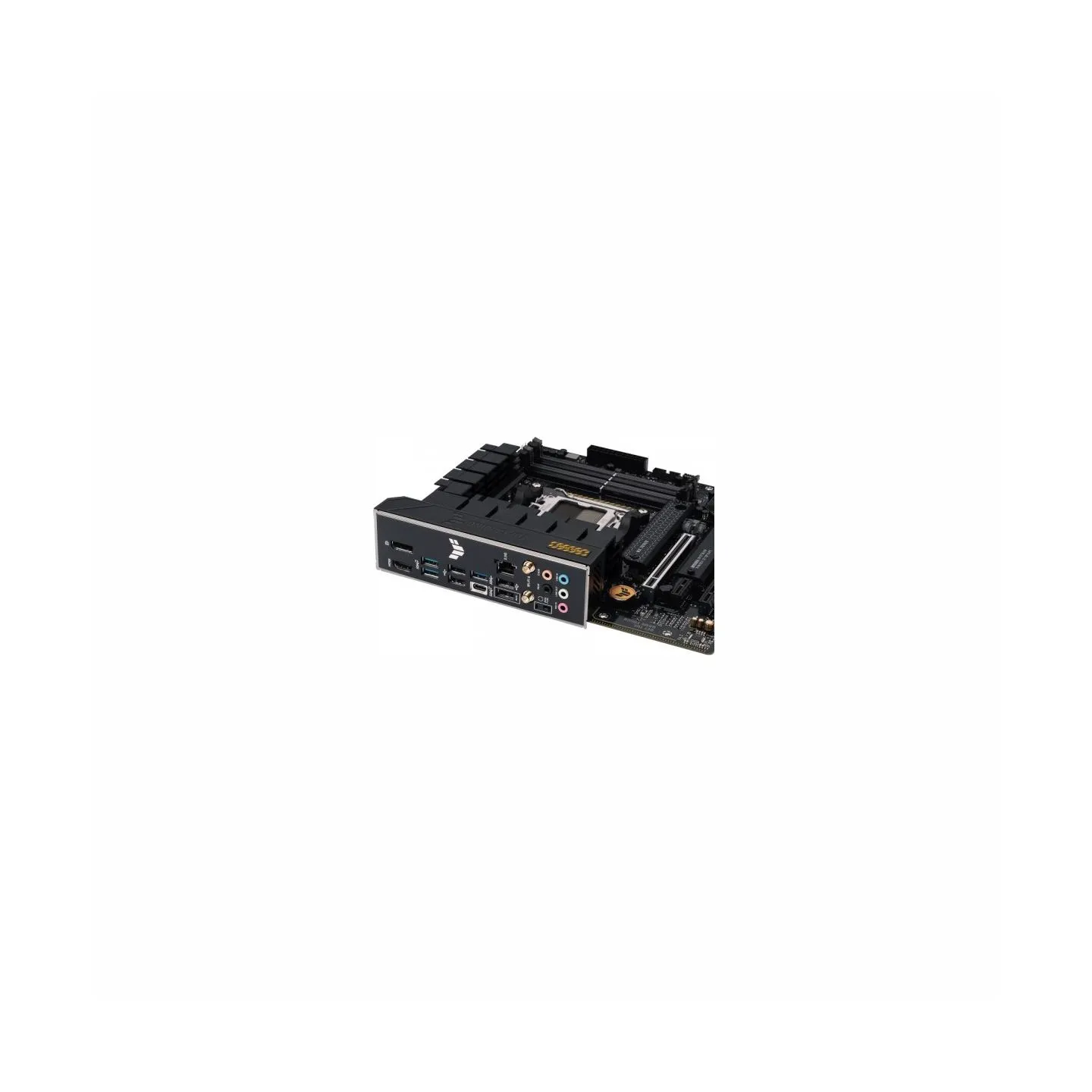

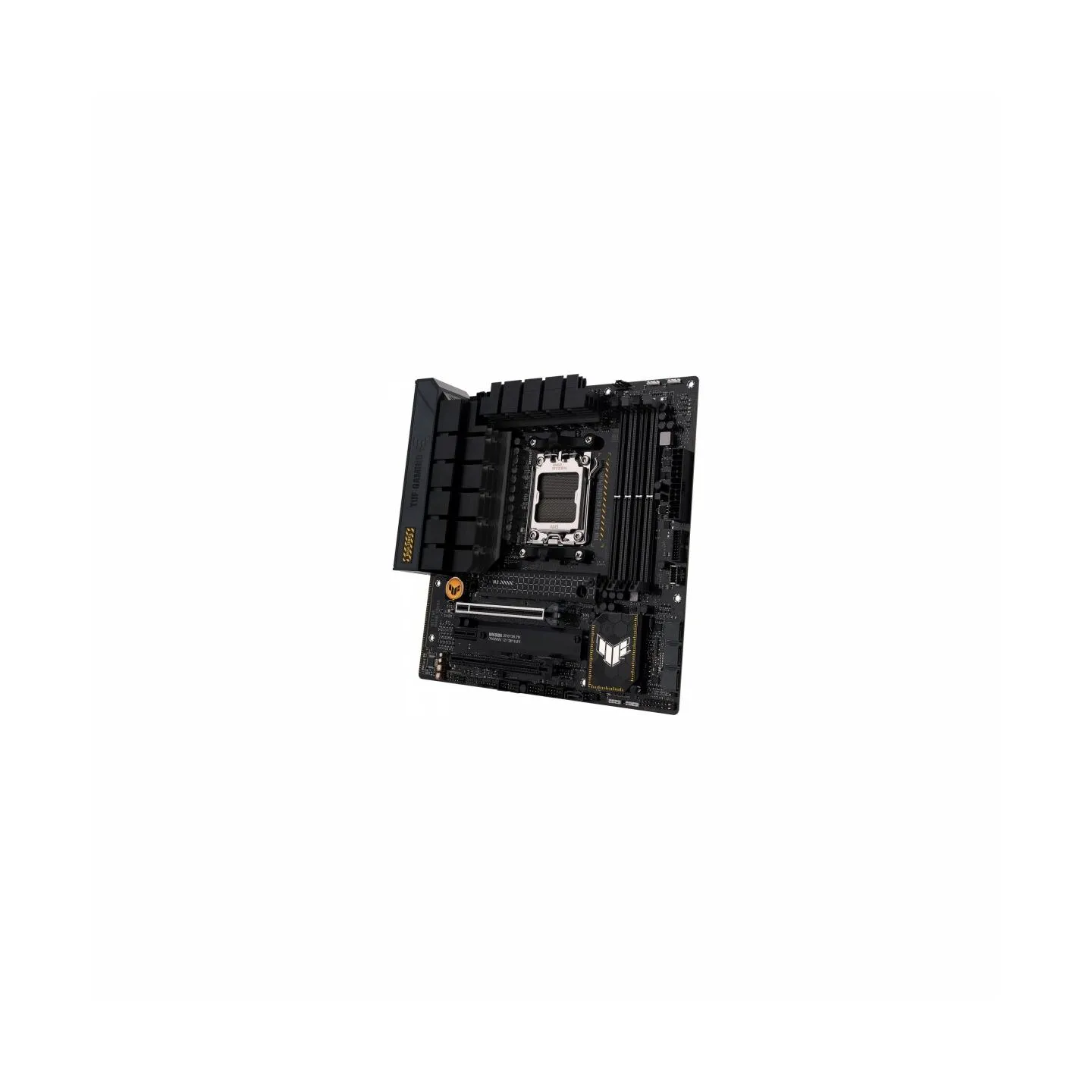

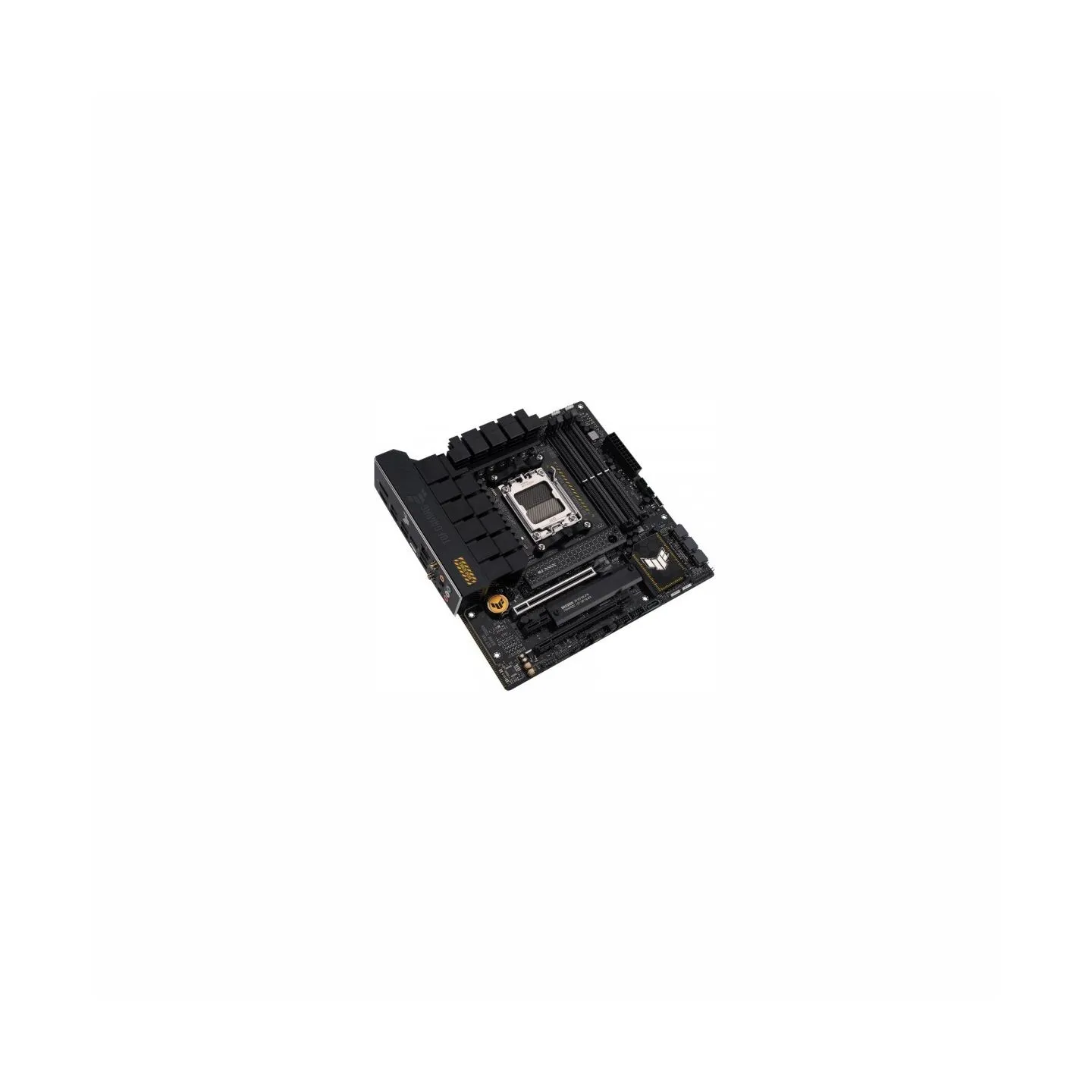

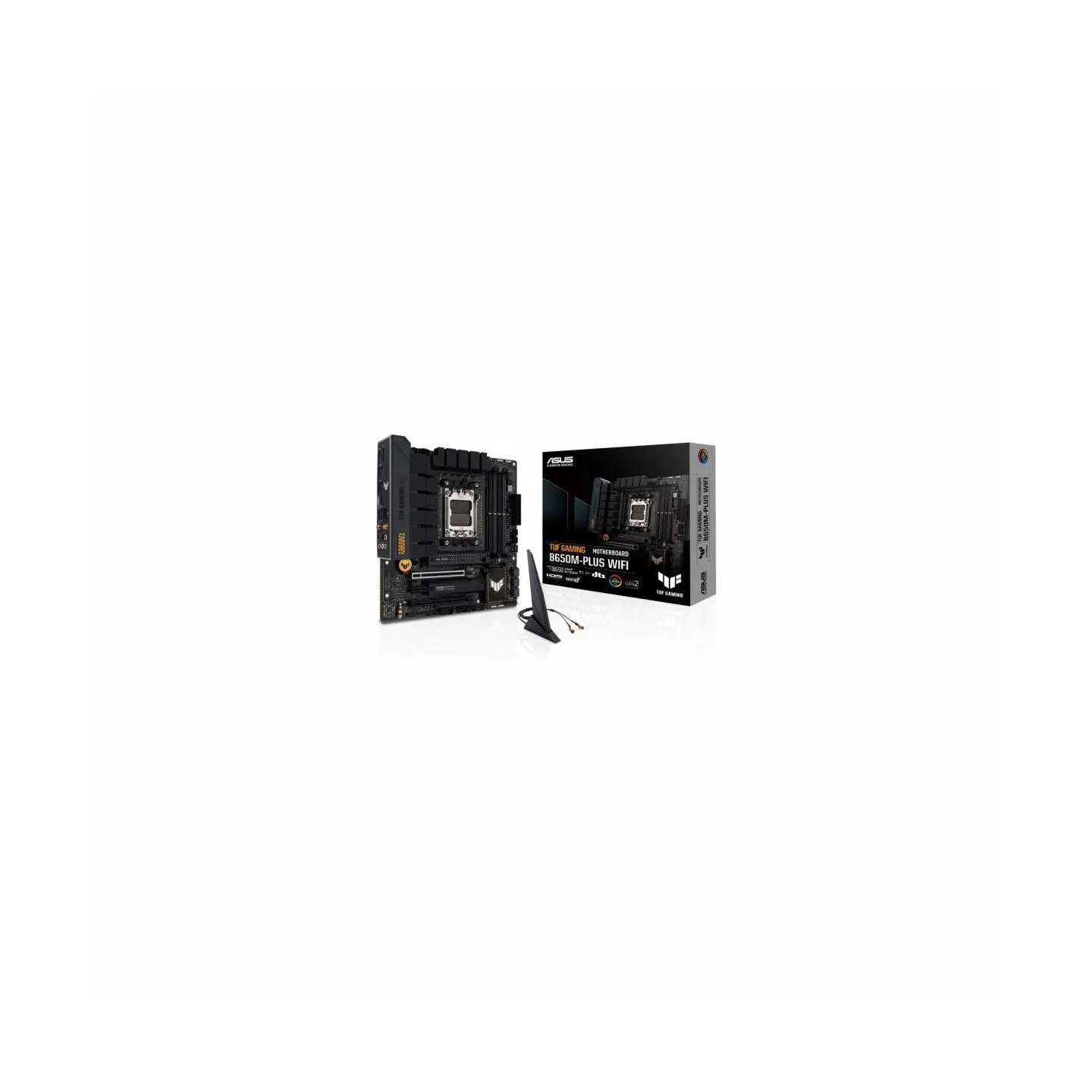

Asus Motherboard TUF GAMING B650M-PLUS WIFI AM5 4DDR5 HDMI mATX
Price:
€192.50
Tax included
Share on
- SKU
- KBASUAA8B650U01
- Barcode
- 4711081912118
- Model
- TUF GAMING B650M-PLUS WIFI
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B650
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 6000 MHz
- Memory bus frequency
- 5200 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 6200 MHz
- Memory bus frequency
- 5000 MHz
- Memory bus frequency
- 6400 MHz
- Memory bus frequency
- 5400 MHz
- Memory bus frequency
- 5800 MHz
- Max memory size
- 128
- Expansion slots
- 1 x PCIe 4.0 x 1
- Expansion slots
- 2 x PCIe 4.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- Total supports 2 M.2 and 4 SATA 6Gb/s ports: AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports *AMD RAIDXpert2 technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
- Graphics
- 1 DisplayPort* 1 HDMI port** * Supports up to 8K @ 60Hz, compliant with DisplayPort 1.4. ** Supports 4K@60Hz according to HDMI 2.1. *** Support for VGA resolution depends on the resolution of the CPU or graphics card.
- Sound card
- Realtek 7.1 Surround Sound High Definition Audio CODEC: Supports: plug-in detection, multi-streaming, changing plug-in tasks on the front panel Supports playback up to 24-bit/192kHz Audio Features: Sound shielding High-quality audio capacitors Dedicated audio PCB layers
- Network interface
- Bluetooth
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Ethernet: Realtek 2.5Gb ethernet TUF LANGuard Wireless communication: WiFi 6 2x2 WiFi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
- USB ports at back panel
- 8
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 4
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 3
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No
- External connectors
- 1 x RJ-45
- External connectors
- 1 x MIC
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x Flash BIOS Button
- External connectors
- 2 x USB 3.1
- External connectors
- 1 x Line Out
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Central Speaker / Subwoofer
- External connectors
- 2 x SMA
- External connectors
- 4 x USB 2.0
- External connectors
- 1 x Rear Speaker
- External connectors
- 1 x USB 3.0
- External connectors
- 1 x USB 3.1 Type-C
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 1 x USB C
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 1 x 4pin wentylator OPT CPU
- Onboard connectors
- 3 x 4pin Chassis fan
- Onboard connectors
- 1 x 4pin 12V power
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 2 x USB 3.0 header
- Onboard connectors
- 1 x Thunderbolt header
- Onboard connectors
- 1 x Clear CMOS button
- Onboard connectors
- 1 x 4-pin water-pump-fan
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Form factor
- micro ATX
- Dimensions
- 24.4 x 24.4 cm
- Supported operating systems
- Windows 11
- Supported operating systems
- Windows 10
- Software
- TUF GAMING CPU-Z: DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR ASUS Exclusive Software Armoury Crate: Aura Creator Aura Sync Fan Xpert 2+ Power Saving Two-Way AI Noise Cancellation AI Suite 3: TurboV EVO DIGI+ VRM PC Cleaner UEFI BIOS: ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode
- Designation
- CE+WEEE
