1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 2x SATA 6G M2_1 slot Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors) RAID Supports RAID 0 and RAID 1 for SATA storage devices
Graphics
1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Sound card
Realtek ALC897 Codec 7.1-Channel High Definition Audio
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Realtek RTL8125 2.5G LAN
USB ports at back panel
6
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
7
FireWire (IEEE 1394)
No
COM connector / port
Yes
LPT connector / port
No

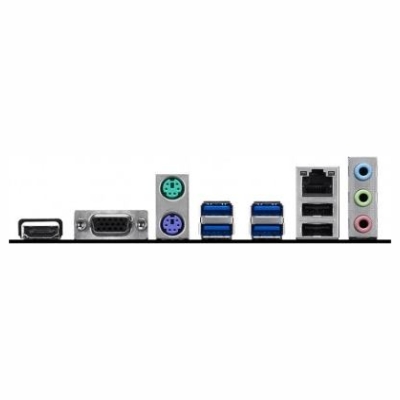

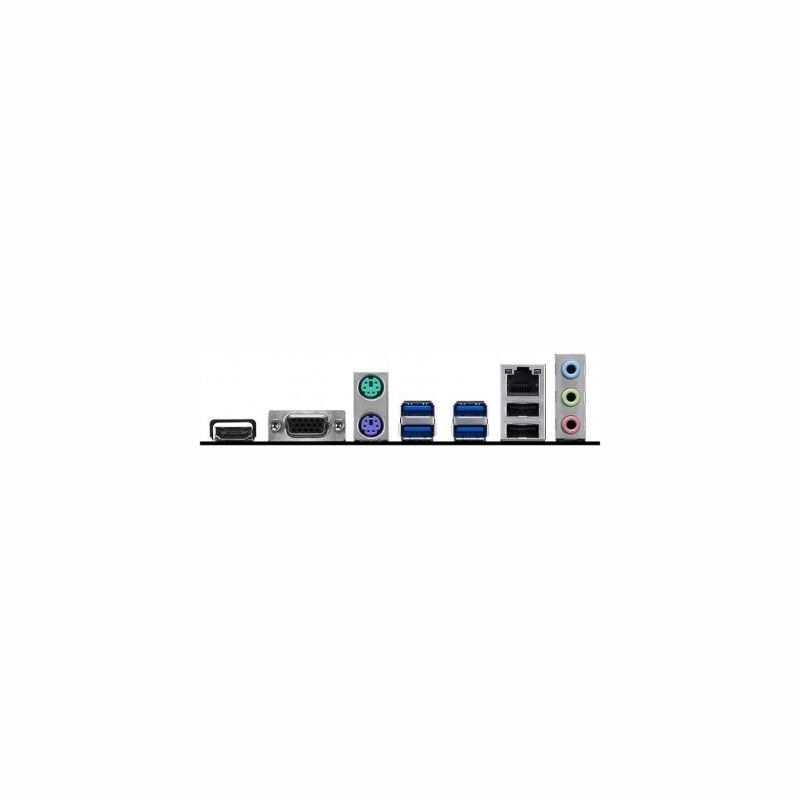

External connectors
4 x USB 3.2 Gen 1 Type-A
External connectors
1 x HDMI
External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
2 x USB 2.0
External connectors
1 x D-Sub
External connectors
1 x PS/2 Mouse
External connectors
1 x PS/2 Keyboard
Onboard connectors
1 x Addressable LED
Onboard connectors
1 x TPM header
Onboard connectors
2 x System panel header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
2 x 4pin Chassis fan
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
4 x USB 2.0/1.1
Onboard connectors
2 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x USB 3.2 Gen 1 Type-C
Onboard connectors
1 x Serial port header
Onboard connectors
1 x Front panel audio header
Onboard connectors
4 x EZ Debug LED
Onboard connectors
1 x Chassis intrusion header
Onboard connectors
1 x EZ Memory Detection LED
Onboard connectors
1 x RGB LED strip header
Form factor
micro ATX
Dimensions
218 x 243.84 mm
Accessories included

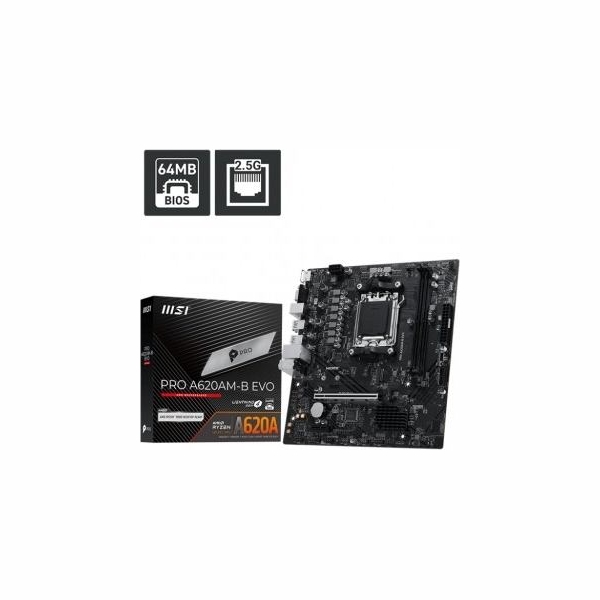

PRO A620AM-B EVO European Union Regulatory Notice Quick Installation Guide E.Z M2 Clip II Remover E.Z M2 Clip II SATA Cable I/O Shield
