CPU: 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2D_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors
Graphics
Integrated Graphics Processor-Intel HD Graphics support: 2 x Intel Thunderbolt 4 connectors (USB4 USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs When a Thunderbolt monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output). 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz; support for HDMI 1.4 version.
Sound card
Realtek ALC1220 CODEC ESS ES9118 DAC chip Support for DTS:X Ultra High Definition Audio 2/4/5.1-channel
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
1 x 10Gbit/s 10GBase-T
Network interface
Bluetooth
Network interface
LAN: Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) Wireless communication: Intel Wi-Fi 7 BE200NGW 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 320MHz wireless standard

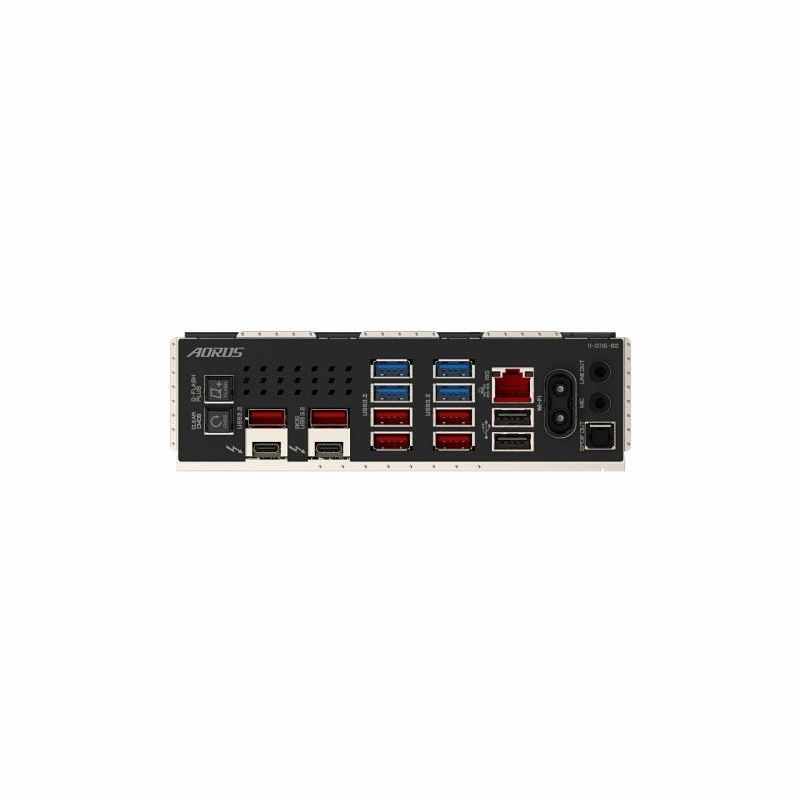

USB ports at back panel
14
USB ports on motherboard
9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
7
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

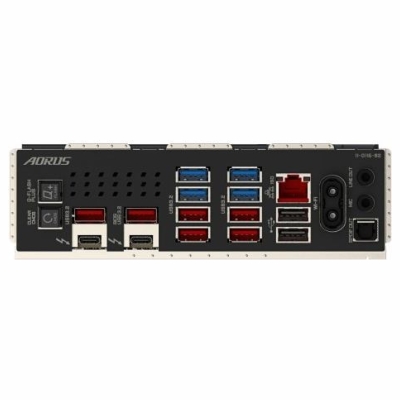

External connectors
1 x S/PDIF
External connectors
2 x USB 2.0
External connectors
1 x MIC
External connectors
1 x Przycisk Clear CMOS
External connectors
4 x USB 3.0
External connectors
6 x USB 3.1
External connectors
2 x SMA
External connectors
2 x Thunderbolt 4
External connectors
1 x RJ-45
External connectors
1 x Line Out
External connectors
1 x Q-Flash Plus button
Onboard connectors
1 x Reset button
Onboard connectors
1 x Voltage measurement module
Onboard connectors
1 x Reset jumper
Onboard connectors
1 x TPM header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
4 x 4pin Chassis fan
Onboard connectors
4 x 4pin Chassis/Water Pump Fan Connectors
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
5 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
4 x USB 3.0
Onboard connectors
1 x USB C
Onboard connectors
1 x HDMI
Onboard connectors
1 x System panel header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x Power button
Onboard connectors
2 x temperature sensor
Onboard connectors
1 x Noise detection header
Onboard connectors
1 x RGB LED strip header
Onboard connectors
4 x Adresowalna dioda LED
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX
Dimensions
30.5 x 24.4 cm
Supported operating systems
Windows 11
Software
Norton Internet Security (OEM version) LAN bandwidth management software
