CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 CPU: 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Graphics
1 x DisplayPort, supporting a maximum resolution of 3840 x 2160 at 144 Hz * Support for DisplayPort version 1.4. 1 x HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz * Support for HDMI 2.1 and HDCP 2.3 versions. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on processor support.) Support for up to 3 displays simultaneously
Sound card
Realtek audio codec High quality sound 2/4/5.1/7.1-channel * Audio jack functionality can be changed via audio software. To configure 7.1 channel audio, go to your audio software to set up the sound.
Network interface
1 x 10/100/1000 Mbit/s
Network interface
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
USB ports at back panel
6
USB ports on motherboard
6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
4
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

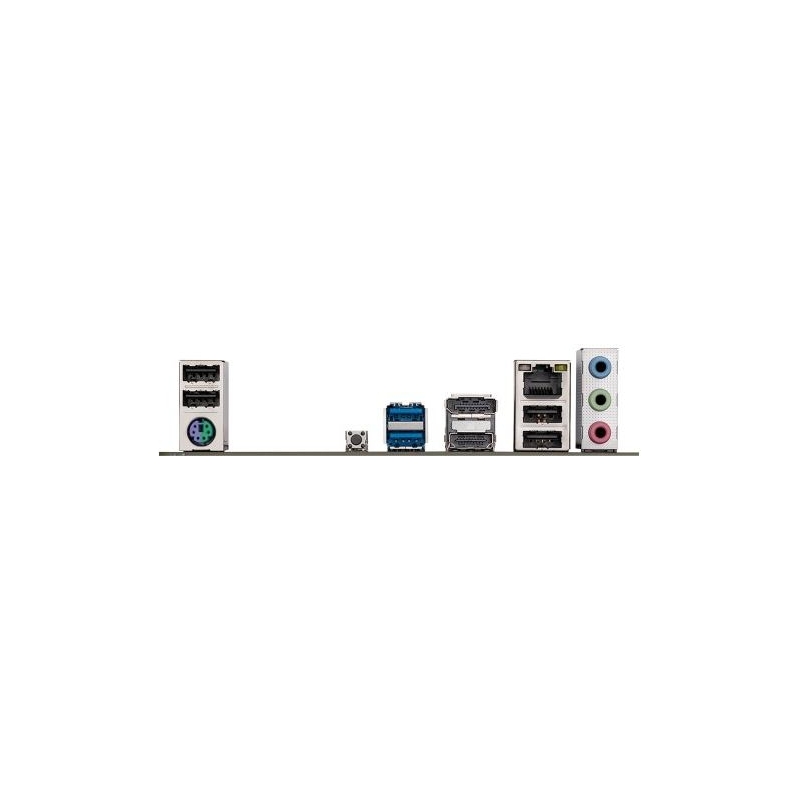

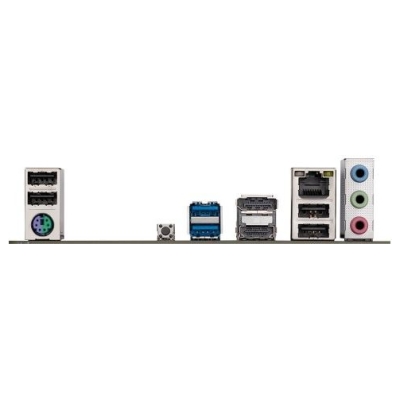

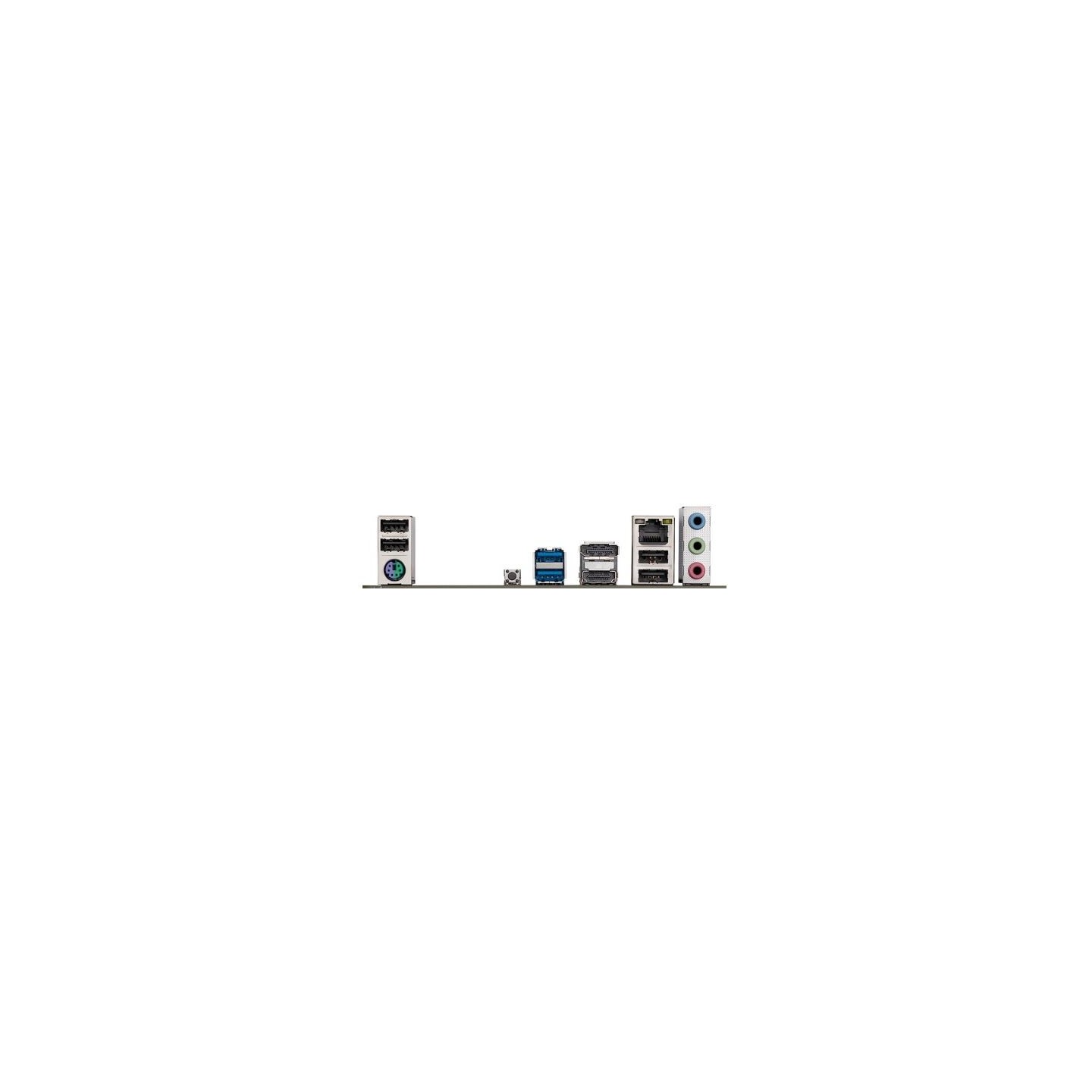

External connectors
1 x DisplayPort
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
4 x USB 2.0
External connectors
1 x HDMI
External connectors
1 x Line In
External connectors
1 x RJ-45
External connectors
1 x PS/2 Keyboard/MouseCombo
External connectors
1 x Q-Flash Plus button
External connectors
2 x USB 3.0
Onboard connectors
1 x TPM header
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.0 header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
2 x 4pin Chassis fan
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
1 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x System panel header
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
micro ATX
Dimensions
23 x 22.5cm
Supported operating systems
Windows 11
Supported operating systems
Windows 10
Software
Norton Internet Security (OEM version) LAN bandwidth management software
Other information
Voltage detection Temperature detection Fan speed detection Cooling water flow rate detection Fan failure warning * Whether fan speed control is supported depends on the installed fan.
